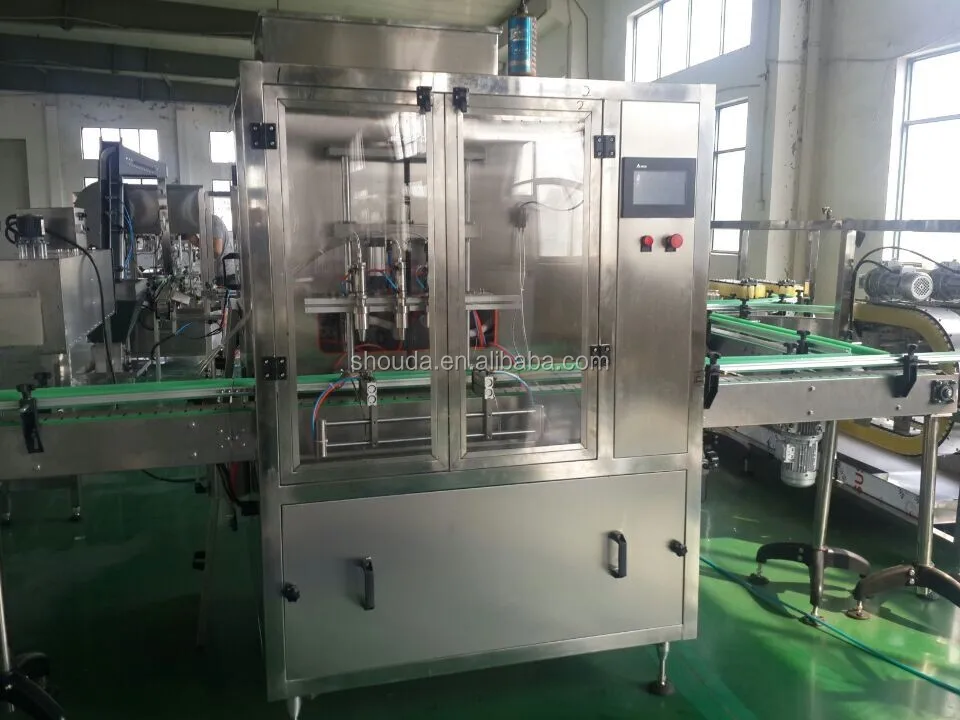

Factory price automatic edible oil filling machine and packing line
Product Description
Brief introduction
This machine is specially made for filling all kinds of viscousity materials in food industry, such as chocolate paste,peanut butter, tomato sauce/jam/ketchup, honey, yogurt etc. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision. The whole machine is made of high quality stainless steel.
Feature:
1. The machine use piston pump rotary valve structure to fill, suitable for all kinds of sticky sauce, high precision; The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.
2. The piston ring of volumetric injection pump use different material of silicone, polyflon or other kinds according to sauce characteristic.
3. PLC control system, frequency conversion adjusting speed, high automatically.
4. The machine will stop filling without bottle, count bottle quantity automatically.
5.Filling quantity of all pumps is adjusted in a lump, each pump is minim adjustable. Operate easy and quickly.
6. Filling head adopts rotary valve piston pump with the function of anti-draw and anti-dropping.
7. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.
8. The whole machine meets GMP requirement
Parameter
Model
YG series
Filling volume
100-1000ml;1-5L
Filling head
2
4
6
8
10
12
Filling capacity(based on 250ml and material state )
800-1000b/h
1500-2000b/h
2000-2500b/h
2500-3000b/h
3500-4000b/h
4000-4500b/h
Filling precision
≤±0.1%
Power supply
380V,220V 50-60HZ
Power
≤1.5kw
Air pressure
0.4-0.6MPa
Net weight
450kg
Dimension (mm)
1440*850*1600

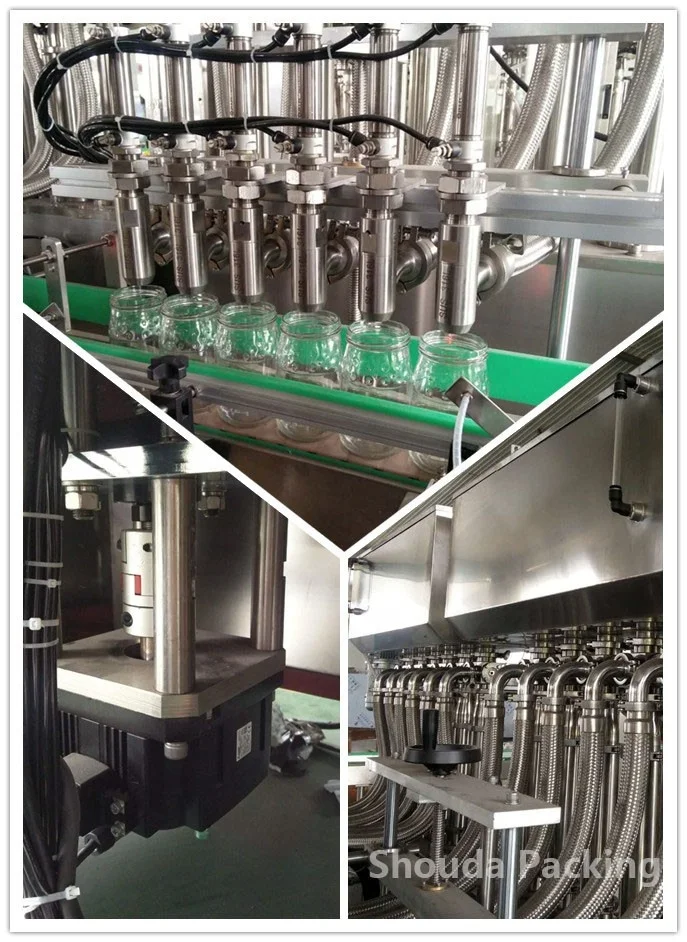

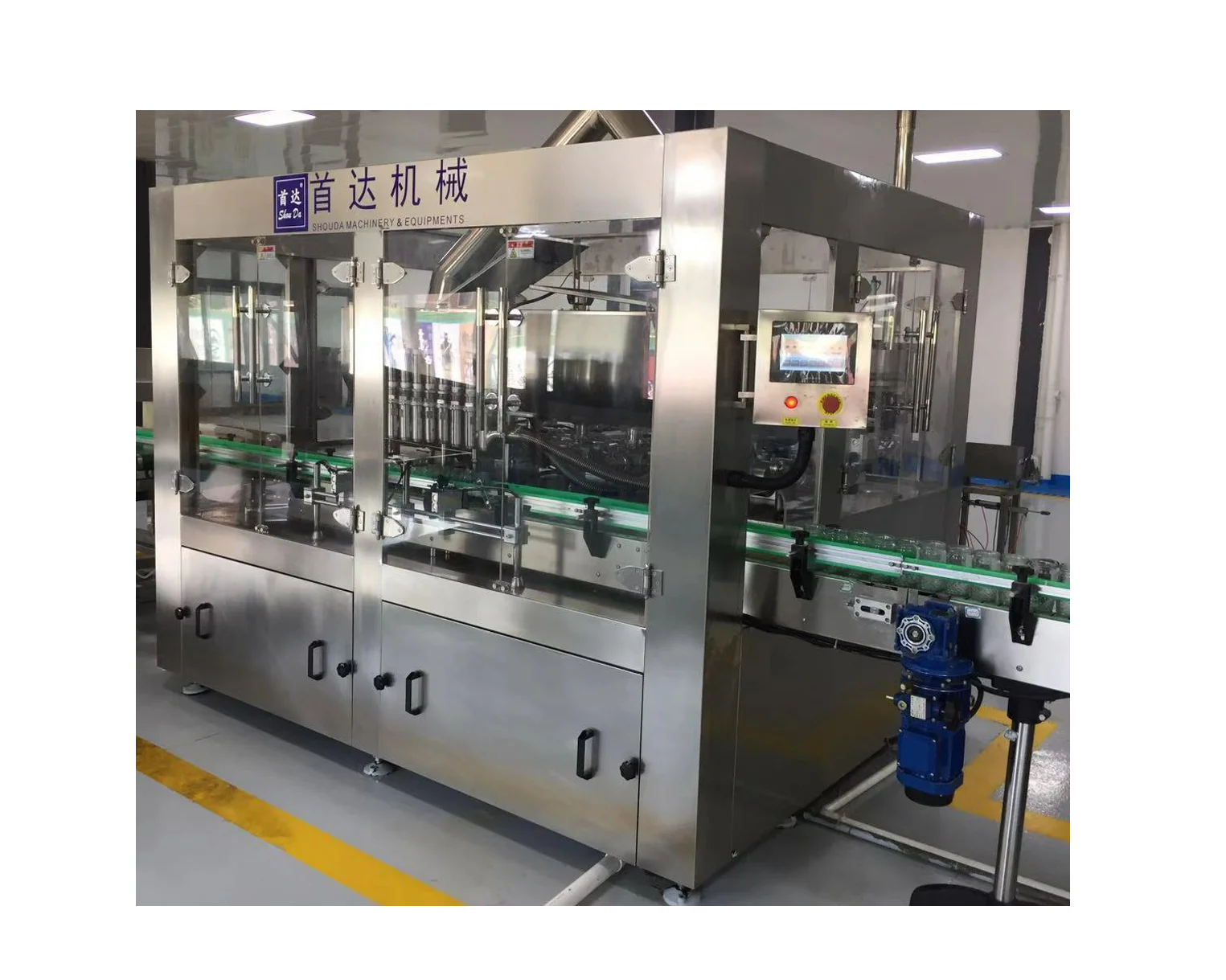

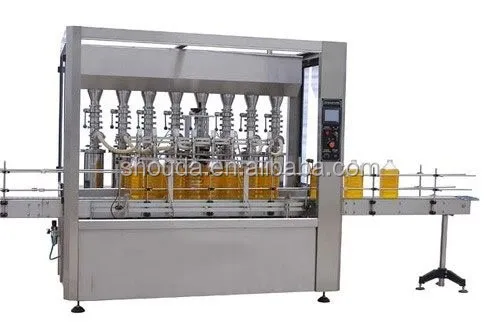

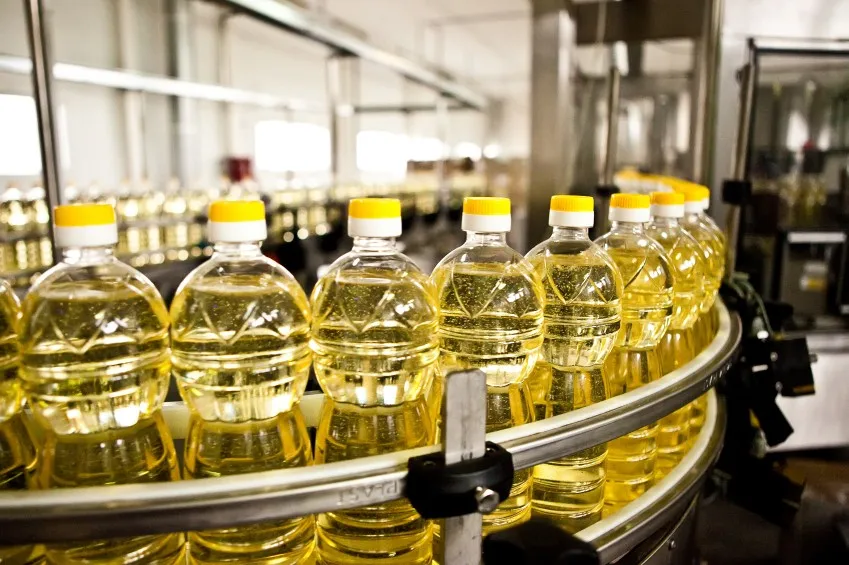

Product samples:
Our Services
After-sales service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.
Installation and Debugging
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
Company Information
Shanghai Shouda Packaging Machinery & Material Co., Ltd., which has over 15 YEARS' EXPERIENCE, is a professional manufacturer of automatic packaging machineries & automatic filling and packing production line for liquid, gel, aerosol product.
Shouda has passed CE certificate Standard of EU and meet the requirement of GMP. The company has gained wide reputation with the immediate and perfect round-the-clock service provided by senior engineers. Please bear in mind that Shouda will make you moved at the same time.
Samples show

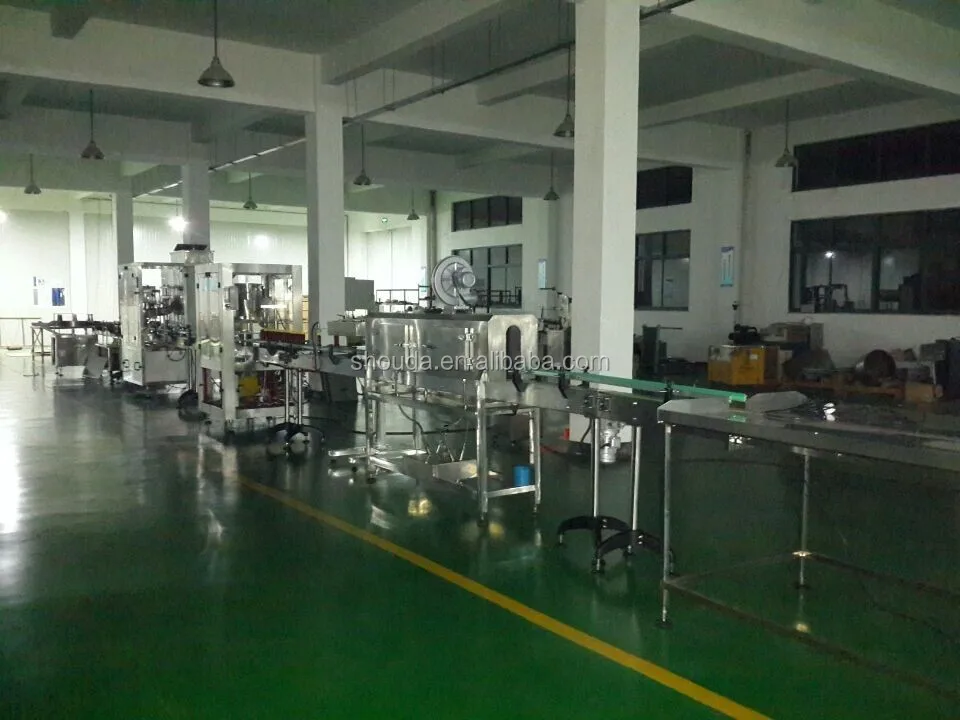

Photos of factory

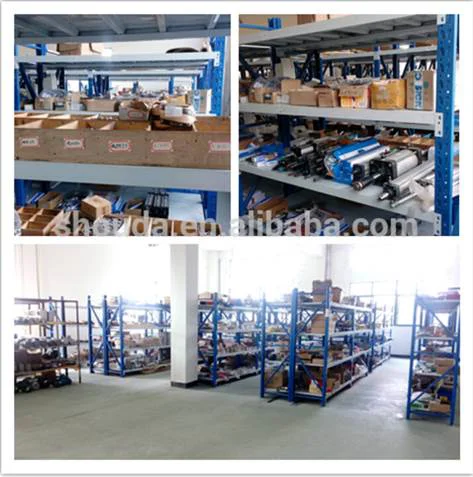

Photos of warehouse
Customers’ visit & exhibition
Certificate
FAQ
Our business involves various markets all over the world, in many fields with our excellent product performance.
1.Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 15 years experience.
2.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
3.Q:How to order?
A:You can send me an inquiry,then we could confirm the details through emails or telephone.
4.Q:How much is the transportation freight?
A:The freight depends on the weight and size,also the destination port.
NOTE:When you send inquiry,please also included the capacity and bottles shape you need to work on the machine, it is easy and accurately for us to recommend a right machine! If any special,our manufacture also can design the machines according your requirement.
