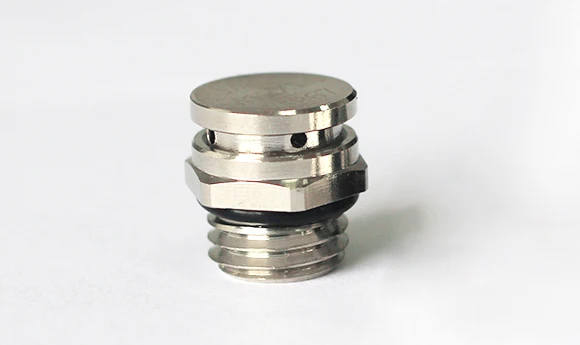

Waterproof Breathable vent plug Air Permeable screw valve M6 M8 M10 M12 M24 M32
- Category: >>>
- Supplier: Jiaxing Shengyang Electric Co. Ltd
Share on (1600052810784):
Product Overview
Description
Waterproof Breathable vent plug Air Permeable screw valve M6 M8 M10 M12 M24 M32
Product Description
1. air vent plug Basic Information
| Thread specifications: | Metric thread, in line with the eu norms. |
| Products Material: | nickel plated brass |
| Product certification: | European CE certificate,European environmentalROHS, REACH certificate,The United States UL certification, and explosion-proof certification of the EX. |
| Protection Level : | Within the scope of the provisions, achieve IP67bar. |
| Color type: | metalic. |
| Working temperature: | Static: - 50 ℃ ~ + 120 ℃ short time can be up to + 150 ℃. |

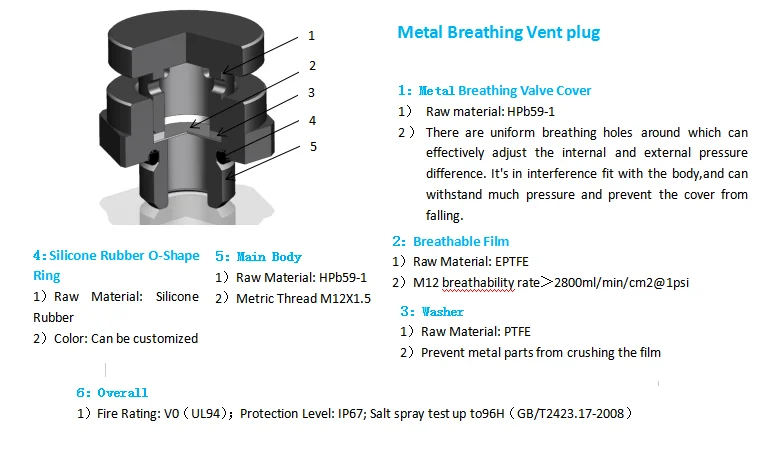

| Product features: | There is a breathable film inside the breather valve, which has excellent breathability and can quickly balance the internal and external pressures. The nylon snap ring fits the body in an interference fit. The breathable membrane is tightly pressed to prevent the adhesive from failing and causing air leakage. body An internal short-circuit explosion occurs. The puncture point can puncture the breathable membrane to release pressure. At the same time, the product prevents rain, dust, oil and particles from invading, and prolongs the service life of automotive electrical and electronic components. It is mainly used in automotive parts and outdoor lighting Lighting, communication equipment, circuit control, motor, new energy and other fields. |

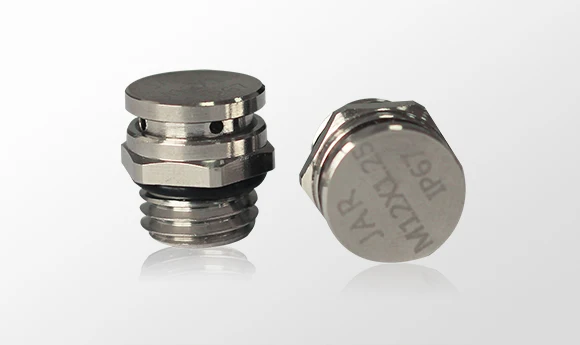

2.Breathable Waterproof Breathable vent plug Air Permeable screw valve M6 M8 M10 M12 M24 M32Pictures

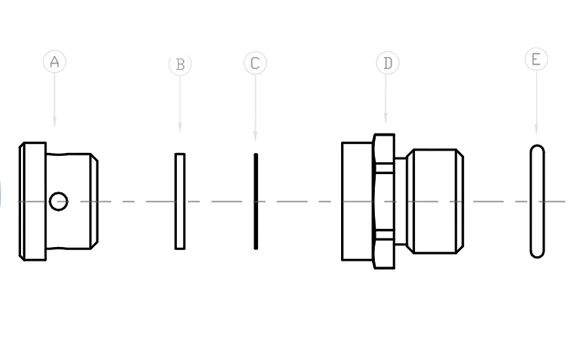

3. air vent plug Detail

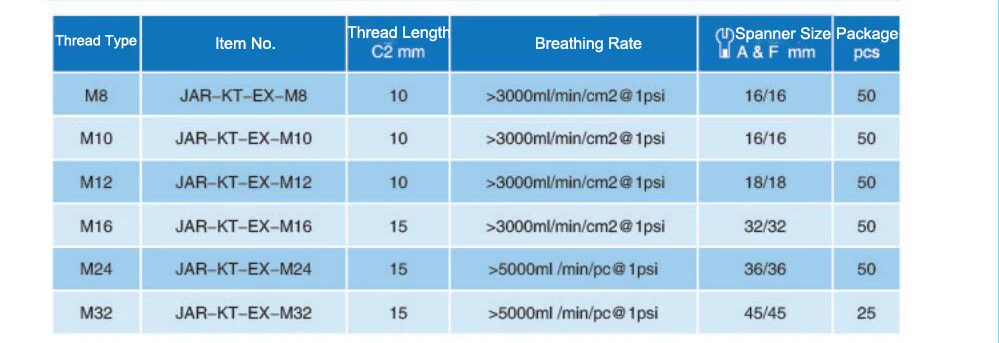

4.Technical Specifications m16 air vent plug
product application
Packing & Delivery
Details:brass vent plug
- Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
- Nylon Breathable Valve packing can be supplied according customers request.
- Delivery Detail:
- Shipped in 7 days after payment
Certification
sales process
Our company
Established in 1999, ShengYang electric company has been boomed and prospered in areas of Shanghai, Jiaxing, etc.. Ever since then, the company has been dedicated to the R&D of cable wiring equipment, the manufacture and the sales.The series of fixed head cables have been rated as the top-selling products since 2008 among peers in industry.

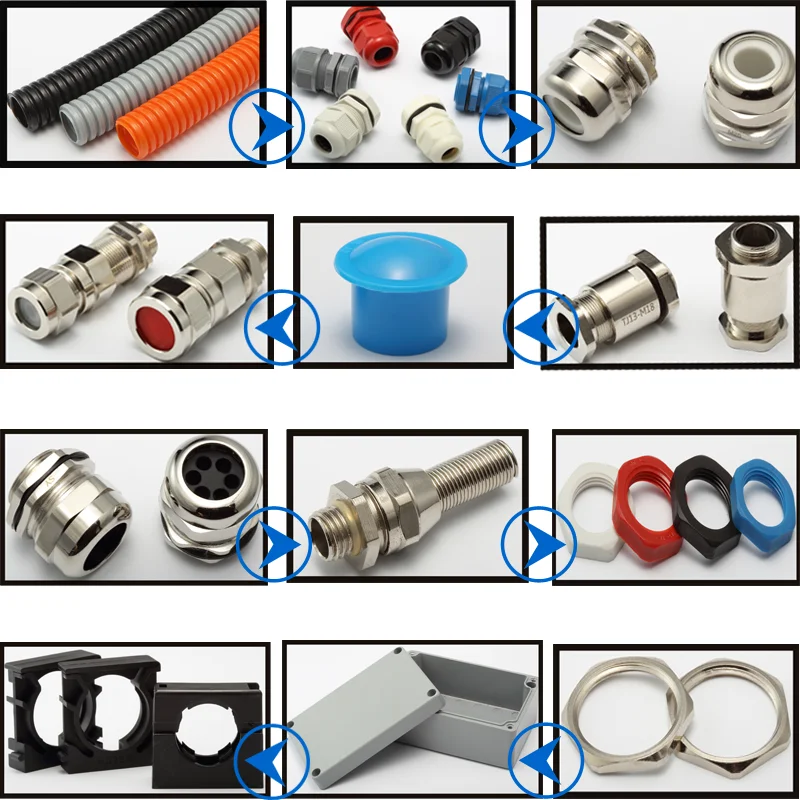

Related products
RFQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the Nylon Cable Gland sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
