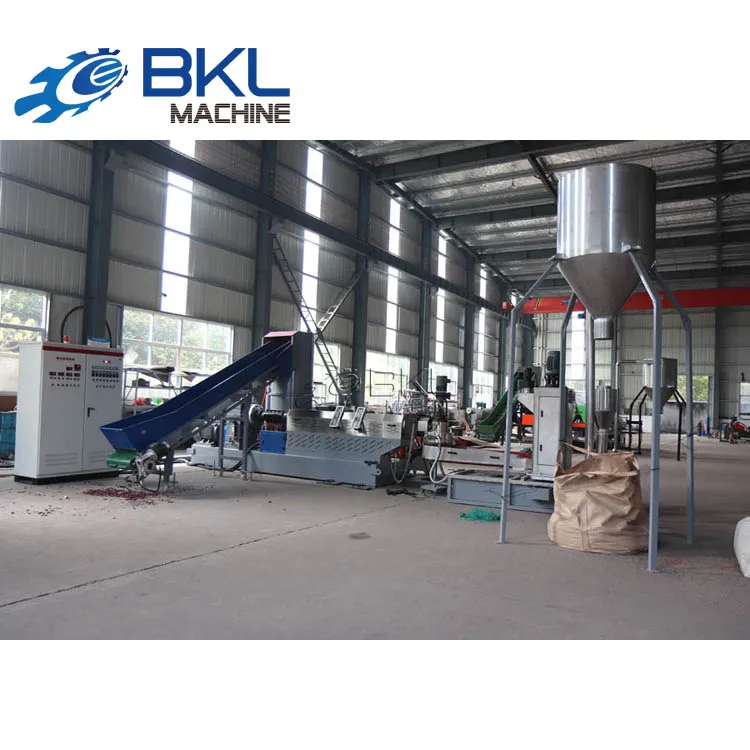

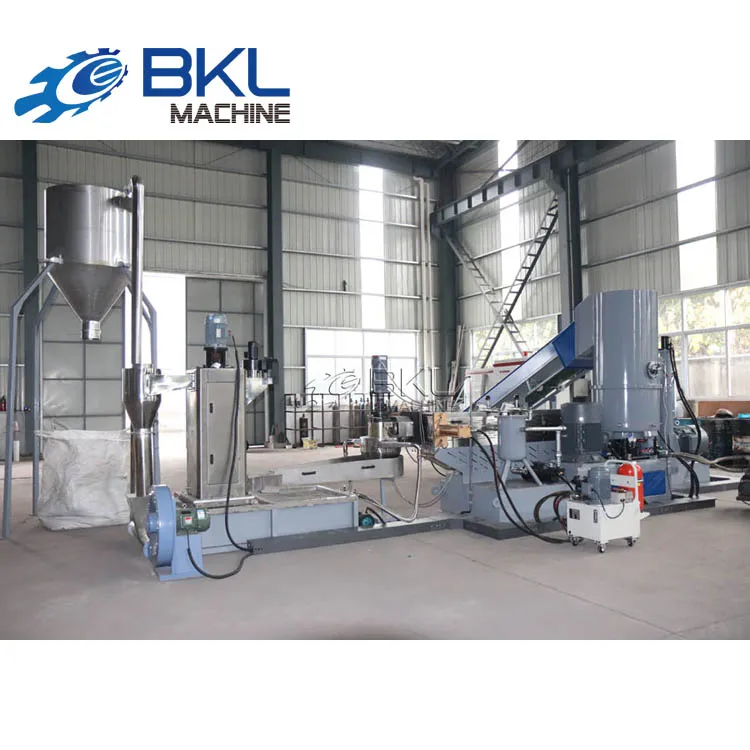

Offcut PE film bag Plastic pelletizing recycling machine /Plastic recycling pelletizing machine

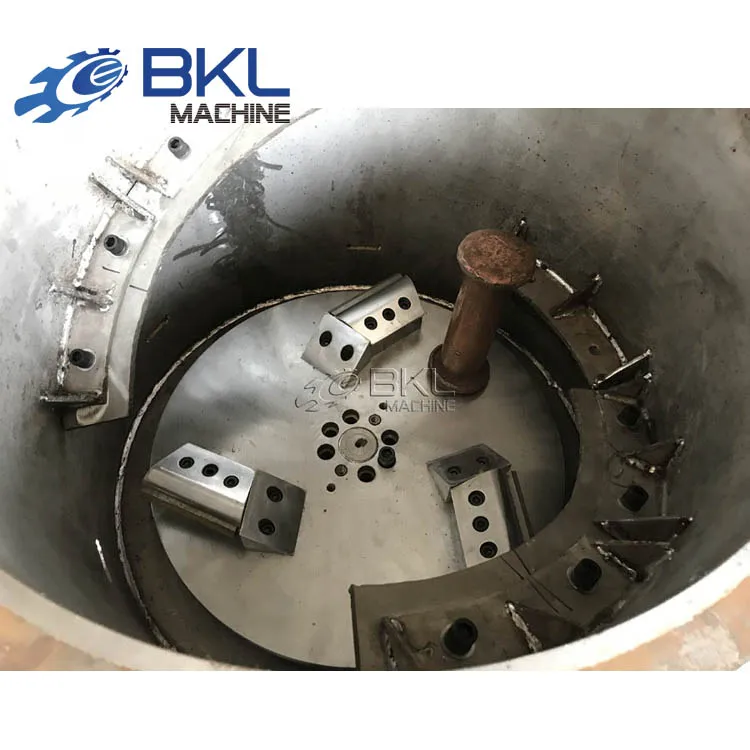

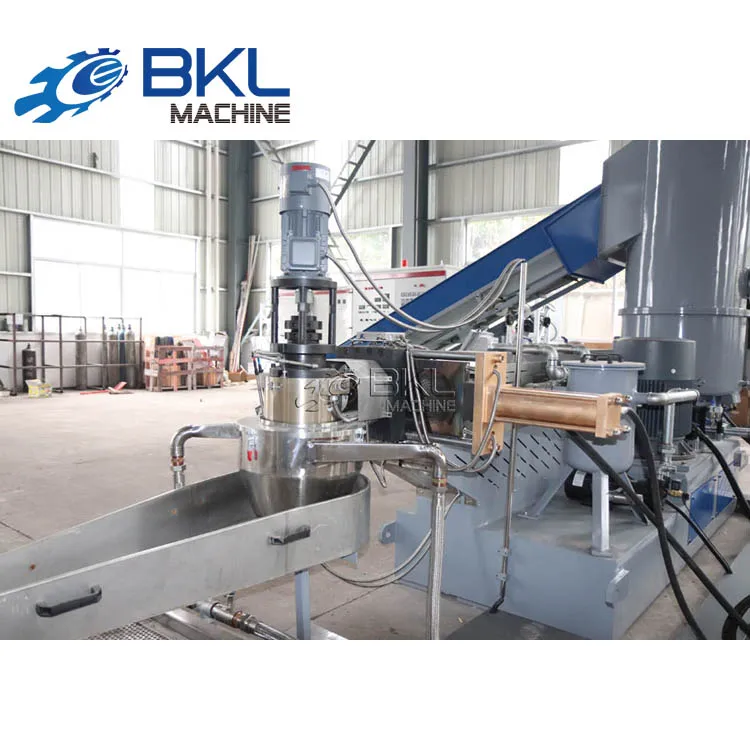

Cutting Compactor single stage pelletizing recycling line is equipped with a integrated cutter compactor ( agglomerator) on main extruder compared with the ordinary granulation machine. This new design makes the machine in compact structure,
Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into extruder evenly. The degassing system and hydraulic screen changer equipped on extruder for get high purity pellets finally.The cutting system adopts to die face (water-ring) or strand( spaghetti) cutting for varies material application.

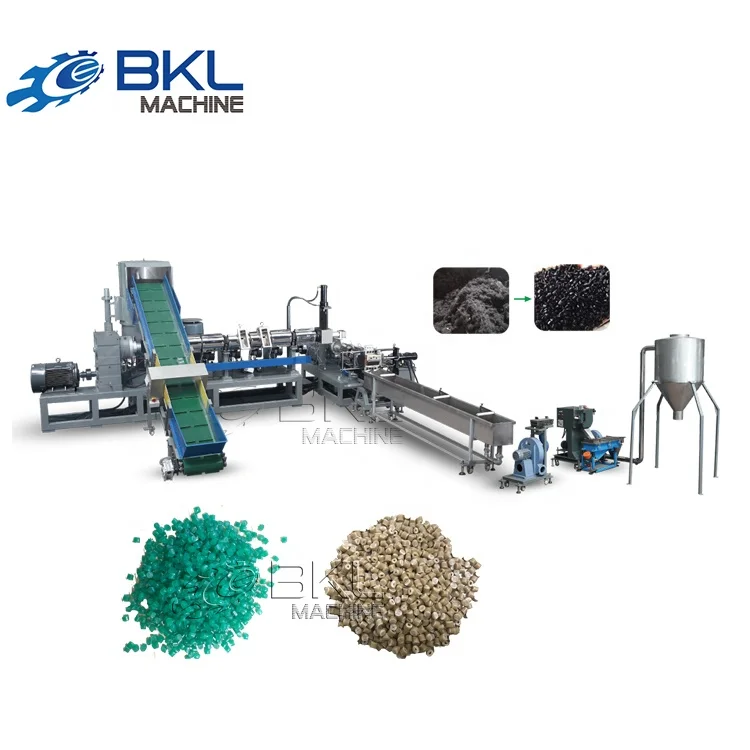

Components and downstream machines:

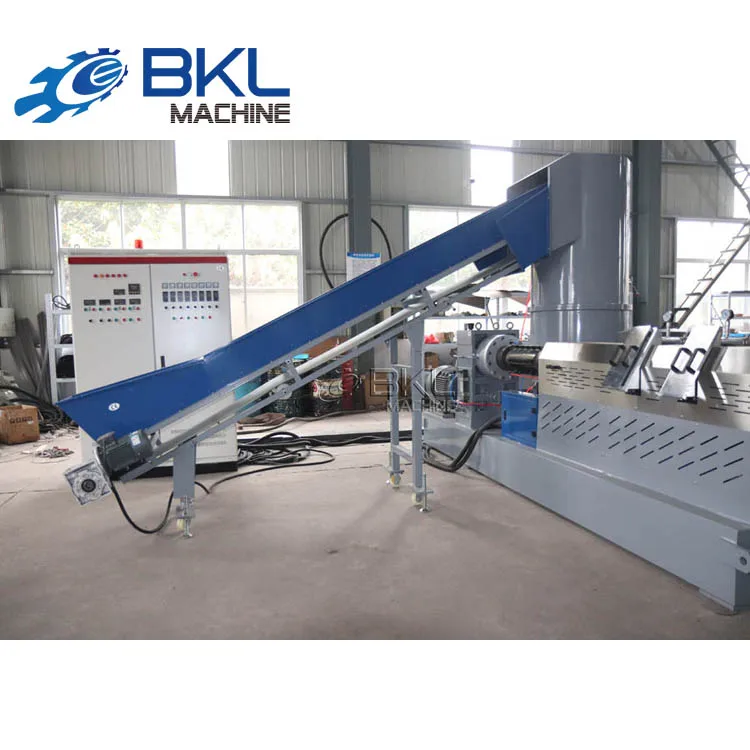

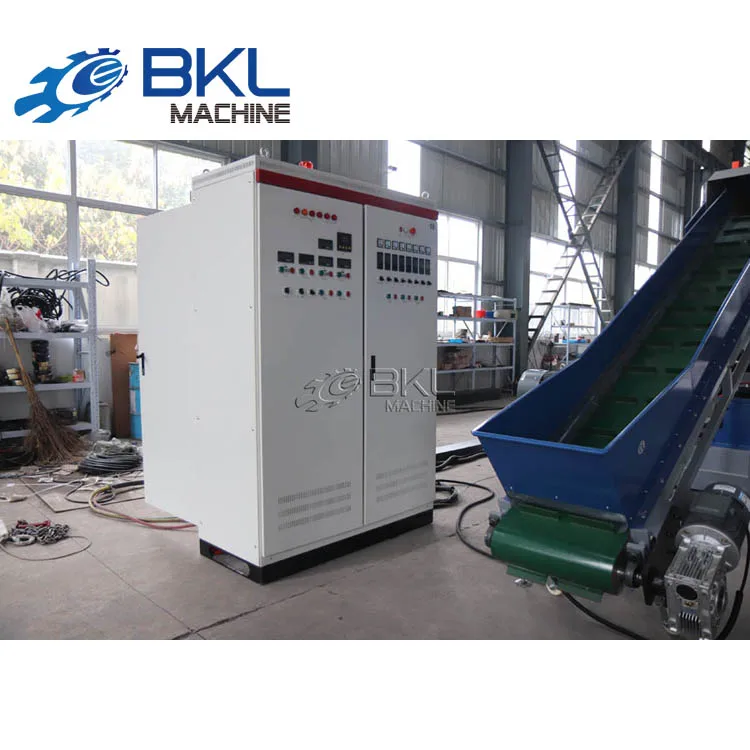

▶Belt conveyor
▶Cutting compactyor

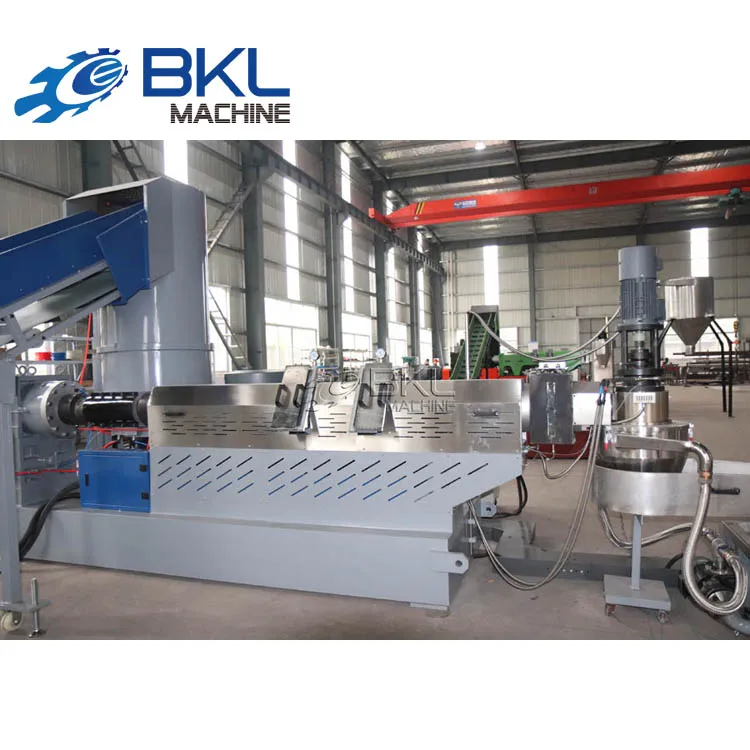

▶Single screw extruder
▶Filtering device

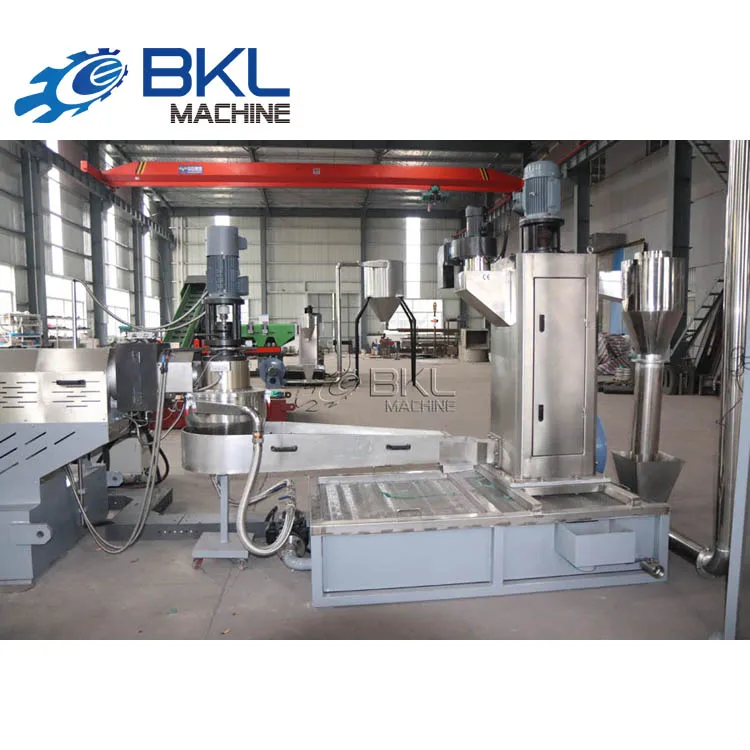

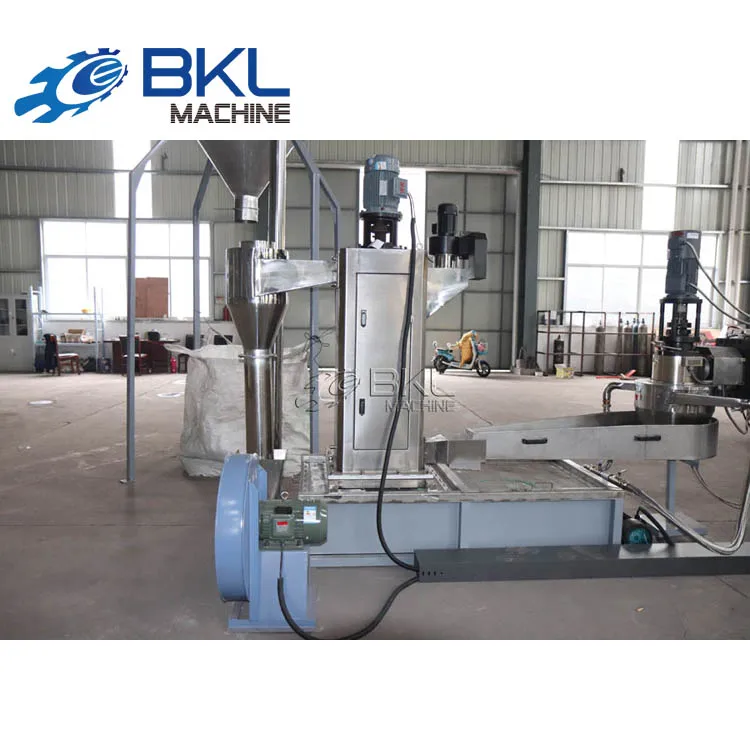

▶Pelletizing system(water-ring cutting system with Dehydration machine or cooling tank with strand cutting pelletizer for option)
▶Vbiration machine
▶Air blowing system&silo for packing.
Applicated material:PE, HDPE, LDPE, PP, BOPP, PET,PA/Nylon, etc Material shapes: film, bag,fiber,rope scrap Material types: rolls, loose, bundled Material comes from offcut, industry defective materials, washed materials and printed materials Note: depending on different material properties, various downstream equipments are needed.
Specification
Series
Model
Screw Diameter(mm)
L/D
Capacity (kg/h)
ML
SJ65
65
33:1
60-100
SJ85
85
33~36:1
100~250
SJ100
100
33~36:1
200-350
SJ130
130
33~36:1
400-600
SJ160
160
33~36:1
650-800
SJ180
180
33~36:1
700-1000
