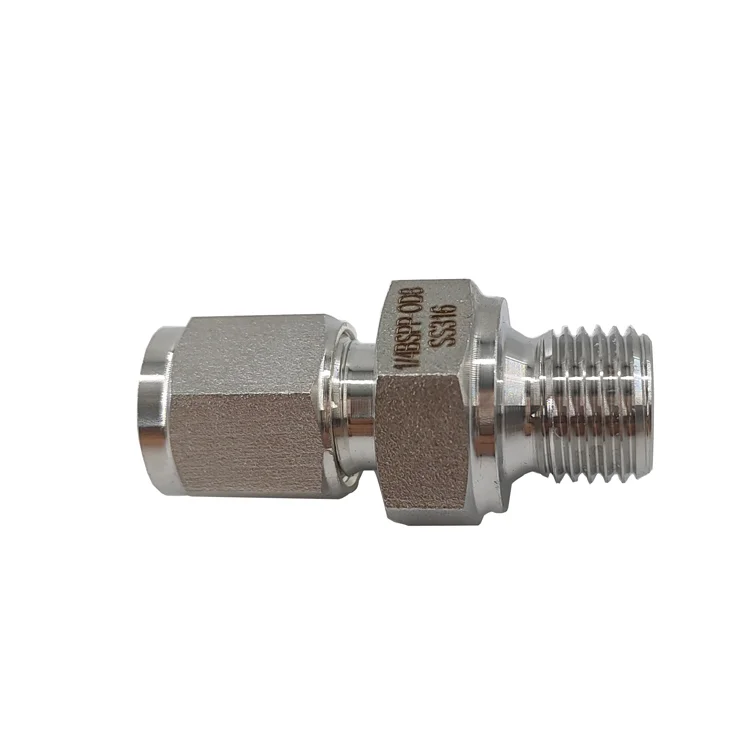

8mm Tube x 1/4 in. BSPP Male Connector 316 Stainless Steel Compression Fitting and Tube Fitting
- Category: >>>
- Supplier: Hubei Hi-Tek Valve And Fitting Co. Ltd.
Share on (1600052870906):
Product Overview
Description
Product Description
Specification
Item | Value |
Product name | 8mm Tube x 1/4 in. BSPP Male Connector 316 Stainless Steel Compression Fitting and Tube Fitting |
Material | SS 316L, SS 316, SS304, CS, Brass |
Tube fitting Size | 1/16" to 1 1/2" for inch tube, 2 mm to 38 mm for metric tube |
Thread size | 1/16" to 1 1/2", M3 to M27 |
Connection | Tube fitting/ Female/ Male/ JIC |
Thread series | NPT BSPP BSPT Metric, and other thread |
Nut feature | Sliver plated |
Normal pressure | 25 Mpa to 40 Mpa |
Normal temperature | ＜450°C |
Media | Oil, Water, Gas and other non-corrosive or corrosive media |
Standard | GB3733.1~3765-83 |
Product detailed pictures
Prefer high-quality stainless steel
Good quality, not easy to rust. The ferrule is connected firmly, with high pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable work
Nut with sliver plated
Smoother installation,
Ferrules: optional heat treatment
Exquisite appearance
CNC machining,
No burr
Feature
1.Good sealing
2.Pressure resistant and durable
3.Not easy to rust
4.Wide range of use
* Fitting connects to tubing on one end and has an NPT female connector on the other
* Chemically hardened type 316 stainless steel for higher strength and greater corrosion resistance than untreated stainless steel
* Double ferrule compression fitting for a leak-resistant seal in high-pressure applications
* For use with stainless steel pipe and tubing
Installation Instructions
how to connect tube fitting accurately and securely every time to make sure it’s safe for you?
1:make sure tube is properly prepared.ensure the tube is clean. deburred and tube hardness and match the tube fitting specification .
2:bottom the tube fitting at the back of shoulder on.
3:take the nuts until can not hand tighten anymore
4:use a marker to mark the nuts at 6:00, rotate the nuts with a wrench 1 1/4" turn from tight
notice:
1:make sure tube is properly prepared.ensure the tube is clean. deburred and tube hardness and match the tube fitting specification .
2:bottom the tube fitting at the back of shoulder on.
3:take the nuts until can not hand tighten anymore
4:use a marker to mark the nuts at 6:00, rotate the nuts with a wrench 1 1/4" turn from tight
notice:
every user must use the gauge to check the gap between the nuts and body. when we use the tightening this correctly.
this is only one spot that will give us the max sealing potential for a safe and sure connection. under tightening cause the ferrules inside not to bite which can at pressure. release this tube making it become a projectile. over tightening can crush and damage the ferrules, so we make sure the nuts it tightened to the precise spot every time.
so what can happen if we install a fitting that is over tighten or under tightened?
firstly you may have to throw away the fitting. a tubing run might have to be replaced which cause a lot of time and expense .also more concerning it the potential for safely issue. the media running through our tube maybe at high pressure. it may be high temperature. it maybe caustic chemicals that can be harmful. so any time we increase the potential for a leak. we are looking at a serious consequences.
for more question about the tube fitting .please contact us .
this is only one spot that will give us the max sealing potential for a safe and sure connection. under tightening cause the ferrules inside not to bite which can at pressure. release this tube making it become a projectile. over tightening can crush and damage the ferrules, so we make sure the nuts it tightened to the precise spot every time.
so what can happen if we install a fitting that is over tighten or under tightened?
firstly you may have to throw away the fitting. a tubing run might have to be replaced which cause a lot of time and expense .also more concerning it the potential for safely issue. the media running through our tube maybe at high pressure. it may be high temperature. it maybe caustic chemicals that can be harmful. so any time we increase the potential for a leak. we are looking at a serious consequences.
for more question about the tube fitting .please contact us .
Product packaging
Poly Bag
Carton
Waterproof Woven Bag
Pallet
Related Products
Customers feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
B: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
B: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
