42/57 stepper motor driver control board TB6600 upgraded version 32 subdivision 4.0A40VDC drive module
- Category: Motor Drivers >>>
- Supplier: Shenzhen Cxcw Electronic Co. Ltd.
Share on (1600052952511):
Product Overview
Description
The TB6600 upgraded driver is a professional two-phase hybrid stepper motor driver, which can be adapted at home and abroad
Various brands, current is 4.0A and below, outer diameter 39, 42, 57mm four-wire, six-wire, eight-wire two-phase hybrid stepper motor. Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, pick and place device, etc. It works well in devices where users expect low-cost, high-current operation.
Features
~Signal input: single-ended, pulse / direction
~Subdivision is optional: 1/2/4/8/16/32 subdivision
~Output current: 0.5A-4.0A
~Input voltage: 9-42VDC
~The current is automatically halved when at rest
~Can drive 4, 6, 8 wire two-phase, four-phase stepper motor
~Optocoupler isolated signal input, strong anti-interference ability
~With overheating, overcurrent, undervoltage lockout, input voltage anti-reverse protection and other functions
~Small size, easy to install

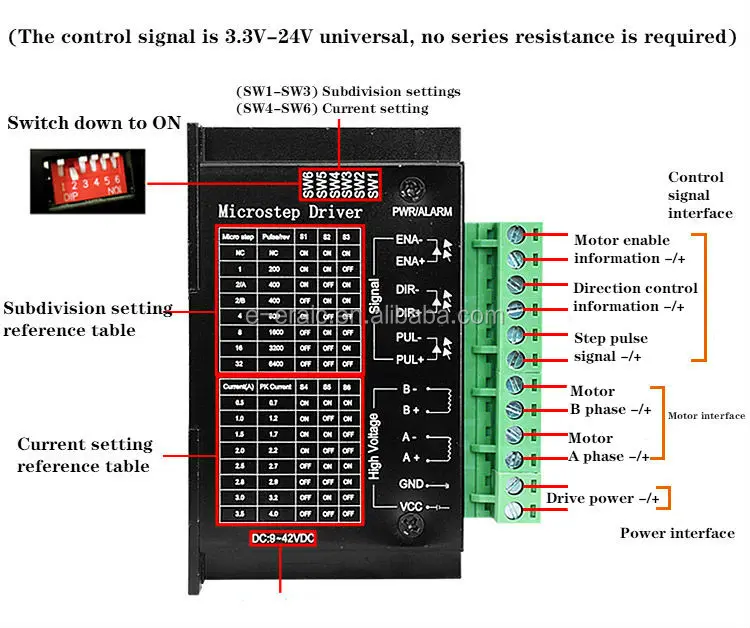

~The external signal is 3.3-24V universal, no series resistance is required
The current is selected by DIP switch * The interface adopts high-speed optocoupler isolation * Eight subdivisions are adjustable
Automatic half-flow reduces heat generation * Large-area heat sink is not afraid of use in high temperature environment
Input voltage anti-reverse protection * Overheating, overcurrent short circuit protection * Fault red warning light
Control signal connection:
PUL +: The pulse signal input is positive. PUL-: The pulse signal input is negative.
DIR +: positive and negative control of the motor. DIR-: Motor positive and negative control negative.
ENA +: Motor offline control is positive (generally not connected). ENA-: Negative motor offline control (generally not connected).
Motor winding connection
A +: Connect the A + phase of the motor winding. A-: Connect the A-phase of the motor winding.
B +: Connect B + phase of motor winding. B-: Connect B-phase of motor winding.
Supply voltage connection:
VCC: positive power supply "+" GND: negative power supply "-"
Note: DC range: 9-42V is recommended. Up to 50V, can not exceed this range, otherwise it will not work properly or even damage the drive.
