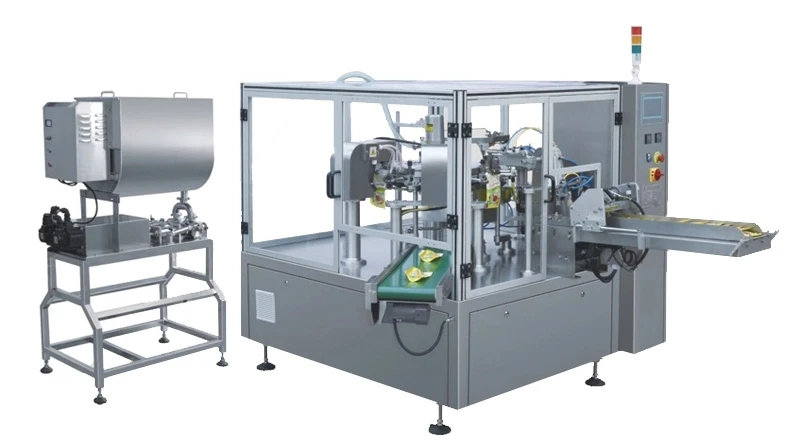

Plastic Bag Liquid Filling Sealing Machine With Promotional Price

Product Overview

Description





Overview:
This set of equipment consists of a rotating bag-type packaging machine and a liquid sauce filling machine.to make. Mainly suitable for dry: liquid, sauce, paste, such as detergent, fruit Juice, hot pot bottom, ketchup, peanut butter, jam, chili sauce, beans Automatic packaging of materials such as petal sauce.



echnical data:
Model	RL200-Y	RL260-Y	RL320-Y
Pouch material	PP/PE Laminated film PP/PE Foil

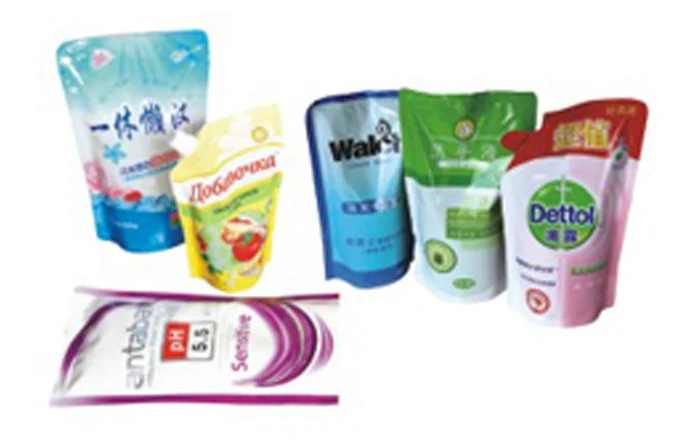

Pouch pattern	Stand-up pouch, flat bag, zipper bag, retort pouch
Pouch size	W:80-200mm	W:140-260mm	W:180-320mm
	L:100-350mm	L:350/450mm	L:450mm
Filling Scope	≤1000g	≤3000g	≤5000g
Weight Accuracy	≤±1%	≤±1%	≤±1%
Speed	20-50bag/min	10-40bag/min	5-30bag/min
	The speed depend on the product status and filling weight
Voltage	380V 3phase 50HZ
Total power	3KW
Compress air	0.6m³/min(provided by the user)



Characteristics:
1. packing speed, performance and stability. It enables enterprises
to achieve packaging automation, thereby increasing productivity
and dramatically reduce production costs.
2. HMI (PLC +HMI) control systems, mechanical and electrical Inte-
gration, convenient and simple to operate.
3. The width of the bags could be adjusted by electrical motor. Press
the control-button could adjust the width of clips, easily operate, and
save time.
4. packing materials loss low, this machine uses prefabricated bags,
perfect bags pattern, good sealing quality, thereby improving product
quality.
5. with a stirring device to prevent micro particles precipitated mates
6. with level control device.
7. rinse waterproof design, easier to clean.
S. Quantitative servo motor control, speed and capacity can be adjust
directly on the touch screen.



Performance characteristics:
1. Fast packaging speed and stable performance. Enables companies to automate packaging and improve their health Productivity. Significantly reduce production costs.
2. Man-machine interface (PLC+HMI) control system, realizes electromechanical integration, and is easy and convenient to operate.
3. Adjust the bag width with motor control, press and hold the control button to adjust all the machine clips at once Width. Easy to operate, saves time and effort.
4. Low loss of packaging materials. This machine uses prefabricated bags. The packaging bag is perfect. Sealing quality Ok, thus improving the product quality.
5. With stirring device to prevent precipitation of micro-slurry material.
6. With liquid level control device.
7. Waterproof flush design makes cleaning more convenient.
8. Servo motor control quantification, speed and capacity can be adjusted directly on the touch screen.

Application Field







Q1: ARE YOU THE MANUFACTURER OR TRADING COMPANY?
A1: We are the manufacturer, also we establish the trading company to make easy export.



Q2: HOW LONG IS THE DELIVERY TIME?
A2: It is depend on the quality. A few goods, we promise to send in 1-3days. Most have in stock. A big order, we promise to send in 7-15days.



Q3: HOW CAN WE GET THE SAMPLES? IS IT FREE?
A3:We provide free sample by express, but you need pay the express charge.



Q4: HOW ABOUT THE QUALITY?
A4: 100% Quality control in produce and before package.



Q5: HOW ABOUT THE AFTER-SALE SERVICE?
A5: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
