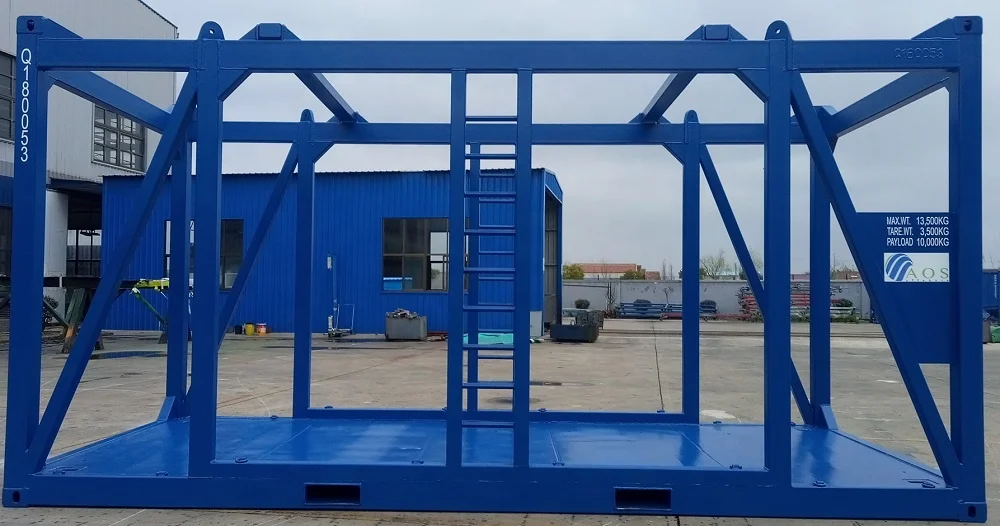

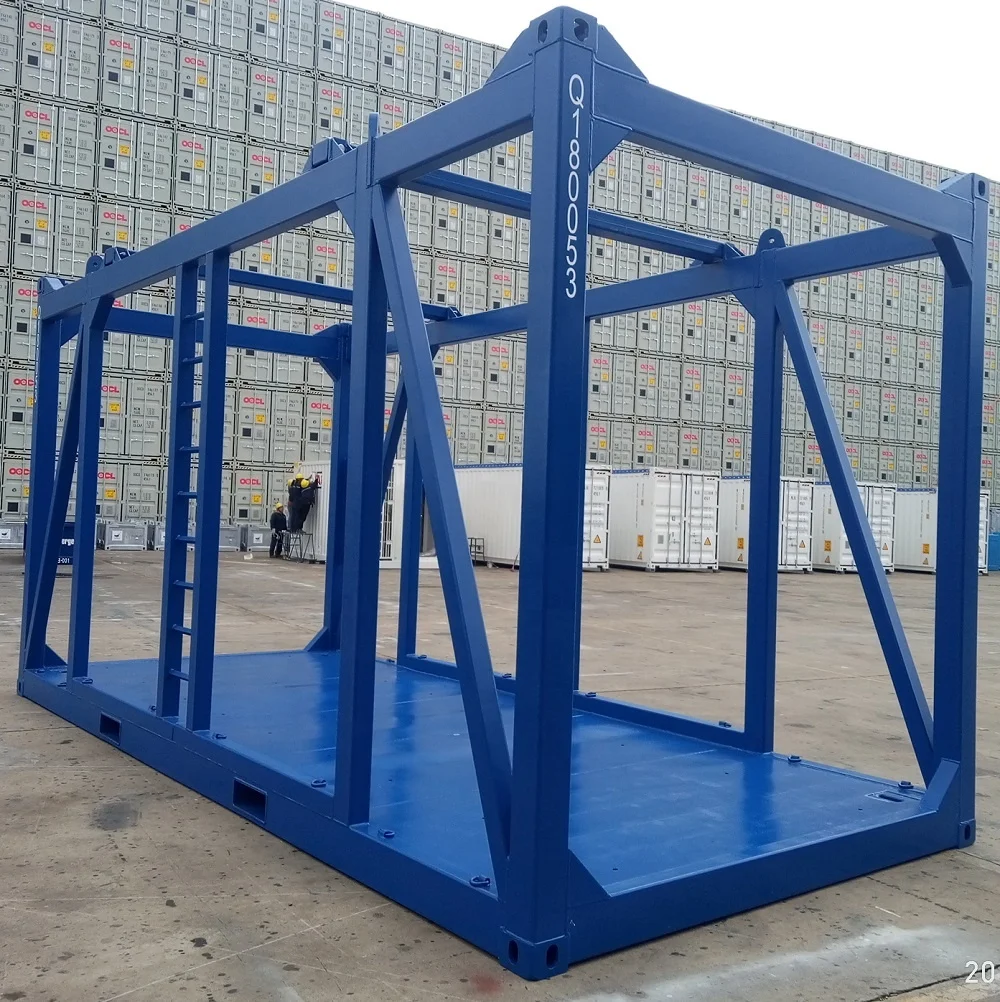

The 21ft offshore lifting fram is designed with padeye as per DNV2.7-1 and ISO 10855-1 standard, which is used on oil and gas offshore platform to lifting and transport 20ft ISO standard shipping container from onshore to offshore.


21ft DNV2.7-1 Offshore Lifting Frame Specification
External Dimension
6470 x 2820 x 3309mm (L x W x H)
Internal Dimension
6258 x 2608 x 2950mm (L x W x H)
Max. Gross Weight
13,500 kg
Tare Weight
 3,500 kg
Max. Payload
10,000 kg
Inside capacity
48.1 CBM
Design Temperature
-20℃ / -40℃
Lifting Angle
45°
Certificate
DNV2.7-1




Structure


* Corten steel SPA-H, Q345
* ISO container size
* DNV 2.7-1 / CSC certified
* High corrosive protection for C5 environment
* Cooperate with International paint suppliers


20ft
40ft
20ft HC
40ft HC
Customized
External
Length
6058
12192
6058
12192
Up to 25 m
Width
2438
2438
2438
2438
Up to 5 m
Height
2591
2591
2896
2896
Up to 4.5m


Material
The main structure are made of corten steel of grade Q345B/C/D/E, SPA-H.


Coating
The product is coated with marine paint system which can withstand up to C5-M corrosive environment.
* Cleaness: Sa 2.5
* Roughness: Medium, 75 um
* DFT: 120um (Standard) / 200um (Offshore) / 310um (NORSOK)
Alternatively, hot dipped galvanizing is also applicable.
