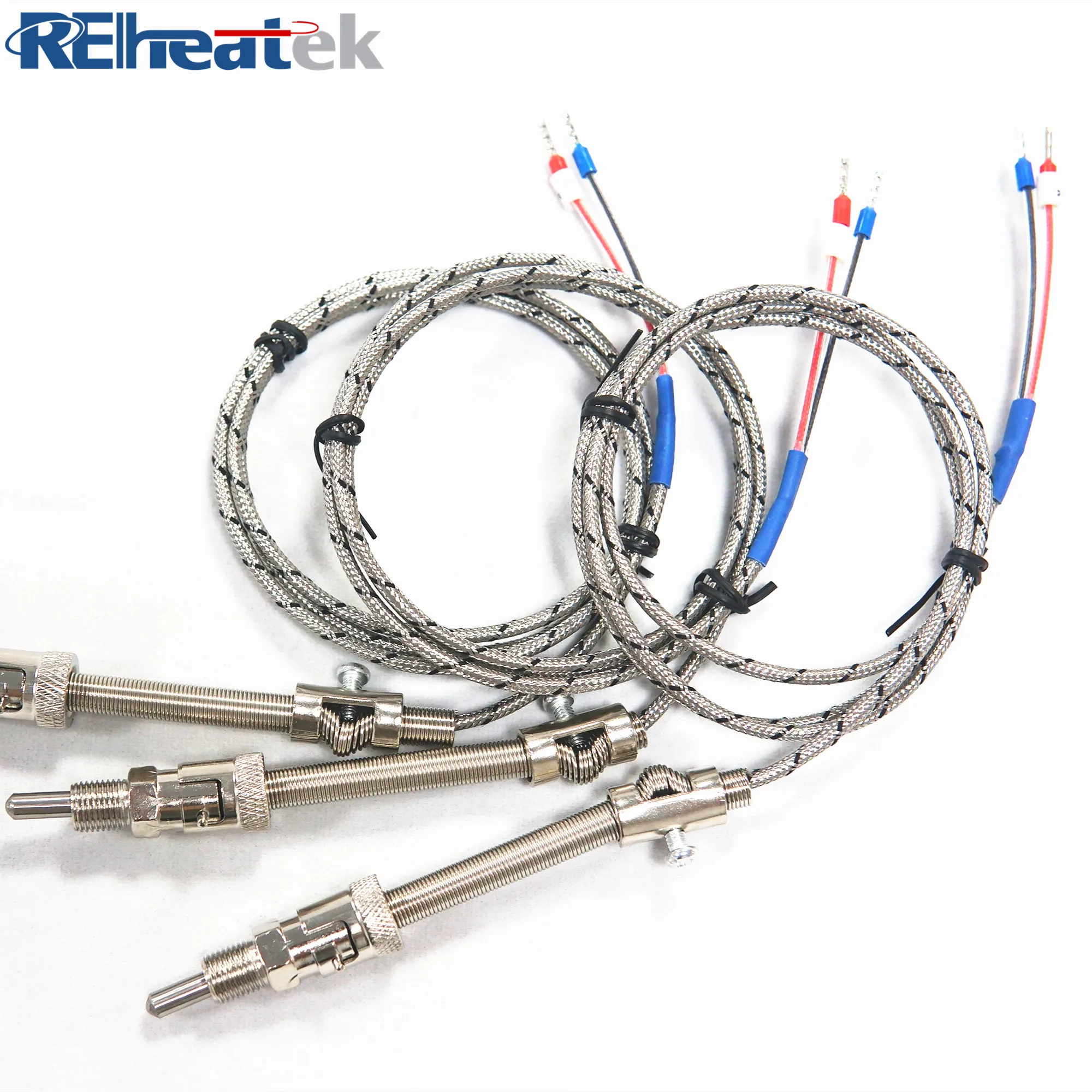

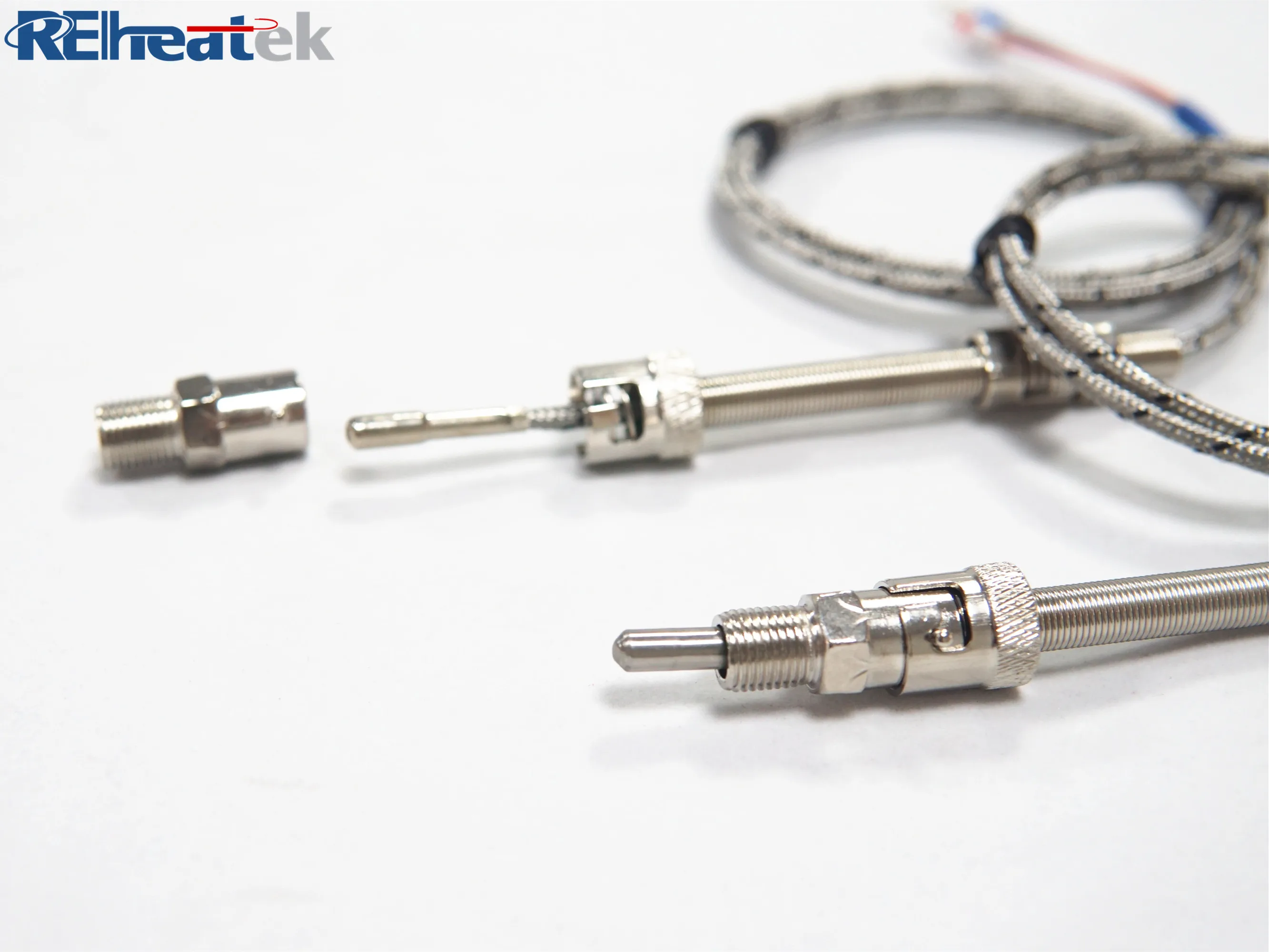

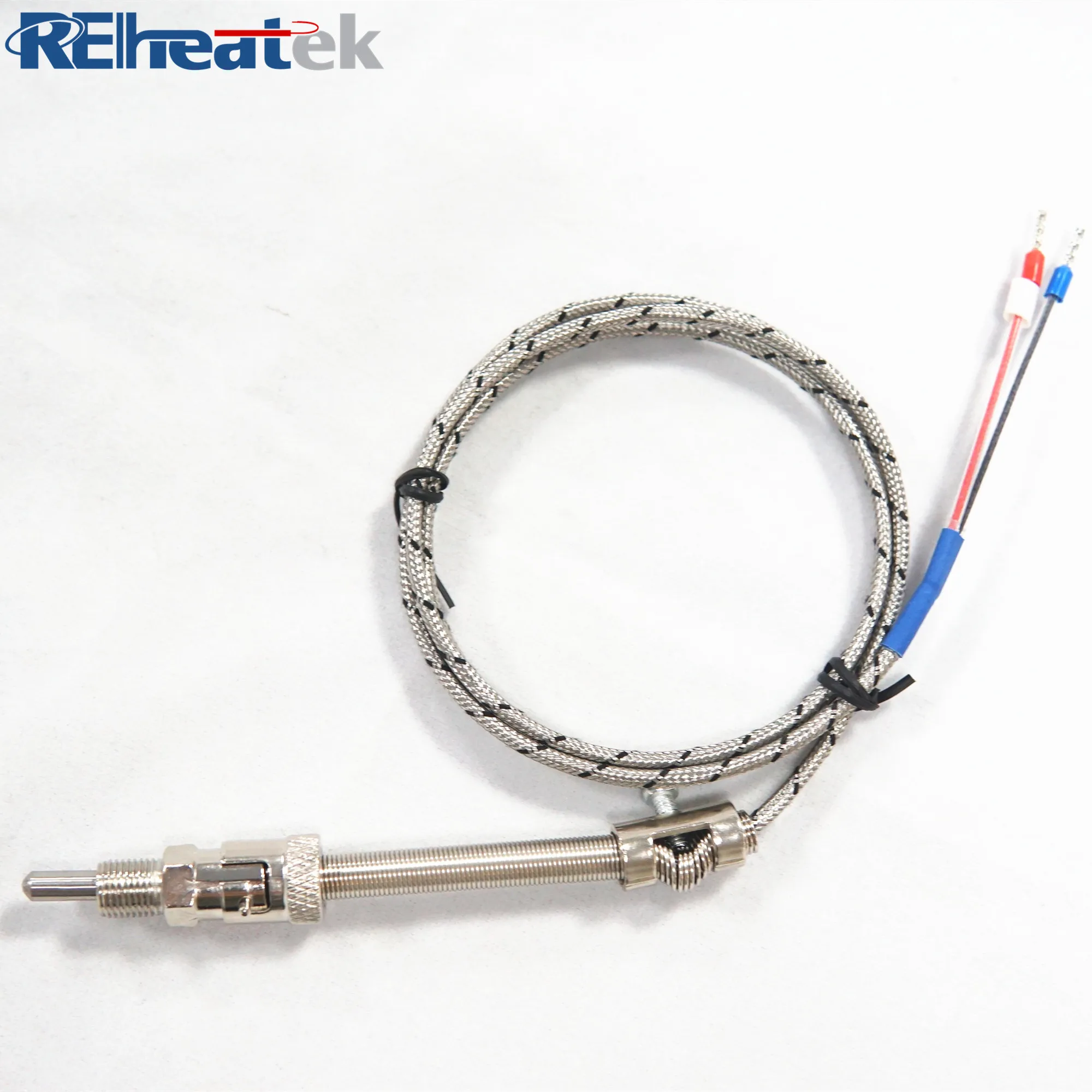

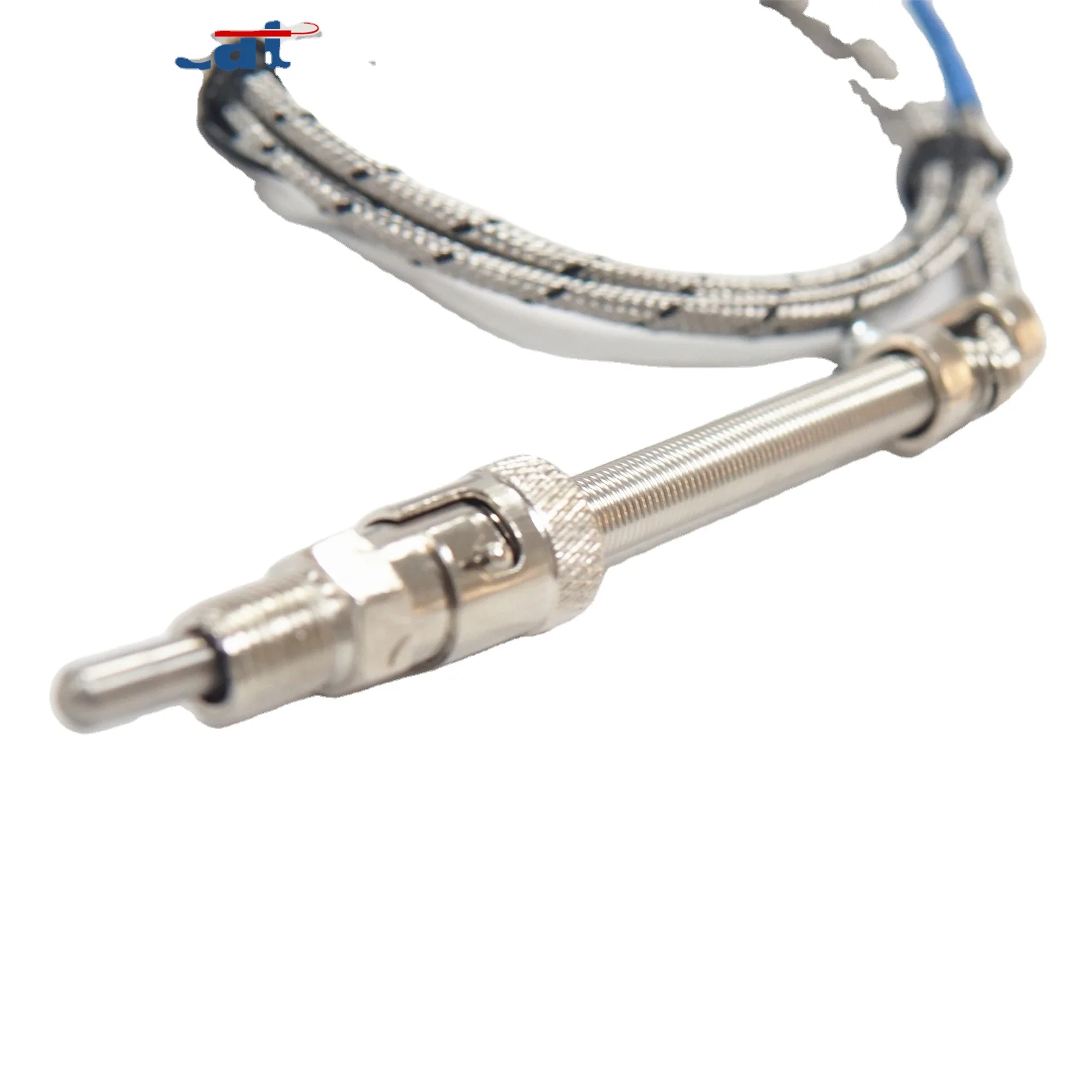

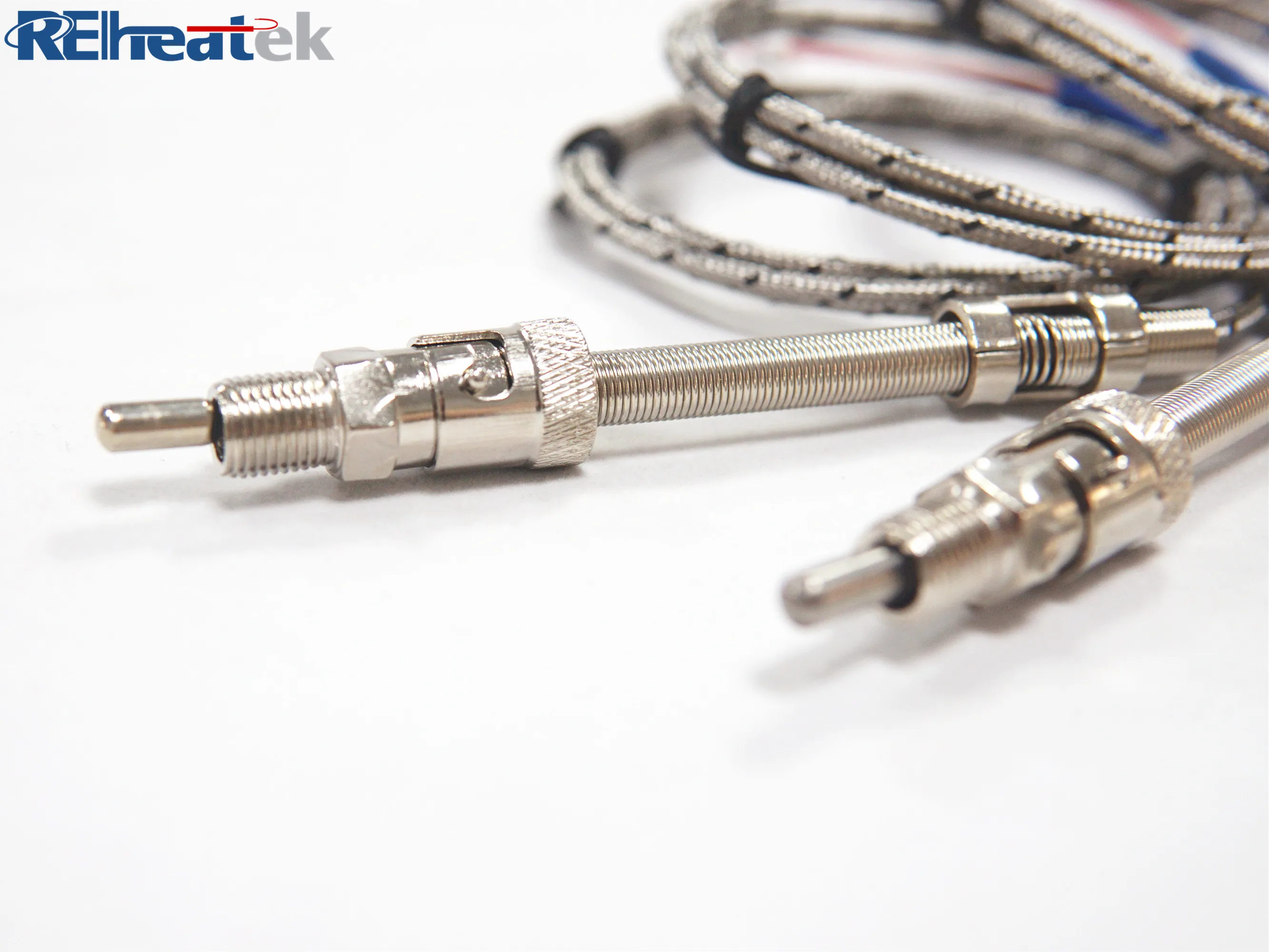

Hot Spring Loaded K J Type Thermocouple Temperature Sensor
- Category: >>>
- Supplier: Suzhou Reheatek Electrical Technology Co. Ltd.
Share on (1600053473071):
Product Overview
Description
Product Description
A thermocouple is a sensor for measuring temperature.
It consists of two dissimilar metals joined together at one end. When the junction of the two metals is heated or cooled, a voltage is produced that can interpreted by a temperature controller. There are many types of thermocouples, type J, K, T, & E are the most common types (Base Metal), and type R, S, and B thermocouples are used in high temperature applications (Nobal Metal).
They could be manufactured in different styles, such as thermocouple probes, thermocouple probes with connectors, transition joint thermocouple probes, bare wire thermocouple or even just thermocouple wire.
Specification

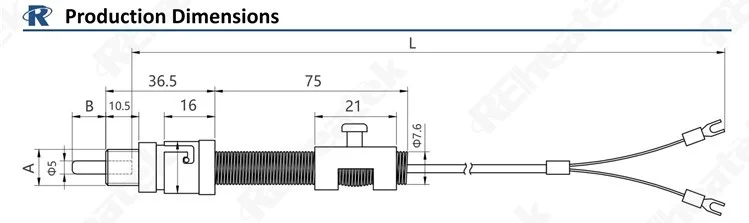

Model No. | Type | Thread Size A | Exposed Probe Size B | Wire Lengh L |
RRYH-K-10 | K | M10*1 | Customized | Customized 1m if no request |
RRYH-K-12 | K | M12*1.5 | Customized | Customized 1m if no request |
RRYH-J-10 | J | M10*1 | Customized | Customized 1m if no request |
RRYH-J-12 | J | M12*1.5 | Customized | Customized 1m if no request |
Note:
Tapped hole size should follow sensor and threaded connector size and shape.
Depth of the tapped hole size should not exceed 10.5mm.
Thermocouple Type | ||||||||
Type | Wire | Temp. Range | Description | |||||
+ | - | |||||||
K | Nichrome | Nichrome | -200~1000℃ | Wide range of applications | ||||
J | Iron | Copper-Nickel | 0~600℃ | Suitable for medium temp. applications | ||||

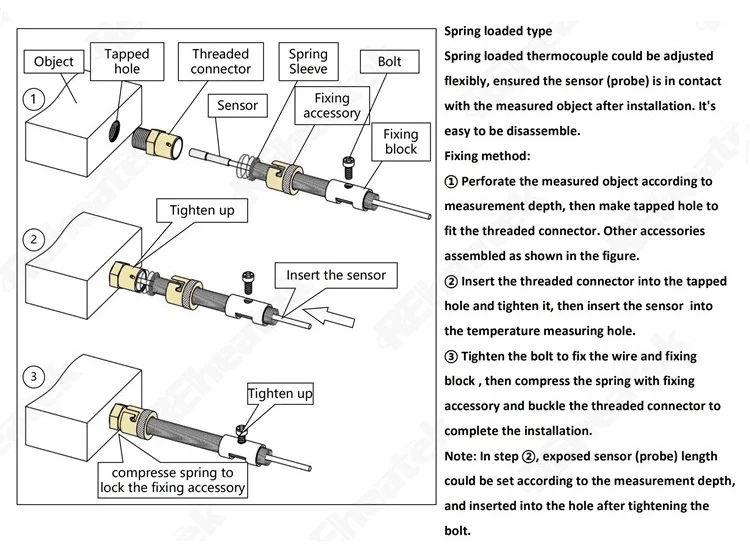

Installation
