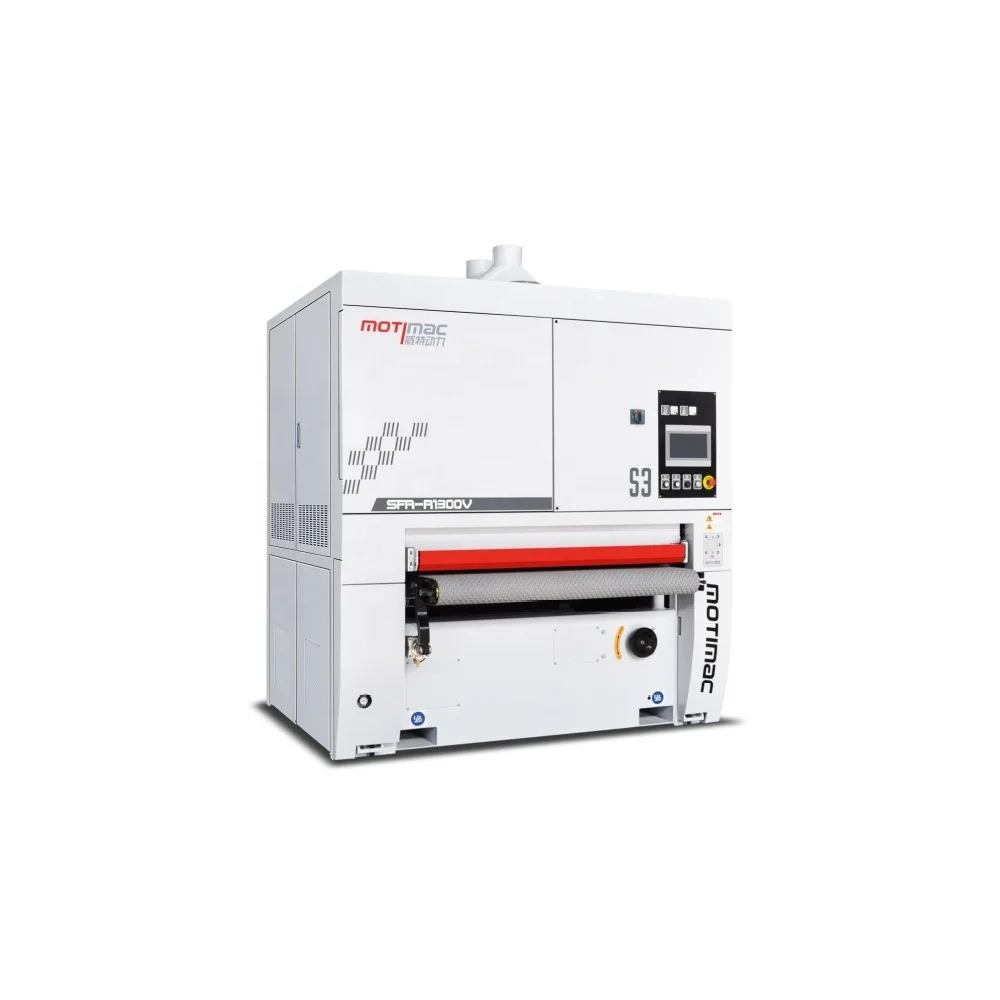

Floating Primer Wide Belt Sanding Machine 1300mm
- Category: >>>
- Supplier: Shandong STX Machinery Trade Co. Ltd.
Share on (1600053665664):
Product Overview
Description
Floating Primer Wide Belt Sanding Machine 1300mm

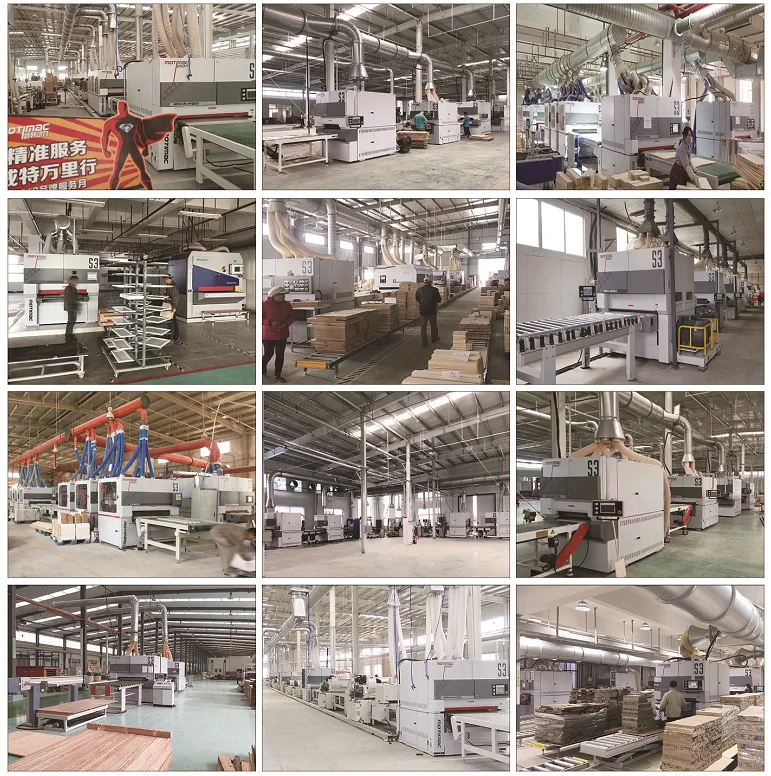

Company Introduction
We have been specialized in this field for from 2001, and provide qualified series
of sanding machines to all around the world. Currently, our sanding machines
have been sold to Russia, German, Spain, Austria, Australia, South-east Asia,
and Middle east. We are willing to provide qualified machines to every
customer.
Technical Specification
Max. Working Width | 1300mm |
Min. Working Length | 300mm |
Working Thickness | 3-100mm |
Feeding Speed | 5-30m/min |
Total Motor Power | 27kw |
Motor for First Unit | 11kw |
Motor for Second Unit | 11kw |
Feeding Motor | 3kw |
Lifting Motor | 0.55kw |
Motor for Brush Roller | 0.55kw |
Hardness of First Roller | 26sh |
Hardness of Second Roller | 20sh |
Diameter of First Roller | Φ215mm |
Diameter of Second Roller | Φ215mm |
Linear Speed of First Belt | 3-17m/s |
Linear Speed of Second Belt | 3-17m/s |
Abrasive Belt Size | 1395 x 2620mm |
Volume of Dust Collection Device | 11190m3/h |
Voltage | 380V/50Hz/3Phase |
Overall Dimensions | 2050 x 2130*2565mm |
Net Weight | 4000kgs |
Machine Part Overview
 | Sanding belt meets international general standard, circumference is 2620mm, with the advantages of durability, thermal diffusivity. Equipped with thick material inspection device, which can effectly protect sanding rollers Feeding belt is equipped with cleaning device, which ensures a clean working surface. |

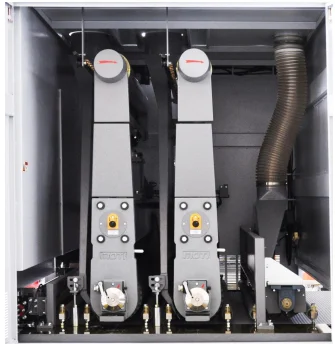

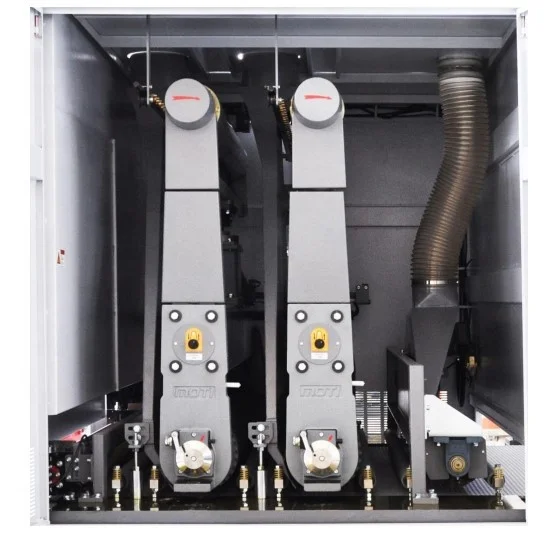

Sanding belt is assembled an automatic deviation correcting device, prevent the phenomenon of belt deviation. Equipped with cleaning device, which increase the service life of sanding belt by 20%-30% |  |

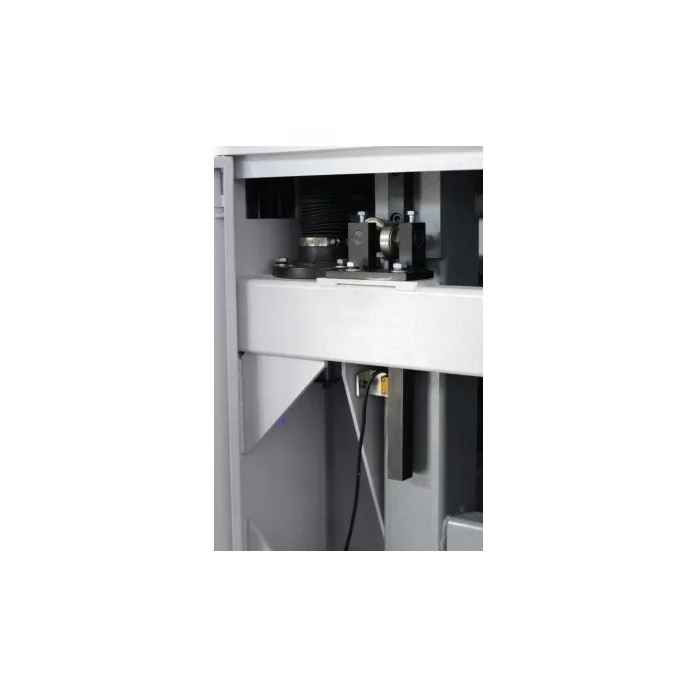

 | Lifting is adjusted by imported ballscrew, with a precision of 0.008mm, locating precision can reach 0.03mm, and the reciprocating precision can reach 0.005mm |

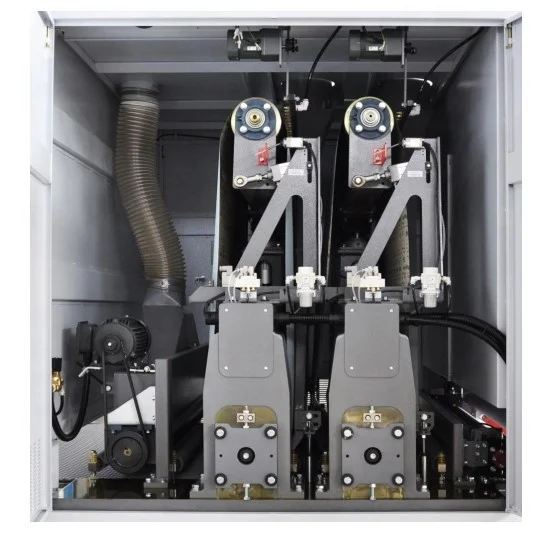

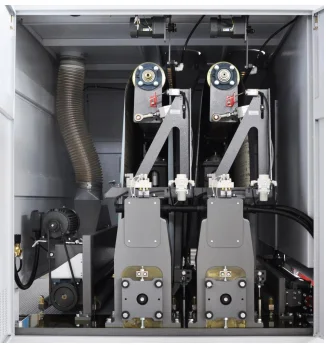

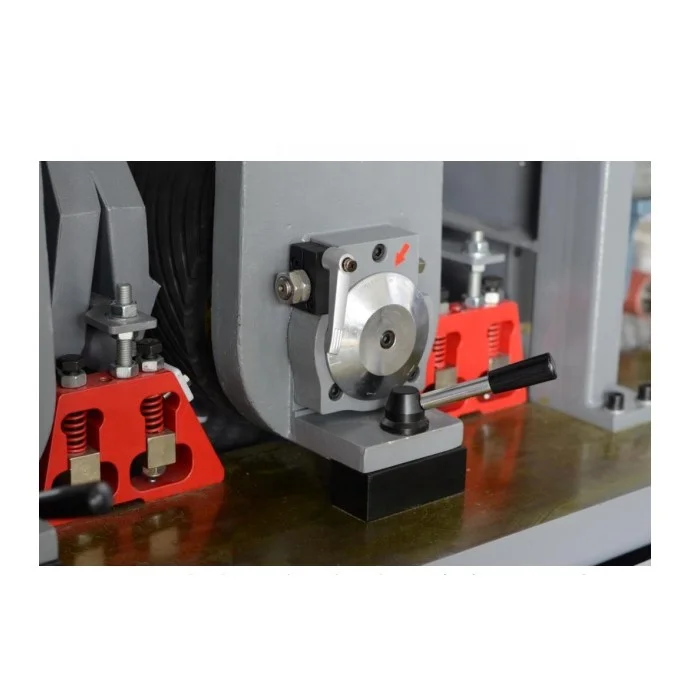

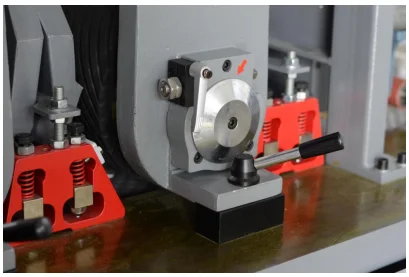

| Two sanding frame adopts eccentric spiral rubber rollers, with an advantage of convenient adjustment. The structure of double roller feeding makes is possible to processing short profile, min. length is 300mm, which can go through smoothly. |  |

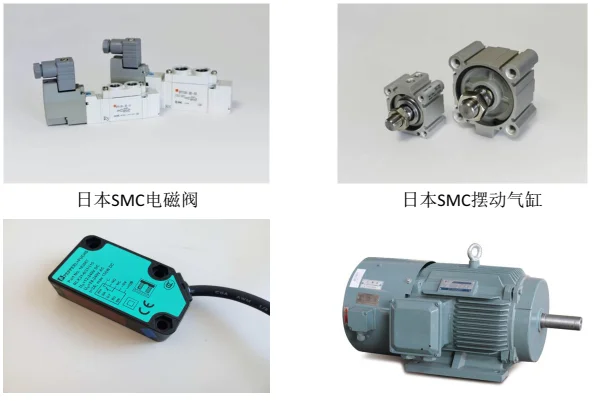

 | Japan SMC magnetic valve; Japan SMC rotary cylinder; Germany P+F photoelectric control; IP54 grade motor |
