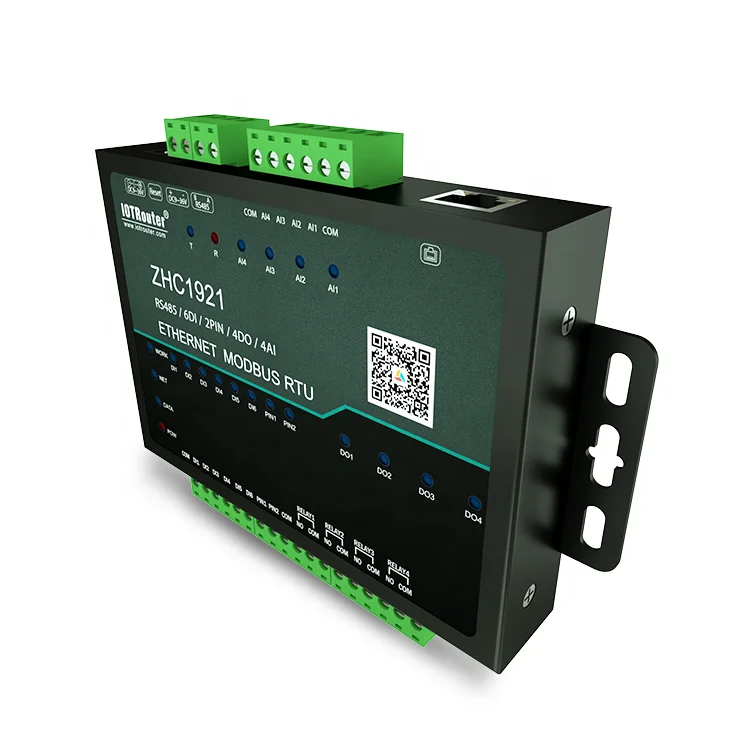

IOTRouter ZHC1921 Ethernet Gateway Gsm Modem for Industrial Automation Factory China
- Category: >>>
- Supplier: Chengdu Zongheng Intelligence Control Technology Co. Ltd.
Share on (1600053779692):
Product Overview
Description
Products Description
Product Paramenters
POWER | NETWORK | ||||
POWER SUPPLY | 9~36V | NETWORK TYPE | ETHERNET | ||
Working Current | NUMBER | LAN*1 | |||
Detect Range | 10000Hz | PORT TYPE | Ethernet signal, RJ45 | ||
SERIAL PORT | DO | ||||
Serial Port | RS485*1 | Standard | (NO、COM)*4 | ||
Standard | RS485: 2 Two terminals(A、B) | AC | 250V 10A | ||
Baud rate | 600~921600bps | DC | 30V 10A | ||
Data bits | 8, 9 | DI | |||
Stop bits | 0.5, 1, 1.5, 2 | Standard | DI*6 COM*1 | ||
Parity bits | NONE、EVEN、ODD | Detect Range | 5~50v High 0~2v Low | ||
PI | AI | ||||
Number | 1 | Number | 4 | ||
Standard | PI*2 COM*1 | Standard | AI*4 COM*2 | ||
Detect Range | 10000Hz | Detect Range | 4~20mA | ||
IOTRouter ZHC1921 Ethernet Gateway Gsm Modem for Industrial Automation Factory China
Basic Function
1. Stable Ethernet Interface 5. 16 Channel Modbus RTU
2. Modbus TCP and MQTT 6. FREE ZH-Cloud Platform
3. Local Logic Operation 7. Threshold Report
4. RS485 Active Reporting 8. Obtain IP Automatically
IOTRouter ZHC1921 Ethernet Gateway Gsm Modem for Industrial Automation Factory China
1. TCP Server/Client Mode
TCP Client provides client connection for TCP network server. Actively initiate a connection request to the server and establish a connection, used to realize the interaction of serial data and server data.
Commonly used to communicate with TCP clients in the LAN. It is suitable for scenarios where there is no server in the LAN and multiple computers request data from the server.
2. Socket Function
Socket1-4 runs simultaneously and connects to different networks for data transmission.
3. Set the follow Logic of Ports Between Devices
Break traditional connection limits, Suitable for different usage scenarios.
4. Pulse Counting System
Without manual setting, pulse collection can be set as counting function to meet various field requirements.
TCP Client provides client connection for TCP network server. Actively initiate a connection request to the server and establish a connection, used to realize the interaction of serial data and server data.
Commonly used to communicate with TCP clients in the LAN. It is suitable for scenarios where there is no server in the LAN and multiple computers request data from the server.
2. Socket Function
Socket1-4 runs simultaneously and connects to different networks for data transmission.
3. Set the follow Logic of Ports Between Devices
Break traditional connection limits, Suitable for different usage scenarios.
4. Pulse Counting System
Without manual setting, pulse collection can be set as counting function to meet various field requirements.
IOTRouter ZHC1921 Ethernet Gateway Gsm Modem for Industrial Automation Factory China
1.Unmanned weighing data acquisition solution
Connect ZHC1921 to the barrier, and the control center will remotely control the barrier via Ethernet.
2. Industrial Automation
Suitable for industrial automation production lines and can monitor industry chain data in real time. Count the number of products by pulse counting.
3. Traffic Lights Management System
Unified management of street lamps to achieve remote monitoring and intelligent management of lighting.
Unified management of street lamps to achieve remote monitoring and intelligent management of lighting.
Reduce manpower management costs and improve maintenance efficiency.
Company Profile
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are the Manufacturer with years of R&D experience.
Q2: What about the delivery time?
A2: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q3: What is your delivery terms and payment terms?
A3: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Q4: After service and warranty?
A4: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q5. How can we know the product quality?
A5: We have professional QA and QC teams, 100% quality inspection is performed before the goods out of the factory.
A1: We are the Manufacturer with years of R&D experience.
Q2: What about the delivery time?
A2: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q3: What is your delivery terms and payment terms?
A3: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Q4: After service and warranty?
A4: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q5. How can we know the product quality?
A5: We have professional QA and QC teams, 100% quality inspection is performed before the goods out of the factory.
