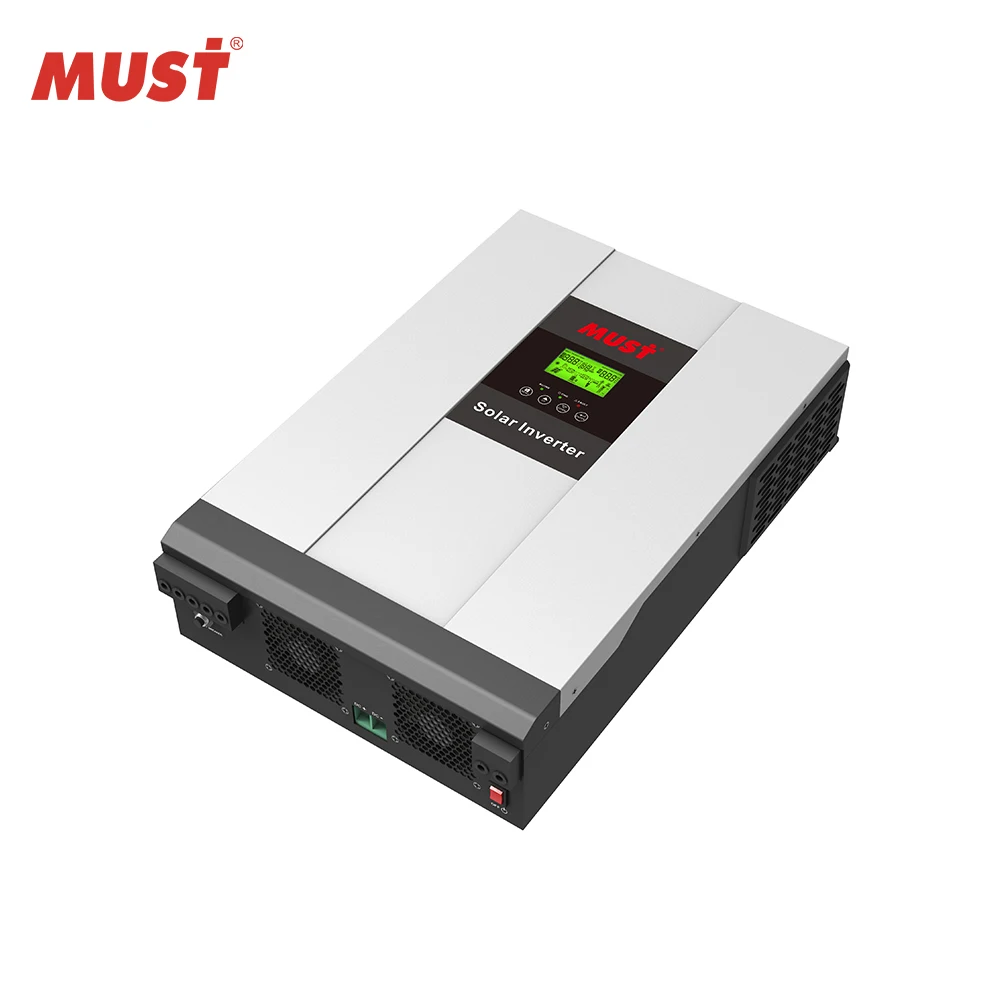

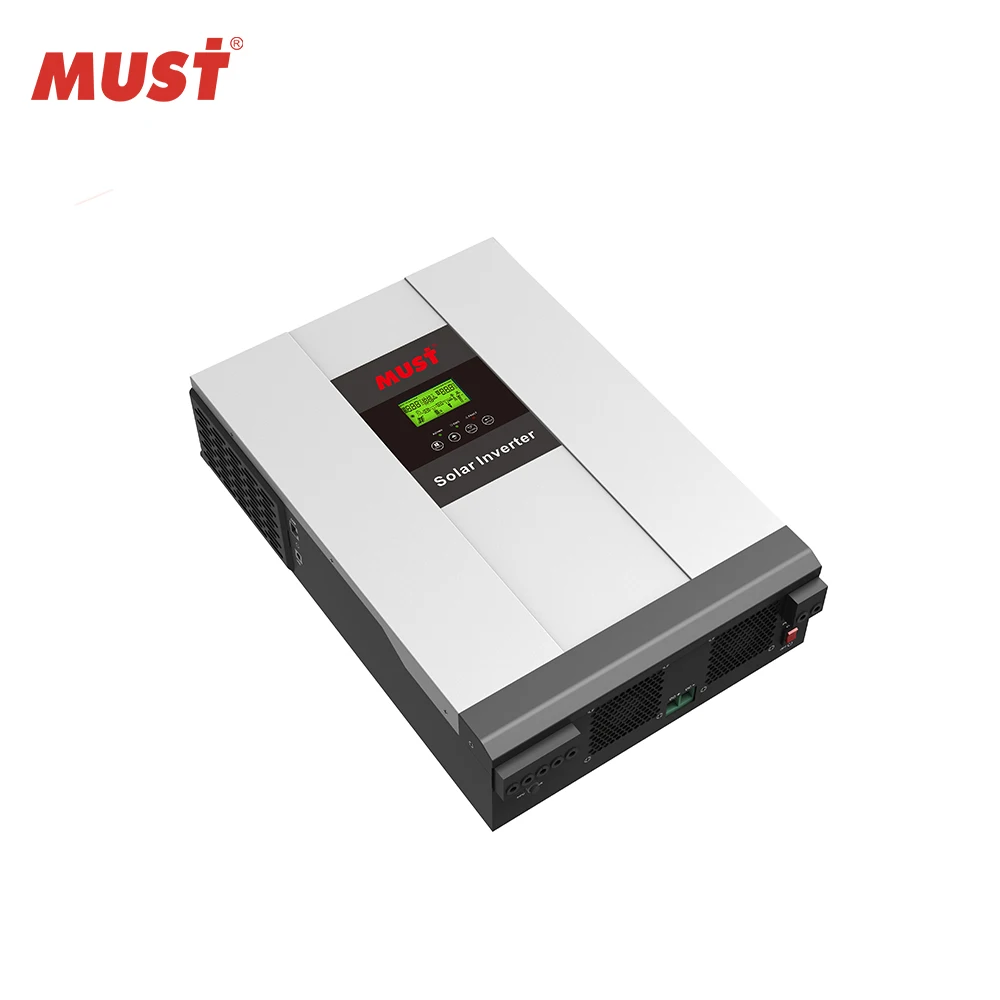

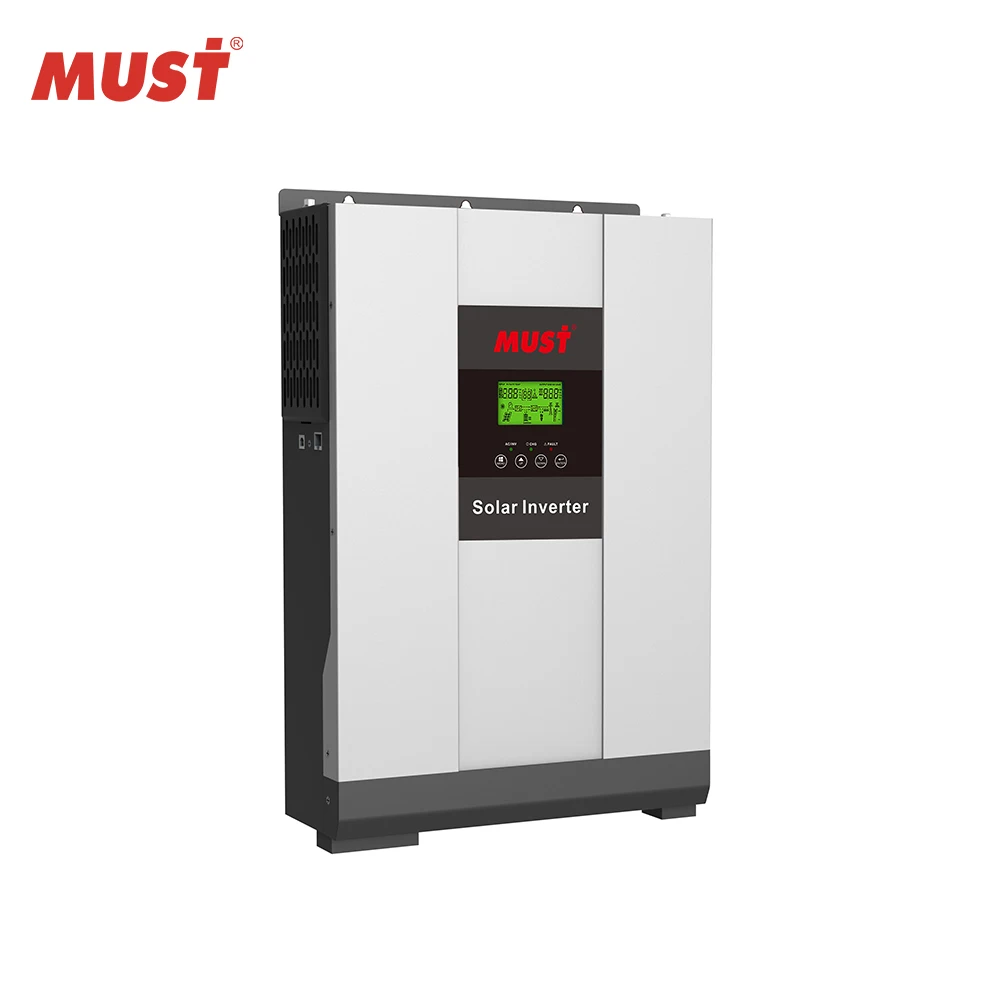

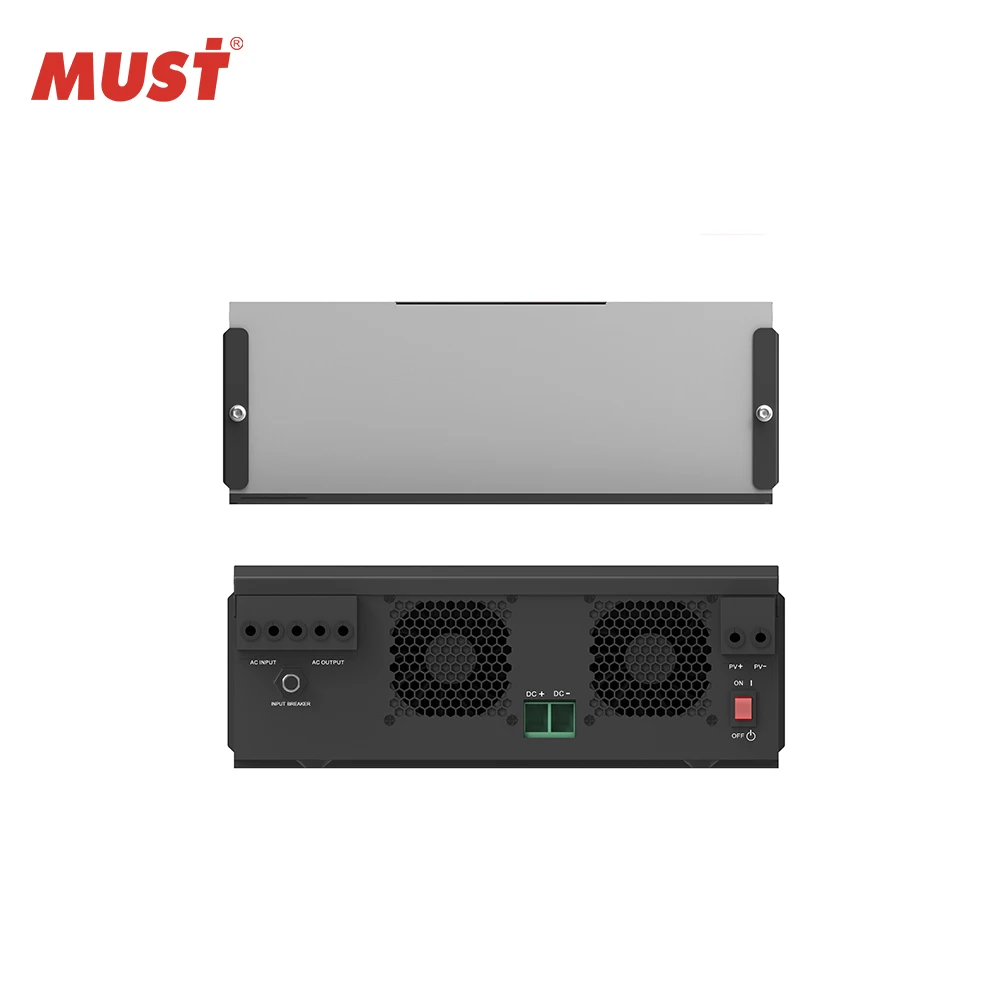

Высокочастотный автономный солнечный инвертор Must PV1800 VHM серии 2000 Вт 5000 Вт с встроенным зарядным устройством MPPT 60/80A
- Category: >>>
- Supplier: Shenzhen Must Energy Technology Co. Ltd.
Share on (1600053784475):
Product Overview
Description
Must PV1800 VHM series 2000w-5000w high frequency off grid solar inverter with bulit-in 60/80A MPPT charger
off grid solar inverter
inverter 5000w
must solar inverter
| MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048 VHM | PV18-5548 VHM |
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | |||||
| Inverter Efficiency (Peak) | 93% | |||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27VDC | 54VDC | ||||
| Overcharge Protection | 31VDC | 60VDC | ||||
| SOLAR CHARGER&AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||
| PV Array MPPT Voltage | 30~130VDC | 64~130VDC | ||||
| Standby Power Consumption | 2W | |||||
| PV Input Power | 1440W/1920W | 2880W/3840W | ||||
| Maximum Solar Charge Current | 60/80A | |||||
| Maximum Effciency | 98% | |||||
| Maximum AC Charge Current | 20/30A | 60A | ||||
| Maximum Charge Current | 80A | 120/140A | ||||
| MECHANICAL SPECIFICATION | ||||||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297 | ||||
.5*468*125
Package Dimensions (W*H*D)(mm)540*395*241638*395*241Net Weight(kg)101113.3Gross Weight(kg)11.71216.4OTHERHumidity5% to 95% Relative Humidity (Non-condensing)Operating Temperature0°C -55°CStorage Temperature-15°C -60°C*Products specifications are subject to change without further notice
Product Description
Packaging & Shipping
Our Services
Certifications
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
