0.01 /0.02 Micron PTFE Pleated Membrane Filter Cartridge
- Category: >>>
- Supplier: Guangzhou Jielv Environment Technology Co. Ltd.
Share on (1600054118656):
Product Overview
Description
Product Description
Product Name:
0.2 Micron PTFE Membrane Air Filter Cartridge For Fermentation air
Product name | PTFE pleated filter cartridge | ||||
Material | PTFE | ||||
End cap | 222 | 226 | Flat | ||
Size | 9.75'', 10'', 20'', 30'', 40'' | ||||
Diameter | OD:63mm | ID:30mm | |||
Rated | 0.1, 0.22, 0.45, 1μm | ||||
Operating temperature | Up to 60℃ | ||||
Filter membrane | PTFE membrane | ||||
Diversion layer | pp non-woven | ||||
External support cage | pp material | ||||
Internal support | pp material | ||||
OD | 60-69mm | ||||
ID | 28-30mm | ||||
length | 9.75-40" | ||||
Seal ring | Silicone,EPDM ,Nitrile ,Viton, Teflon,E-FKM | ||||
Precision(μm) | 0.10, 0.22, 0.45, 1µm | ||||
PH value | 1~14 | ||||
Normal working temperature | ≤55℃ | ||||
Max. working temperature | 80℃, pressure differential ≤0.10Mpa | ||||
Max. differential pressure | 25℃,forward direction 0.42Mpa,reverse direction 0.21MPa | ||||
Features and Benefits:
1. Excellent performance of high temperature-resistance,repeat steam ability in situation;
2. Low pressure drop,high flow rate,long service life;
3. Hydrophobic membrane with high flow;
4. Non fiber-releasing;
5. 100% integrity tested.
6. FDA compliance material
Applications of PTFE pleated cartridge filter:
> Compressed air, CO2 line sterile filtration;
> Tank vent, Fermentation air;
> Aggressive acids, Bases, Solvents;
> Photoresists, Etch Solutions;
More information of PEFTPTFE pleated cartridge filter:
Port of shipment of PTFE pleated cartridge filter : Guangzhou
The payment of PTFE pleated cartridge filter : We prefer T/T and L/C
The sample of PTFE pleated cartridge filter : We can provide the sample of fish tank filter for free, but customer have to pay for the freight.
We provide the high quality PTFE pleated cartridge filter at the competitive price. The PTFEpleated cartridge filter could be customized made.
For more information about PTFE pleated cartridge filter, please contact us.
Any questions of fish tank filter and the liquid housing, pls kindly let us know anytime!
Production Process

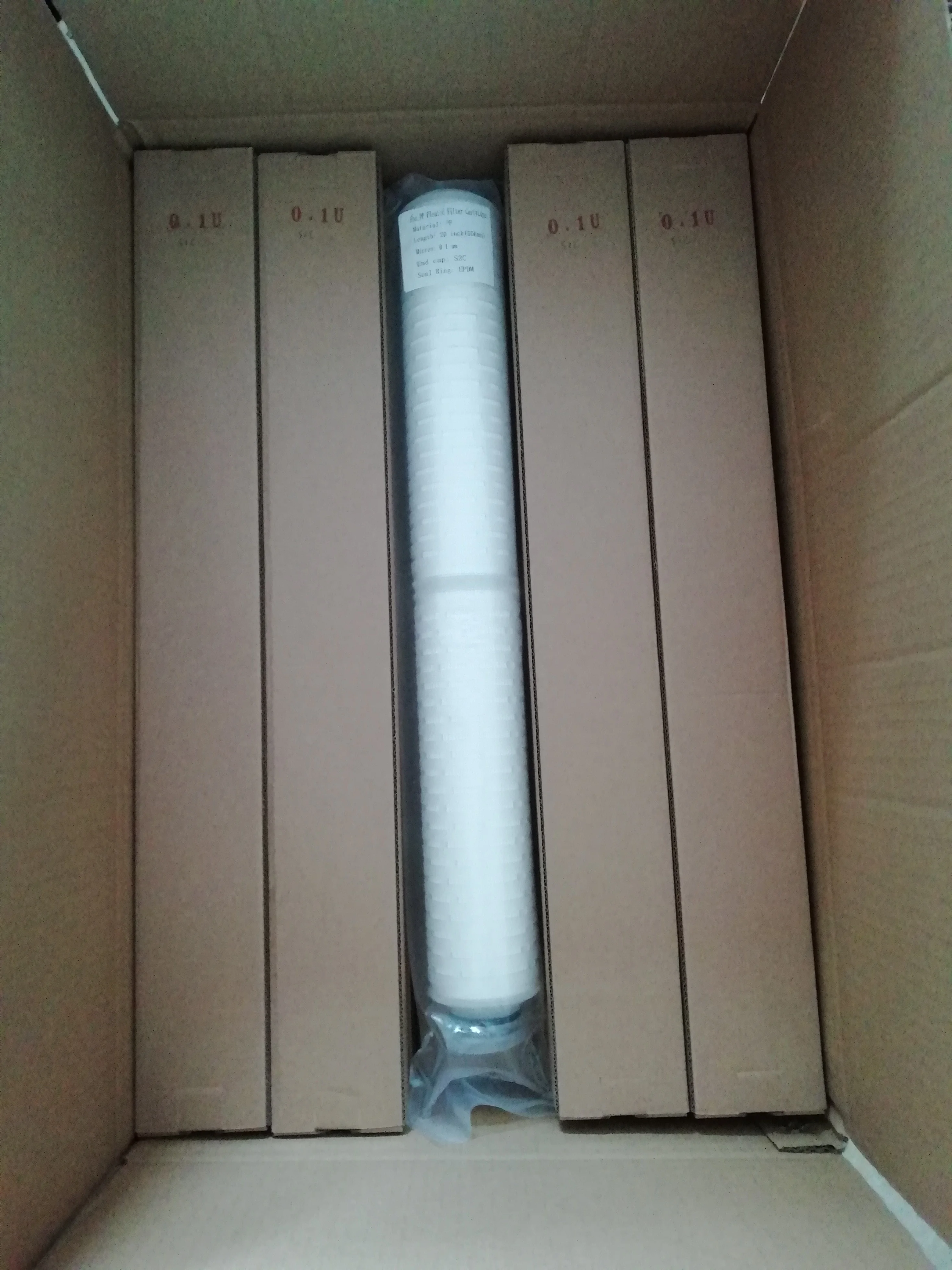

Packing & Delivery
