Portable Cheap dc Hf Tig welders high frequency Argon Inverter tig welding machine for sale
- Category: Arc Welders >>>
- Supplier: Chengdu Keygree Technology Co. Ltd.
Share on (1600054231996):
Product Overview
Description
Products Description

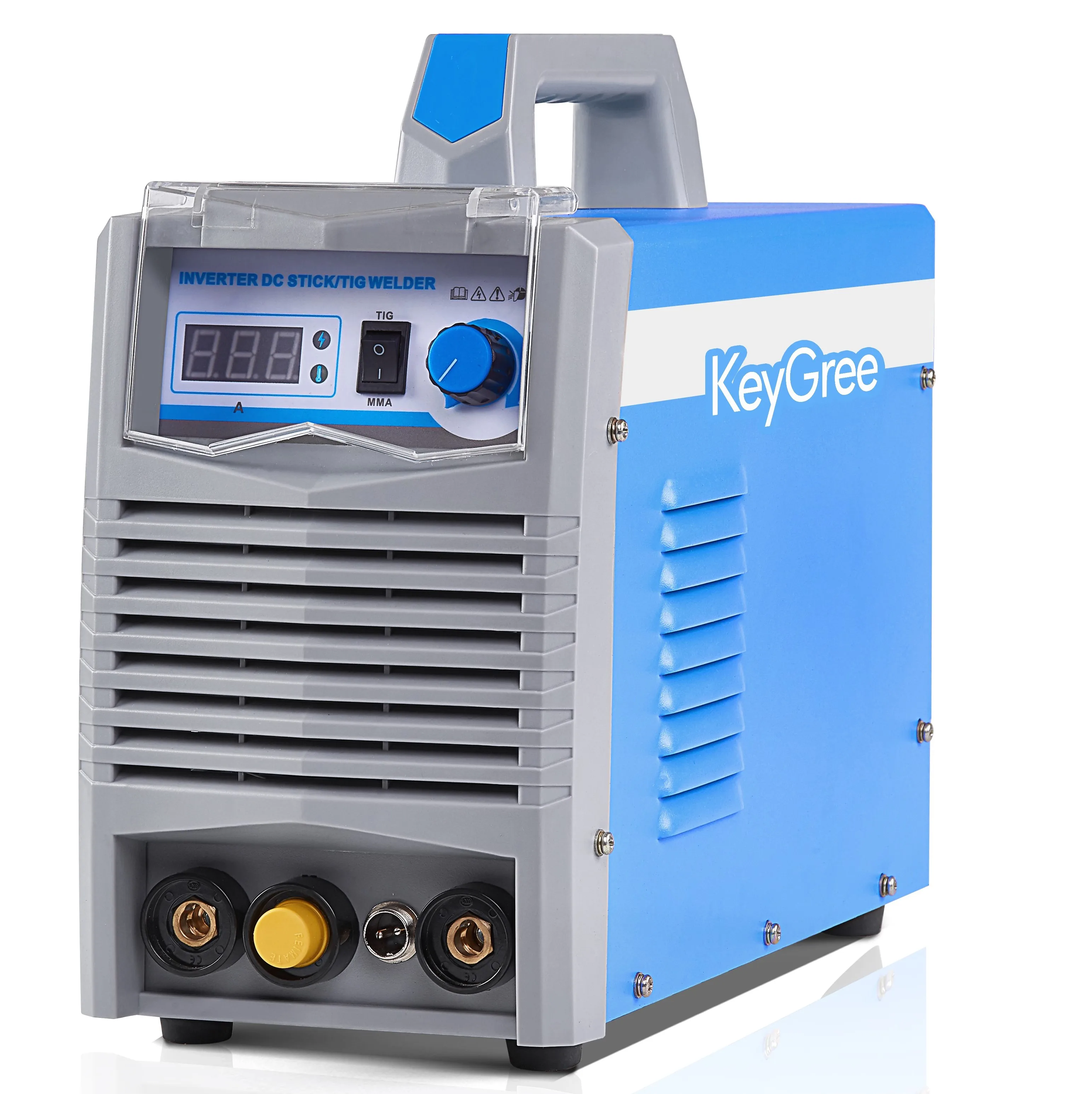

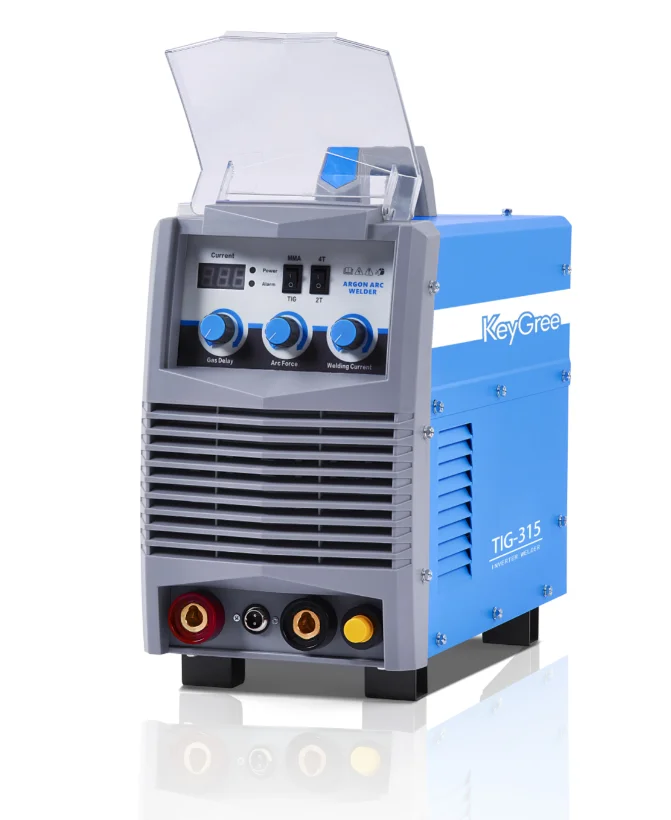

DC TIG
■ Portable Inverter DC HF TIG With MMA Welder
■ Upgrade IGBT Inverter Technology
■ Ideal for welding of carbon steels, low-alloy steels and stainless steels
■ Digital Display
■ Equipped with voltage protection and thermal protection
■Easy-to-use and user-friendly control panel
■ Welding Mode(DC HF TIG/LIFT TIG/MMA), TIG/Pulse TIG and 2T/4T selections
■Adjustable&displayable gas pro/delay, initial/ base/peak current; simply welding procedure parameters.
■ Adjustable; Hot start, Arc Force and built-in Anti-Sticking for MMA welding
■ Power, Overload and Under/Over-Voltage LED indicators
■ Easy welding cable connections with European type quick connectors
■ Foot control can be used
■ Fan cooling system
■ IP21S Protection Class
■Lightweight, Compact Design
■ Ideal for welding of carbon steels, low-alloy steels and stainless steels
■ Digital Display
■ Equipped with voltage protection and thermal protection
■Easy-to-use and user-friendly control panel
■ Welding Mode(DC HF TIG/LIFT TIG/MMA), TIG/Pulse TIG and 2T/4T selections
■Adjustable&displayable gas pro/delay, initial/ base/peak current; simply welding procedure parameters.
■ Adjustable; Hot start, Arc Force and built-in Anti-Sticking for MMA welding
■ Power, Overload and Under/Over-Voltage LED indicators
■ Easy welding cable connections with European type quick connectors
■ Foot control can be used
■ Fan cooling system
■ IP21S Protection Class
■Lightweight, Compact Design
Main Technical Parameter | ||||||||||

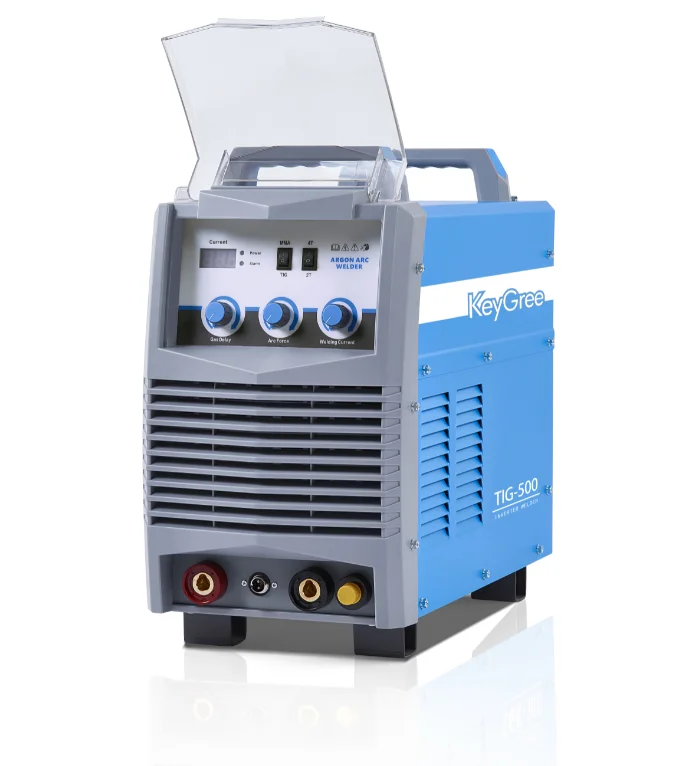

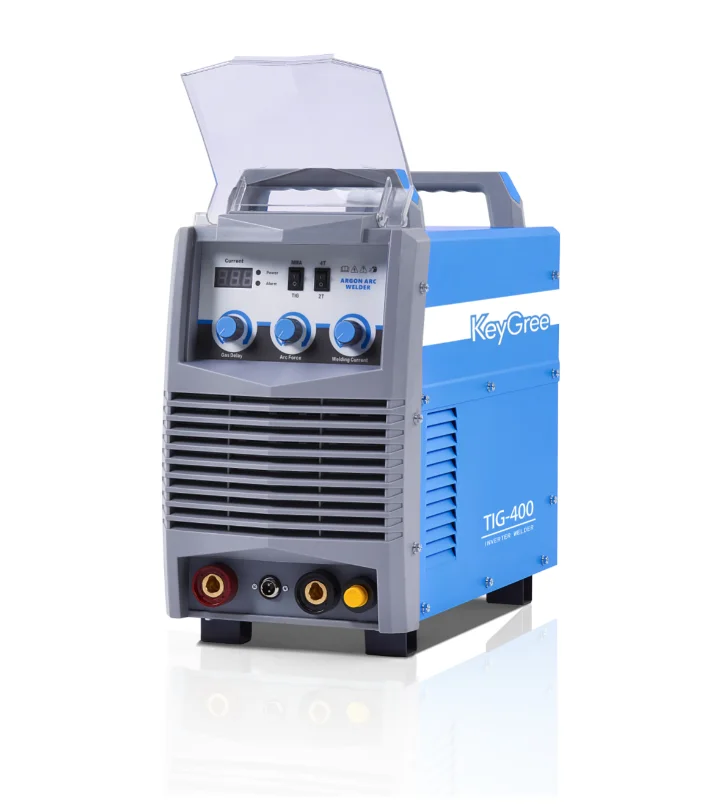

Product Type | TIG-200 | TIG-315 | TIG-400 | TIG-500 | ||||||
Rated Input Voltage | 1PH 200/220/230/240±15% | 3PH 380/400/415/440V±15% | ||||||||
Rated Input Capacity | 4.5KVA | 12KVA | 16.8KVA | 23.1KVA | ||||||
No-load Voltage | 56V | 60V | ||||||||
Duty Cycle | 60% | TIG: 200A; MMA: 160A | 60% | |||||||
100% | TIG: 155A; MMA: 124A | |||||||||
Current Range | 15-200A | 10~315A | 10~400A | 10~500A | ||||||
Electrode Diameter | 2.0~4.0mm | 2.0~4.0mm | 2.0~5.0mm | 2.0~5.0mm | ||||||
Effificiency | 90% | |||||||||
Insulation Class | F | |||||||||
Dimension(mm) | 475*220*345 | 615*345*565 | 615*345*565 | 710*375*630 | ||||||
Weight | 9kg | 21kg | 30kg | 45kg | ||||||
Product Selection Guide | ||||||
Material | Sheet Thickness(mm) | Tungsten Diameter(mm) | Current Range(A) | |||
Carbon Steel Stainless Steel Low Alloy Steel Copper | 0.3~10 | 1.6~2.4 | 20~200 | |||
0.3~12 | 2.5~3.2 | 5-400 | ||||
0.3~14 | 2.5/3.2/4.0 | 5-500 | ||||
0.5~5.0 | 2.5~3.2 | 5-400 | ||||
0.5~60 | 2.5/3.2/4.0 | 5-500 | ||||

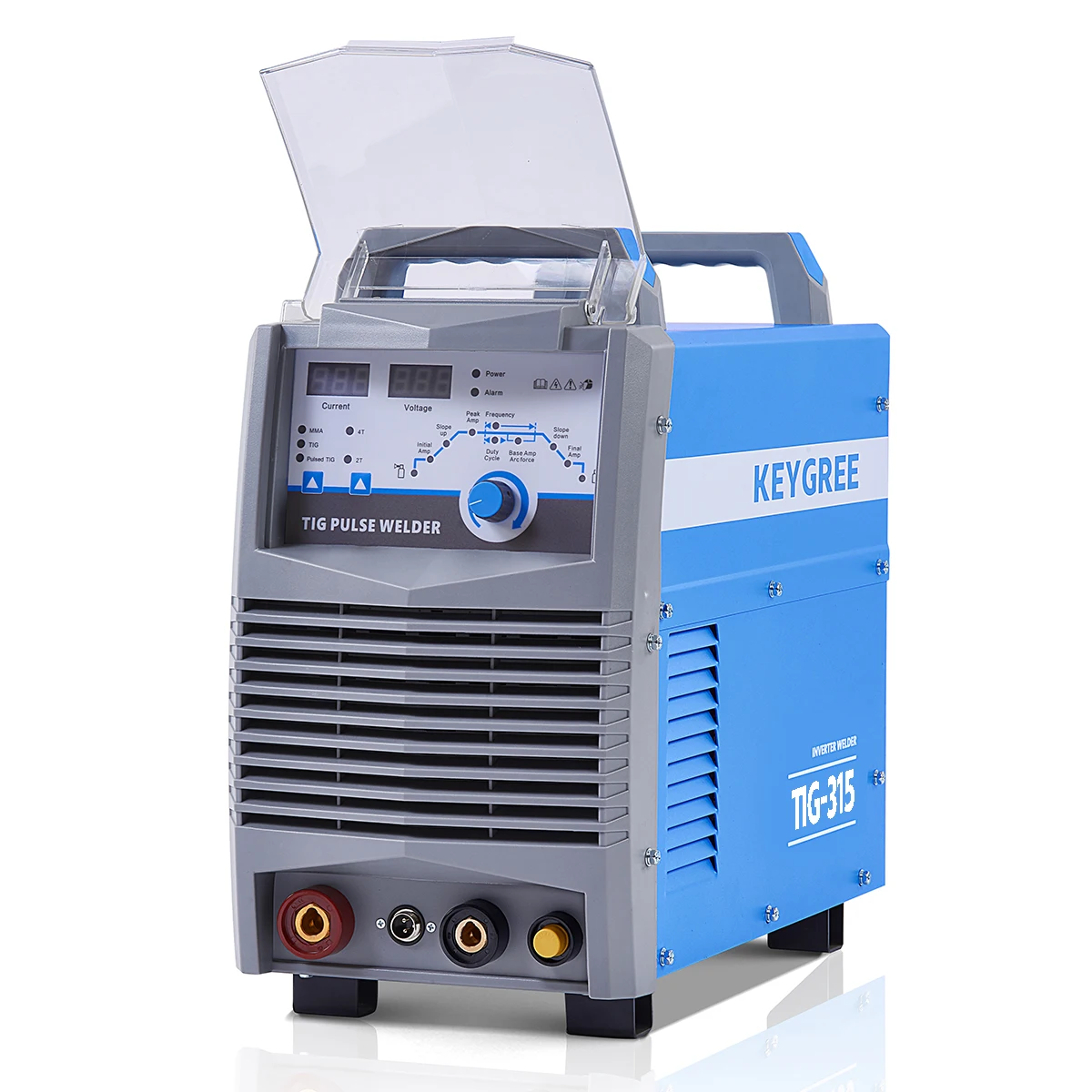

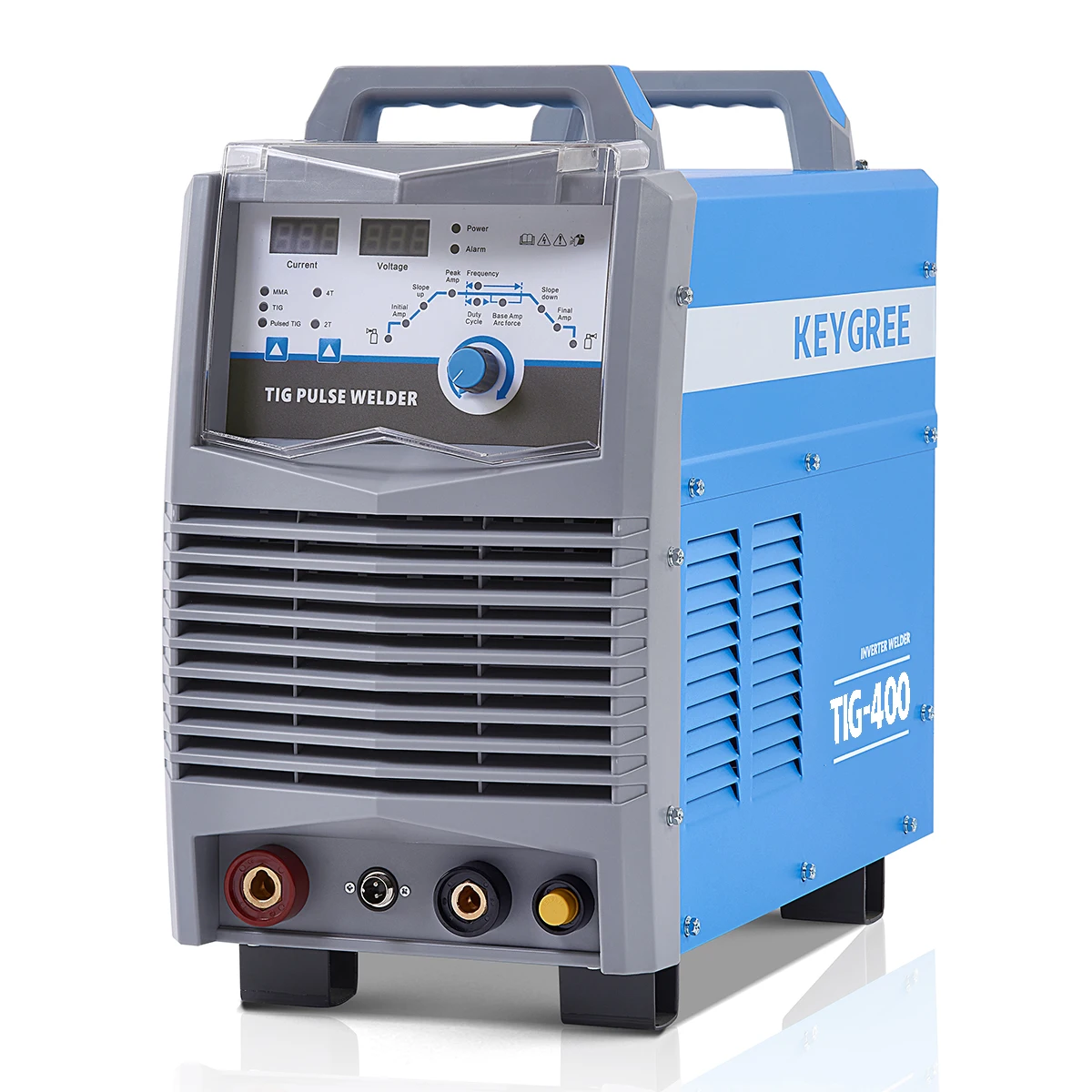

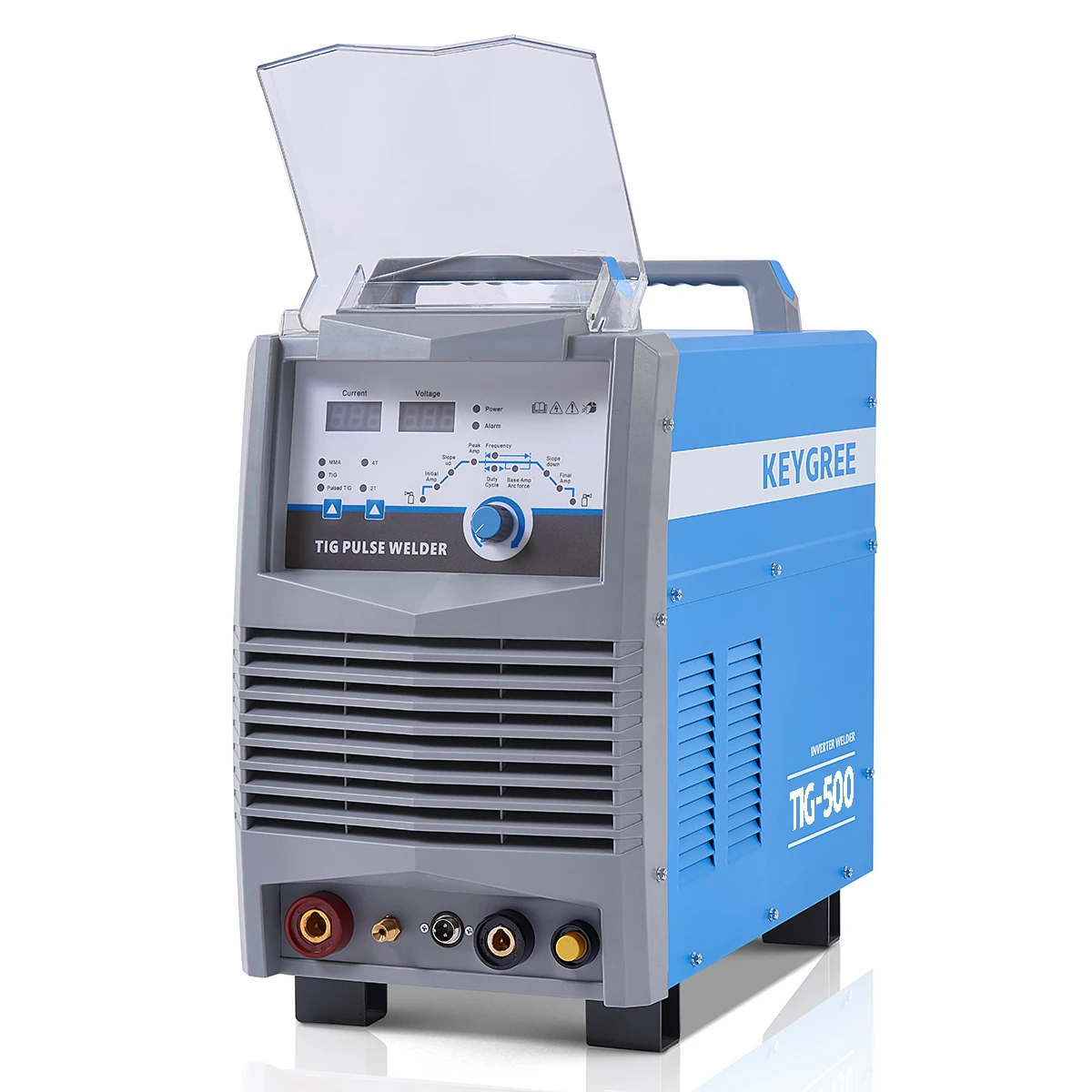

PULSE TIG
■ Portable Inverter DC HF TIG With Pulse/MMA Welder
■ Upgrade IGBT Inverter Technology
■ Ideal for welding of carbon steels, low-alloy steels and stainless steels and aluminum
■ Digital Display
■ Equipped with voltage protection and thermal protection
■ Easy-to-use and user-friendly control panel
■ Welding Mode(DC HF TIG/LIFT TIG/MMA), TIG/Pulse TIG and 2T/4T selections
■ Adjustable&displayable gas pro/delay, initial/ base/peak current; simply welding procedure
parameters.
■ Adjustable; Hot start, Arc Force and built-in Anti-Sticking for MMA welding
■ Power, Overload and Under/Over-Voltage LED indicators
■ Easy welding cable connections with European type quick connectors
■ Foot control can be used
■ Fan cooling system
■ IP21S Protection Class
■ Lightweight, Compact Design
■ Upgrade IGBT Inverter Technology
■ Ideal for welding of carbon steels, low-alloy steels and stainless steels and aluminum
■ Digital Display
■ Equipped with voltage protection and thermal protection
■ Easy-to-use and user-friendly control panel
■ Welding Mode(DC HF TIG/LIFT TIG/MMA), TIG/Pulse TIG and 2T/4T selections
■ Adjustable&displayable gas pro/delay, initial/ base/peak current; simply welding procedure
parameters.
■ Adjustable; Hot start, Arc Force and built-in Anti-Sticking for MMA welding
■ Power, Overload and Under/Over-Voltage LED indicators
■ Easy welding cable connections with European type quick connectors
■ Foot control can be used
■ Fan cooling system
■ IP21S Protection Class
■ Lightweight, Compact Design
Main Technical Parameter | ||||||||||
Product Type | P-TIG(WSM)-200 | P-TIG(WSM)-315 | P-TIG(WSM)-400 | P-TIG(WSM)-500 | ||||||
Rated Input Voltage | 1PH 200/220/230/240±15% | 3PH 380/400/415/440V±15% | ||||||||
Rated Input Capacity | 4.5KVA | 12KVA | 16.8KVA | 23.1KVA | ||||||
No-load Voltage | 56V | 60V | ||||||||
Duty Cycle | 60% | TIG: 200A; MMA: 160A | 60% | |||||||
100% | TIG: 155A; MMA: 124A | |||||||||
Current Range | 15-200A | 10~315A | 10~400A | 10~500A | ||||||
Electrode Diameter | 2.0~4.0mm | 2.0~4.0mm | 2.0~5.0mm | 2.0~5.0mm | ||||||
Effificiency | 90% | |||||||||
Insulation Class | F | |||||||||
Dimension | 480*305*430 | 615*345*565 | 615*345*565 | 710*375*630 | ||||||
Weight | 11 | 28 | 32 | 47 | ||||||
Product Selection Guide | ||||||
Material | Sheet Thickness(mm) | Tungsten Diameter(mm) | Current Range(A) | |||
Carbon Steel Stainless Steel Low Alloy Steel Copper | 0.3~10 | 1.6~2.4 | 20~200 | |||
0.3~12 | 2.5~3.2 | 5-400 | ||||
0.3~14 | 2.5/3.2/4.0 | 5-500 | ||||
0.5~5.0 | 2.5~3.2 | 5-400 | ||||
0.5~60 | 2.5/3.2/4.0 | 5-500 | ||||

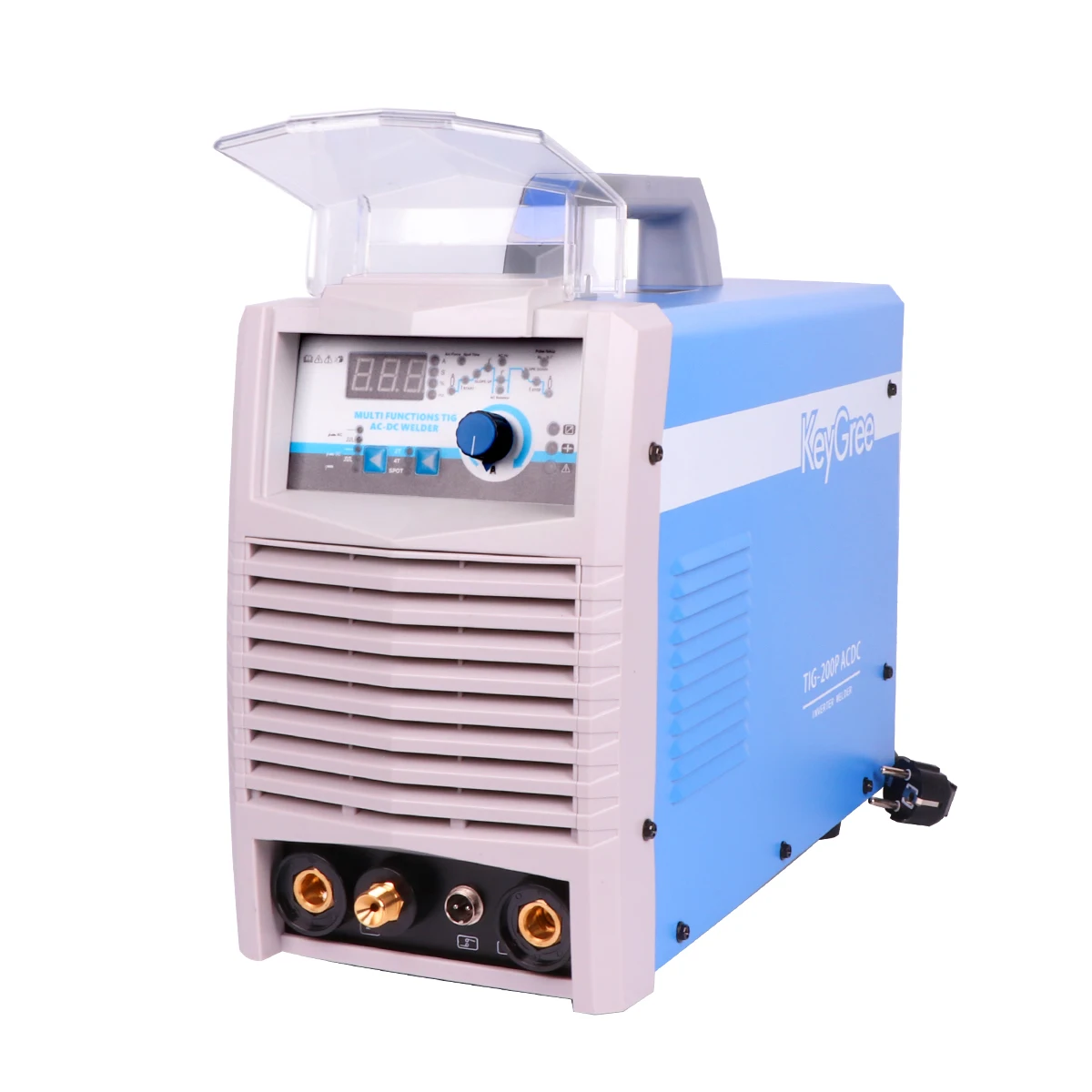

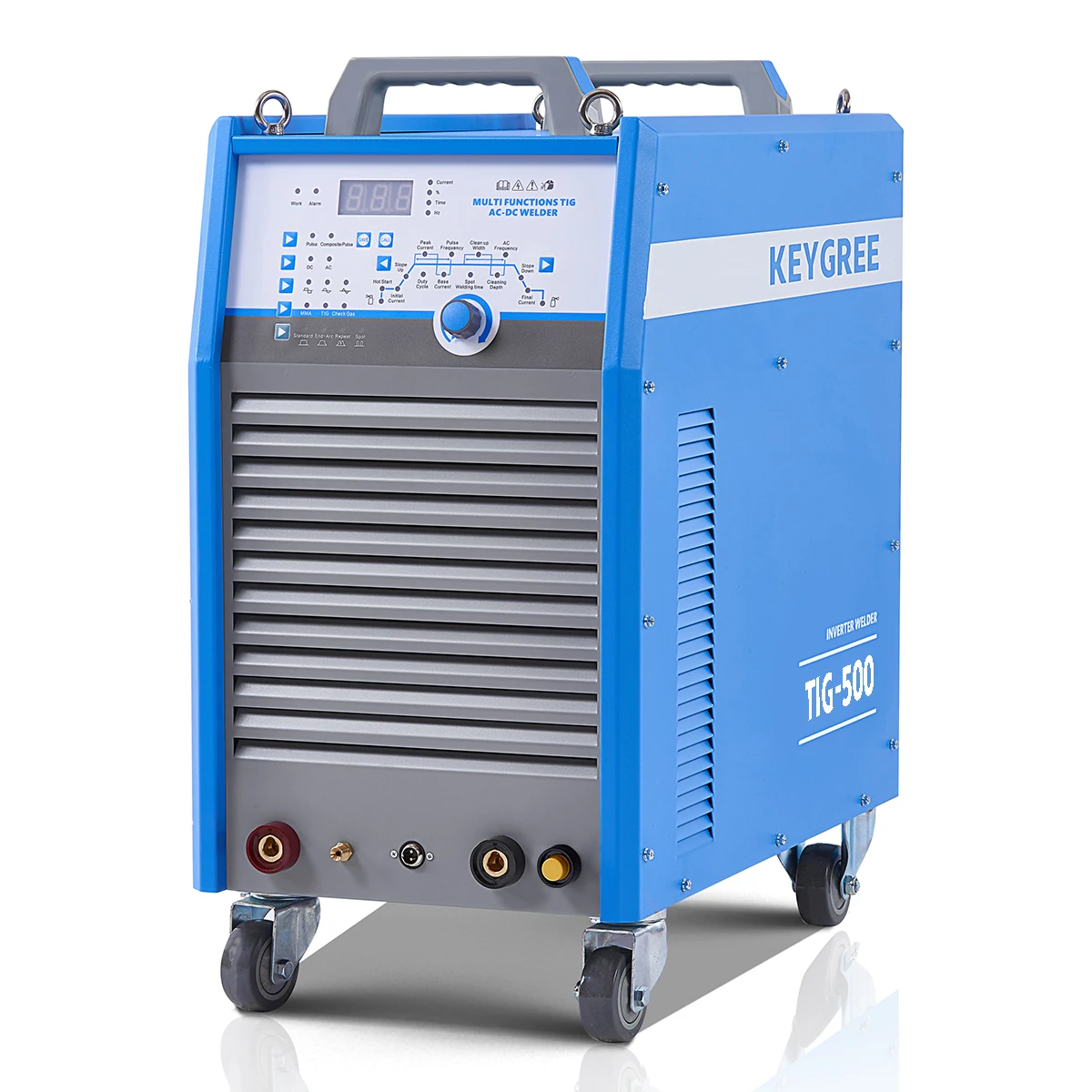

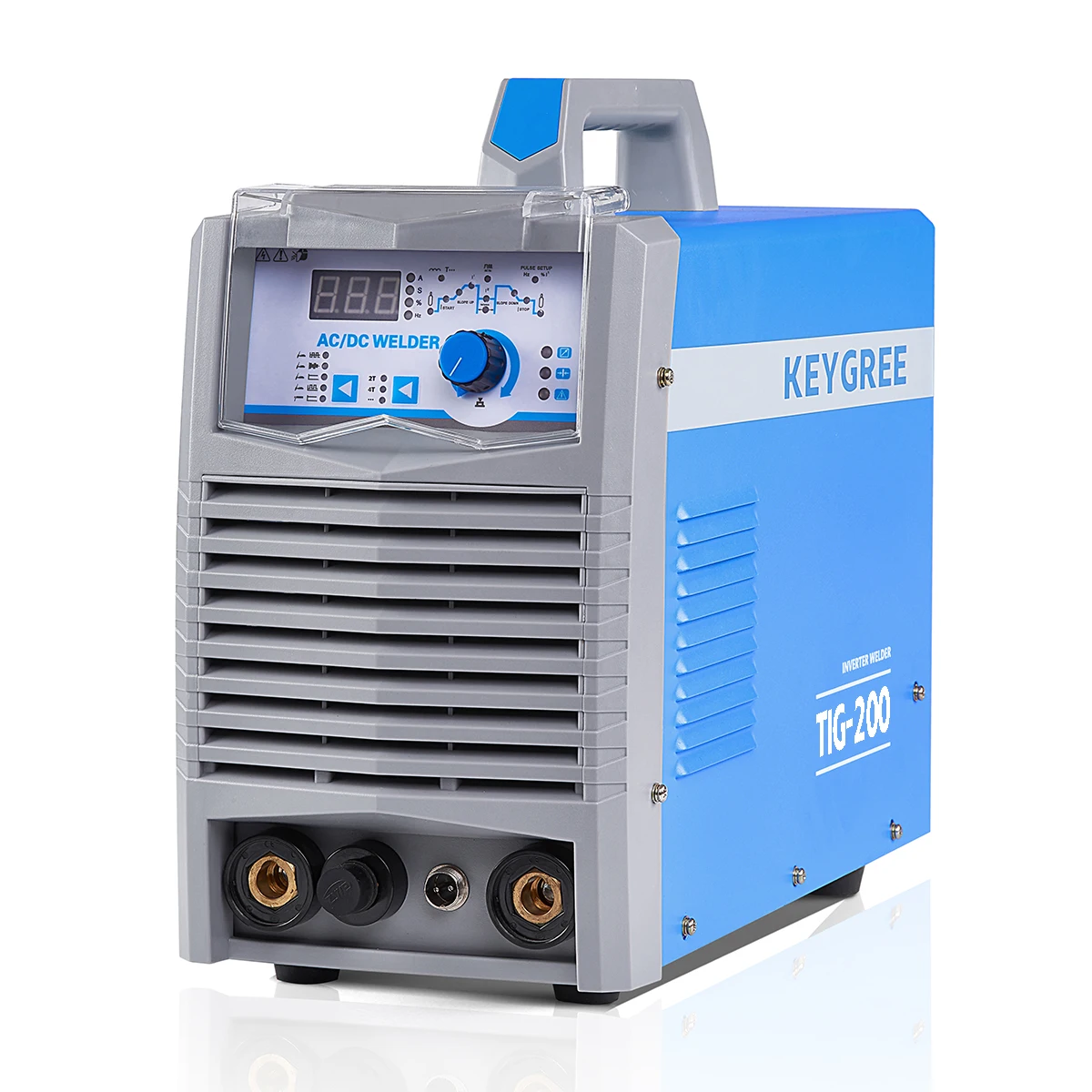

AC/DC PULSE TIG
■ Portable Inverter AC DC HF TIG With Pulse/MMA Welder
■ Upgrade IGBT Inverter Technology
■ Ideal for welding of carbon steels, low-alloy steels and stainless steels and aluminum
■ Digital Display
■ Equipped with voltage protection and thermal protection
■ Easy-to-use and user-friendly control panel
■ Welding Mode(AC HF TIG, AC Pulsed HF TIG, DC HF TIG, DC Pulsed HF TIG, Lift TIG)
and 2T/4T selections
■ Adjustable&displayable gas pro/delay, initial/base/peak current; simply welding procedure
parameters.
■ Adjustable; Hot start, Arc Force and built-in Anti-Sticking for MMA welding
■ Power, Overload and Under/Over-Voltage LED indicators
■ Easy welding cable connections with European type quick connectors
■ Foot control can be used
■ Fan cooling system
■ IP21S Protection Class
■ Lightweight, Compact Design
■ Upgrade IGBT Inverter Technology
■ Ideal for welding of carbon steels, low-alloy steels and stainless steels and aluminum
■ Digital Display
■ Equipped with voltage protection and thermal protection
■ Easy-to-use and user-friendly control panel
■ Welding Mode(AC HF TIG, AC Pulsed HF TIG, DC HF TIG, DC Pulsed HF TIG, Lift TIG)
and 2T/4T selections
■ Adjustable&displayable gas pro/delay, initial/base/peak current; simply welding procedure
parameters.
■ Adjustable; Hot start, Arc Force and built-in Anti-Sticking for MMA welding
■ Power, Overload and Under/Over-Voltage LED indicators
■ Easy welding cable connections with European type quick connectors
■ Foot control can be used
■ Fan cooling system
■ IP21S Protection Class
■ Lightweight, Compact Design
Main Technical Parameter | ||||||||
Product Type | AC TIG(WSE)-200 | AC TIG(WSE)-315 | AC TIG(WSE)-400 | AC TIG(WSE)-500 | ||||
Input Power Source | 1PH 200/220/230/240±15% | 3PH 380/400/415/440V±15% | ||||||
Rated Input Capacity | 5.3KVA | 12KVA | 16.8KVA | 23.1KVA | ||||
Inverting Frequency | 200KHz | |||||||
No-Load Voltage | 80V | 60V | ||||||
Duty Cycle | 40% | 60% | ||||||
Current Range | 5~200A | 10~315A | 10~400A | 10~500A | ||||
Effificiency | 80% | 90% | ||||||
Insulation Class | F | |||||||
Dimension | 480*320*430 | 1410*630*1300 | 1410*630*1300 | 1410*630*1300 | ||||
Weight | 15kg | 136kg | 136kg | 146kg | ||||
Product Selection Guide | ||||||
Material | Sheet Thickness(mm) | Tungsten Diameter(mm) | Current Range(A) | |||
Carbon Steel Stainless Steel Low Alloy Steel Copper | 0.3~6 | 1.6~2.4 | 20~175 | |||
0.3~10 | 0.8/1.0 | 20~190 | ||||
0.3~12 | 1.0/1.2 | 20~220 | ||||
0.3~12 | 2.5~3.2 | 5~400 | ||||
0.3~14 | 2.5/3.2/4.0 | 5~500 | ||||
0.5~5.0 | 2.5~3.2 | 5~400 | ||||
0.5~60 | 2.5/3.2/4.0 | 5~500 | ||||
Carbon Steel Stainless Steel Low Alloy Steel Aluminum | 1.5~5 | 2.5/3.2 | 5~315 | |||
1.5~10 | 2.5/3.2/4.0 | 20~500 | ||||

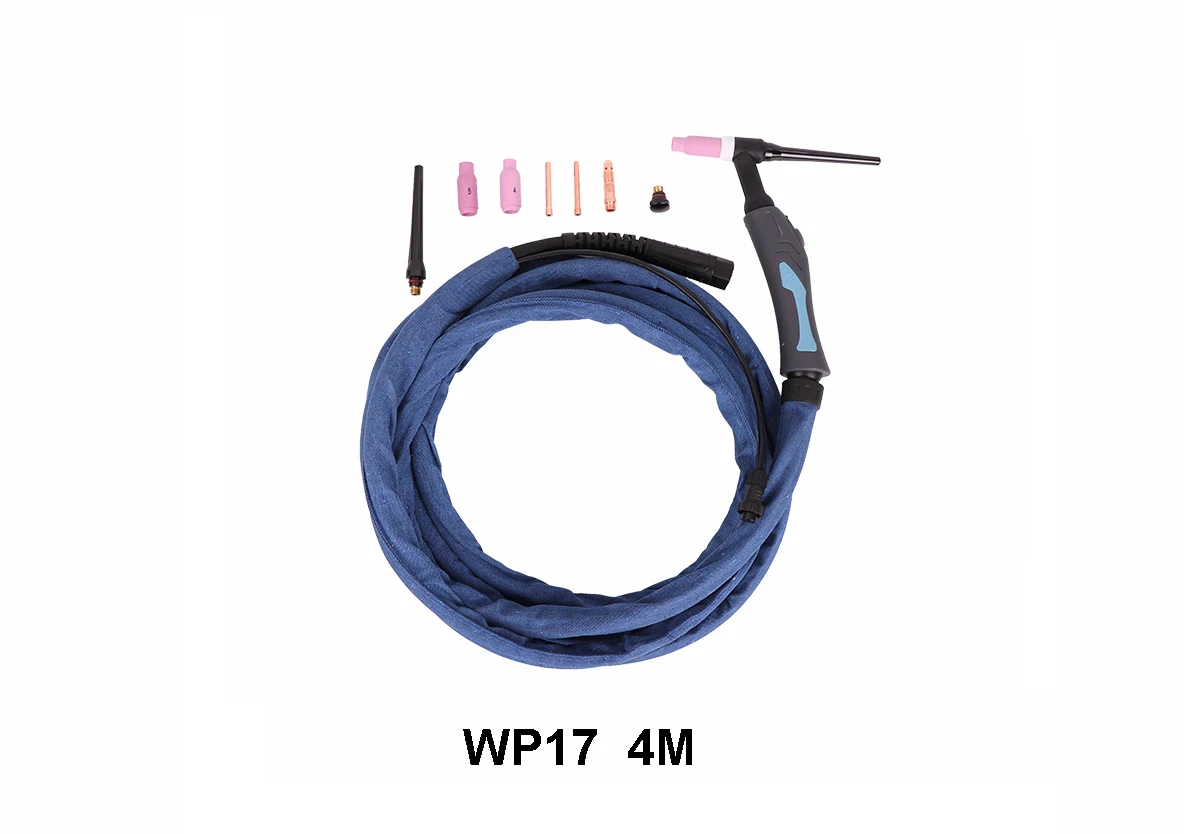

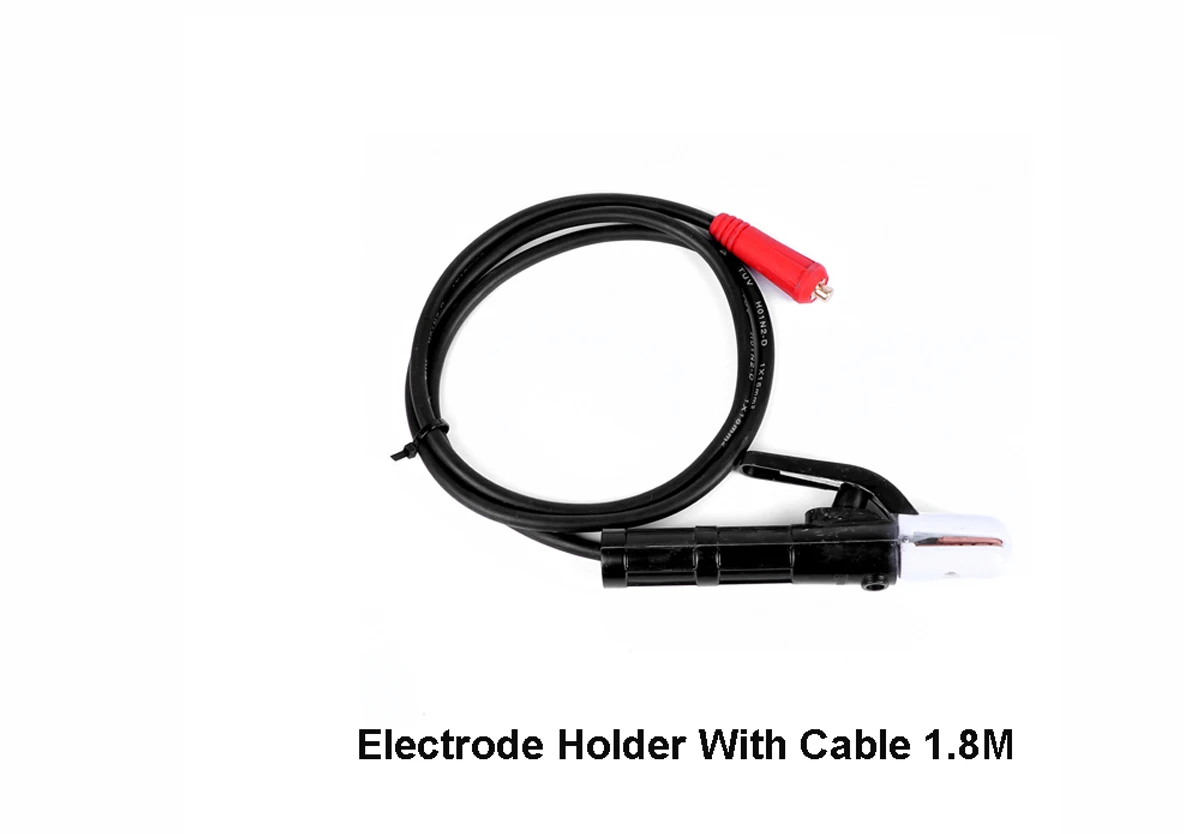

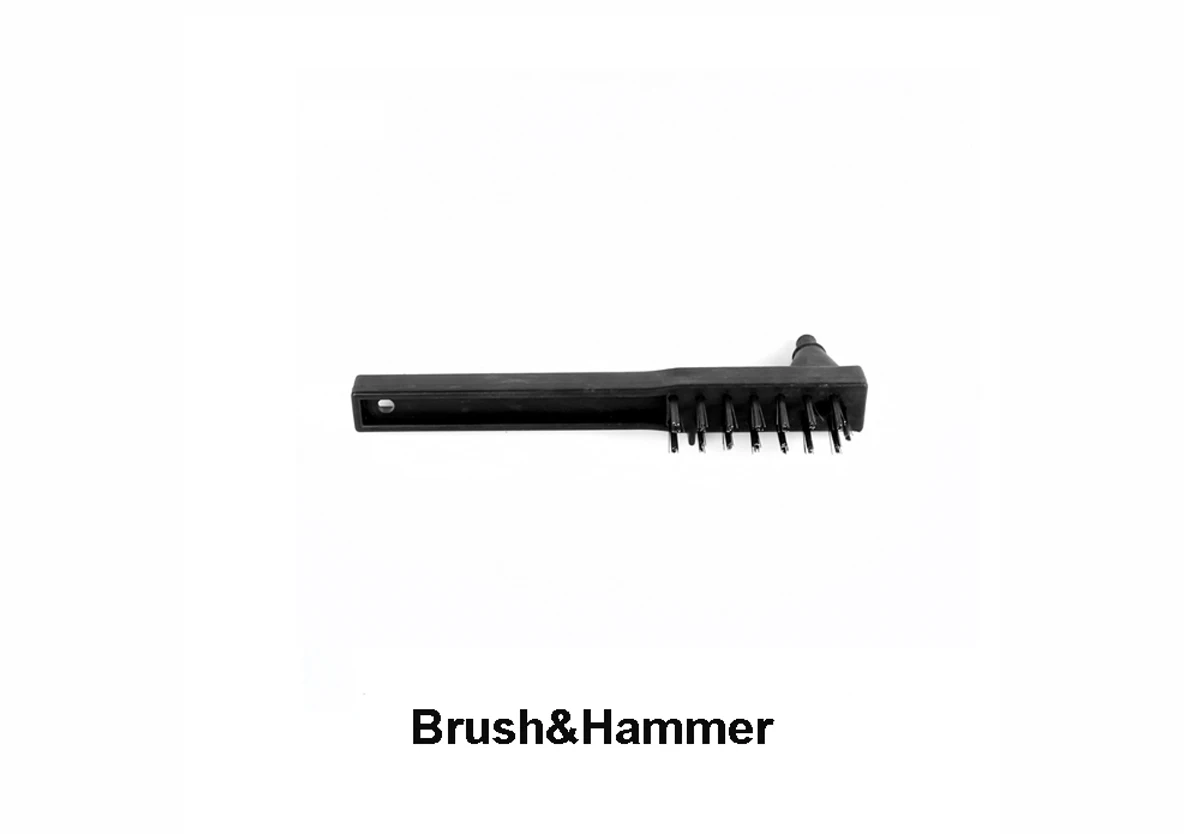

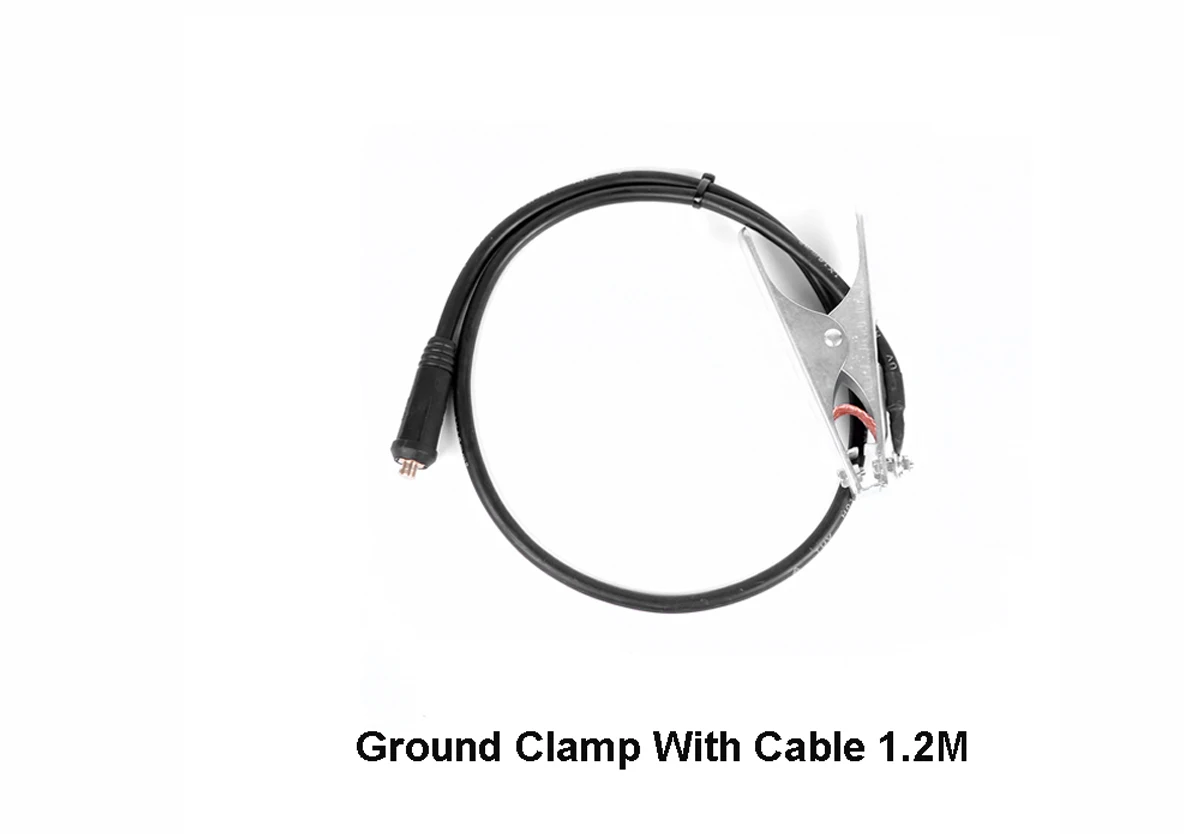

Accessories
Product packaging
Company Profile
CHENGDU KEYGREE TECHNOLOGY CO.,LTD is a professional Welding equipment and Plasma Cutting machine Manufacturer. Our company is located at Chengdu European Industrial city,Which is nearby China-European express train station,only 15days from chengdu across Eastern European,Central European,and desitination to England.
Keygree already becomes TOP 10 OEM and ODM factories for Welding and Cutting Equipments. We have a plant area of more than 12000 square meters . Supply quality and European technology devices more than 250000 sets per year. we have excellent teams who focus on product development &design, quality control & inspection and company running. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards.
Keygree already becomes TOP 10 OEM and ODM factories for Welding and Cutting Equipments. We have a plant area of more than 12000 square meters . Supply quality and European technology devices more than 250000 sets per year. we have excellent teams who focus on product development &design, quality control & inspection and company running. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards.
Certifications
Exhibition
FAQ
Q:WHY CHOOSE US?
1.100% local people,more then 5years experience on assambling.
2.Trial order 100% inspection on finished product,follow orders by 10-20% quality inspection on finished product.
3.Competitive price under high quality warranty.
2.Trial order 100% inspection on finished product,follow orders by 10-20% quality inspection on finished product.
3.Competitive price under high quality warranty.
Q:WHAT ABOUT OEM/ODM AND DESIGN OF THE PRODUCT?
We have more then 30people for researching new technology on welding machines,helping customers to do ODM/OEM, and can help customer to design and modify the product.
Q:Can you supply the sample?Q:Can you supply the sample?
We can supply the sample to you,but we should charge the sample fee.The sample fee can be returned after your order comfirmed.
