Cheap Price With Nice Quality Small Wood Chips Briquette Machine
US $786.00-$5986
Wood/log sawdust briquette making machine for sale,wood chip press machine
- Category: Biomass Briquette Machines >>>
- Supplier: Zhengzhou E.P Machinery Co. Ltd.
Share on (1600054371012):
Product Overview
Description
Product Description
Products Description

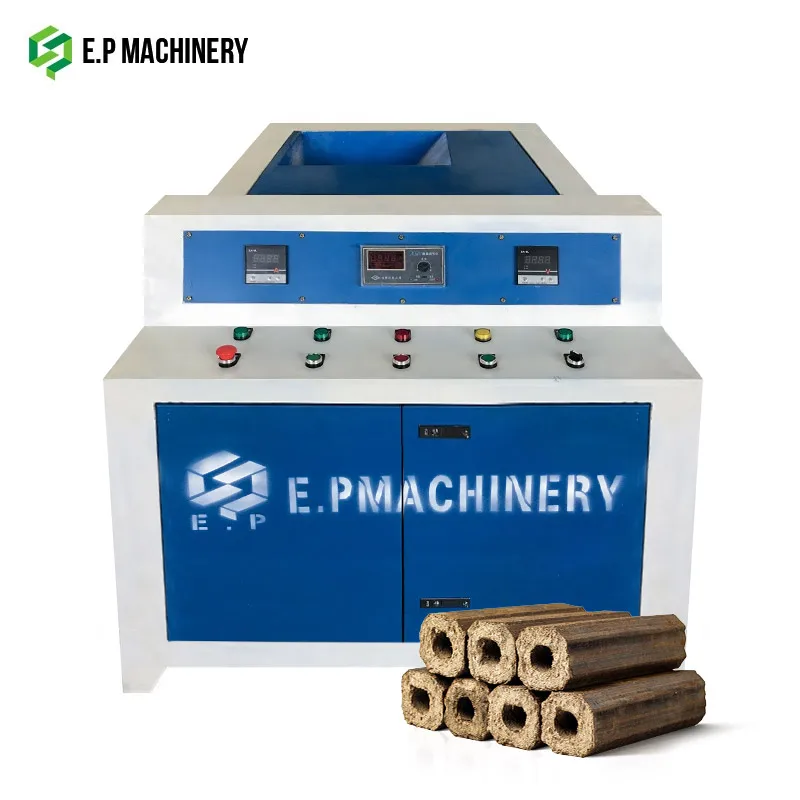

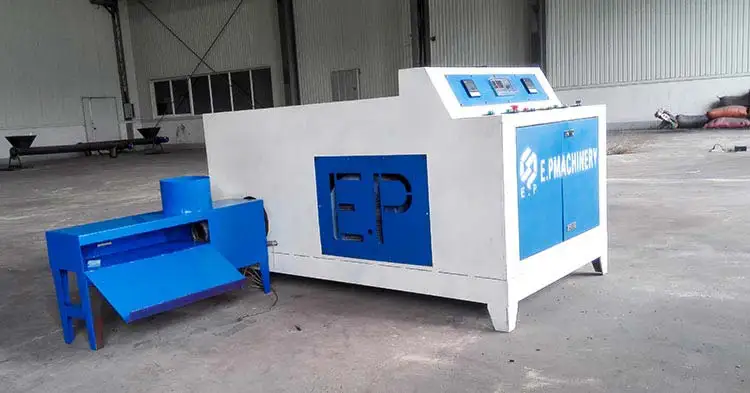

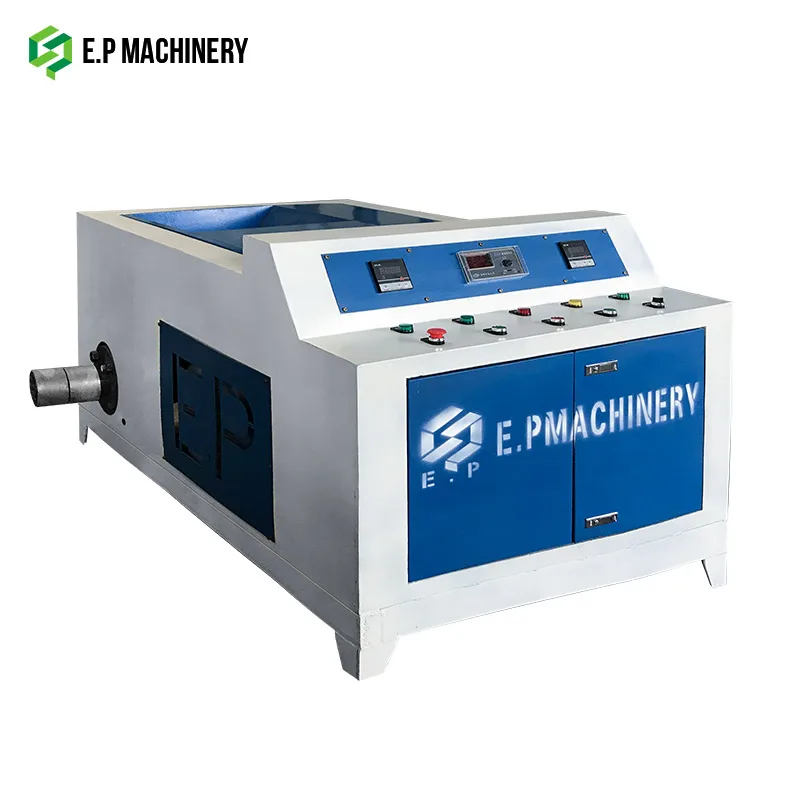

Biomass briquette making machines are used to make briquettes from biomass wastes. The finished briquettes are hollow. In general, the outer diameters of the finished briquettes range from 40-80mm. Besides, the shape of the finished briquettes can be varied through changing different mould.
Model | HSZB50 | HSZB60 | HSZB70 | HSZB80 |
Power(kw) | 22+9 | 22+9 | 22+9 | 22+9 |
Rotation speed(rpm) | 320 | 320 | 320 | 320 |
Capacity(kg/h) | 200 | 250 | 300 | 350 |
Finished Briquette Size(mm) | 50 | 60 | 70 | 80 |
Size(m) | 1.31*0.85*0.825 | 1.31*0.85*0.825 | 1.31*0.85*0.825 | 1.31*0.85*0.825 |
Weight(kg) | 560 | 610 | 660 | 710 |
Features
Control Panel
Current value, temperature and voltage value are displayed on the Digi-screen clearly. Sensitive buttons to control the machine.
Distribution Cabinet
Well organized. Besides, there is a voltage transformer that can transform the high voltage to 24V, which is a considerate design.

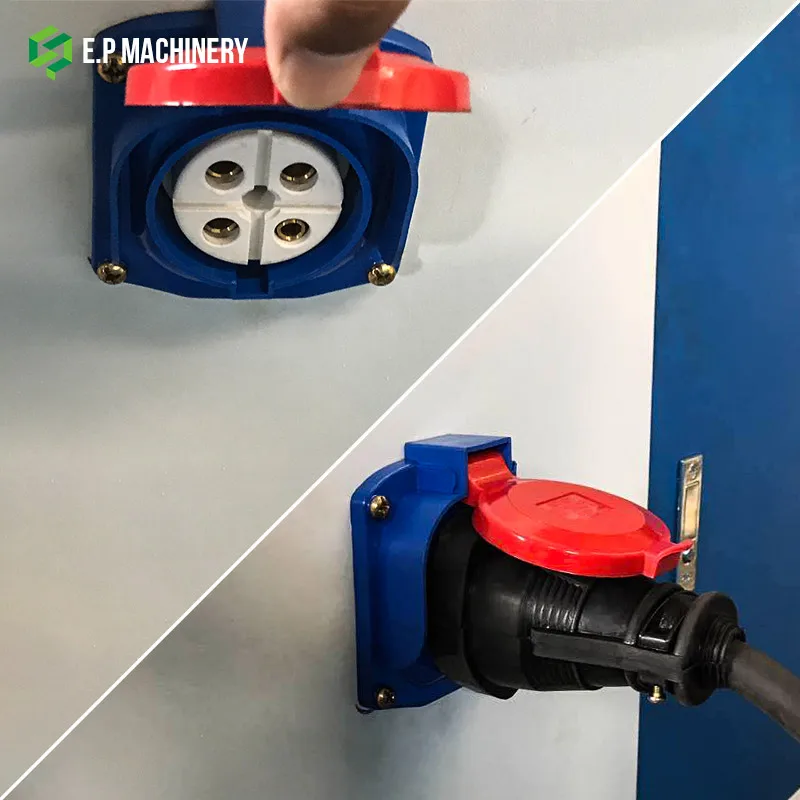

Safety Plug
One end of the safety plug is connected to the power supply, and the other end is connected to the socket of the distribution cabinet.
Smoke Collecting Device
With this device, the gases and smoke generated in briquetting process will be collected and recycled. Clean workshop protects workers’ health.

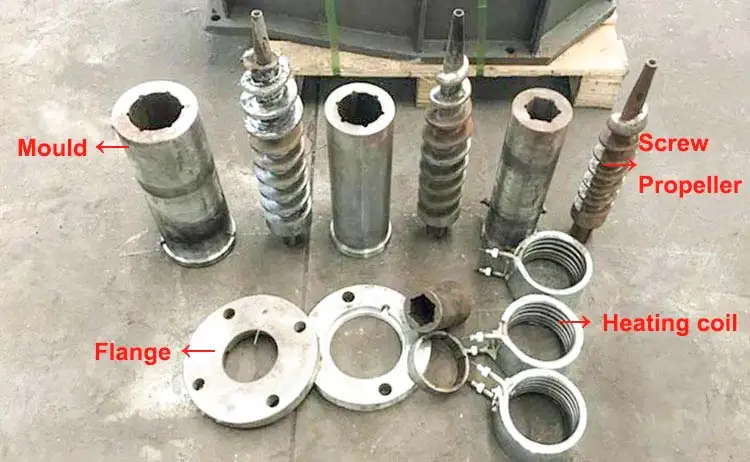

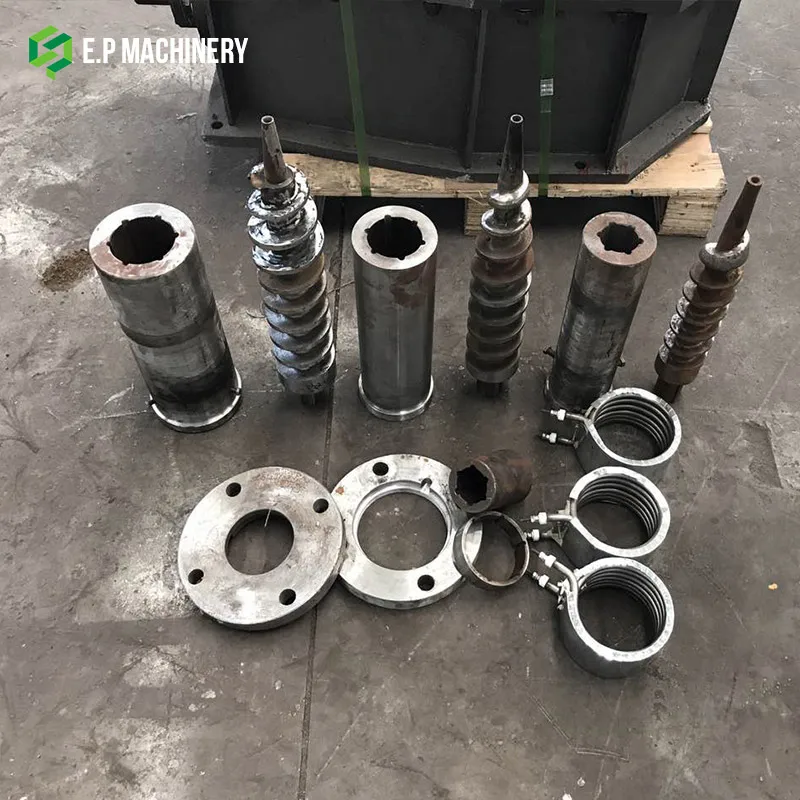

Spare Parts
There are a lot of spare parts including Through changing different moulds, the biomass briquette making machine can produce briquettes of different shapes. Thus, we suggest you equip several different moulds for your biomass briquette machine.

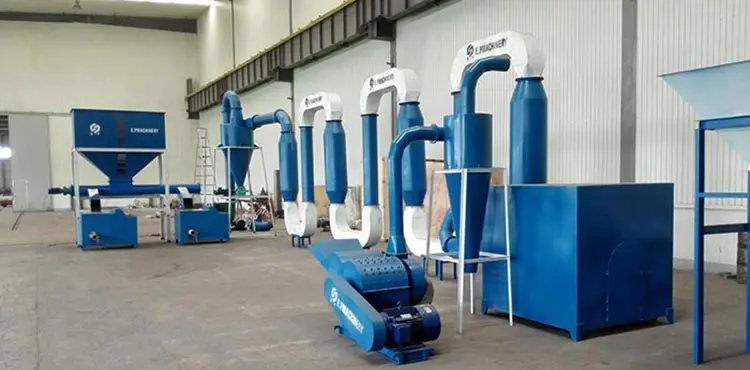

Production Line
Biomass briquette production line
Crushing machine, biomass briquette machine are necessary equipment for a biomass briquette production line. Whether to equip the drying machine and carbonation furnace depends on your requirements. To achieve continuous production, storage hoppers are necessary.
Crushing Machine
This crushing machine is used to crush the biomass raw material into fine powder.
Drying Machine
The dryer is for drying the powder material whose water content is higher than 10%.
Biomass Briquette Making Machine
Biomass briquette machine is used to turn biomass powder into high-density briquettes.
Finished Product I: Biomass Briquettes
Finished biomass briquettes can be used directly or undergo further processing.
Batch-type Carbonation Furnace
In the batch-type carbonation furnace, biomass briquettes will be converted into charcoal briquettes.
Finished Product II: Charcoal Briquettes
Charcoal briquettes are of higher economic value.
Auxiliary Equipment I: Conveyor
The screw-type conveyor is a connecting device. With it, the powdery material could be moved from one machine to another.
Auxiliary Equipment II: Storage Hopper
The storage hopper is used to store the powdery material temperarily.

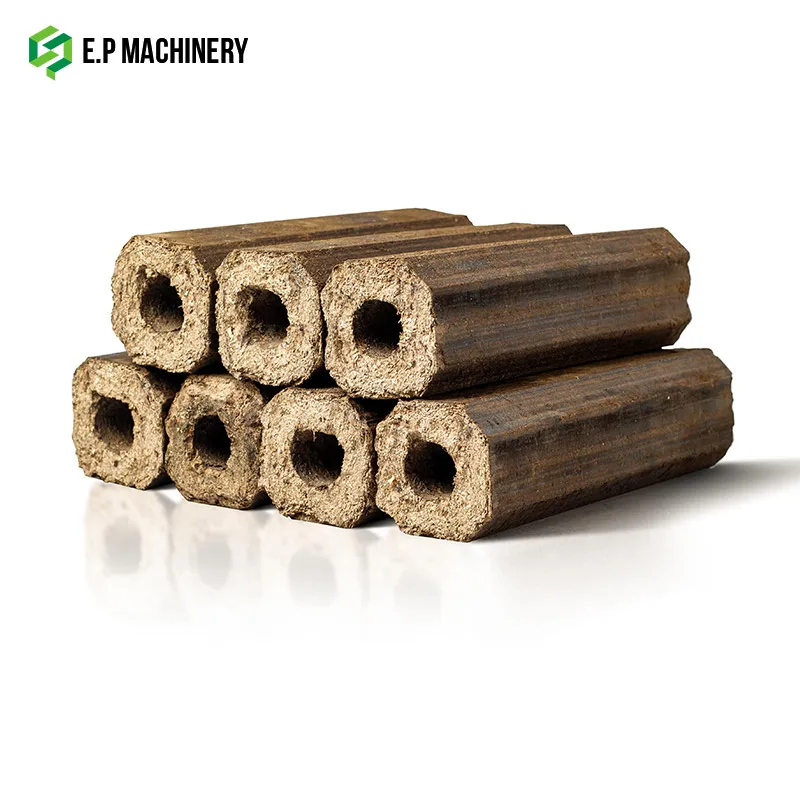

Finished Products
The raw material for making biomass briquettes are various, including wood dust, crop stalks, bamboo dust, rice husk, bagasse, etc. Biomass briquettes and charcoal briquettes both are renewable energy. Especially, charcoal briquettes can be used as BBQ charcoal briquettes.
Certifications
Why choose us
Our Advantages
1. We have a wealth of project experience and can provide complete technical guidance.
2. Provide integrated installation and complete guidance services
Strong Technical Team
Customized service: customize equipment according to your requirements.
Installation service: send our workers to your country to install the production line.
Installation service: send our workers to your country to install the production line.
Packaging & Shipping
Packaging Specification:
Outside Package : Wooden Packing as Exported Standard.
Inner Package : Stretch Film
About Shipping
We can be responsible for the shipping according to the customers's requirments to ship the machines by sea, express or air. Besides, we can cooperate with your agent if you have shipping forwarder in China.
