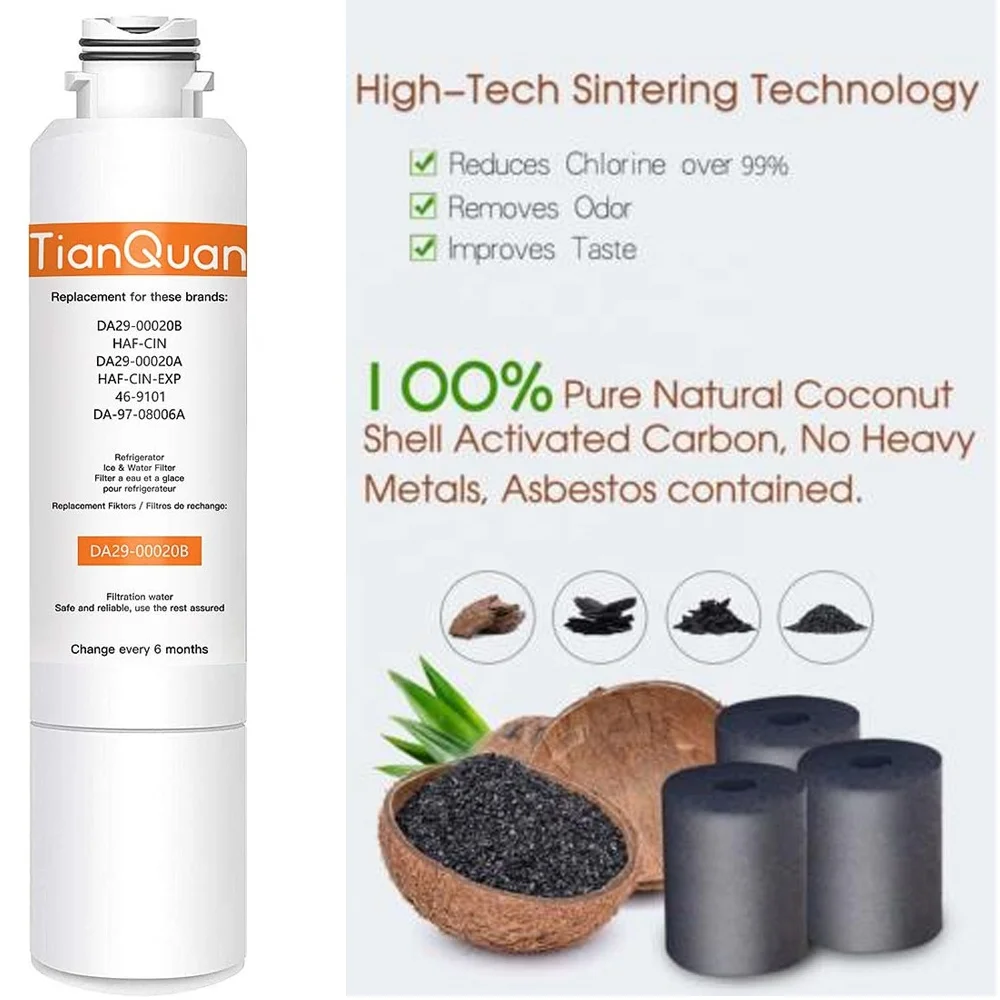

The TQ-020B Replacement Water Filter For Samsung DA29-00020B / Kenmore 9101 is designed to decontaminate impure water and make it drinkable. The impure water contains dirt, mud and harmful chemicals such as chlorine, which is very injurious to health. The water filter not only improves the taste by purifying the water and getting rid of the chemical content from water but also removes bad smell. The essential nutrients in the water are preserved so that your body gets all the essential vital minerals.
SAMSUNG® is a registered trademark of Samsung Electronics Co., Ltd.
XINLIN's products are not affiliated with or approved by the above mentioned company and brand. Any use of the above mentioned brand name is for the purpose of demonstrating compatibility only.
Specification of Samsung DA29-00020BF DA29-00020BM compatible replacement Refrigerator Water filter cartridge W10295370A 4396710 NSF Certified Water Filter
Technical Parameters
Used In Brands
Samsung
Media
Carbon Block
Replacement Model
DA29-00020BF DA29-00020BM
Primary Filter Media
Activated Carbon Block
Filter Life (months/gallons)
300 gallons(1,136 liters) or 6 months
Micron Rating (Nominal)
0.5
Micron Rating (Absolute)
1 microns
Operating Pressure (psi)
30 psi (276 kPa) - 125 psi (827 kPa)
Operating Temperature (°F)
33°F(0.6°C) - 100°F(38°C)
Operating Temperature (°C)
1.1 - 37.8
Flow Rate (gpm)
0.5 gpm (1.9 lpm)
Actual Size (in)
8 7/8 inches (length) x 2 inches (outside diameter)
Actual Size (cm)
22.54 x 5.08
Package
1 Pcs of Refrigerator Water Filter
Feature of Samsung DA29-00020BF DA29-00020BM compatible replacement Refrigerator Water filter cartridge

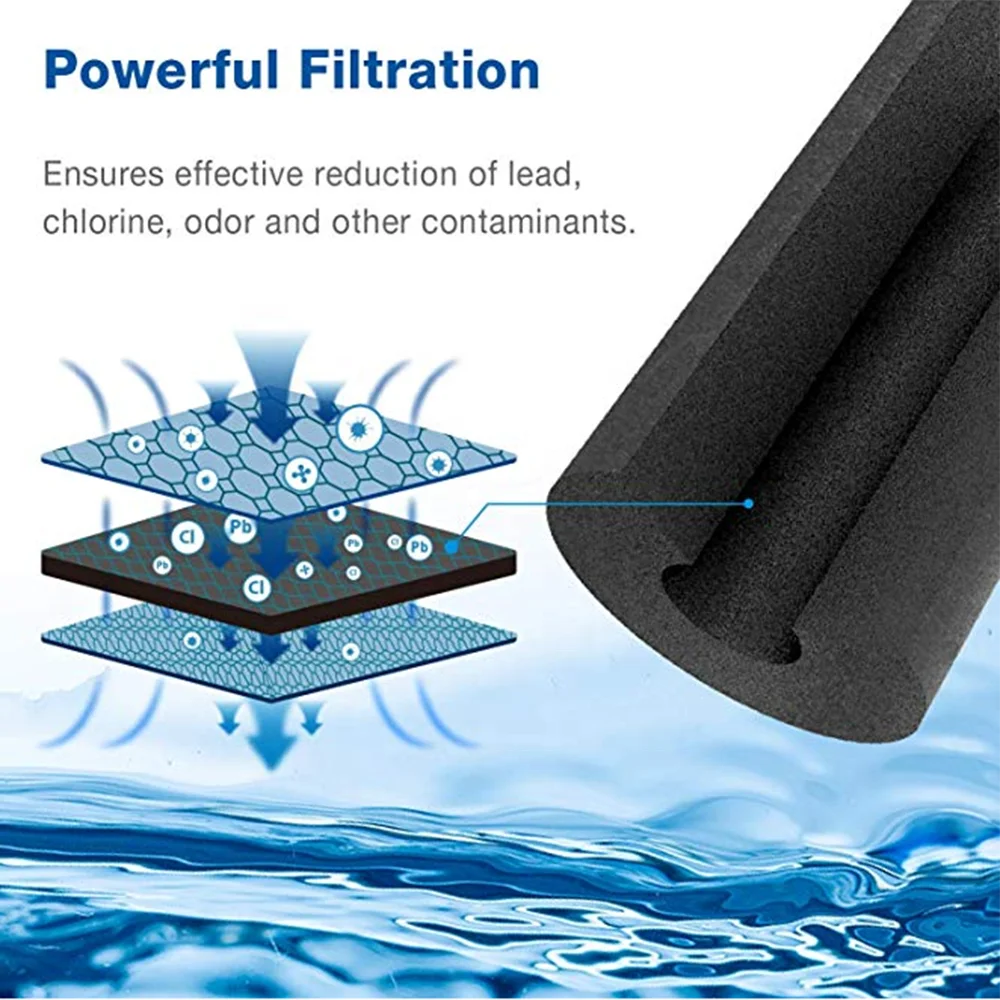

TianQuan TQ-020B Replacement Water Filter For Samsung DA29-00020B / HAF-CIN/EXP / 46-9101 Top-notch replacement filter units, an ideal fit for Samsung Refrigerators. Reduces Class I particulates down to 0.52 microns/Flow Rate: 0.5 gallons per minute NSF Certified Carbon Blocks meet all material requirements for Standard 42. The filter uses an Activated Carbon Block Filtration layer, which helps remove reduce one of the major injurious contaminants like chlorine. The layer also helps get rid of odor in water. With a life-cycle of 6 months, the Water Filter provides much purified healthier tasting fresh water up to 300 gallons.

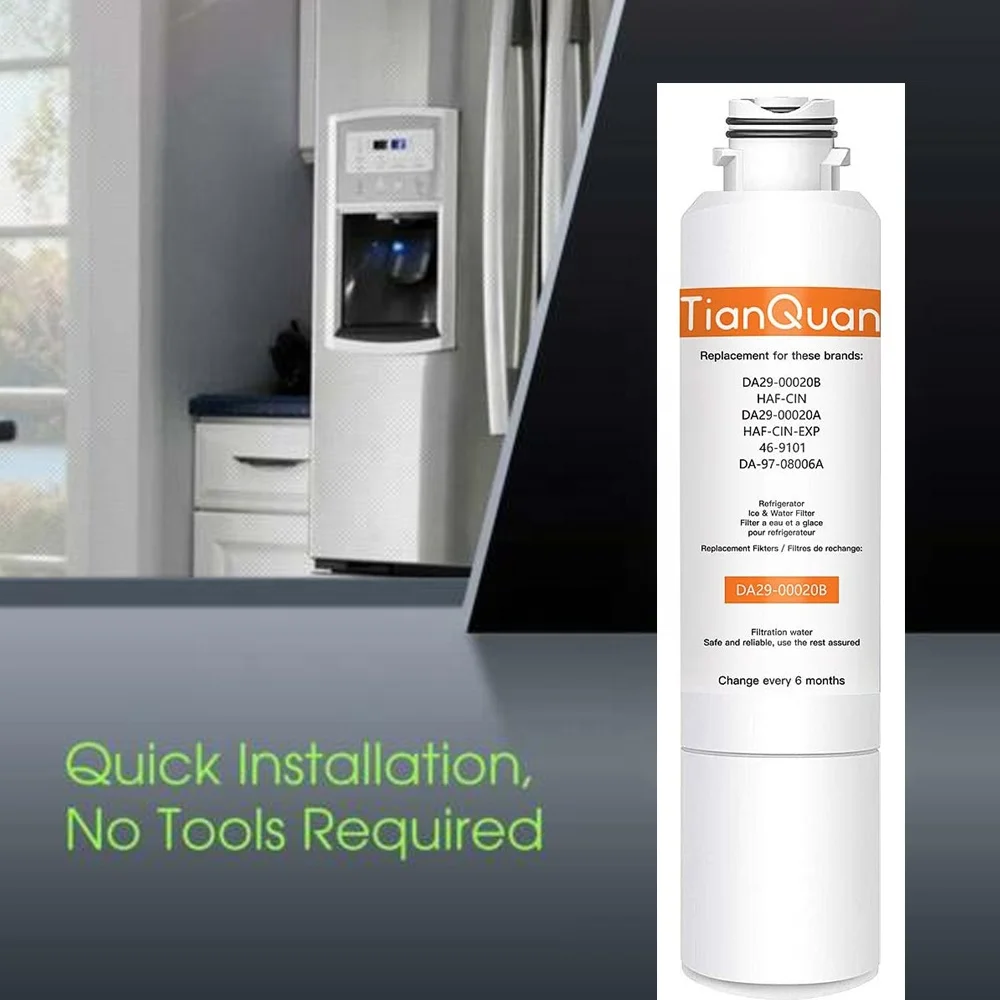

Steps to Install the replacement filter without any extra tools.: Firstly turn off the water source to the Refrigerator. Locate the pre-installed exhausted filter and remove it by turning the filter in the counterclockwise direction. Hold the new filter in your hands, carefully remove the packaging and sanitary end-cap from the filter. Now, insert the new filter into the filter repository and rotate the filter in the clockwise direction until the arrow at the bottom of the filter is correctly aligned with the arrow on the refrigerator filter head. Ensure that the filter is correctly installed into the refrigerator head using a full ¼ turn. If not so, then it would prevent the valve from opening fully and may cause slower water flow. Dispense some water into a glass ensuring good water flow, if it is slow, remove reinstall the filter till it has been inserted to a full 1/4 turn. Finally, check the filter for leaks in any.
The filter needs to be installed correctly so that the water gets filtered out well. To be on the safe side, it is always recommended to replace the filter after a period of 180 days for avoiding health- related
Application of Samsung DA29-00020BF DA29-00020BM compatible replacement Refrigerator Water filter cartridge
Packaging & Shipping
FAQ
FAQ
Q1.Are you a manufacturer? A:Yes, we are one of the most professional manufatcurer specilized in water filters production.
Q2. Do you have any MOQ limit for refrigerator water filters? A: No, we accepts sample order even for 1pieces. Bulk order with 1000pcs MOQ for standard model.
Q3. How to proceed an order for refrigerator water filters? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and remit deposit for mass order. Fourthly We arrange the production.
Q4. Is it OK to print my logo on refrigerator water filters? A: Yes. Please inform us formally before our production and confirm the design based on our sample.
Q5. What's your lead time? Usuaully, for sample order, the shipping will be arranged 1-3 business days after payment, and it may reach you in about 2 to 7 business days. For bulk orders, it depends on your order quantity.
Our Services
1.We have full stock and can deliver within short time. 2.OEM and ODM order are accepted, Any kind of logo printing or design are available. 3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you. 4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service. Check quality again, then send out to you at 1-2 working day after your payment Email you the tracking No., and help to chase the parcels until it arrive you. After-sale service 1.We are very glad that customers give us some suggestion for price and products. 2.If you have any question,please contact us freely by E-mail or Telephone
