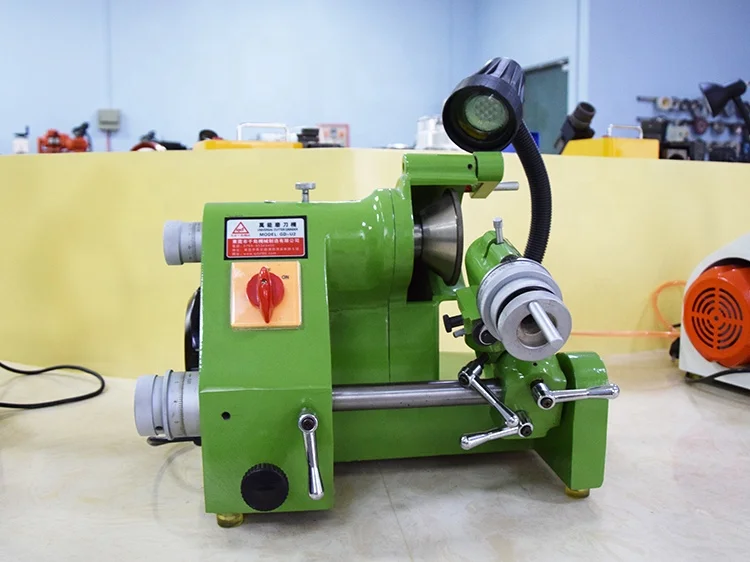

Hot Sale GD U2 Original Factory Manufactured Universal Cutter Grinder
Hot Sale GD-U2 Original Factory Manufactured Universal Cutter Grinder
Hot Sale GD-U2 Original Factory Manufactured Universal Cutter Grinder
Hot Sale GD-U2 Original Factory Manufactured Universal Cutter Grinder
Hot Sale GD-U2 Original Factory Manufactured Universal Cutter Grinder

Hot Sale GD U2 Original Factory Manufactured Universal Cutter Grinder

Share on (1600054555413):


Price:RUB 26,536.30

Quantity:


Product Overview

Description

universal drill and cutter grinder U2 universal manual tool cutter grinder



GD-U2 universal cutter grinder is necessary equipment for computer engraving machine and Engraving Milling machine and CNC center,it is specially designed for sharpening various diameters,angles of carving knives,straight shank cutter,engraving cutter and so on,it is with good precision,competive price,no skill request.







Specifications



Grinding Wheel

Diameter

Φ100mm

Thickness

50mm

Hole diameter

Φ20mm

Spindle speed

5200rpm

Max.clamping diameter

Φ3~16mm

Longitudinal traver of index head carrier

140mm

Longitudinal adjustment travel of index head carrler

18mm

Spindle and wheel longltudinal adjustment travel

6mm

Taper angle range

0~180°

Negative taper angle range

0~52°

Relief angle range

0~44°

Moter

Power

0.25kw

Speed

2810rpm

Voltage Three-Phase

380V

Voltage Single-Phase

220V

Frequency

50Hz/60Hz

Gross weight

40kg

Packing dimensions

536*424*415mm

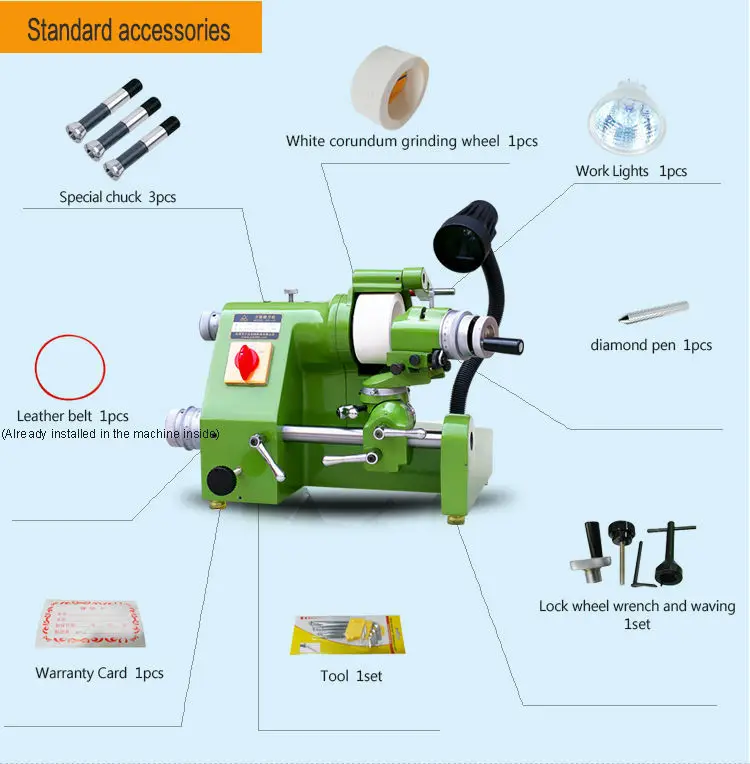

Standard Accessories

Tools

1 set

Diamond Pen 0.25 karat

1 pcs

Lamp

1 set

u2_02u2_03



Product features:



GD-U2 Universal Grinder is a necessary equipment for computer engraving machine and Engraving Milling machine and CNC center;



it is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;



it is with good precision,competive price,on skill request.



For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various



shapes such as radiused cutters or negative taper angle of cutters. The universal index head is



provided at 24 positions so that any particular angel or shape can be obtained, free 360 or 100



rotation is allowed for grinding End Mills. Twist Drill. Lathe Tools, only replace the attachment to



the index head without any complex setup.



Specifications

Standard Accessories

Max. Collet Capacity Φ16mm

Adjustable diamond wheel dresser                1 set

Taper angle fo 0°~ 180°

Wheel flange(mounted)                         1pcs

Relief angle 0°~ 45°

Grinding wheel PA100#(φ20mm)                1pcs

Negative angle 0°~ 26°

Colletφ4,6,8                                 3pcs

Wheel speed 5200 r.p.m

Drive belt                                    1pcs

Cup-shaped grinding wheel size 100*50*20mm

Lock pin                                     1pcs

Motor Power 0.55kw 220V/50Hz/380V

Lamp                                        1pcs

Net Weight 60kgs

Tools                                        1set

Machine Specification 45*40*35cm

Aligning finger                &nb
