edge banding machine pre milling
- Category: >>>
- Supplier: Qingdao Holztech Machinery Co. Ltd.
Share on (1600054564209):
Product Overview
Description
Technical Specifications
Banding Tape Width | 12-45mm |
Banding Tape Thickness | 0.4-3mm |
Workpiece Length | ≥150mm |
Workpiece Width | ≥40mm |
Workpiece Thickness | 10-60mm |
Working Pressure | 0.7Mpa |
Premilling Motor Power | 1.8kw*2 |
End Cutting Motor Power | 0.55kw*2 |
Fine Trimming Motor Power | 0.75kw*2 |
Polishing Motor Power | 0.18kw*2 |
Total Power | 11kw |
N.W. | 2500kgs |
G.W. | 2700kgs |
Details Images

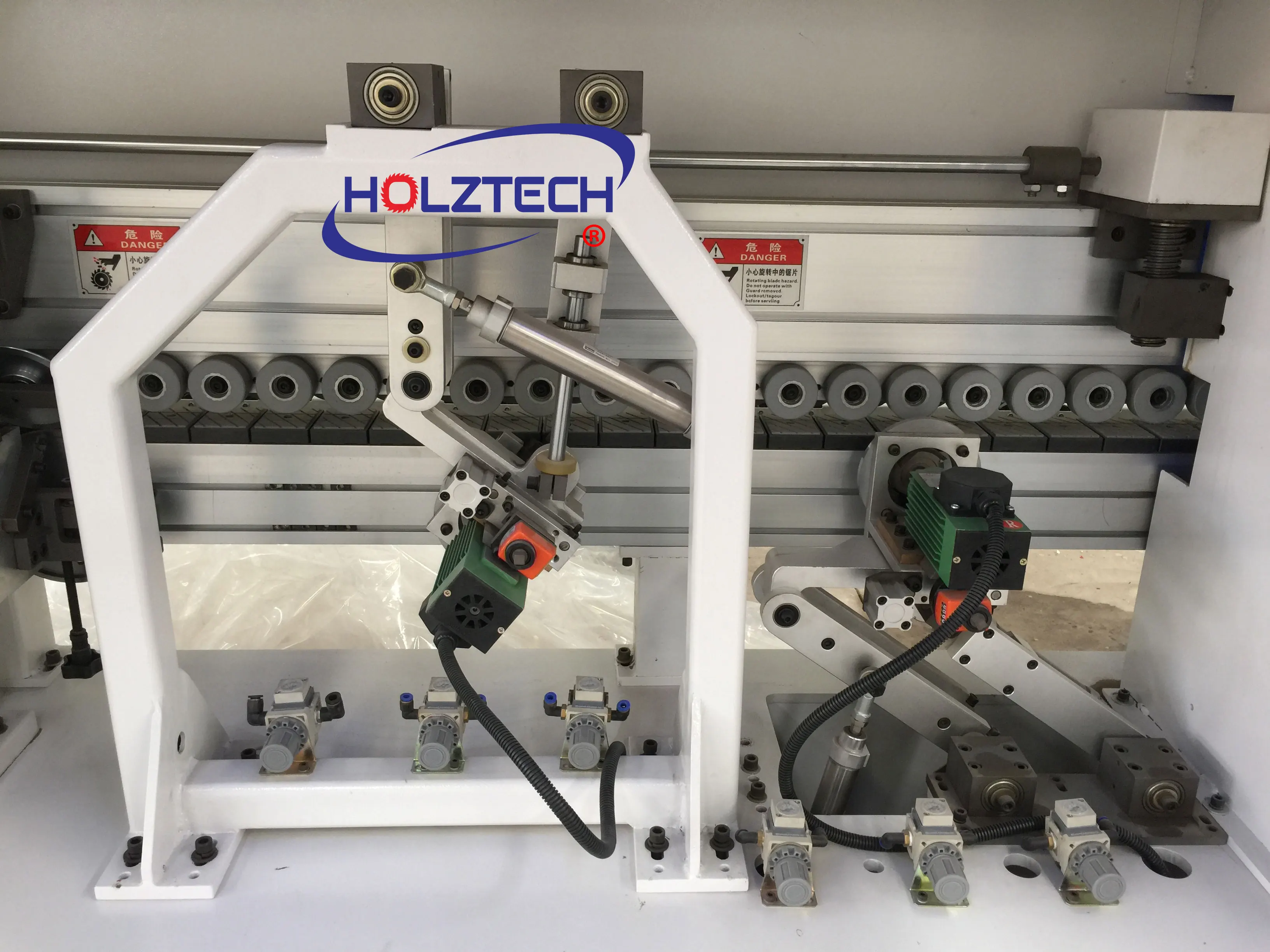

Premilling
Gluing and Edge Banding
End Cutting
Rough Trimming
Fine Trimming
Corner Rounding
Fine Trimming
Buffing
Assembly Room
Machines Are Ready for Shipment
Packaging & Shipping
Container Loading
