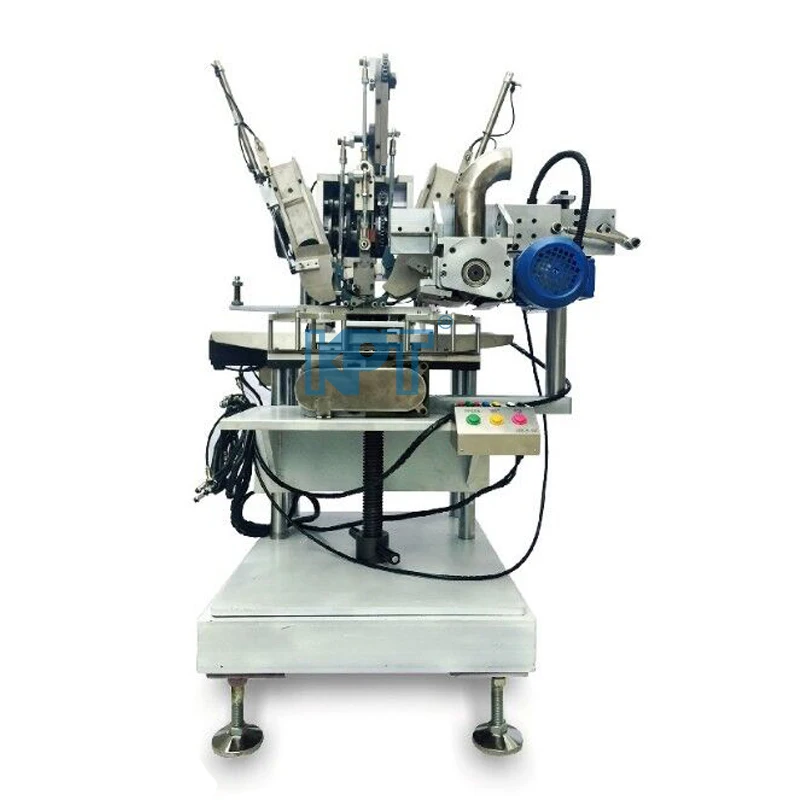

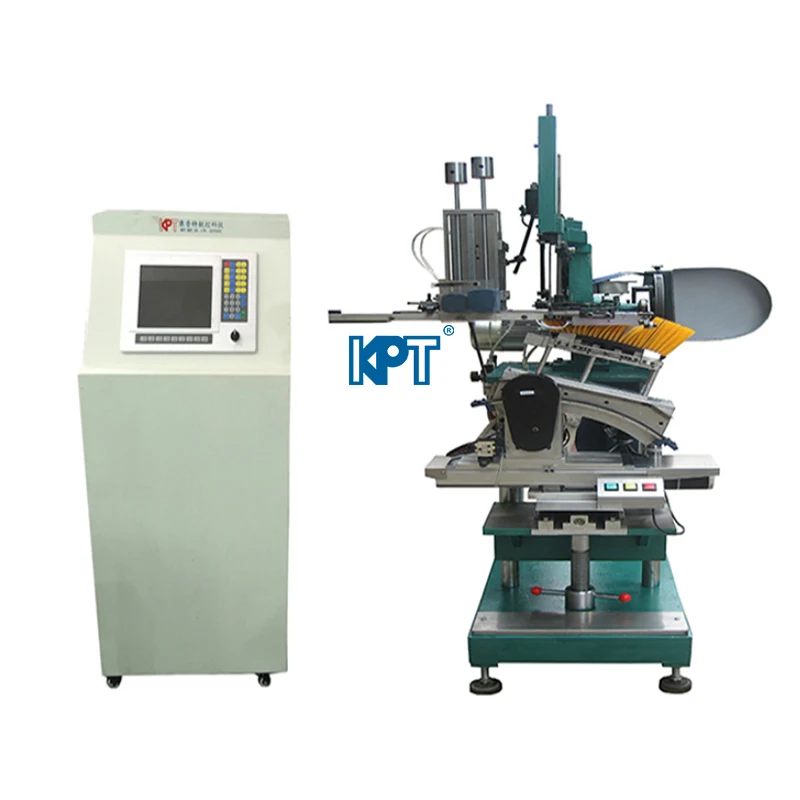

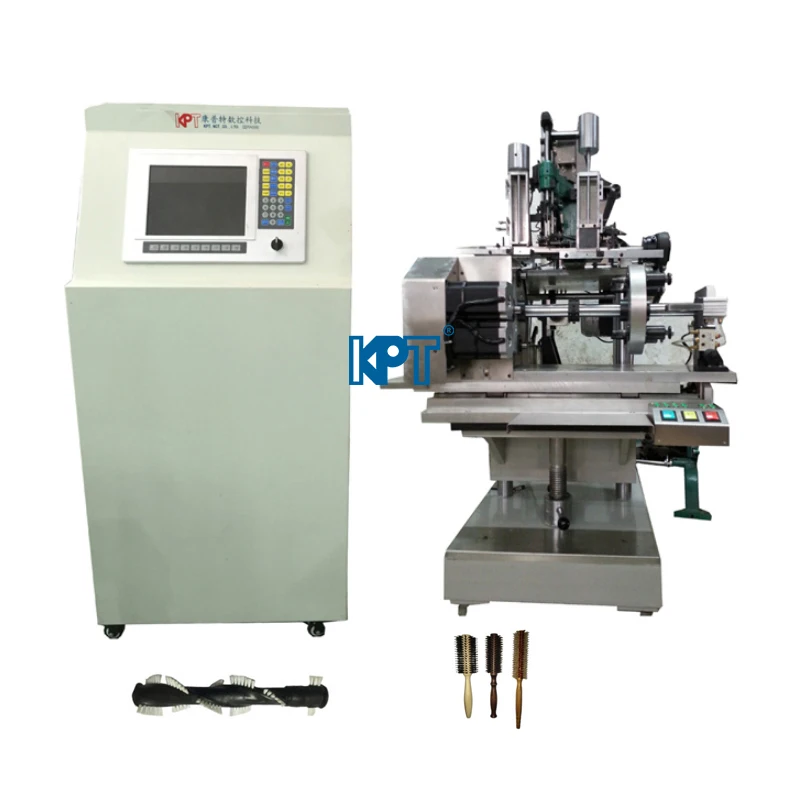

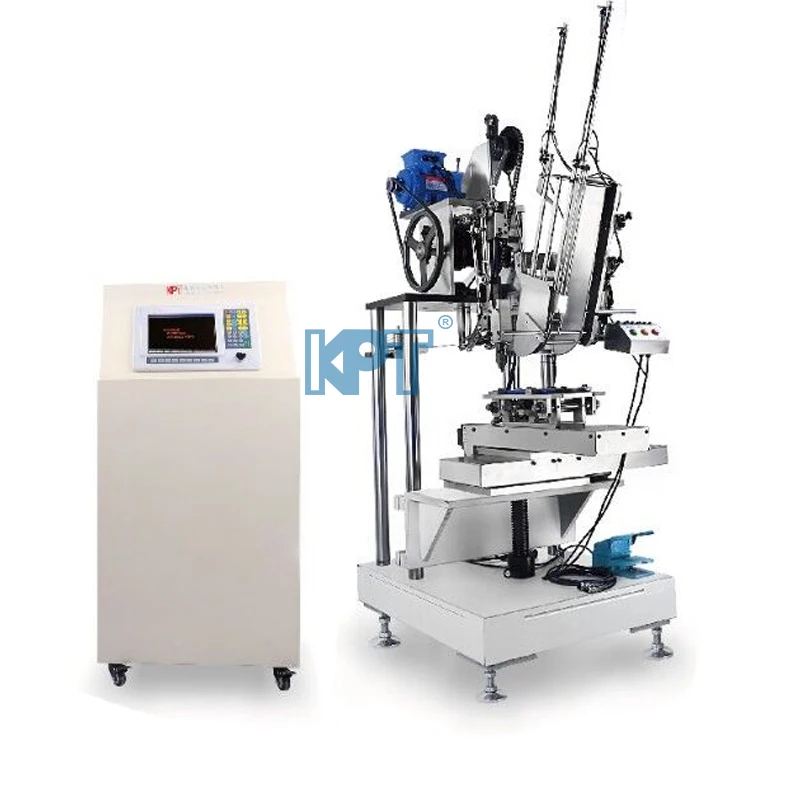

High Speed New CNC machine Tufting brush machine plastic band broom brush making machine

Features:

• This is a simple machine, quick to set up, and easy to operate. The working table of this broom machine is composed of straight-line guide rails and screw mandrels with high precision, which is quite stable and durable.

• It's used to tuft flat plastic brooms, the maximum tufting speed is 6-7 holes per second. Please note that the plastic broom blocks must be molded with holes in advance. It can also tuft other flat brushes, as long as operator changes grippers accordingly.

• Two grippers are installed on the worktable, which works alternatively and continually. Thus there's no need to stop to change brush blocks, which increases productivity.

Technical data:

Technical data:

Standard Stroke (mm): X, Y= 400, 200(Other bigger size could be customized)

Speed (Hole/min): 360-420

The material of Brush Handle: Plastic, wood

The material of Brush Filaments: PP, PVC, PET, Nylon

Length of Filaments (Outside Holes) :10mm - 120mm

Diameter of Brush Filaments : 0.08mm - 1.2mm

The diameter of Holes: 3mm - 6mm

Power supply: 380 Volt / 50 Hz

Weight (kg):300KG

Dimensions (W x L x H): 1200  900  1680
