14 mw natural gas diesel heavy oil fired hot water boiler
Product Description
WNS series gas/oil fired hot water boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 0.35MW to 14MW capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1.Model:WNS
2.Capacity:350kw to 14000kw(0.35MW to 14MW)
3.Pressure:atomosphere pressure or 0.7Mpa or 1.0Mpa
4.Hot water temperature:85 /95/115 degree
5.Design fuel:natural gas, lpg,lng,cng,biogas, diesel oil,heavy oil
6.Structure: three pass fire tube wet back
| Boiler model | WNS0.35 | WNS0.7 | WNS1.4 | WNS2.1 | WNS2.8 | WNS4.2 | WNS5.6 | WNS7.0 | WNS10.5 | WNS14 | |
| Rated thermal power(MW) | 0.35 | 0.7 | 1.4 | 2.1 | 2.8 | 4.2 | 5.6 | 7.0 | 10.5 | 14 | |
| Rated work pressure(Mpa) | 0.7/1.0/1.25/1.6 | ||||||||||
| Output water temp.(℃) | 95/115/130 | ||||||||||
| Return water temp.(℃) | 70 | ||||||||||
| Thermal efficiency(%) | >97 | ||||||||||
| Nox emission(mg/m3) | 120/80/30 | ||||||||||
| Exhaust gas temp.(℃) | <60 | ||||||||||
| Fuel type | diesel oil/natural gas/heavy oil/liquefied gas/city gas | ||||||||||
| Fuel consumption | diesel oil | 31.6 | 60.4 | 122.8 | 192.3 | 246.1 | 367.1 | 490.2 | 593.6 | 936.5 | 1200.8 |
| natural gas | 36.6 | 69.3 | 146.1 | 227.1 | 286.5 | 412.6 | 543.7 | 660.7 | 998.8 | 1330.7 | |
| Transporation weight(t) | 2.65 | 4.66 | 6.53 | 7.3 | 8.1 | 15.1 | 18.2 | 25.6 | 29.1 | 47.8 | |
Our boiler advantage

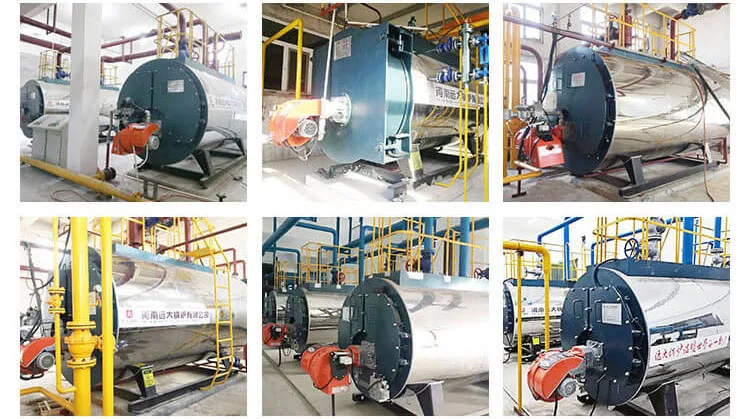

Our cases

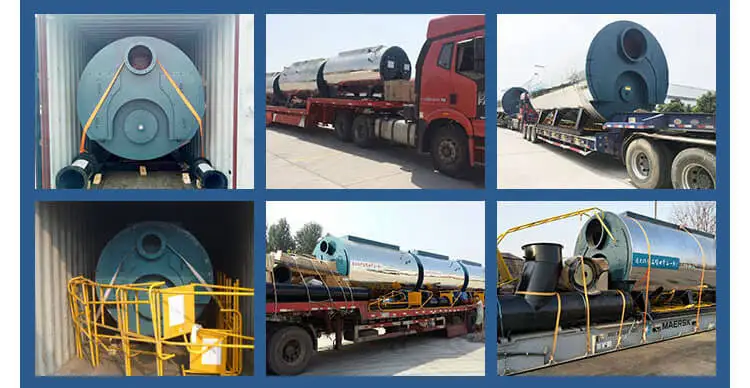

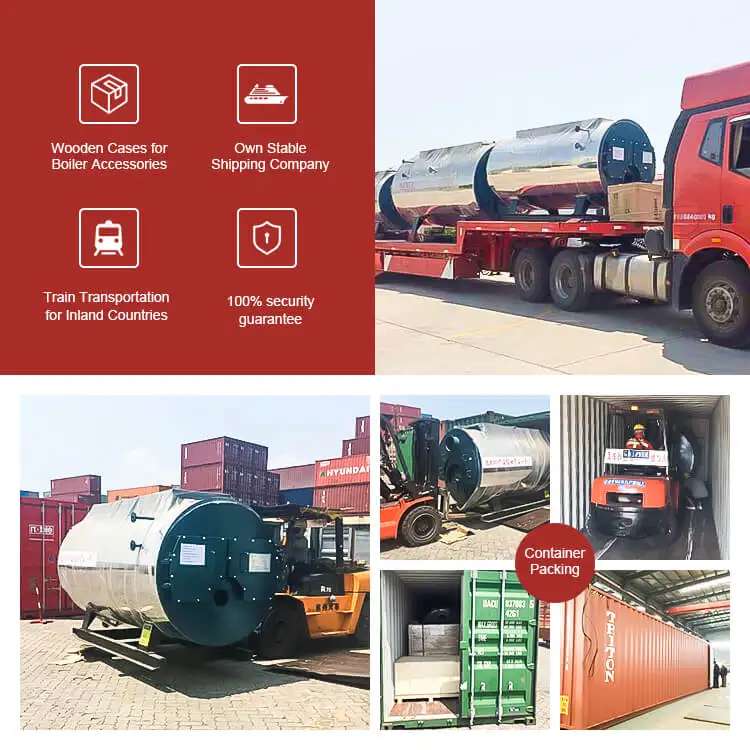

Packaging & Shipping
1. Packing way: nude packaging for boiler mian part and wood box packaging for boiler accessories.
2.Container packing: Normally we use 20 container, 40container or 20 flat rack container and 40 flat rack container to load it.
3.All goods will be reforced after packing into containers.
4. We have stable shipping company to cooperate. They will confirm the safty of the goods.
5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.
Boiler application
Company Information
Henan Yuanda Boiler Co., Ltd,established in 1956. Locates in Xihua County of Henan Province, is one of the enterprises which firstly obtained boiler manufacturing license in China from 1983. We have A-Class license for boiler manufacturing, D-Class license for pressure vessels, and certifications for boiler installation, commissioning and maintenance. We are a high-tech enterprise integrating manufacturing, designing, engineering and servicing gas, oil, coal,biomass,wood and solid waste fired steam,hot water and thermal fluid(hot oil) boilers.
Our company participated in the drafting of national boiler standards, and has more than 60 patents, passed ISO9001: 2015 Quality Management, ISO14001: 2015 Environmental Management, OHSAS18001: 2007 Occupational Health And Safety Management System Certification.
For more than 60 years, our company focus on R&D and production of high efficiency, energy saving and environmental protection boilers.Our products are well-known in domestic markets and were exported to 86 countries and regions. With installations of more than 100,000 projects across all industries worldwide, Yuanda Boiler is recognized for the high code standards, innovative engineering and design, Energy Star rating, and renewable, sustainable solutions and operational efficiency.
Our company keep the business philosophy of "Quality Oriented, Sincerity Promoted" to create greater value for customers and make greater contributions to the society.
Company Target : Be Century-old Enterprise, Create International Brand!
