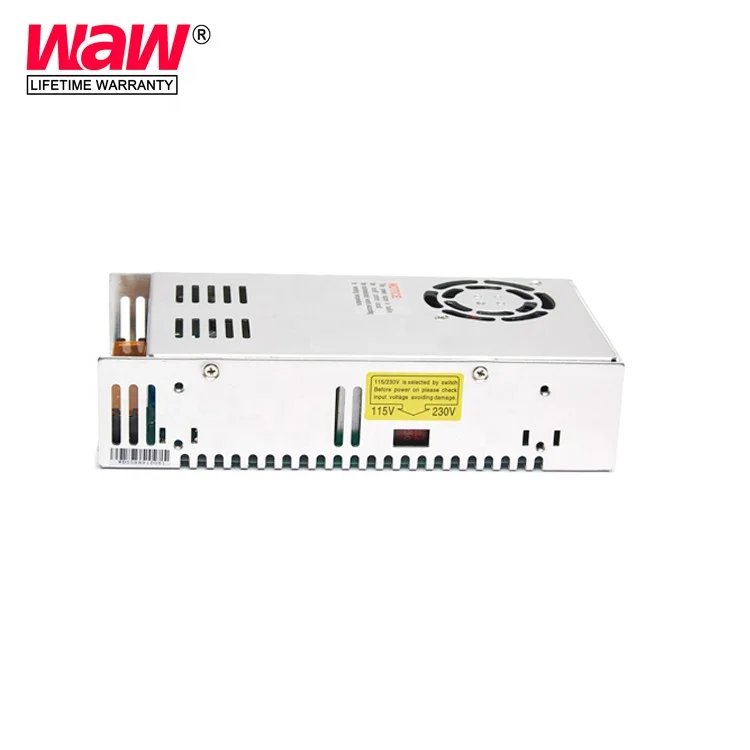

220vac to 24vdc 14.6a 350w smps led driver(S 350 24)

Product Overview

Description

Wholesale Single Output Led Switching Power Supply 350w

24v 14A with CE RoHS

Features



1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY



Specifications

MODEL		S-350-5	S-350-12	S-350-24	S-350-36	S-350-48
OUTPUT	DC  voltage	5V	12V	24V	36V	48V
	Rated output current	50A	29A	14.6A	9.73A	7.3A
	Output current range	0~50A	0~29A	0~14.6A	0~9.73A	0~7.3A
	DC power	350W	350W	350W	350W	350W
	Voltage adj.range	±10%	±10%	±10%	±10%	±10%
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Ripple and noise	150mVp-p	150mVp-p	150mVp-p	240mVp-p	240mVp-p
	Intet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load stability	±0.1%	±0.5%	±0.5%	±0.5%	±0.5%
INPUT	AC voltage range	85~132VAC/170~264VAC selected switch 47~63Hz 240~370VDC
	Current	6.5A/115V  4A/230V
	Efficiency	77%	81%	83%	85%	85%
	AC Inrush current	25A/115V  50A/230V
	Leakage current	<3.5mA/240VAC
PROTECTION	Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
	Over-voltage	115%~135%
		5.75-6.75V	13.8-16.2V	27.6-32.4V	55.2-64.81V	55.2-64.81V
	High temperature	ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output(5~15V)
SAFETY	Setup rise hold up time	200ms,100ms,20ms
	Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
	Withstand voltage	Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
	Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms
ENVIRONMENT	Temperature coefficient	±0.03%/°C (0~50°C )
	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	-20°C~+85°C,10~95%RH
OTHER	Overall dimension	215*113*50mm     17PCS/CARTON
	Weight	0.93Kg
CERTIFICATE	CE EMC Authenticate	EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
		EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
	CE LVD Authenticate	EN61347-1:2008T A1:2001 EN61347-2-13:2006
		EN60950-1:2006+A11:2009+A1:2010+A12:2001
	ROHS Authenticate	EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
		EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
