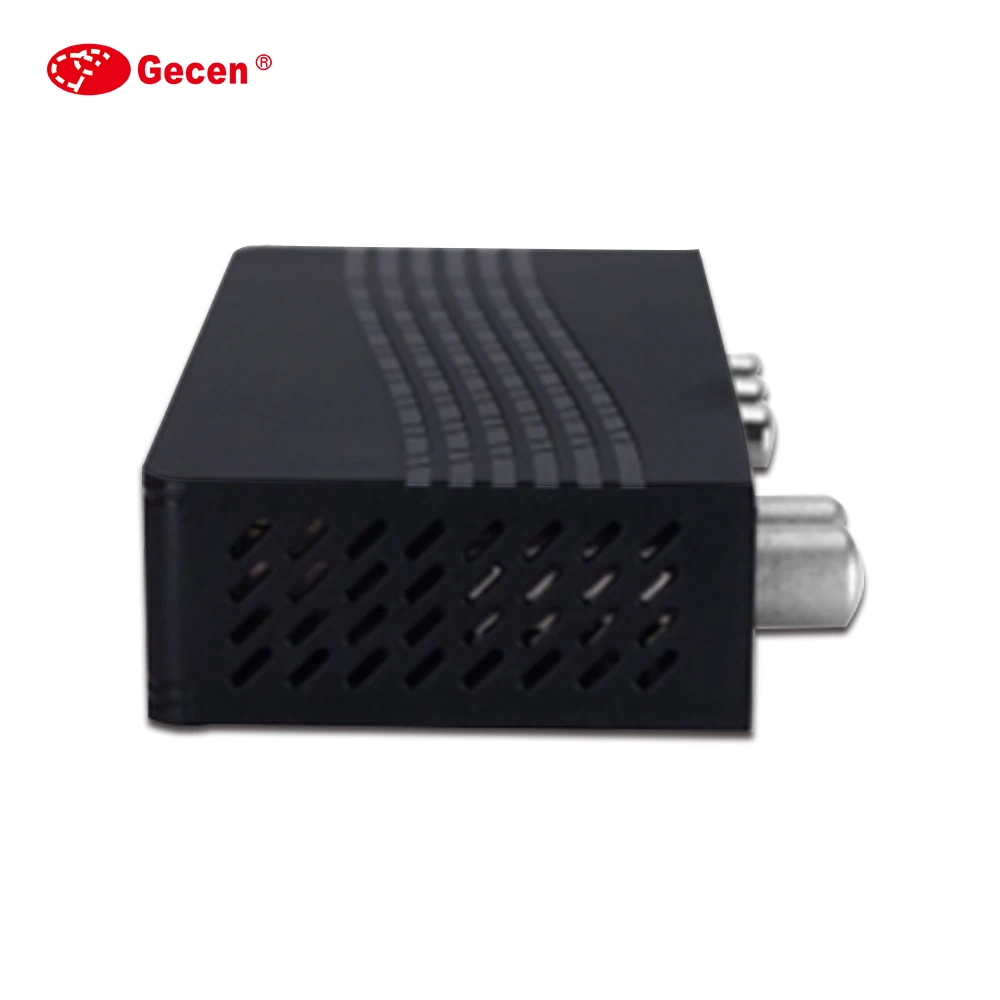

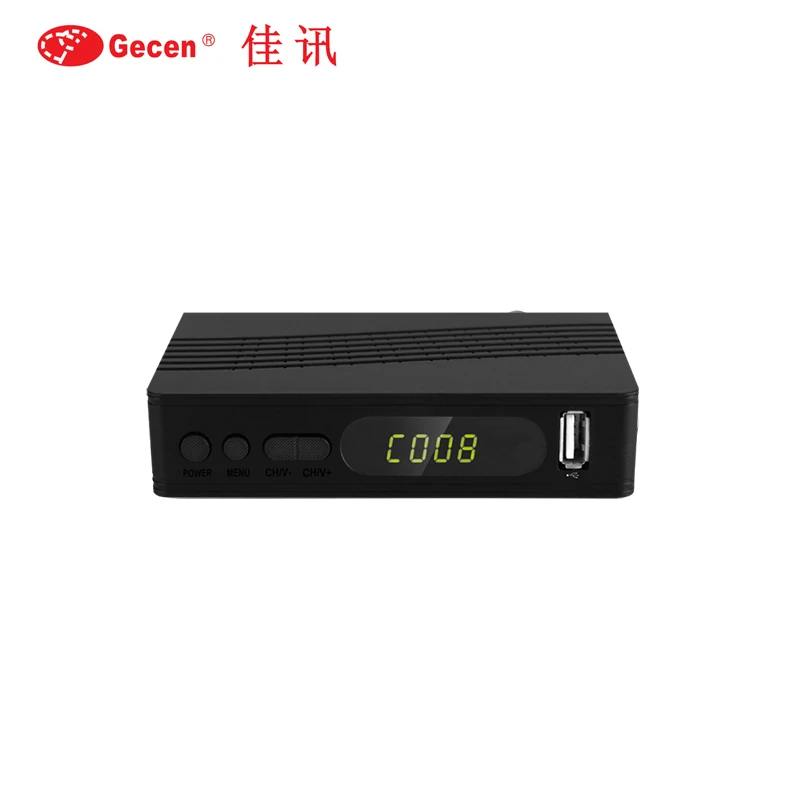

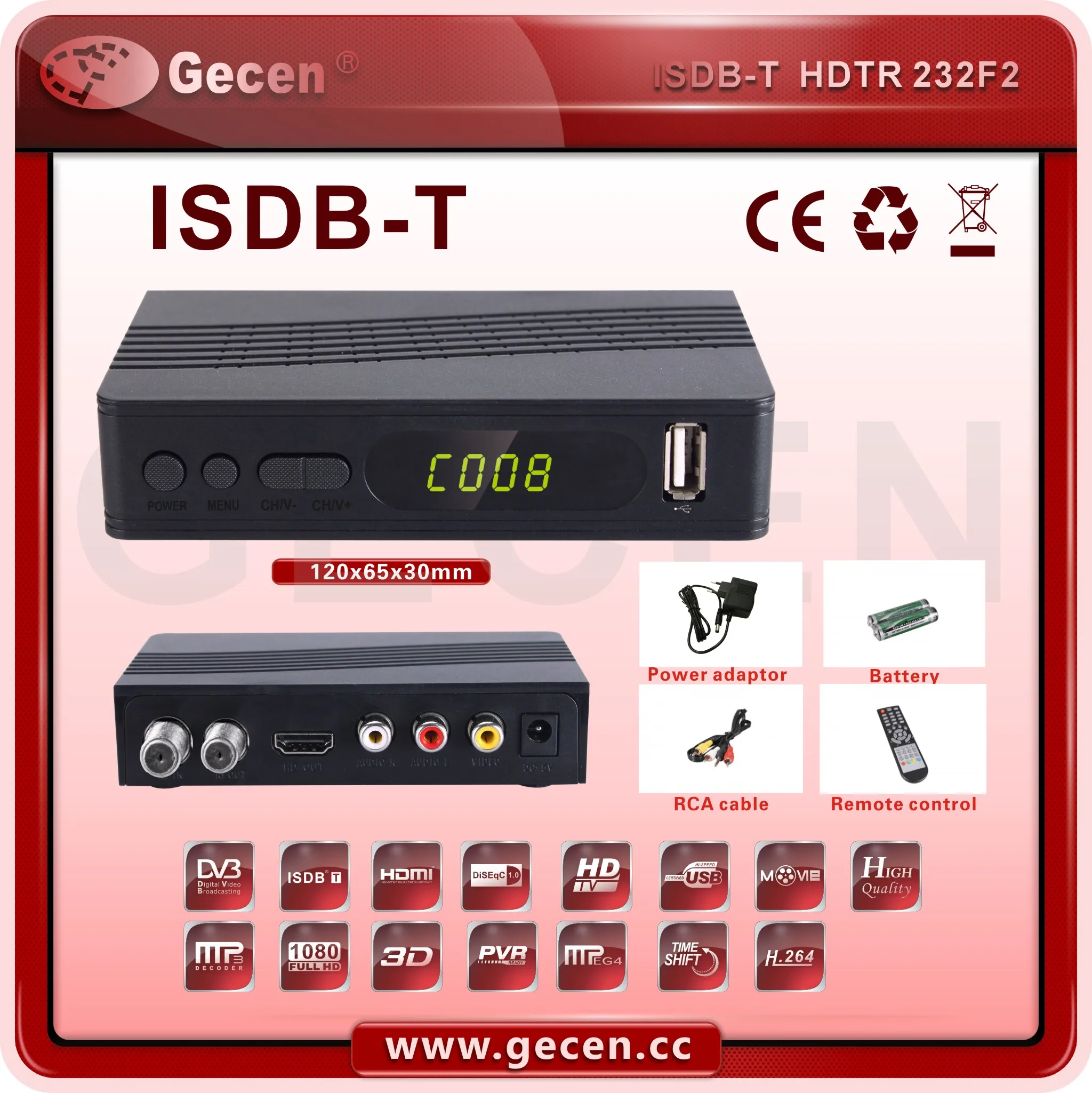

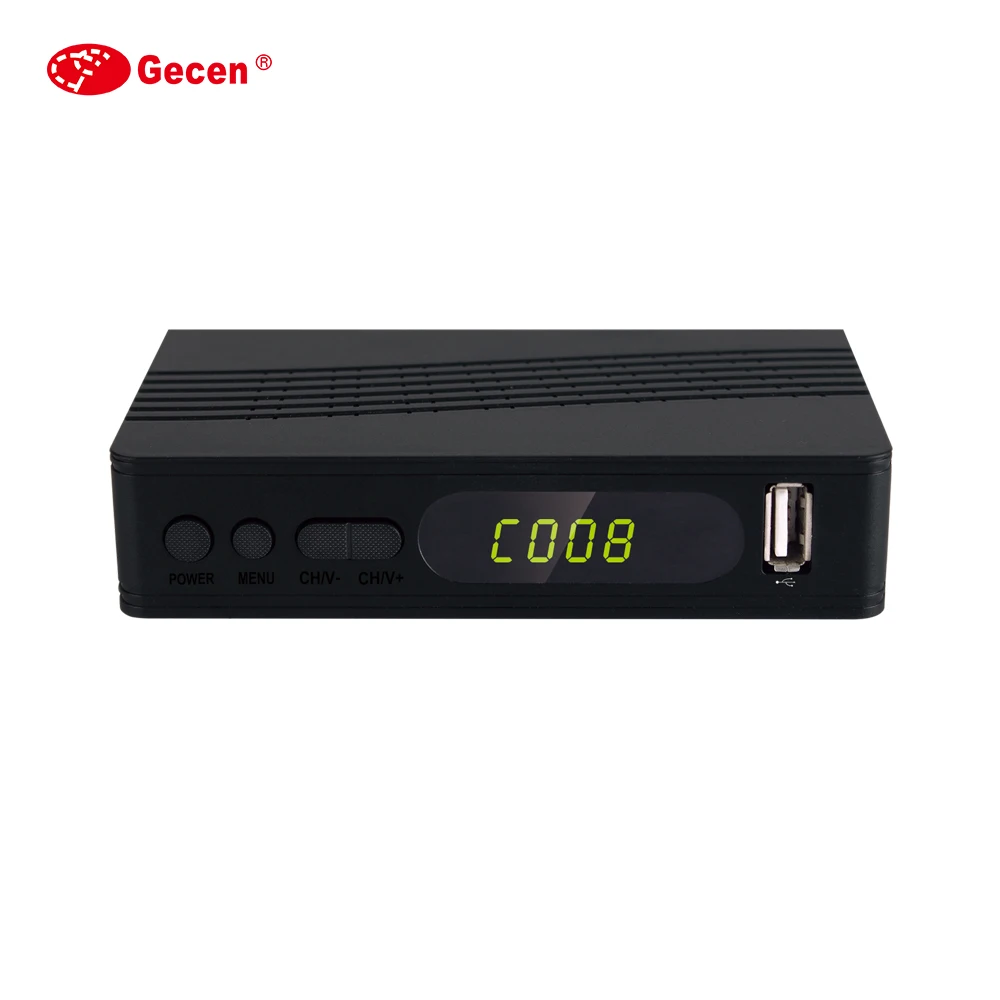

HDTR 232F2 digital tv receiver ISDB T set top box H.265 full hd satellite receiver
- Category: >>>
- Supplier: Zhuhai Gecen Electronic Co. Ltd.
Share on (1600055434765):
Product Overview
Description
Product Description
CPU and Memory | CPU | MSD7805 | |
MIPS 34K@960 MHz | |||
DDR2 | DDR2 512Mbit(64MByte) | ||
Flash | 32Mbit(4MByte) | ||
DVB-T2 Standard | Fully compliant with ETSI EN 302 755 ( DVB-T2 ) | ||
Tuner | Connector Type | USB,AV,HDMI,RF_IN,RF_OUT | |
Input Frequency | (UHF)470∽866MHz, (VHF)170∽230MHz | ||
Bandwidth | 6, 7, 8MHz | ||
Signal Input Level | -82∽-20dBm | ||
Input Impedance | 75 Ohm | ||
Active Antenna | 5V(On/Off), Imax=100mA | ||
Demodulation Scheme | QPSK, 16-QAM, 64-QAM, 256-QAM | ||
FFT | 1K, 2K, 4K, 8K, 16K, 32K | ||
FECE mode | 1/2, 2/3, 3/4, 3/5, 4/5, 5/6 | ||
Guard Interval | 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256 | ||
Software Function | OS | ECOS | |
EPG | Fully support to 8 days Electronic Program Guide(EPG) | ||
Video Decoding | MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4 | ||
Video Format | avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts | ||
Audio Decoding | MPEG1-L1/L2/L3/, wma,AAC | ||
Audio Format | mp3, wma, ogg | ||
Picture Format | JPEG, BMP, PNG | ||
Video Resolution | 480i, 480P, 576i, 576P, 720P, 1080i, 1080P | ||
Video Aspect Ratio | 4:3(LB/SCAN), 16:9(LB/FIT) | ||
Analog Video System | PAL, NTSC | ||
OSD Language | 9 kinds of language(English,Czech,Danish, French,German,Italian, Russian,Thai,Portuguese, Spanish, Swedish, Serbian) | ||
LCN Sort | Support Logic Channel Number(LCN) | ||
Teletext | VBI insertion for Teletext,CC and WSS | ||
Time Shift | Support Time Shift | ||
Hardware Interface | Video Output | HDMI Interface *1 | |
SPDIF Output | none | ||
USB Interface | 1*USB2.0 | ||
Button | POWER, MENU, CH+, CH- | ||
Power supply | MINI USB Supply (5V, 2A) | ||
Package | Product size | 120*63*30mm | |
Others | Max 4000 programs , 8 favorite groups ,8 programs Timers,Default database,Database editor on PC | ||
• Fully Compliant with DVB-T2 and DVB-T
• Support MEPG-4 AVC(H.264) MP/HP@L4.1
Support MEPG-2 MP@HL/ML
• HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
• Multi Bandwidth: 6M 7M & 8M
• Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
• Video decoding and output: 1080p/1080i/720p
• Analog Video output: PAL/NTSC
• Conversion between SD programs and HD programs
• USB2.0 supported for upgrade, PVR and time shifting
• SupportParental Control,Teletext,Subtitle
• Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
• Electronic program guide (EPG)
• Software upgrade (OAD or USB)
• 32 bits true color OSD
• Program editor
• Support Favorite Group
• Support MEPG-4 AVC(H.264) MP/HP@L4.1
Support MEPG-2 MP@HL/ML
• HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
• Multi Bandwidth: 6M 7M & 8M
• Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
• Video decoding and output: 1080p/1080i/720p
• Analog Video output: PAL/NTSC
• Conversion between SD programs and HD programs
• USB2.0 supported for upgrade, PVR and time shifting
• SupportParental Control,Teletext,Subtitle
• Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
• Electronic program guide (EPG)
• Software upgrade (OAD or USB)
• 32 bits true color OSD
• Program editor
• Support Favorite Group
Company Introduction
Gecen Electronic Co., Ltd. specializes in developing, producing and marketing SAT and CATV equipment. Our main products are 2.4G A/V senders, IR remote extenders, DiSEqC switches, multi-switches, in-line amplifiers, satellite finders, CATV modulators, house-hold signal amplifiers, splitters and taps, Ku&C- band LNBF,and SAT/TV/FM wall sockets. In these years, we persist with the strategy of the excellent quality all the time. On the product technology, we respect the science and innovation to continuously perfect our skills. Meanwhile, we try our best to provide more and better products and best services for our users.During these years, our products not only have occupied bigger market at home, but also have succeeded entered into the international market, and have been exported to the Middle East, South Asia, Southeast Asia, North America, and several other nations and regions. It is the most important that our products are very popular with our users at home and abroad for their refined craft and high quality.We had these achievements thanks to our customers' trust and support. We wish that our customers to co-operate and grow together with us.
Our Factory Strength
1. We have two factory, which can meet a large number of product requirements.
2. We are a factory, OEM / ODM can be provided.
2. We are a factory, OEM / ODM can be provided.

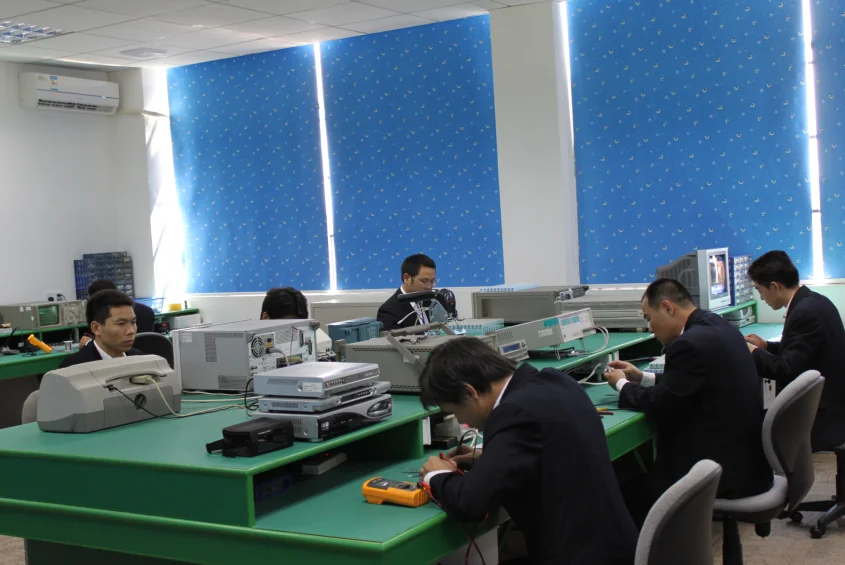

Gecen has large experienced engineers. Many of them have worked in for more than ten years.
Gecen has a very strong sales team. Participate in various exhibitions every year.
In addition to work, gecen attaches great importance to corporate culture. Unity, love are always the company's management philosophy.
