6 lan firewall router with 3865U Processor Support AES NI PFsense network Firewall appliance
- Category: Firewall & VPN >>>
- Supplier: Shenzhen,Sharevdi,Technology,Company,Limited
Share on:
Product Overview
Description
Our Advantages
Welcome to Shenzhen SHAREVDI Technology We are a professional manufacturer of computer hardware with well-equipped testing equipment and strong technical force.With a wide range,good quality, reasonable prices, stylish designs and huge Tech team support,our products are extensively used in many industries. look forwarder to start cooperation with you ! | ||
OEM & ODM Service >>>Contact us<<< | ||
OEM | 1. logo printing on housing 2. Customize package 3. Software Customization: Booting image, UI, APP, Function… and so on | |
ODM | 1. PCBA desgin 2. Housing desgin 3. Software Customization: Booting image, UI, APP, Function… and so on | |
Product Usage
1)Default with Kaby lake Celeron 3865U dual core 1.8GHz
2) 1*HD+2*USB3.0+2*USB2.0+6*LAN+1*Power switch+2* COM(support console)
Intel Skylake Core i3 6100U dual core 2.4GHz is Optional
Intel Core i5 7200U/7300U (2 core 4 threads, 3M Cache, 2.50 GHz,Up to 3.10 GHz, TDP: 15W)
2) 1*HD+2*USB3.0+2*USB2.0+6*LAN+1*Power switch+2* COM(support console)
GPIO/9-36V is optional
3) 2*DDR4 1866/2133MHz, max 32G
4) AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
5) High-quality Fanless pure aluminum Case
6) 1*MSATA, 1*SATA3.0, 1*mini-PCIE(support wifi /BT)
7) 6*Intel i211 Gigabit lan card, support wake on lan
8) DC-IN 12V power supply and AC power adapter
9) Applied in Firewall, VPN , Network Server, Network Security, Router etc .
3) 2*DDR4 1866/2133MHz, max 32G
4) AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
5) High-quality Fanless pure aluminum Case
6) 1*MSATA, 1*SATA3.0, 1*mini-PCIE(support wifi /BT)
7) 6*Intel i211 Gigabit lan card, support wake on lan
8) DC-IN 12V power supply and AC power adapter
9) Applied in Firewall, VPN , Network Server, Network Security, Router etc .
helps thousands of network professionals to keep our networks safe
Install any software
All SHAREVDI firewall hardware are OS agnostic and support a variety of popular open source software distributions. Want to run a firewall like OPNsense, pfSense, or others? We can do that. Want to run a hypervisor instead? Go for it! Optionally choose to have an OS preinstalled by us during configuration
Run on advanced firmware
Simple. Clean. Secure: our model can be configured with coreboot, the open source BIOS for maximum security, transparency, and audit-ability.
Trust your hardware
Compact, 100% silent and backed by team: The features Intel CPUs & NICs, SSDs throughout, and comes with up to 6 Ports.
Combine with 4G Failover
New plans available! Never lose internet connectivity if you add the SHAREVDI 4G LTE Modem for failover.
Working principle
Application
Specification | ||
General | Brand: SHAREVDI Type: Firewall Mini PC CPU: Intel Kaby lake Celeron 3865U dual core 1.8GHz,HD Graphic 610 Intel Core i3 6100U Dual core 2.3GHZ, Intel HD Graphics 530 RAMType: 2 x DDR4L (Low voltage 1.35V) Ram slot RAM:2G, 4G, 8G for optional Hard Disk type: support mSATA Hard Disk: 16G, 30G, 60G, 120G, 240G 480G SSD for optional WIFI: optional OEM/ODM Support: yes | |
Product detail | Onboard LAN: 6 x Intel Gigabit Lan port WiFi: optional System: Windows10/7/8, Pfsense, Linux, etc. Color: Black(Other color support customized) Cooling system: Fanless | |

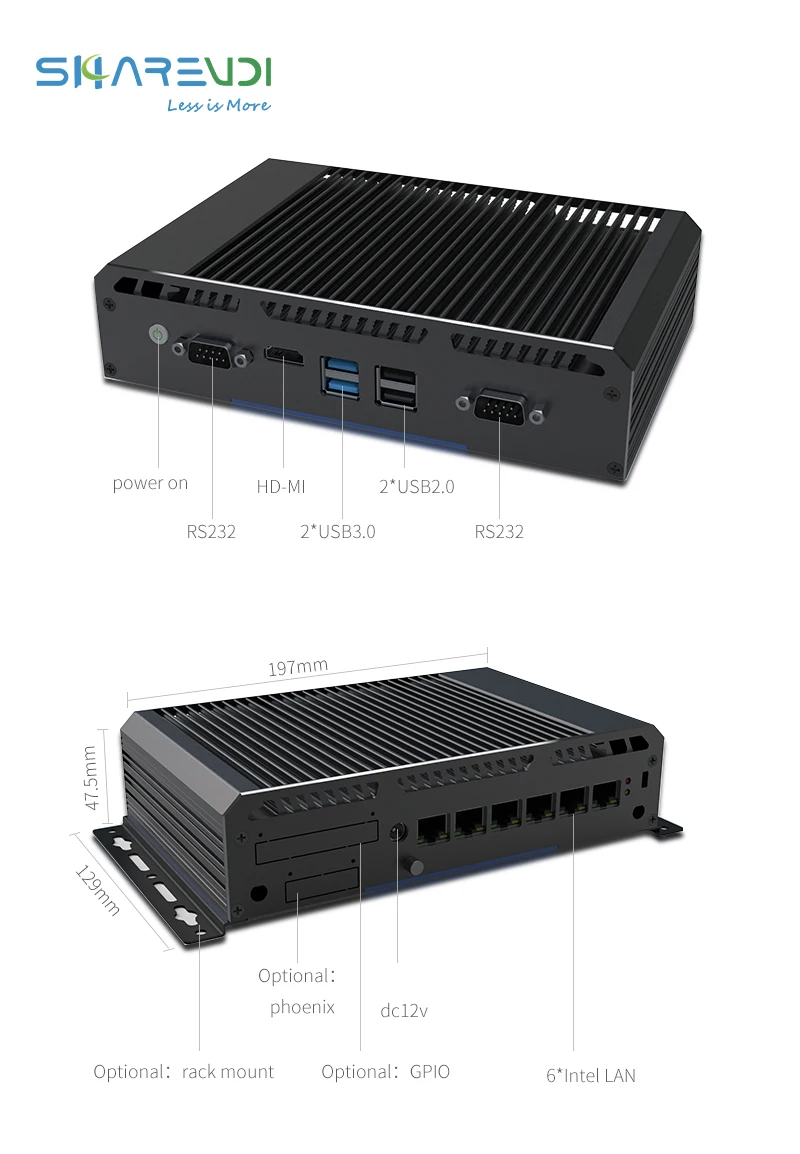

I/O Port | 1*HD+2*USB3.0+2*USB2.0+6*LAN+1*Power switch+2* COM(support console) updated Port: GPIO: 4 in and 4 out with Relay 5V or12V / 100mA (desirable circular connector or SUBD 26) | |
Power Requirement | Power Type: External Power Adapter Mode 9V - 48V DC Power Input Power Input Vol: 12V Power Input Ampere:5A | |
Working Environment | Operating Temperature ‘-20-80℃ Storage Temperature 0℃-80℃ Relative Humidity 10%~90% (non-condensing) | |
Dimension and weight | 197x124x36mm | |
Package Contents | 1 x Firewall Mini PC 1 x User manual 1 x VESA mount 1 x Power Cable and SATA Cable 1 x Hard Disk Mounting Bracket | |
Related Products
Company Introduction
FAQ
Q: What’s the warranty for these PC
A:We support 1 years Warranty, the second year and the third year,We can repair it free. But we will charge for the parts that need to change.
Q: Can you have my logo or company name to be printed on your products?
A: Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you.
Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time? (How long do you need to prepare my goods?)
A: 1-3 days for sample orders, 5-15 days for mass production orders(based on different quantities, OEM, etc.)
Q: How will you deliver my goods to me?
A:We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
A:We support 1 years Warranty, the second year and the third year,We can repair it free. But we will charge for the parts that need to change.
Q: Can you have my logo or company name to be printed on your products?
A: Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you.
Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time? (How long do you need to prepare my goods?)
A: 1-3 days for sample orders, 5-15 days for mass production orders(based on different quantities, OEM, etc.)
Q: How will you deliver my goods to me?
A:We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
