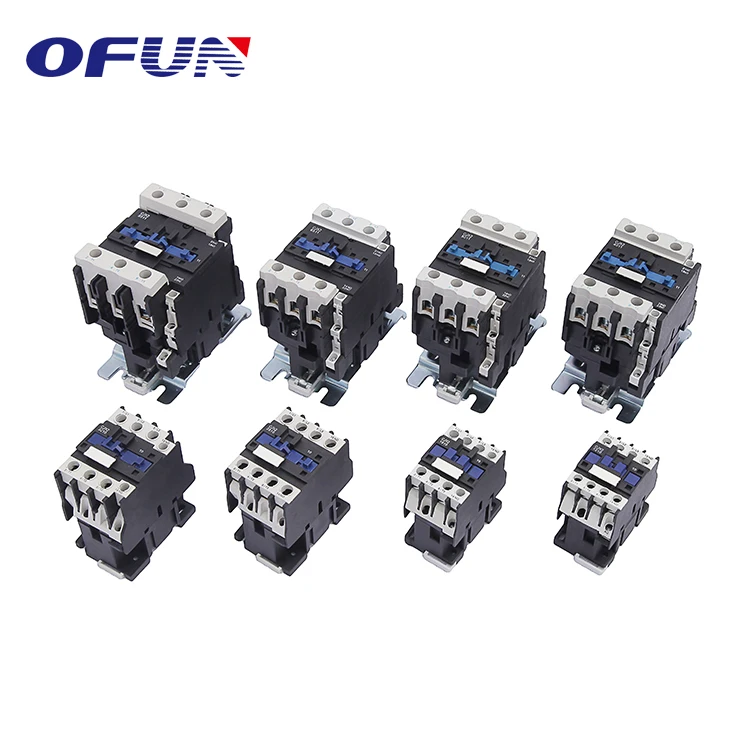

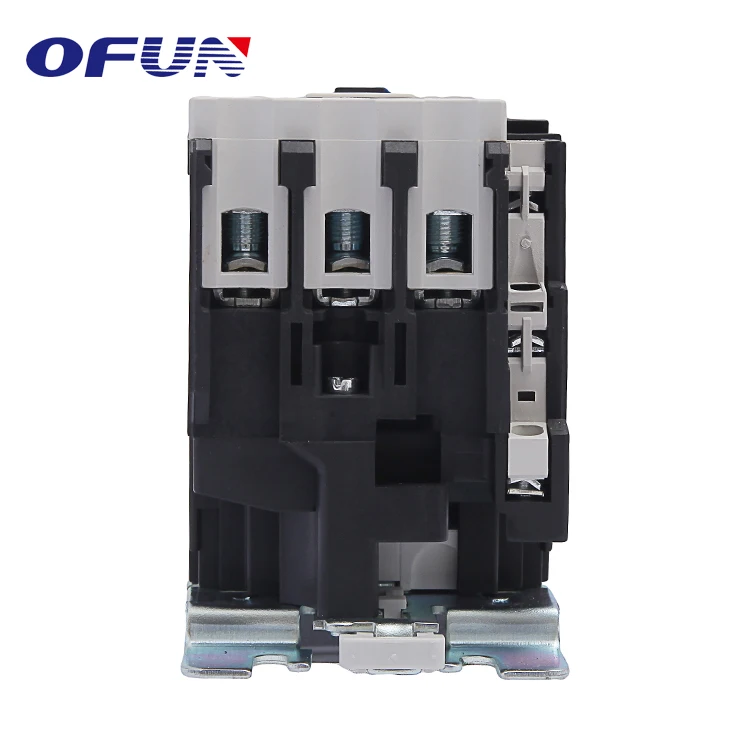

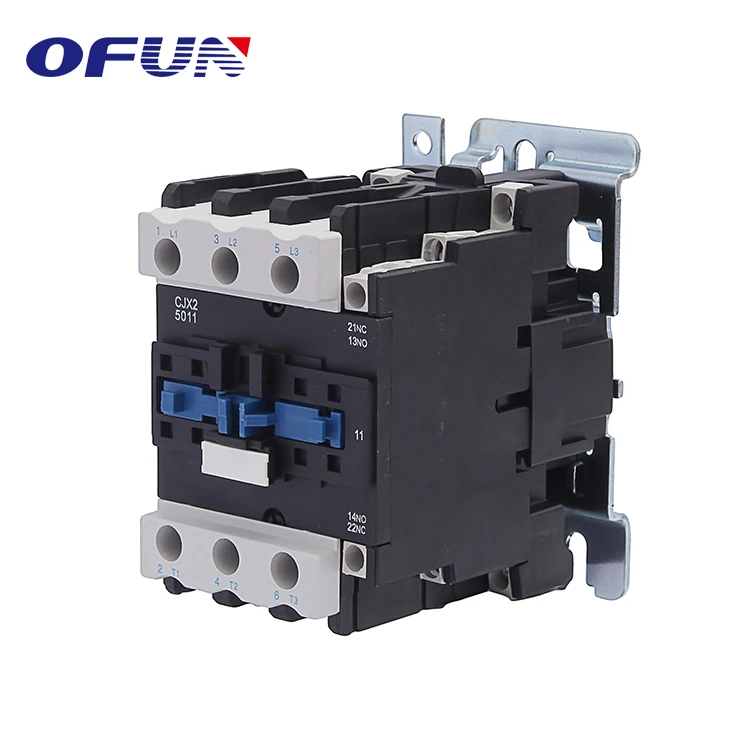

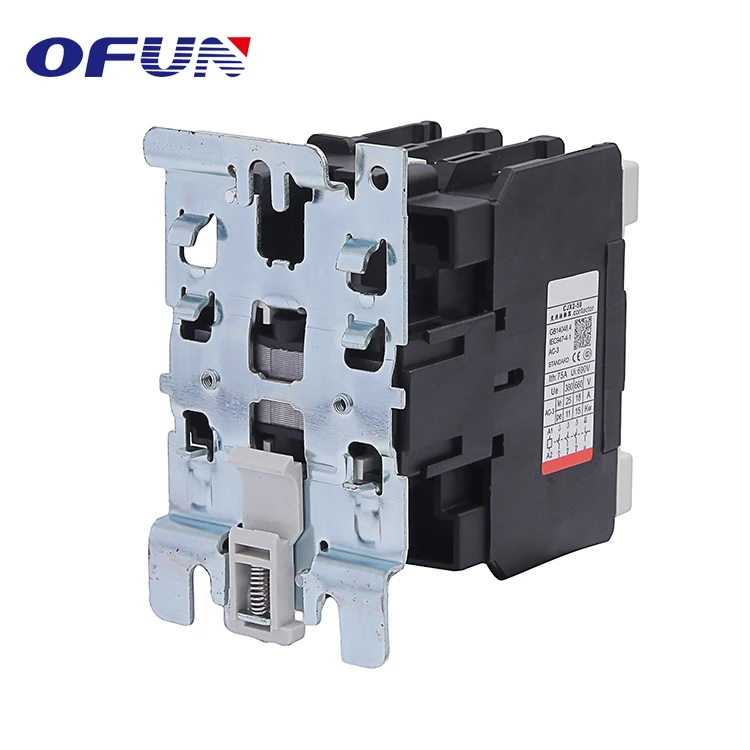

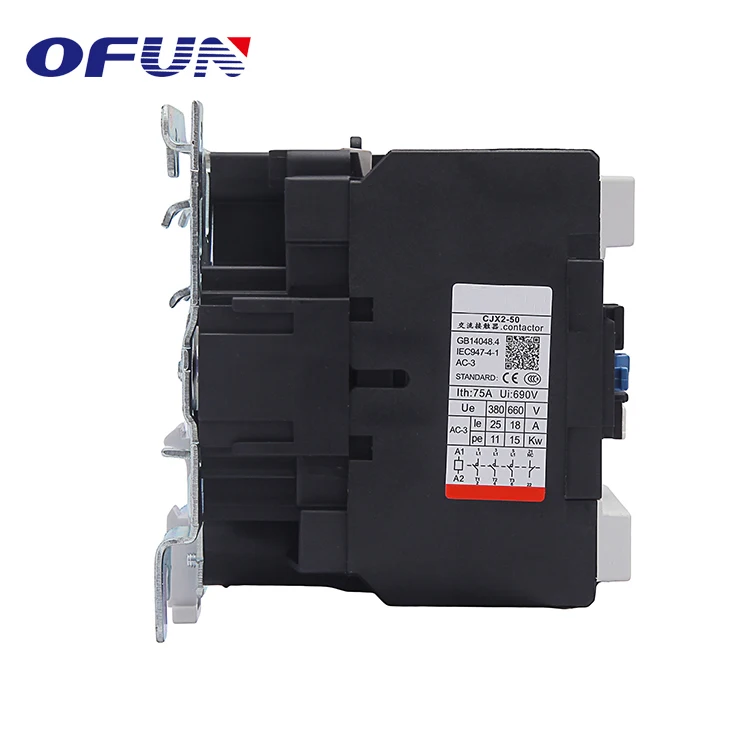

OFUN China Manufacturer CJX2 Series Three Phase LC1 D5011 Ac Contactor
Product Description
CJX2(LC1-D) series AC contactors are mainly used for AC 50Hz / 60Hz.rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reversible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc. Moreover,it could act as the electromagnetic starter by the direct plug of the thermal relay.
Specification:
| Type | LC1 | |||||
| D09 | D12 | D18 | D25 | D32 | ||
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
Standard power ratings of 3-phase motors 50/60Hz in | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC3(x104) | 100 | 100 | 100 | 100 | 800 |
| AC4(x104) | 20 | 20 | 20 | 20 | 20 | |
| Mechanical life (x104)4 | 1000 | 1000 | 1000 | 20 | 800 | |
Number of the contacts | 3P+NO | |||||
| 3P+NC | ||||||
| Type | LC1 | |||||
| D40 | D50 | D65 | D80 | D95 | ||
| Rated working current (A) | AC3 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 18.5 | 24 | 28 | 37 | 44 | |
Standard power ratings of 3-phase motors 50/60Hz in | 220/230V | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 22 | 25 | 37 | 45 | 45 | |
| 500V | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 30 | 33 | 37 | 45 | 55 | |
| Rated heat current (A) | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC3(x104) | 80 | 60 | 60 | 60 | 60 |
| AC4(x104) | 15 | 15 | 15 | 10 | 10 | |
| Mechanical life (x104)4 | 800 | 800 | 800 | 600 | 600 | |
| Number of the contacts | 3P+NC+NO | |||||
Standard Control Circuit Voltage:
| Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
| 50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
| 60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
| 50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |

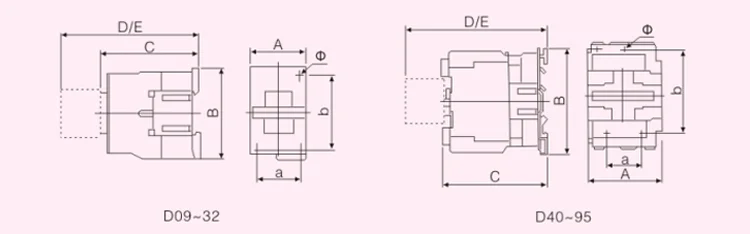

Dimension& Mounting Size:
| Type | A | B | C | D | E | a | b | φ |
| LC1-D09--12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
| LC1-D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
| LC1-D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
| LC1-D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
| LC1-D40--65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
| LC1-D80--95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
