DC FUSE 1500VDC SOLAR PV FUSE feeo dc fuse
US $2.50-$6.80

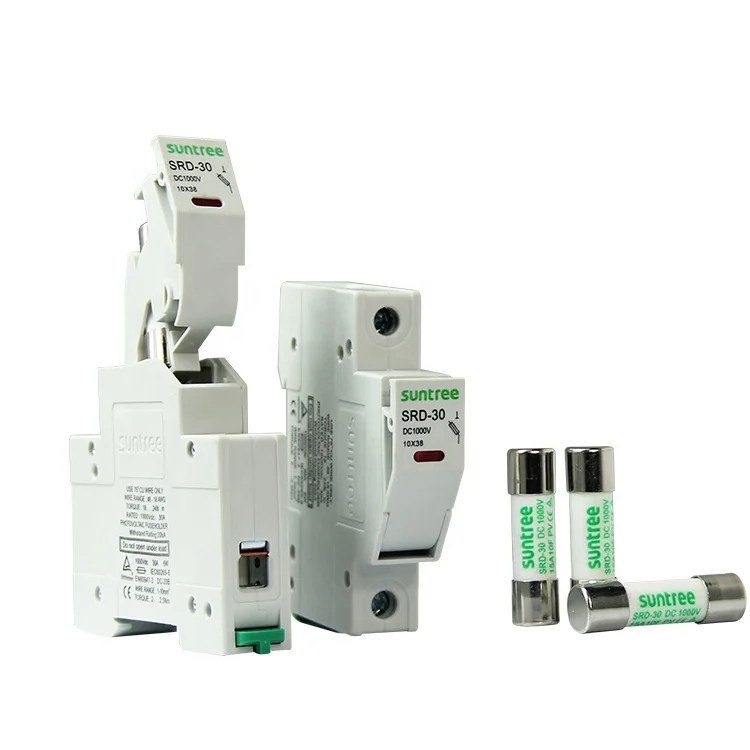

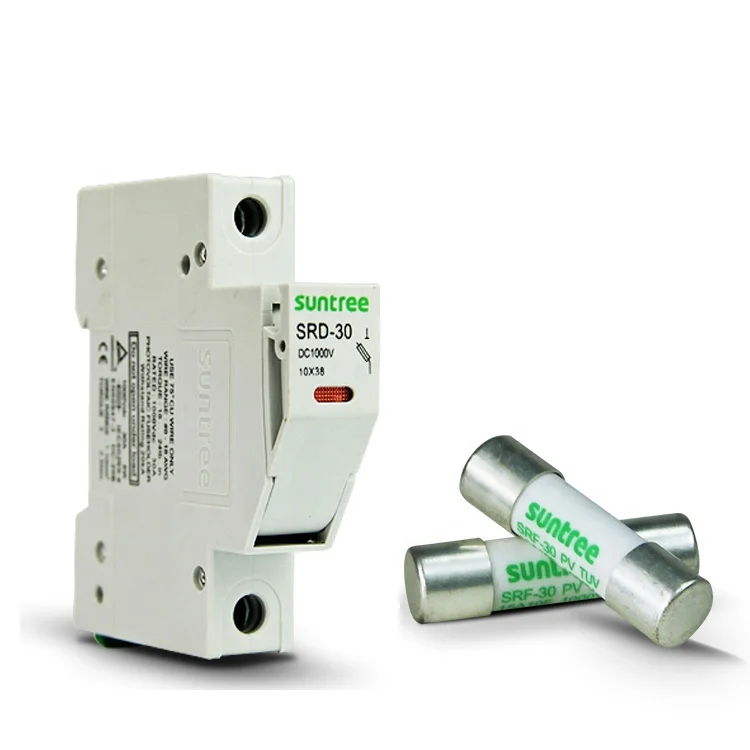

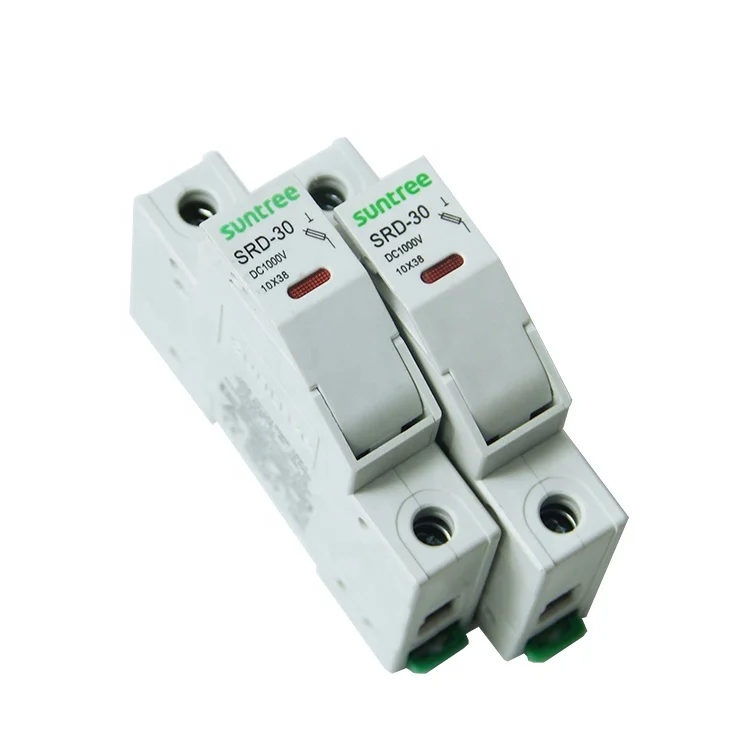

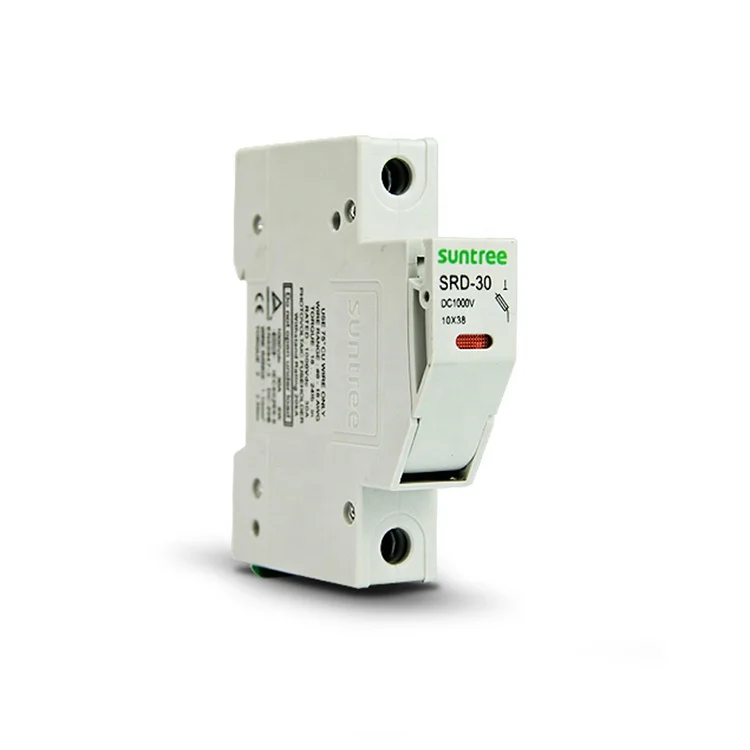

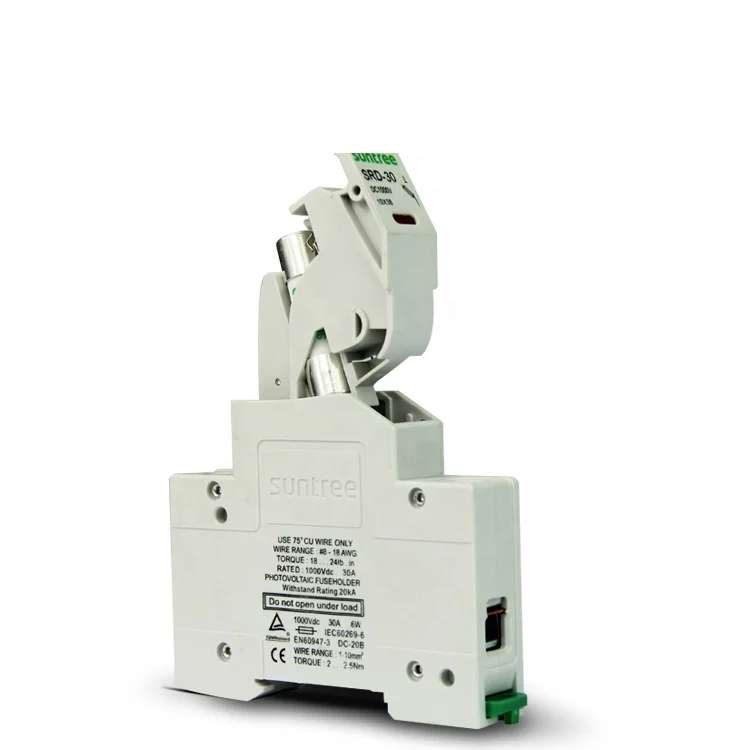

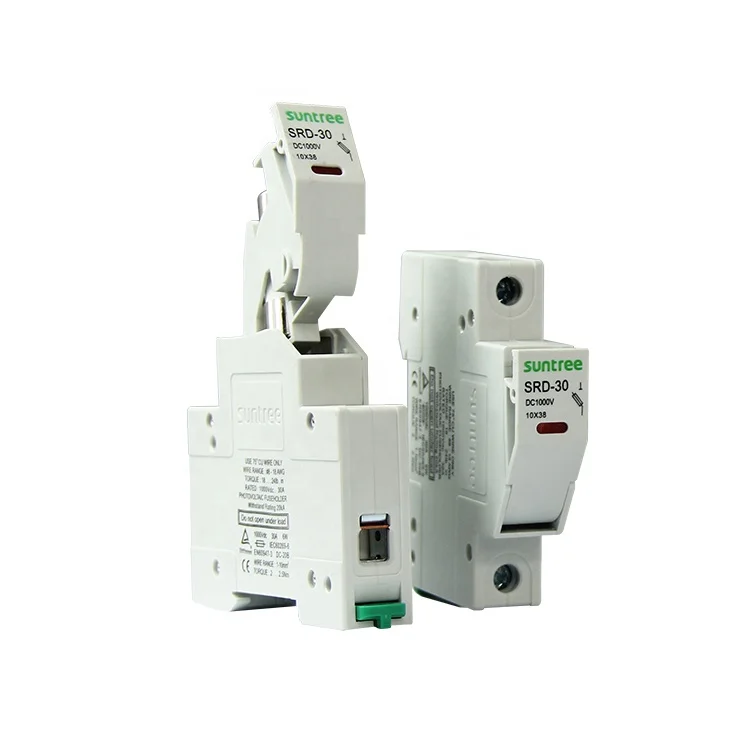

SRD 30 Price List Ceramic Fuse Holder DC 1000V 16A Thermal Fuse Base CE Approved
- Category: Fuses >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd. [Zhejiang China]Wenzhou
Share on (1600055996501):
Product Overview
Description
1.A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
2.DC Fuse mainly used in DC combiner box in solar PV systems. When PV panel or imverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse aslo used to protect other electrical parts in DC circuit, when overload or short circuit.
Product Parameters
Type | SRD-30 |
Fuse size | 10 x 38MM |
Poles | 1P |
Rated voltage | DC 1000V |
Rated current | 1,2,3,4,5,6,8,10,12,15,20,25,30A |
Short-circuit breaking capacity | 33KA |
Max power attenuation | 3.5W |
Protection grade | IP20 |
Connection | 2.5-10mm2 |
Operation ambient temperature | -30~+70°C |
Resistance and damp hot | Class 2 |
Elevation | ≤ 2000 |
Installation way | TH35-7.5/DIN35 Rail installation |
RH(relative air humidity) | when +20 °C,not exceed 95%;when +40 °C,not exceed 50% |
Pollution class | 3 |
Installation environment | the place of no abvious vibrate & impact |
Installation class | Ⅲ |
WxHxL | W18 x H89 x L90mm |
Weight(kg) | 0.07 |
Performance
1.Photovoltaic system fuse accord with UL248-1 standard.
2.Photovoltaic battery dc fuse designed to used for photovoltaic (PV) system.
3.Main effect is to protect the solar panels. Solar panels points in effective condition is broken,.
4.Fault light cells break points at the same time, does not affect other normal work of light from the stack.
5.Technical Data Rated coltage:DC1000V
6.Breaking capacity:25KA
Application
This series fuse is suitable for solar pv power generation system, rated voltage 250V to 1500V, rated current 1A to 630A,used in pv power generation equipment as a pv module string and pv array for over current protection,and pv panels and batteries connected in series and parallel,to charge variable flow system for short circuit breaking protection,in pv station and inverter rectifier system for short-circuit breaking protection,as well as pv power eneration system,inrush and short circuit fault voltage for quick break protection,rated breaking capacity to 10-50KA,products confirms to IEC60629.1 and 60629.6.
