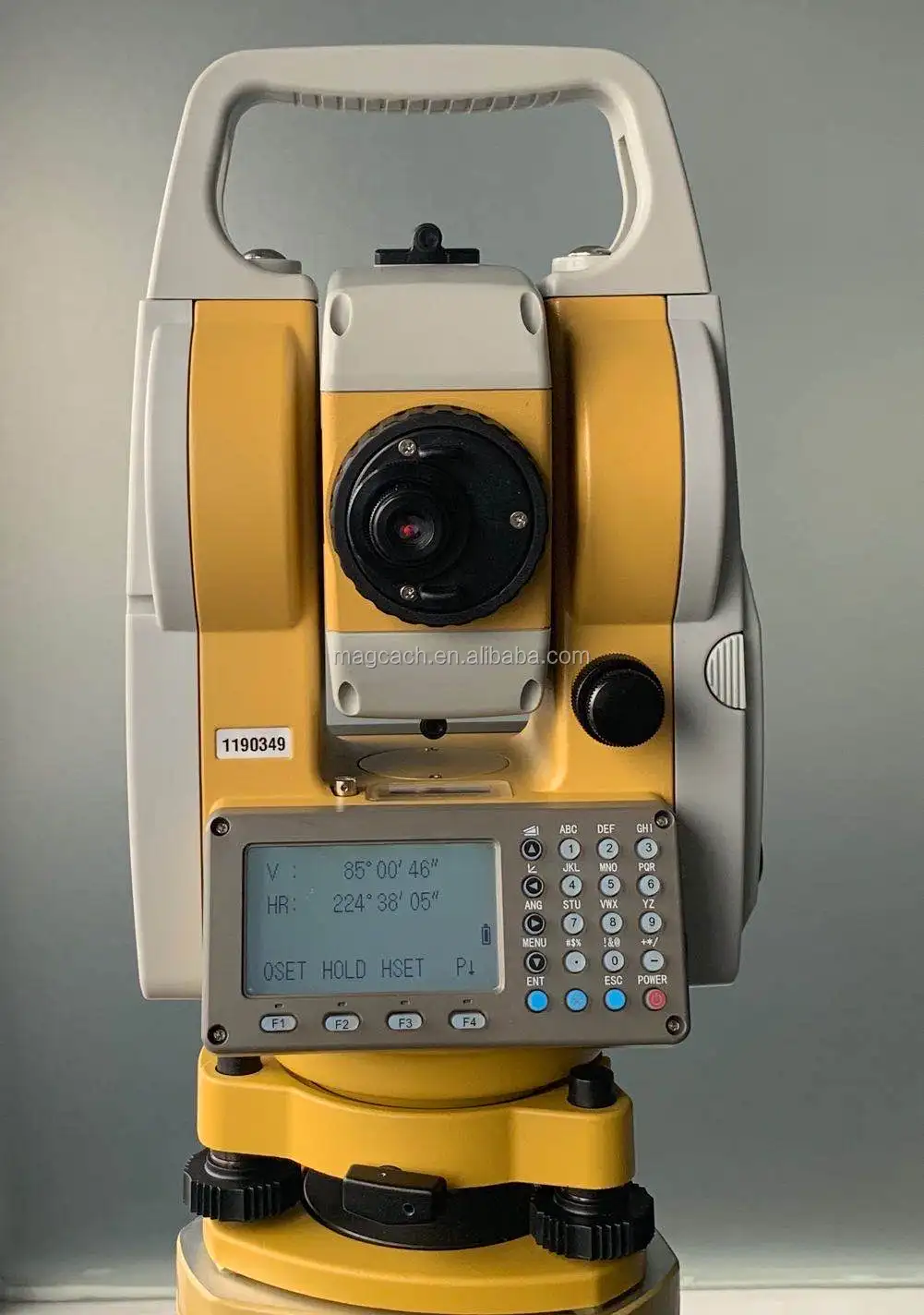

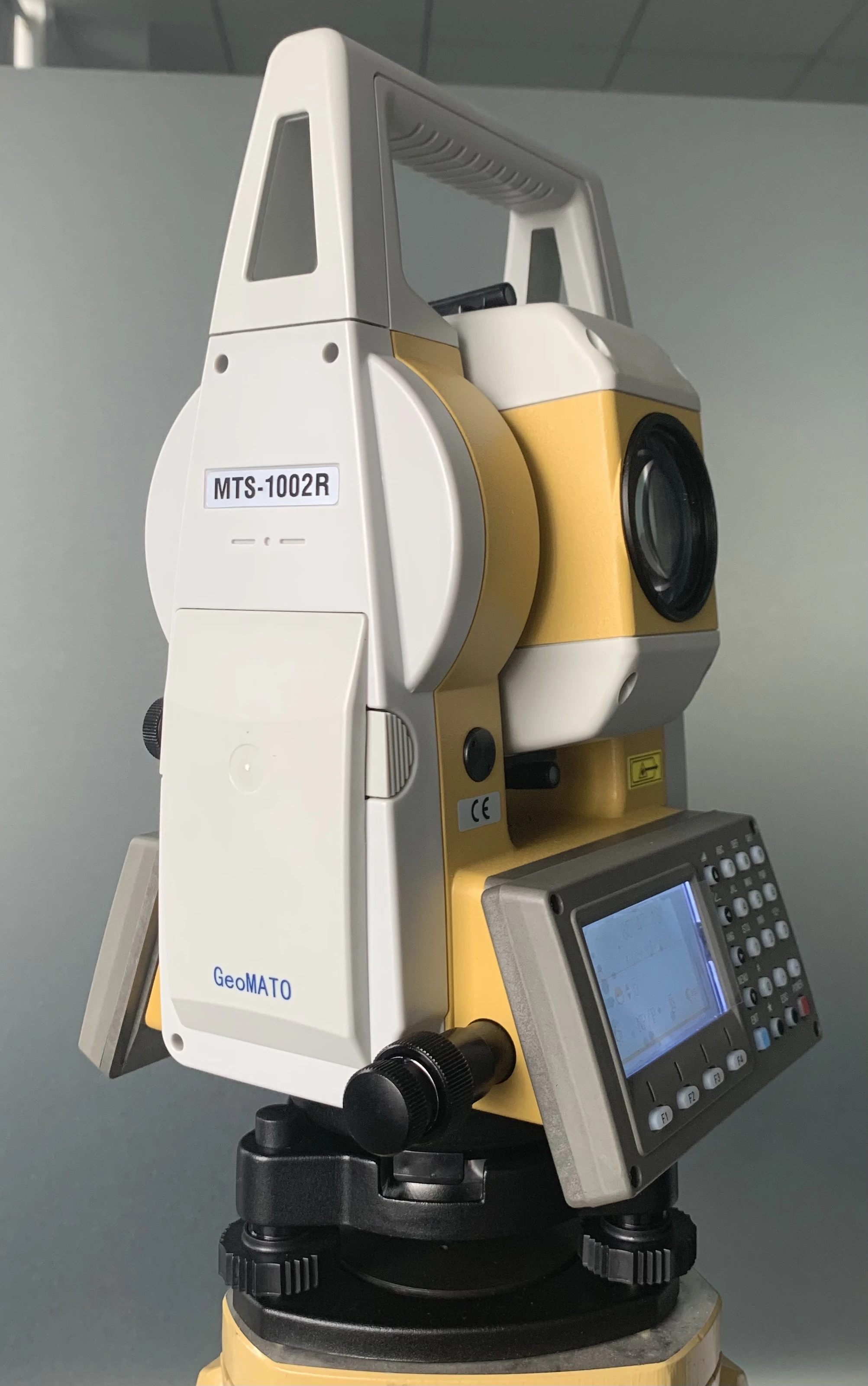

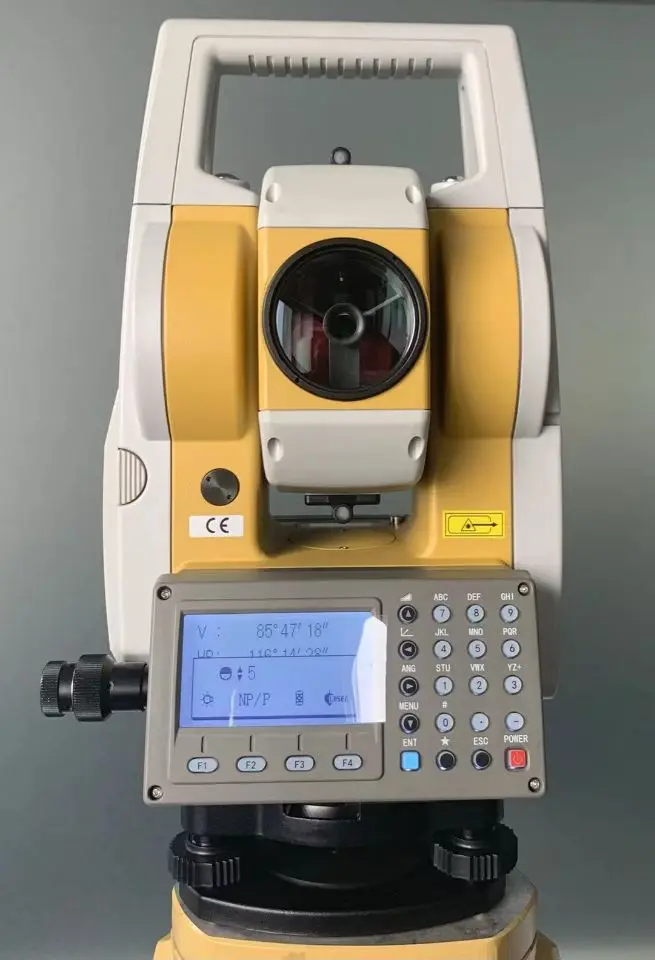

MATO MTS1002R Total Station which can work with Topcon Total Station

1. The classic model of Sino-Japanese technical cooperation with an operating system that is completely
compatible with the TOPCON GTS1002N
2. Additional features include a bluetooth communication system, prism-free ranging, laser alignment, and other functions
3. Stable, high precision, simple operation.
4. One key for angle measurement / ranging / coordinate / lofting etc.
5. Those that are familiar with the TOPCON complete station should be able to use this model with
complete ease even without a manual guide
MTS100 Series One Key Survey Engineering Type Total Station | ||||||
Main Technical Specification
| MTS1002R
| MTS1002R+
| MTS1002R8
| MTS1005R
| ||
Telescope
| Magnification | 30× | ||||
Field angle | 1°30′ | |||||
Image | Erect | |||||
Angle measurement
| Minimum reading | 1″
| 1″
| 1″
| 1″
| |
Accuracy | 2″ | 5″ | ||||
Distance measuring
| Minimum reading | 1 mm
| 1 mm
| 1 mm
| 1 mm
| |
Prism accuracy | ±(2 mm+2 ppm·D)
| |||||
Reflector accuracy | ±(2 mm+2 ppm·D)
| |||||
Non-Prism accuracy | ±(5 mm+3 ppm·D)
| |||||
Single prism range | 5000 m
| 7500 m
| 7500 m
| 5000 m
| ||
Reflector range | 800 m
| 1000 m
| 1000 m
| 800 m
| ||
Non-Prism Range | 400 m
| 600 m
| 800 m
| 400 m
| ||
Data management
| Memory point | 50,000 points
| ||||
SD card | Optional | |||||
USB drive | Optional | |||||
Bluetooth | Optional | |||||
Display | Dual 160×64pixel | |||||
Working temperature | - 20 oC - + 55 oC
| |||||

1. For instruments (total station,theodolite,GNSS,auto level), we offer 1 year warranty,for accesories(Prism,pole,tripod ,levelling staff).we offer 6 months warranty,from the day you get the product.
2.For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.We will be responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct to us.
3.For problem out of the warranty period or warranty liability,we will judge the probelm and quoted for you.You need to pay double-run freight and the maintenace cost.
4.For all instrument we provide life-long technical support.
Remark:Improper use of the instrument and man-made damage of the instrument is not coverd in warranty liablity.Warranty only aimed at the problem caused by the product quality.
