E18 D80NK 3 80 см регулируемый инфракрасный сенсорный переключатель
- Category: >>>
- Supplier: Shenzhen Quine Trading Company
Share on (1600056570844):
Product Overview
Description
Products Description

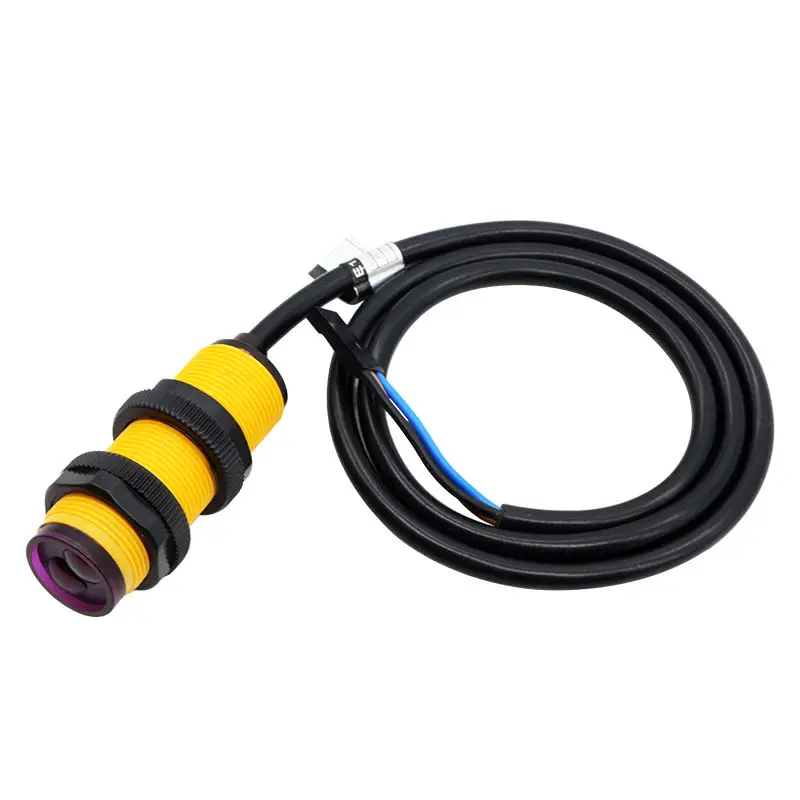

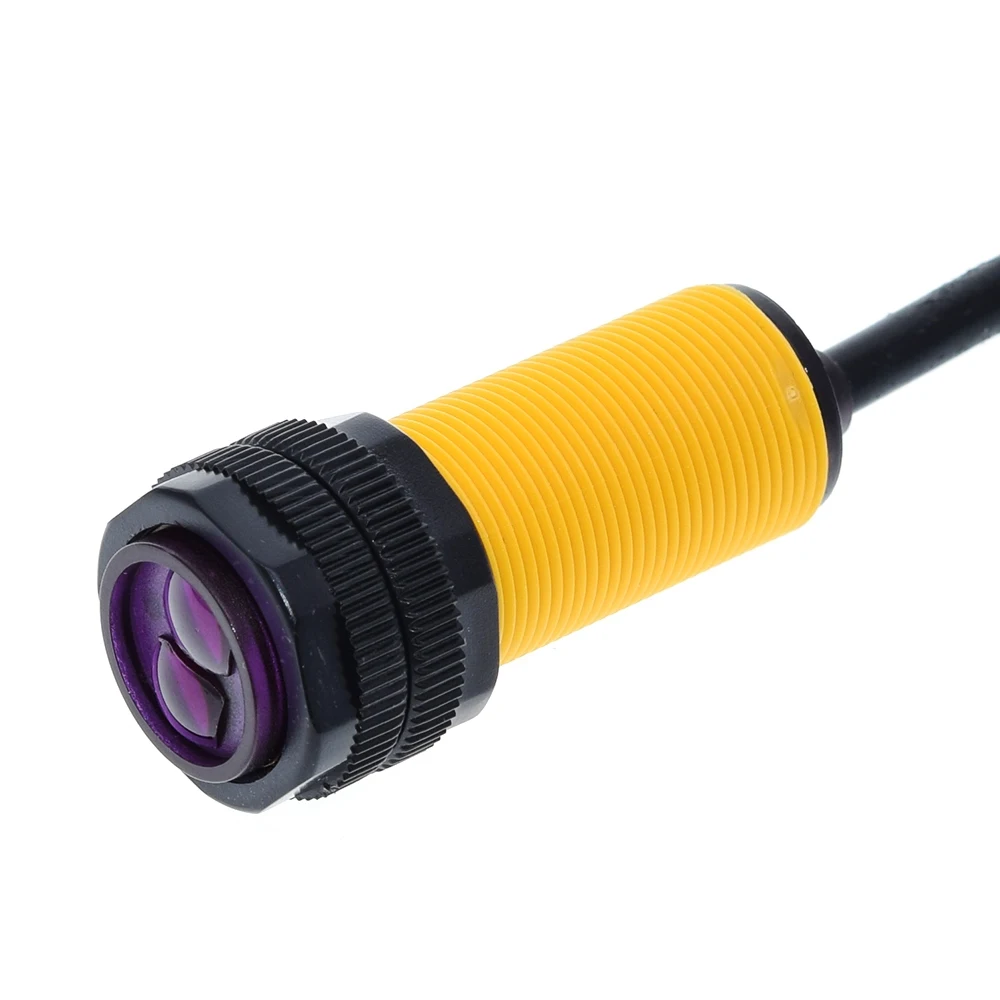

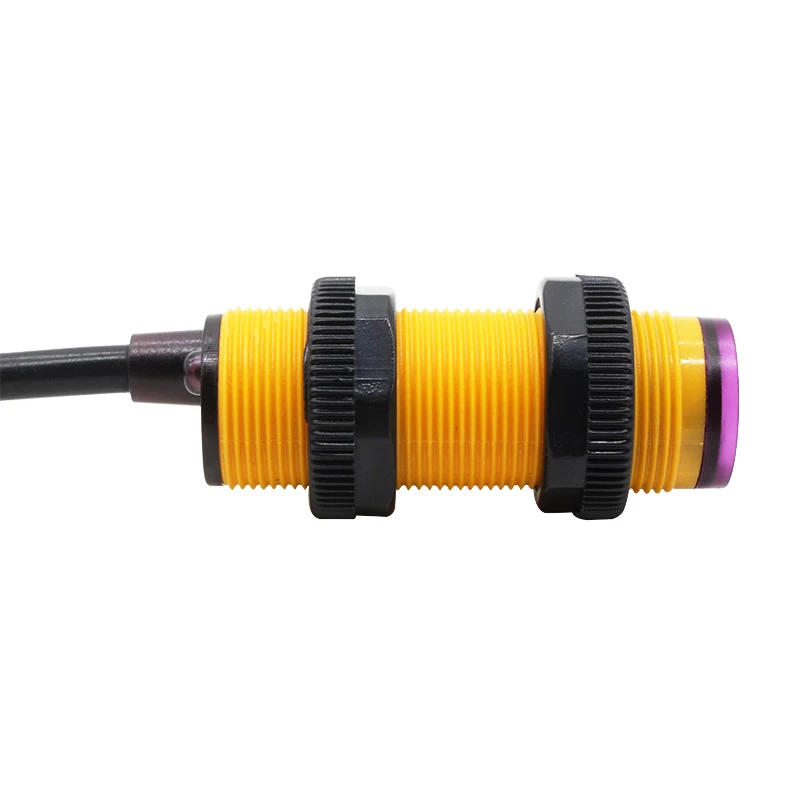

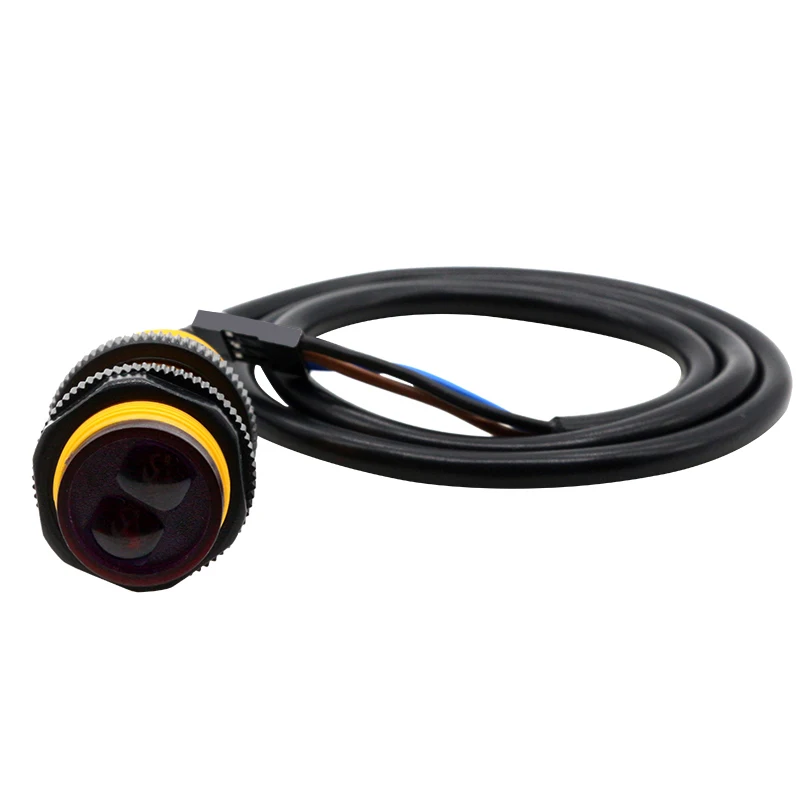

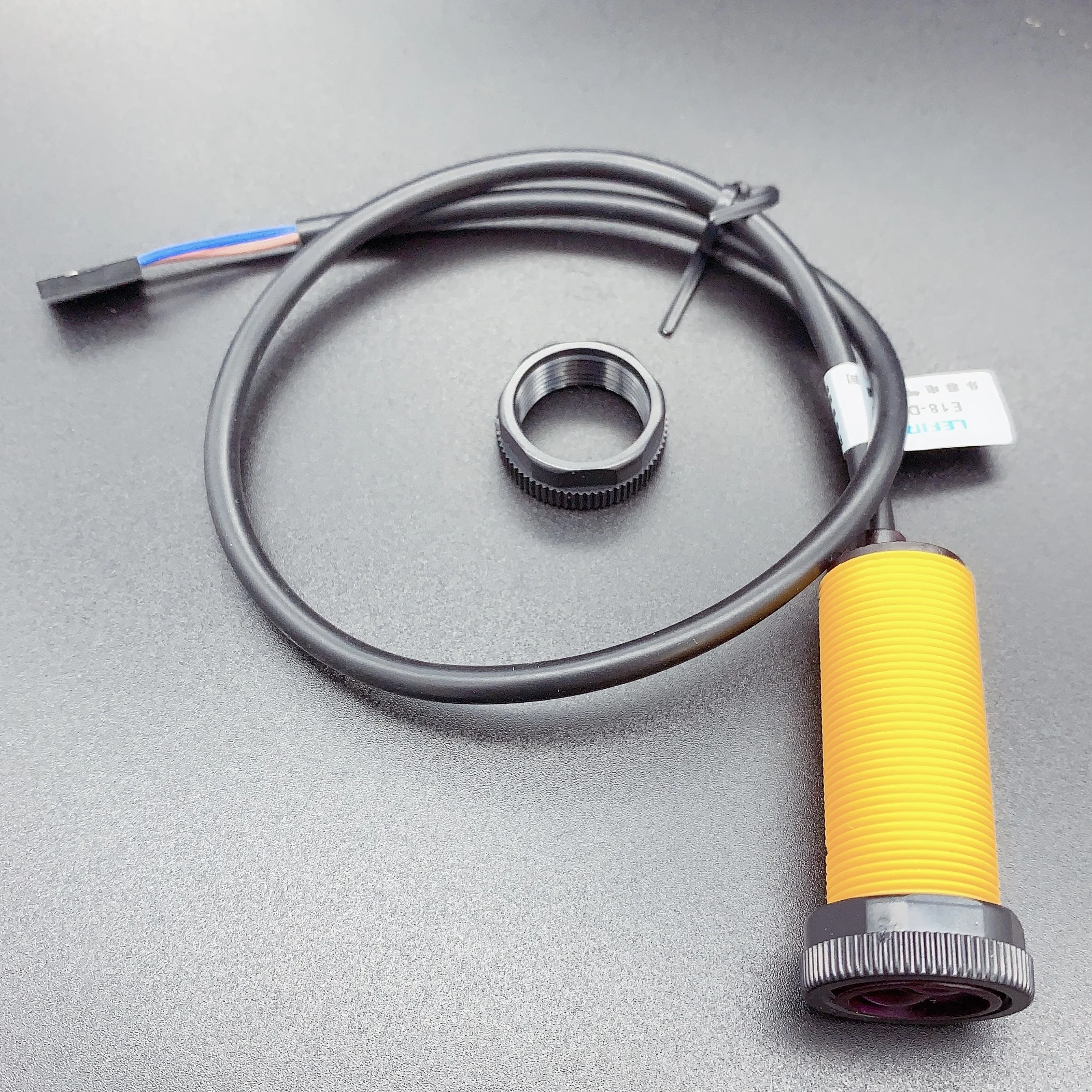

E18-D80NK 3-80cm Adjustable Infrared Sensor Switch
This is a set of transmitter and receiver in one of the photoelectric sensor. The detection distance can be adjusted upon request.
The sensor has a detection distance and the visible light interference, cheap, easy to assemble, easy to use features of robot
obstacle avoidance, and assembly line piece can be widely used in many occasions.
The sensor has a detection distance and the visible light interference, cheap, easy to assemble, easy to use features of robot
obstacle avoidance, and assembly line piece can be widely used in many occasions.
1, the output current, output, DC / SCR / Relay Control: 100mA/5V supply
2 Current consumption DC <25mA
3, response time <2ms
2 Current consumption DC <25mA
3, response time <2ms
Electrical Characteristics:
U: 5VDC
I: The 100mA
Sn :3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM
I: The 100mA
Sn :3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM
4, point angle: more than15 °, the effective distance is adjustable from 3-80CM
5,To detect objects: a transparent or opaque body
6, the working environment temperature: -25 °C ~ 55 °C
7, the standard detection object: sunlight 10000LX is the following incandescent 3000LX below
8, Case Material: Plastic
5,To detect objects: a transparent or opaque body
6, the working environment temperature: -25 °C ~ 55 °C
7, the standard detection object: sunlight 10000LX is the following incandescent 3000LX below
8, Case Material: Plastic
Applications:
A production line goods automatic counting device
2, multi-functional reminder
3, the maze robot
2, multi-functional reminder
3, the maze robot

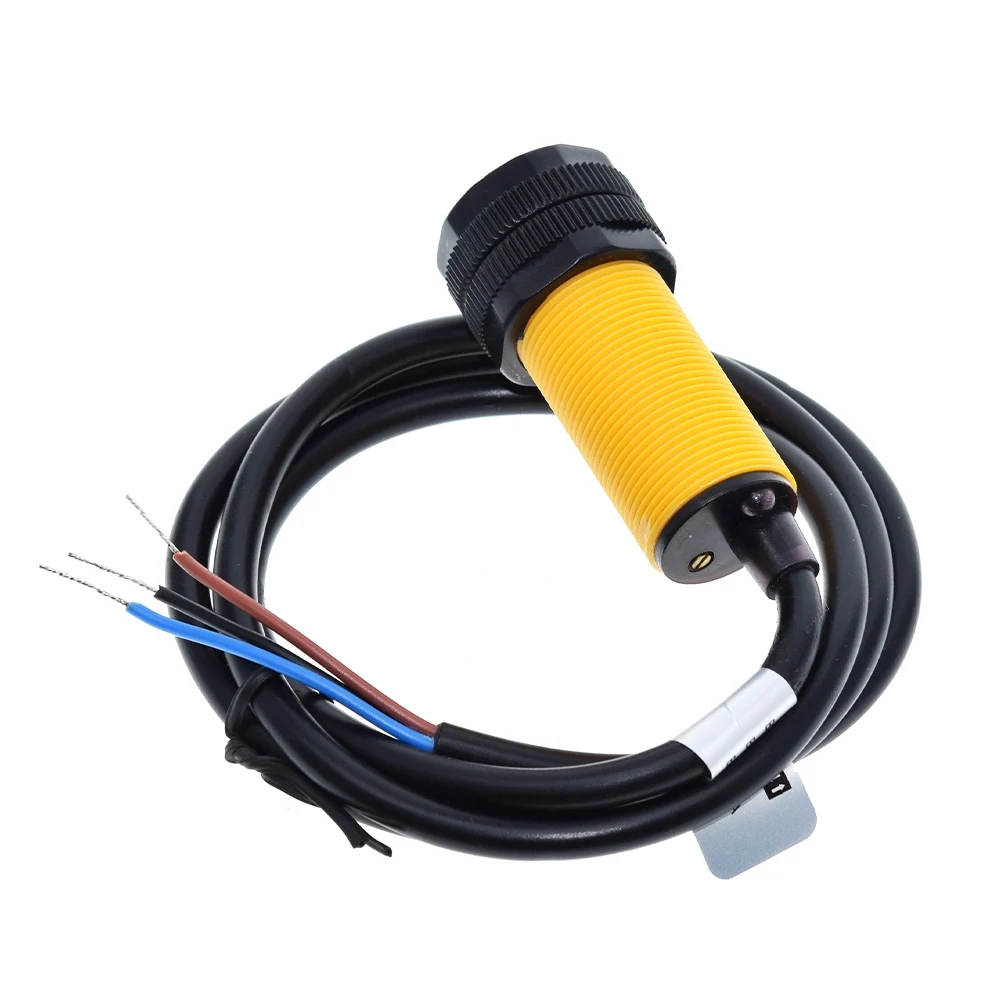

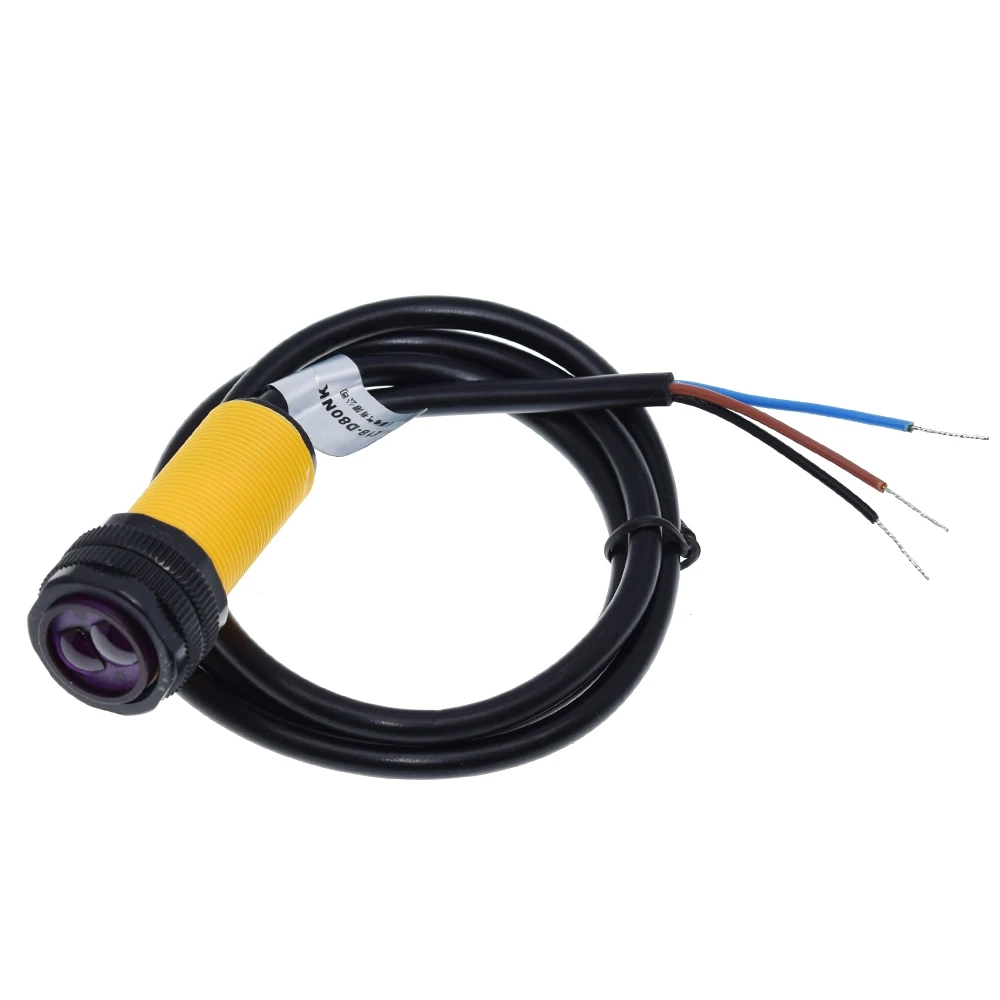

Red: connected 4.5-5V power supply high
Yellow: connected microcontroller output TTL level to the microcontroller
Green: GND 0V power low
Photoelectric sensor (photoelectric switch) NPN normally open
Model: E18-D80NK the.
Yellow: connected microcontroller output TTL level to the microcontroller
Green: GND 0V power low
Photoelectric sensor (photoelectric switch) NPN normally open
Model: E18-D80NK the.
Details Images
Product name | E18-D80NK 3-80cm Adjustable Infrared Sensor Switch |
Model | E18-D80NK |
Distance | 3-80cm |
