LVDT DCEV 4mm Position Sensor
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (1600056598221):
Product Overview
Description
Products Description

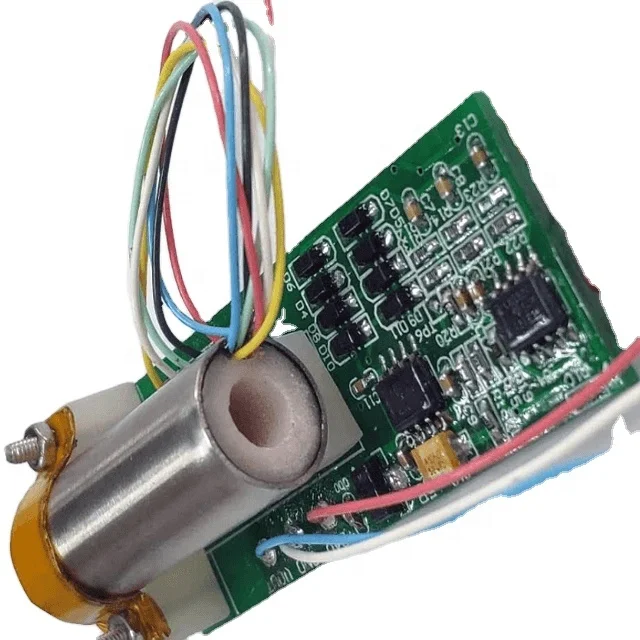

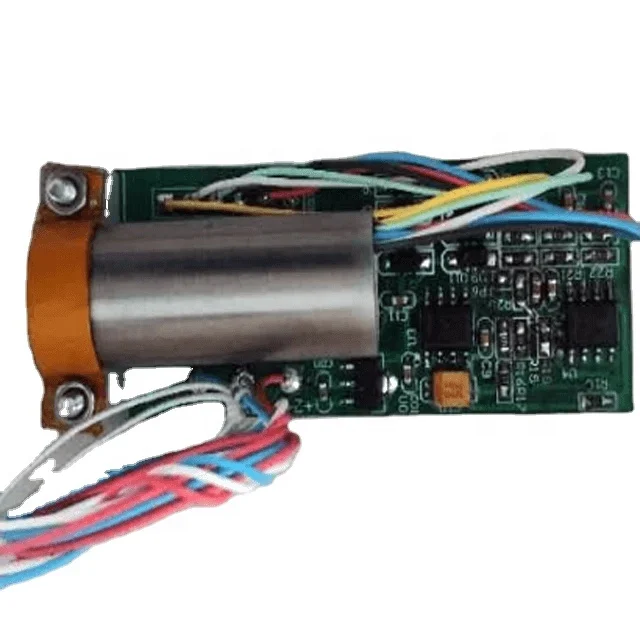

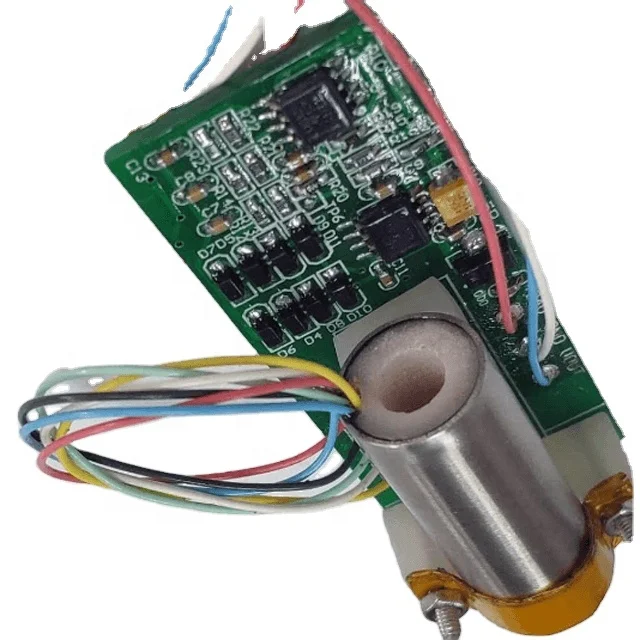

LVDT DCEV 4mm Position Sensor
Application:
The electromagnetic valve
Electrohydraulic servo valve
Electro-hydraulic proportional valve
Hydraulic servo cylinder
Options：
Small size
Optimized design
Transmitter output
Custom circuit shape
The electromagnetic valve
Electrohydraulic servo valve
Electro-hydraulic proportional valve
Hydraulic servo cylinder
Options：
Small size
Optimized design
Transmitter output
Custom circuit shape
LVDT DCEV±4mm | ||
index | Description | |
Supply voltage | 24V±1V DC | |
Feedback output | 4--20mA | |
Full range | ±4mm | |
Effective range | ±2mm | |
Repeatability | ≤0.3--0.5% FS | |
Linearity | ≤0.5% Effective range | |
Resolution | ≤1μm | |
Dynamic characteristics | 100Hz | |
Operating temperature | -25~80℃ | |
Temperature Coefficient | zero：≤0.1%/℃ | |
Dimensions（mm） | 56x22x18 | |
Cable mode | Customer definable | |
