Wanbao Supply Hot sale in Brazil single mode fiber optic fast connector SC UPC fibra optica conector rapido
- Category: >>>
- Supplier: Shanghai Wanbao Optical Technologies Co. Ltd.
Share on (1600056633859):
Product Overview
Description

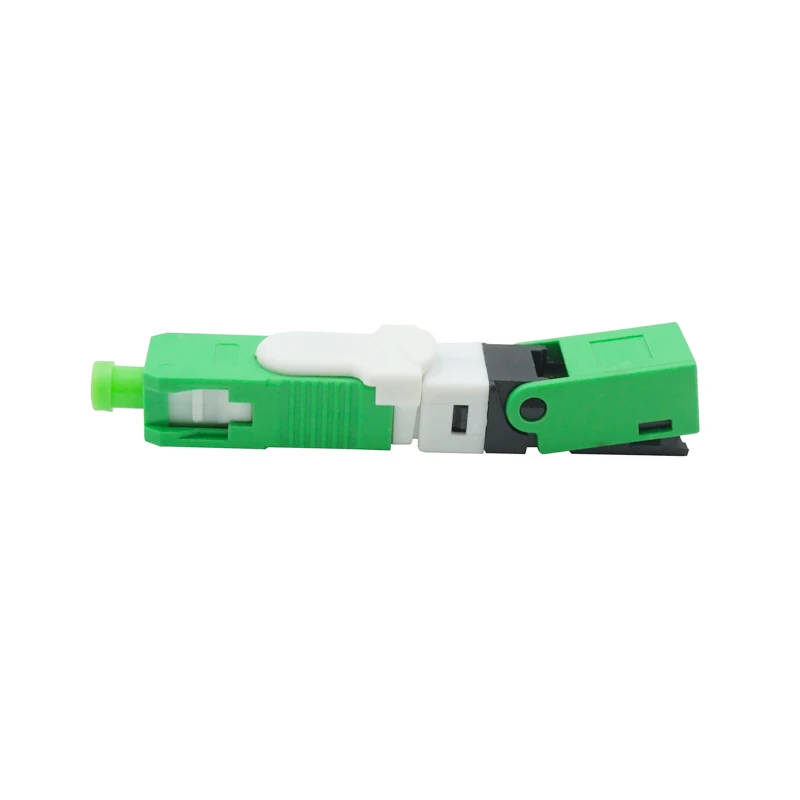

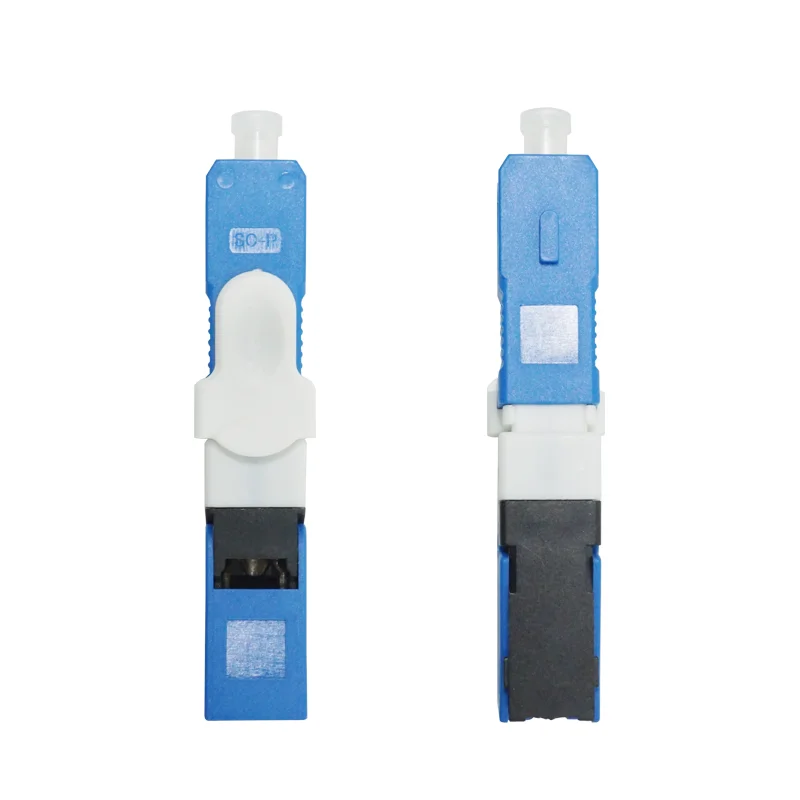

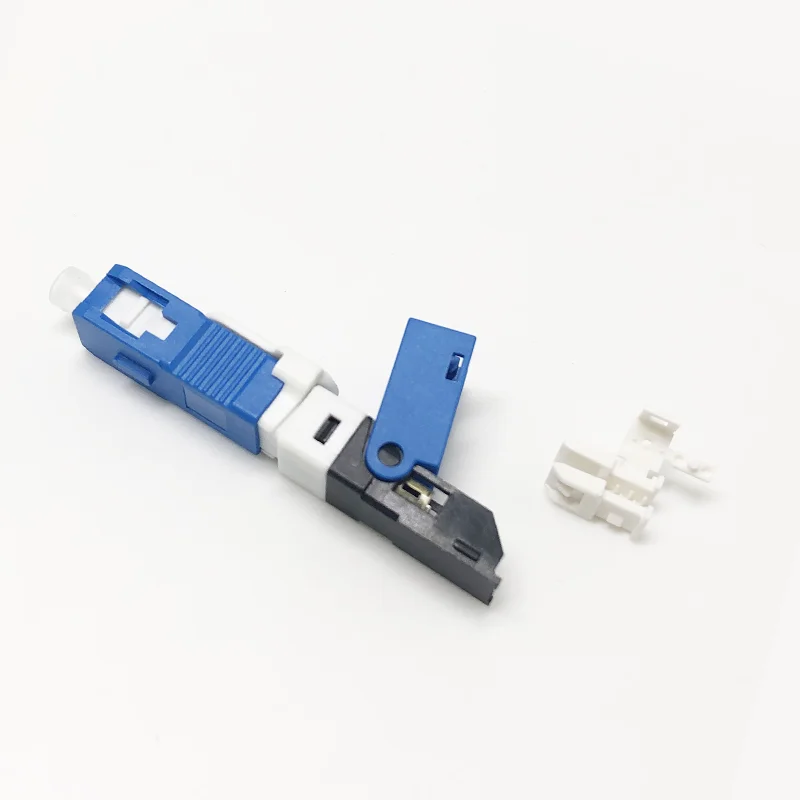

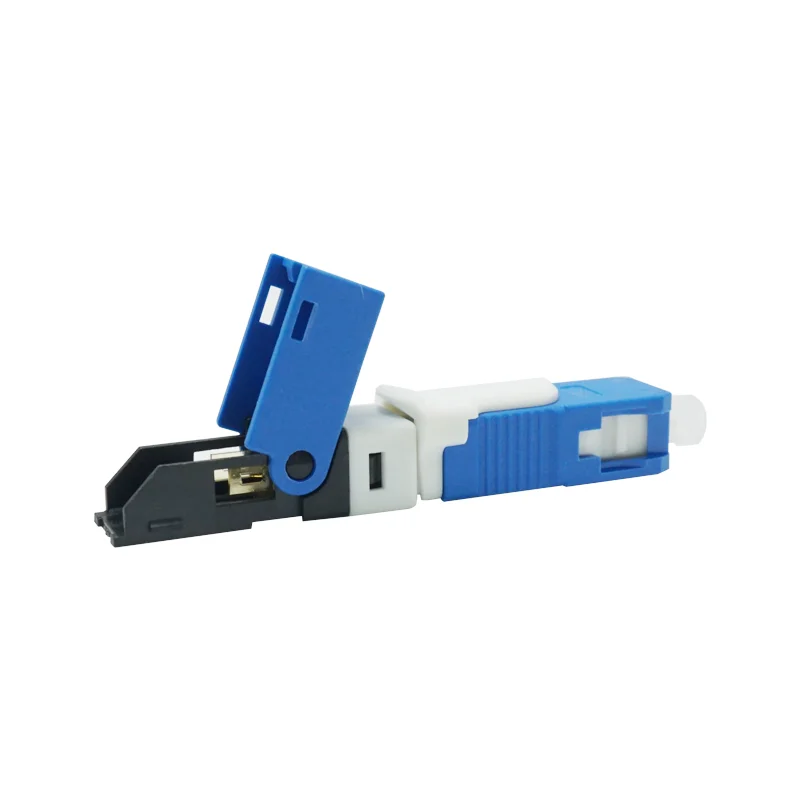

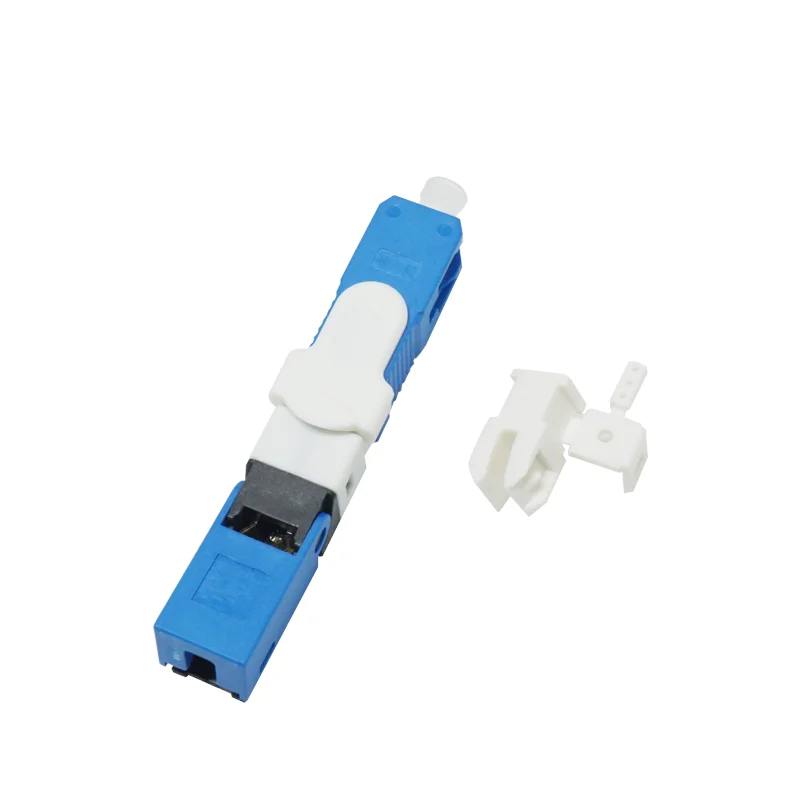

SC UPC Field Assembly Fiber Optic Fast Connector
SC fast connector allow you to terminate a fiber in short time. The fast connect is a pre-polished connector which uses mechanical clamping and aligning of a cleaved fiber end which is inserted into the connector body. The fast connect is available in both singlemode andmultimode (OM1 and OM3 10Gig)and a variety of connector types and can be terminated onto 250um and 900um coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.
Products Features
* Field-installable
* Fast and easy to terminate
* Excellent insertion and RL performance
* Reusable
* No termination enclosure required.
* Handles and performs like a factory terminated connector
* Twin end-face of pre embedded fiber is polished in the factory
* Fiber optics is aligned in V-groove through the ceramic frrule
* Fast and easy to terminate
* Excellent insertion and RL performance
* Reusable
* No termination enclosure required.
* Handles and performs like a factory terminated connector
* Twin end-face of pre embedded fiber is polished in the factory
* Fiber optics is aligned in V-groove through the ceramic frrule
Technical Data
Item | Parameter |
Cable Scope | 2x3mm and 2x 1.6mm, 0.9mm |
Fiber Diameter | 125μm (G652 & G657A1, G657A2) |
Coating Diameter | 250μm |
Mode | SM |
Operation Time | about 15s(exclude fiber presetting) |
Insertion Loss | ≤ 0.3dB(UPC) ; ≤ 0.3dB(APC) |
Return Loss | ≥50dB for UPC, ≥55dB for APC |
Success Rate | >98% |
Reusable Times | >10 times |
Tighten Strength of Coating | >10 N |
Tensile Strength | >5 N |
Temperature | -40 ~ +85 C |
On-line Tensile Strength Test (20 N) | IL ≤ 0.5dB |
Mechanical Durability(500 times) | IL ≤ 0.5dB |
Drop Test (4m concrete floor, once each direction, three times total) | IL ≤ 0.5dB |

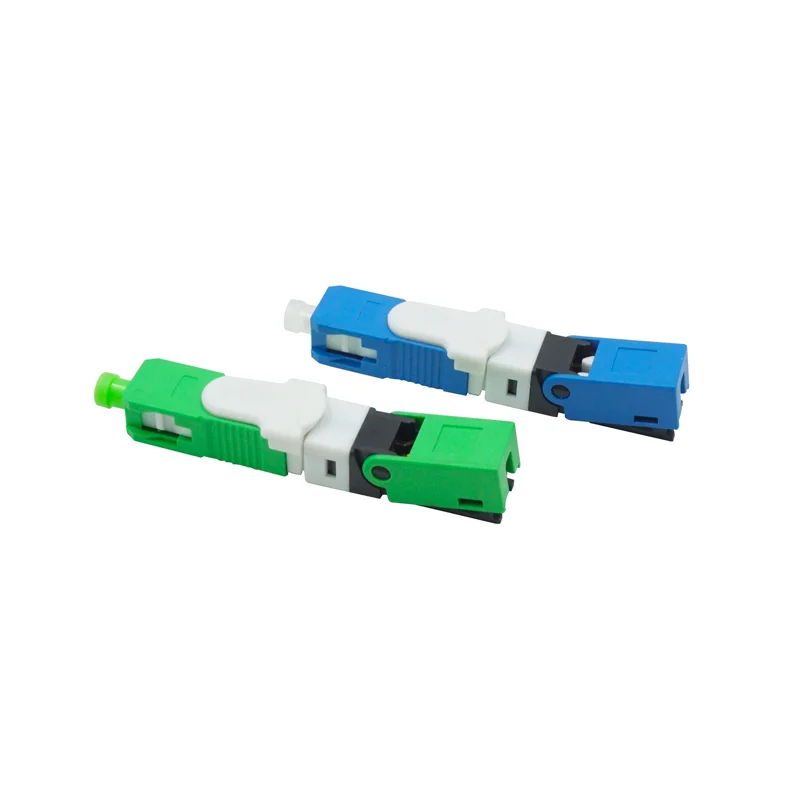

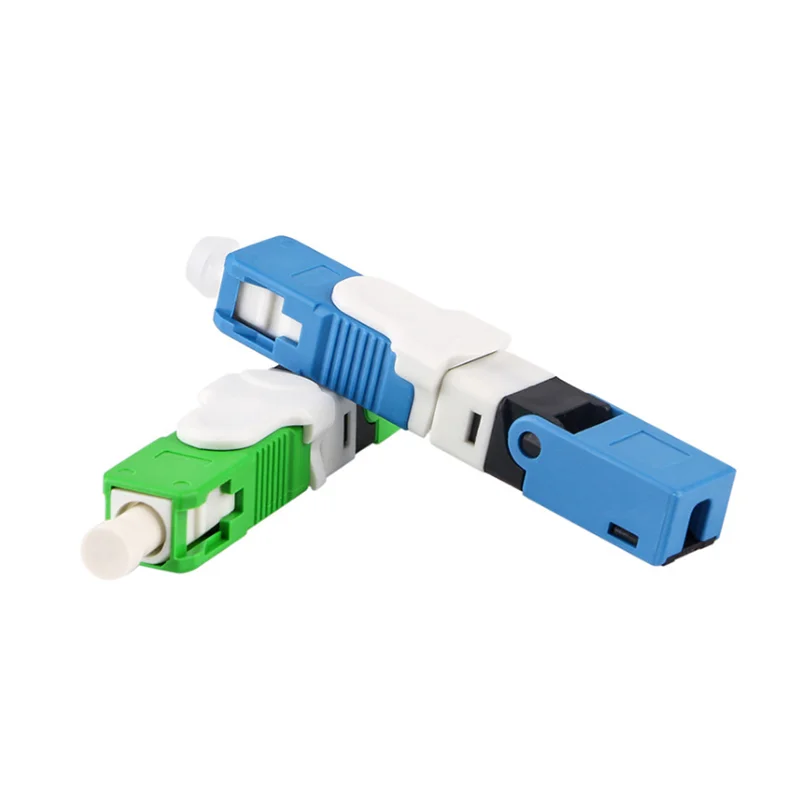

SC APC/UPC
SC APC SHOW
Application
Direct termination of fibre
FTTx networks(FTTH. FTTD)
Enterprise/Access networks
LAN/WAN
Permanent/Temporary replacement/repairs
Pre-installation cable drum testing

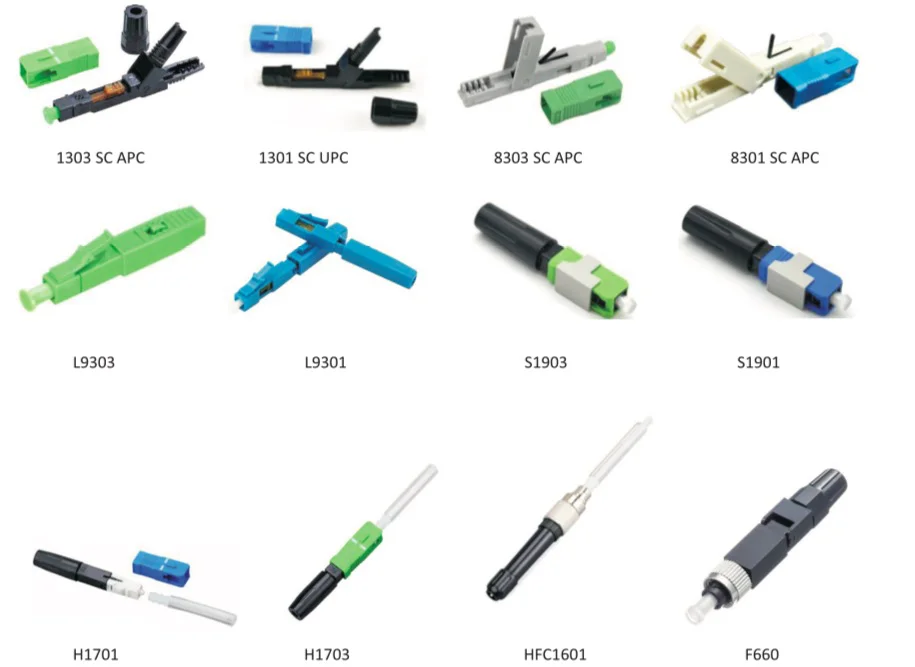

More Models
