Food Grade 5 10 15 20 um micron Porous Ceramic diffuser for liquid water gas Tablet Disc filter disks Plate Tube pipe factory
- Category: Filter Supplies >>>
- Supplier: Guangzhou Lvyuan Water Purification Equipment Co. Ltd.
Share on (1600056977950):
Product Overview
Description

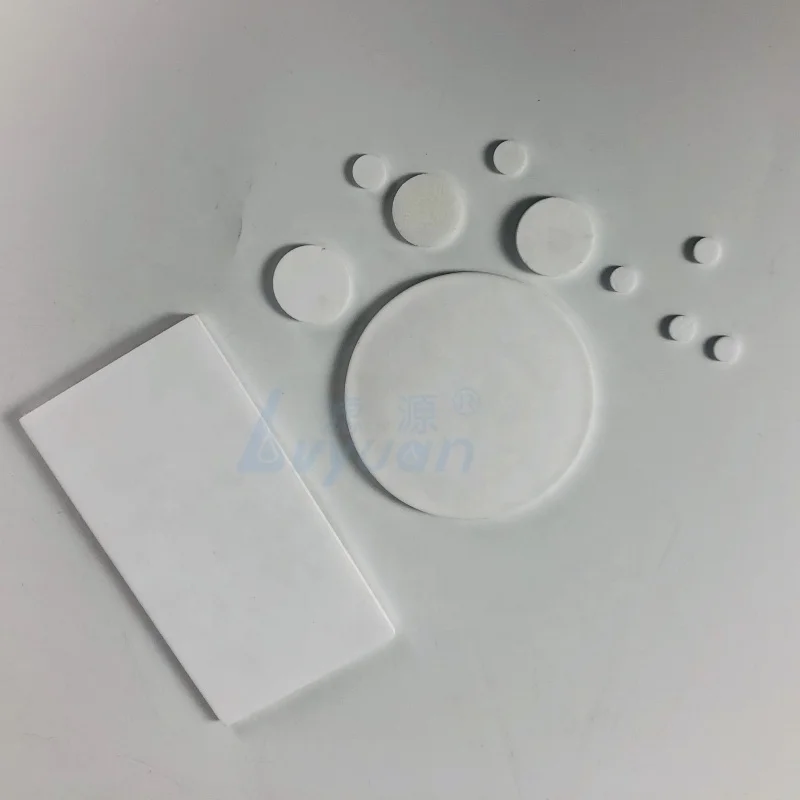

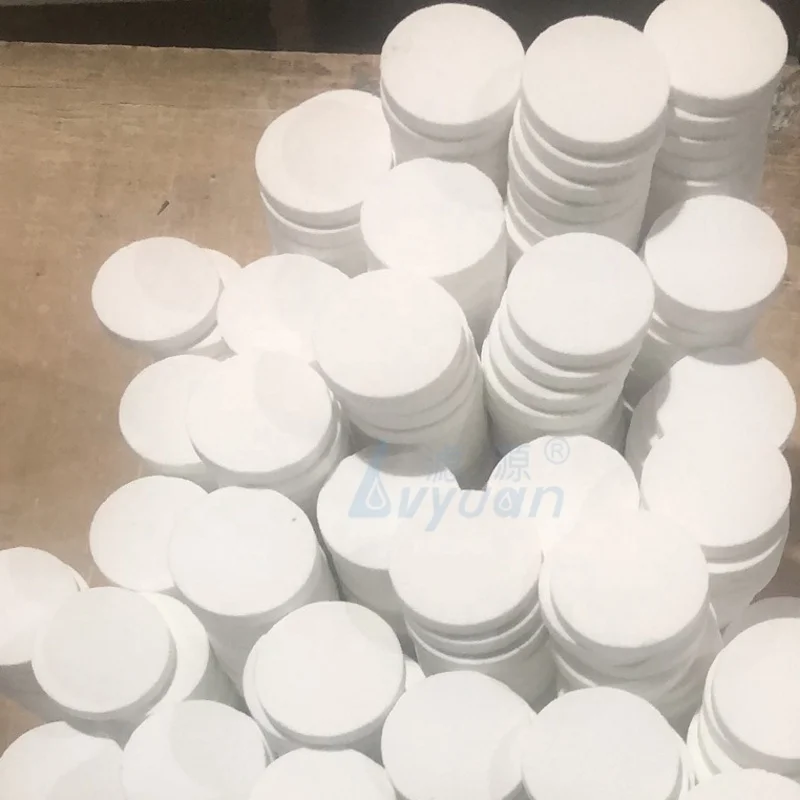

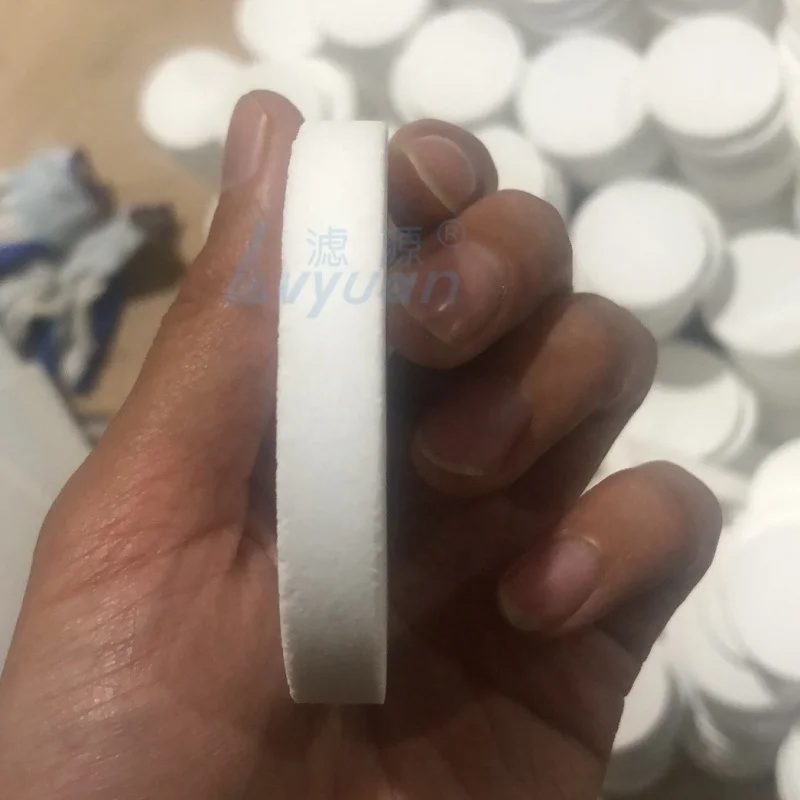

Food Grade 5 10 15 20 um micron Porous Ceramic diffuser for liquid water gas Tablet Disc filter disks Plate Tube pipe factory

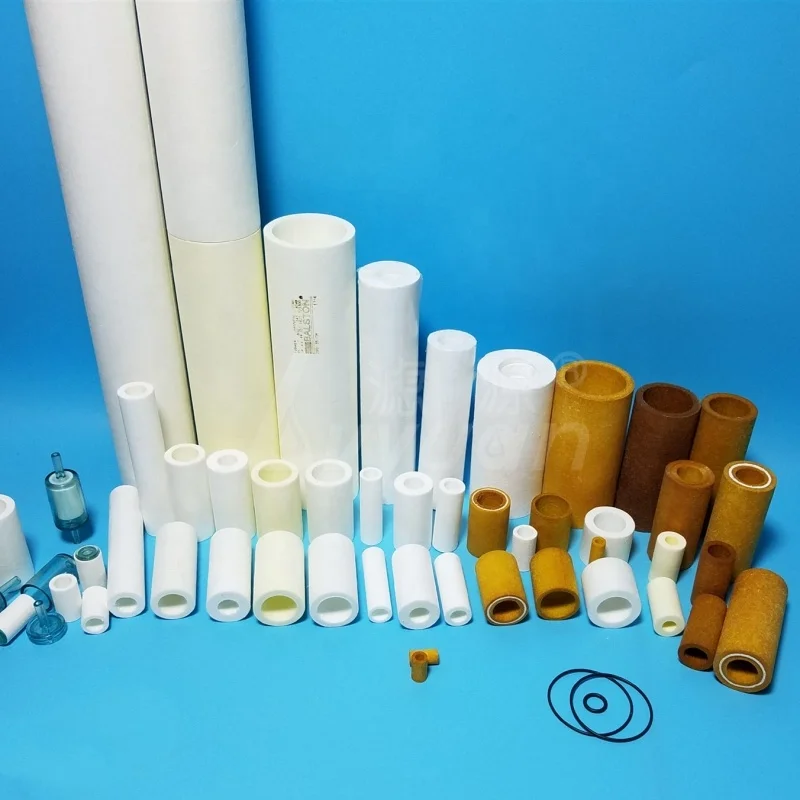

Porous Ceramic

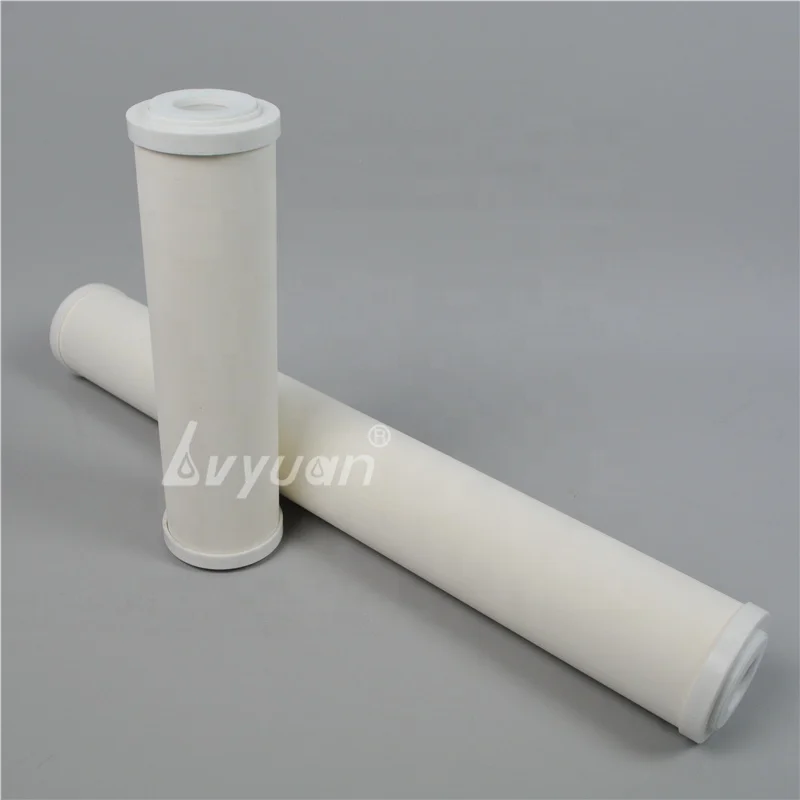

Washable 0.1 0.5 1 micron Ceramic Filter Cartridge for water purification
Micro-porous Ceramic filter tube/tablets/disk/disc/cartridge is sintered by high temperature. The pore size is from 0.1 to 100 microns. There're wide applications, such as:
1. Ceramic Vacuum Chucks.
2. Ceramic Filters.
3. Ceramic Diffusers.
4. Ceramic Air Bearings.
5. Ceramic Permeable Substrates.
6. Ceramic Dispersion Media.
7. Ceramic Ash Handling.
8.Ceramic Wicking Media.
9. Ceramic Fluidized Bed Plates.
10. Ceramic Specialty Spargers.
11. Ceramic Breathers – Vents.
2. Ceramic Filters.
3. Ceramic Diffusers.
4. Ceramic Air Bearings.
5. Ceramic Permeable Substrates.
6. Ceramic Dispersion Media.
7. Ceramic Ash Handling.
8.Ceramic Wicking Media.
9. Ceramic Fluidized Bed Plates.
10. Ceramic Specialty Spargers.
11. Ceramic Breathers – Vents.
Index | Value | Index | Value |
volume-weight (kg/m3) | 1480 | Bending strength (Mpa) | 5.3Mpa |
Pore size (um) | 1-200 micron | Acid resistance | 98% |
Porosity (%) | 45% or as request | Alkali resistance | 74-82% |
Water permeability (T/m2.h) | 0.5-3 | Mohs' hardness (Level) | 7 |
Air permeability (m3/m2.h) | 1.8-5.0 | Thermal stability (℃) | 200-19 (℃) |
Compressive strength (Mpa) | 14Mpa | Water absorption (%) | 23% |
Porous Ceramic Filter tube / disk Features:
1. High temperature resistance up to 1000°C
2. Oxidation resistance
3. Corrosion resistance
4. Thermal shock resistance
5. Abrasion resistance
Micro-Porous Ceramic Filter tube / disk Applications:
**Gas and Air Filtration
1. Hot Gas Filtration
2. Precoat Filtration
3. Coalescing Filtration
4. Process Filtration – Both
5. Dust and Fume Filtration
6. Compressed Air Filtration
**Liquid Filtration
1. Process Filtration
2. Industrial Waste Water Treatment
3. Filtration for chemical processing plant
4. Paper and cardboard processing
5. Solvent filtration
6. Precoat filtration
7. Liquid backwash
8. Filtration of corrosive fluids

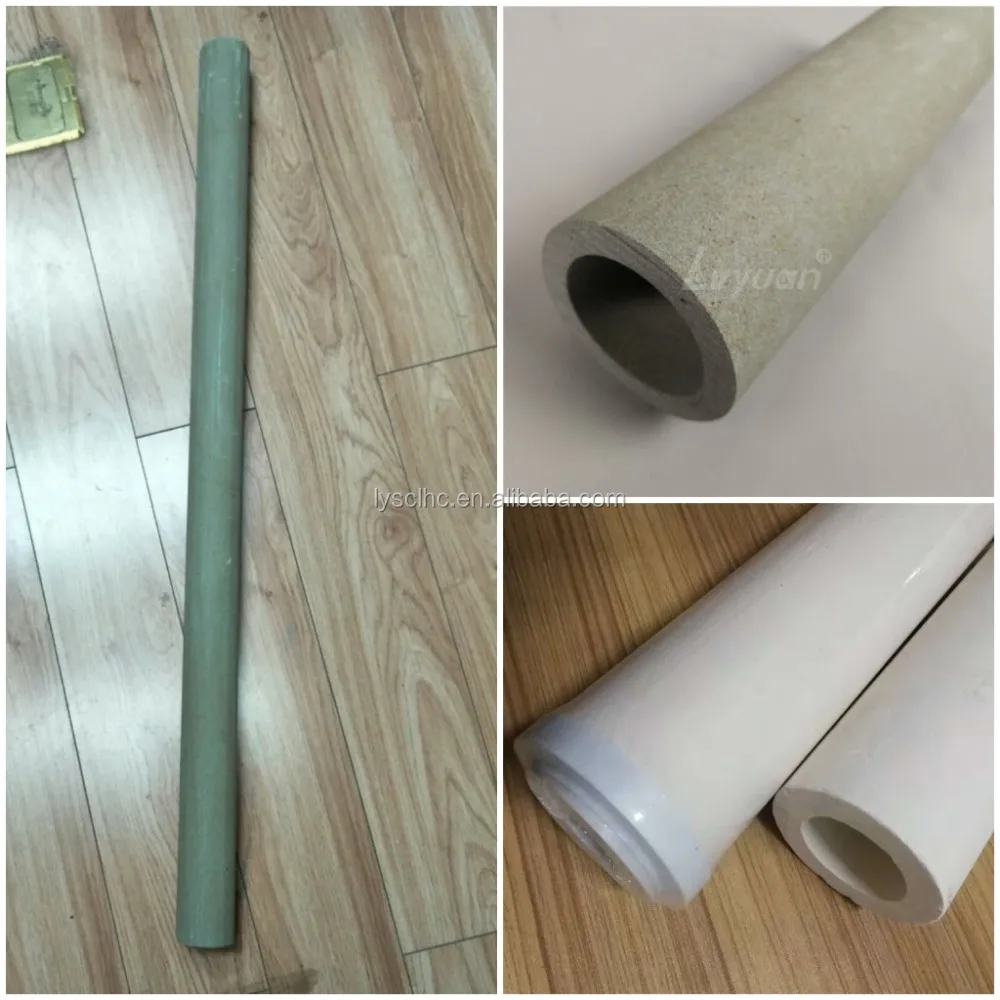

Porous Plastics
Porous Plastics Products Specifications:
Dimensions | ||
Regular size (mm) | 31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc. for PE material as reference. | |
Other dimensions/Shapes | Customized by customer's request. | |
Material of constructions | ||
Filter media option | PE, HDPE, PTFE, PVDF, PA/Nylon etc | |
Connector type | DOE/SOE, Flat, Insert type, Thread type, Fin | |
End caps | PP, M36, M30, M25, M22, M14, M12, or as request. | |
Shapes | tube/pipe, sheets, pleated type or as your drawing | |
Performance | ||
Pore size / Removal rate | 0.3, 0.45, 1, 3, 5, 10,20, 30, 40, 50um or as request | |
Maximum Operating Temperature | ≦82℃ (based on Porous PE products) | |
Maximum Operating Pressure | 6.0bar | |
Stainless Steel

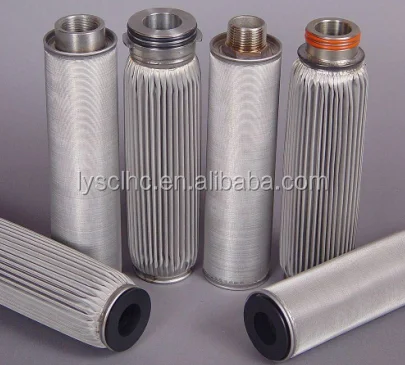

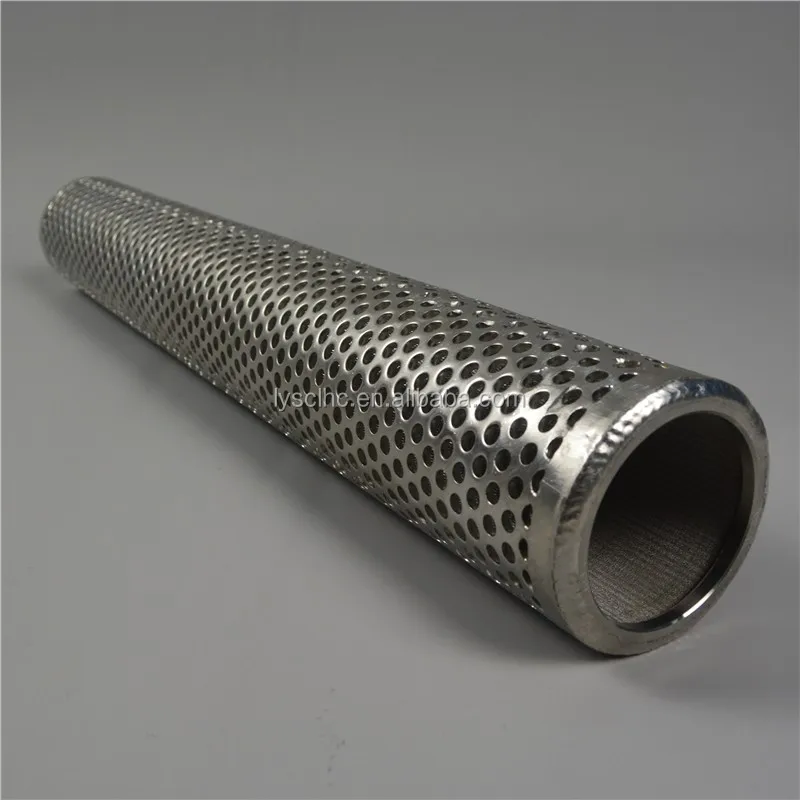

Plain cylindrical design stainless steel wire mesh filter cartridge
Pleated configuration design SS folded mesh filter cartridge

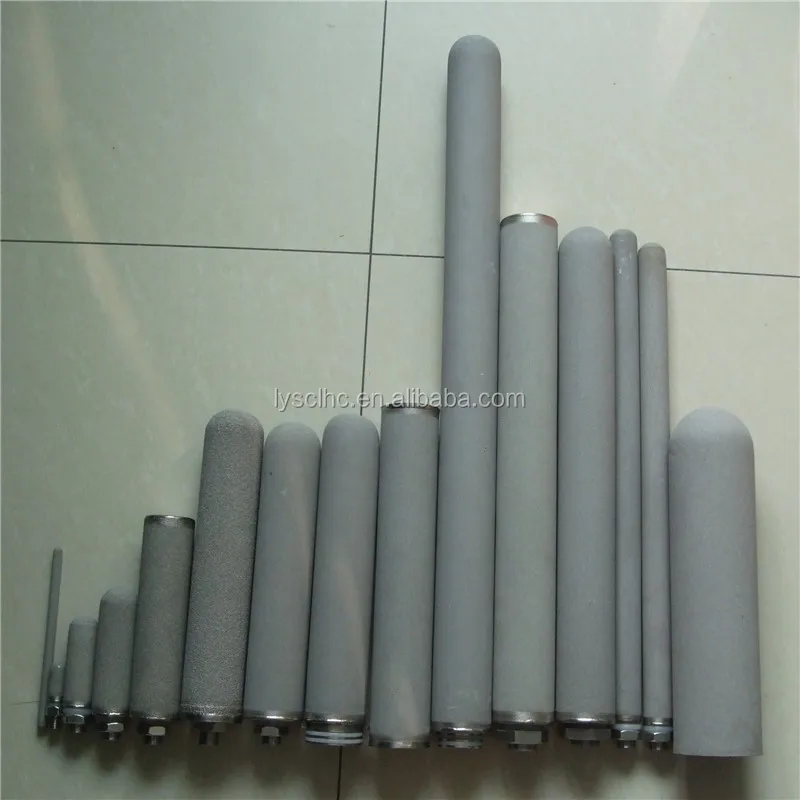

SS316L stainless steel porous powder sintered filter cartridge
Sintered Stainless Steel Porous Filter Cartridge Specification:
Dimensions | ||
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Diameter | Ø25, 30, 50, 60, 65, 70mm or as request | |
Other dimensions | Can be Customized by customer's request. | |
Material of constructions | ||
Filter media | SUS304, 316, 316L stainless steel | |
Connector type | Flat, Insert type, Thread type, Fin | |

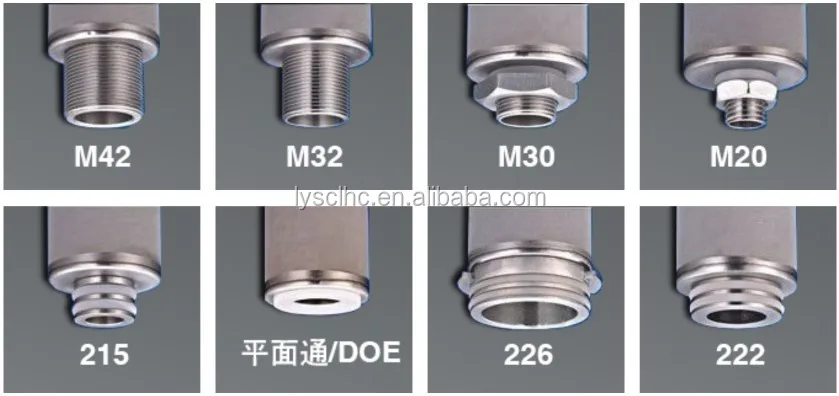

End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. | |
External protection net | Optional | |
Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc | |
Performance | ||
Pore size /Filtration rate | 1, 3, 5, 10,20, 30, 40, 50, 100um or as request | |
Operation Temperature | ≦480℃ | |
Maximum Operating Pressure differential | 4.0 bar | |
Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning | |
Sintered Titanium
Sintered Porous Titanium Water Filter Cartridge Specification:
Dimensions | ||
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Diameter | Ø22, 30, 50, 60, 70, 80, 100, 120mm | |
Other dimensions | Customized by customer's request. | |
Material of constructions | ||
Filter media | Titanium | |
Connector type | Flat, Insert type, Thread type, Fin | |
End caps | DOE, 215, 222, 226, M20, M30, M42 or as request. | |
Sealing material | Silicone, NBR, EPDM, Fluoro rubber, etc | |
Performance | ||
Removal rate | 0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um | |
Temperature Tolerance | ≦300℃ wet | |
Permeability | 0.02-20L/cm2 min Pa | |
Maximum Operating Pressure differential | 6.0bar | |
Flow rate (L/H) | 180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600 | |
Micron rate (μm) | 0.2 | 0.45 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
Flow rate (L/H) | 180 | 200 | 250 | 280 | 300 | 350 | 500 | 800 | 1000 |
Activated Carbon

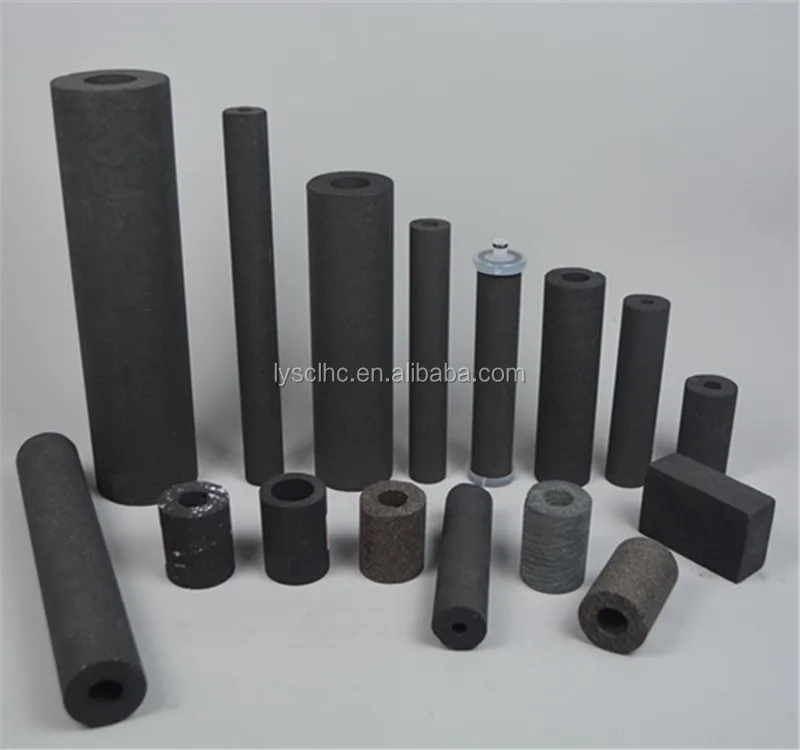

Sintered Activated Carbon Block Filter Cartridge Specification:
Dimensions | ||
Outer diameter | 14, 16, 19, 25, 28, 30, 35, 38, 40, 45, 46, 50, 53, 55, 60, 63, 64, 67, 70, 76, 90, 96.5, 103, 105, 121mm | |
Inner diameter | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38, 40, 45, 50mm | |
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Other dimensions | Customized by customer's request. | |
Material of constructions | ||
Filter media | Coconut shell carbon, coal carbon | |
Enc caps | Polypropylene | |
Netting | Polypropylene | |
Gasket/oring material | Silicone, EPDM, NBR, Viton | |
Performance | ||
Removal rate | 5, 10, 25 um | |
Maximum Operating Temperature | ≦80℃ | |
Maximum Operating Pressure | 17 bar | |
Maximum differential pressure | 7 bar at 25℃ | |
