China zt quality and stainless wire end hooked steel fiber of factory production

Product Overview

Description

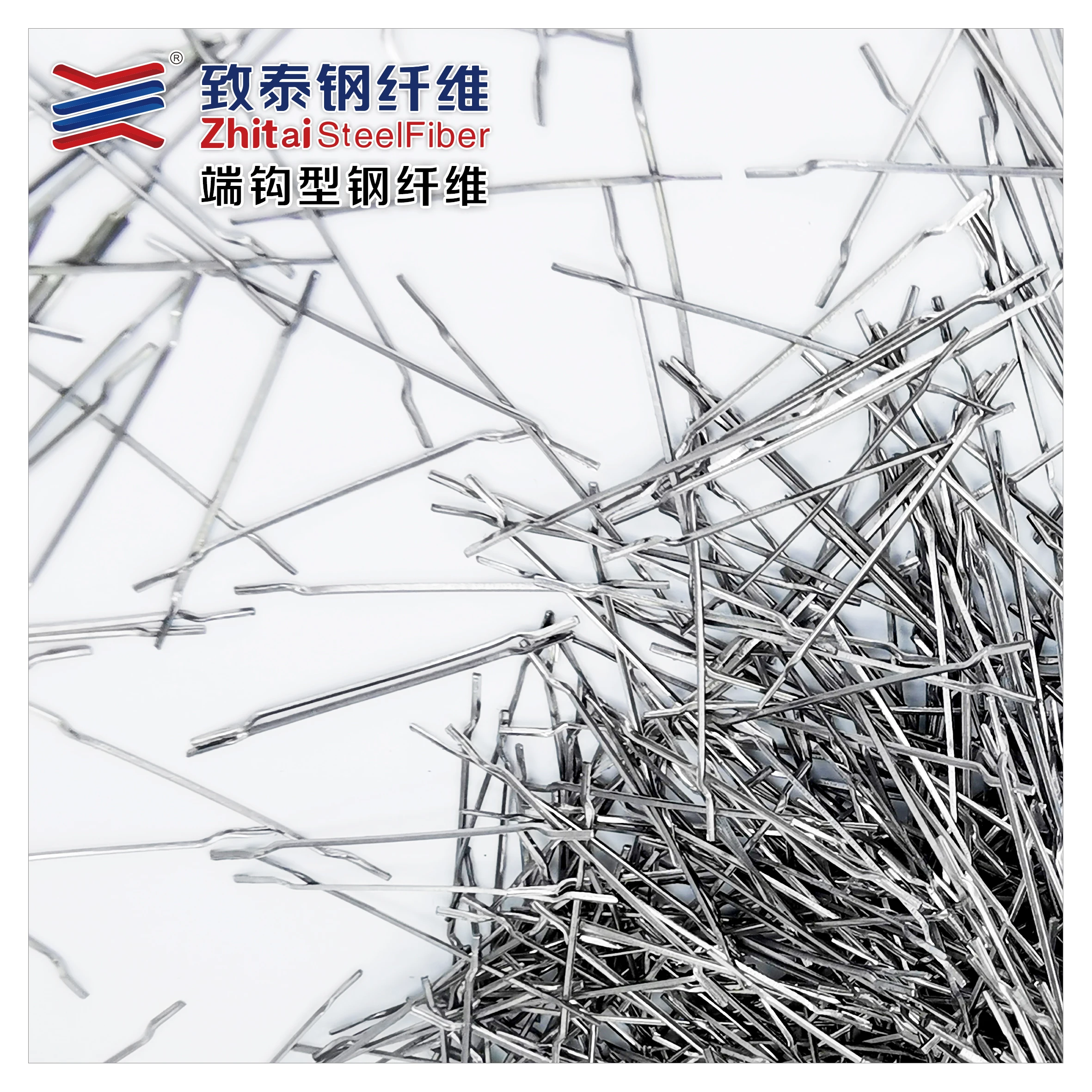

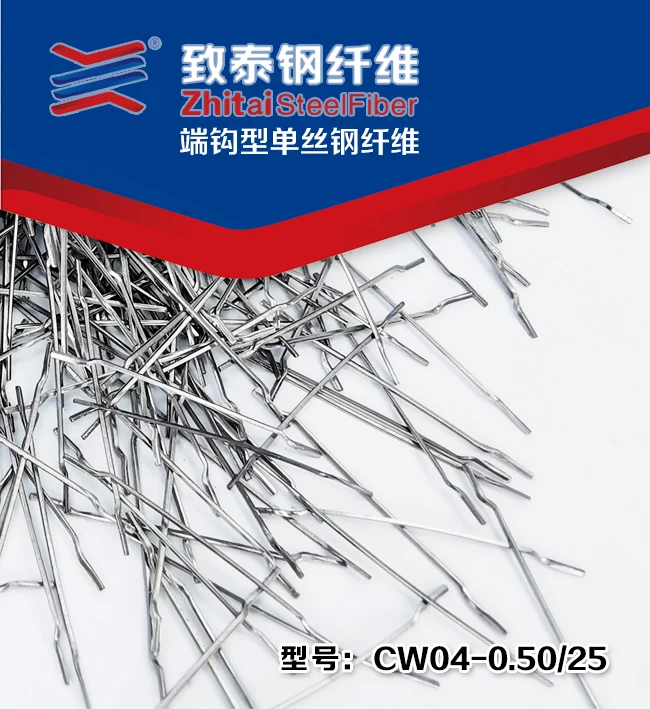

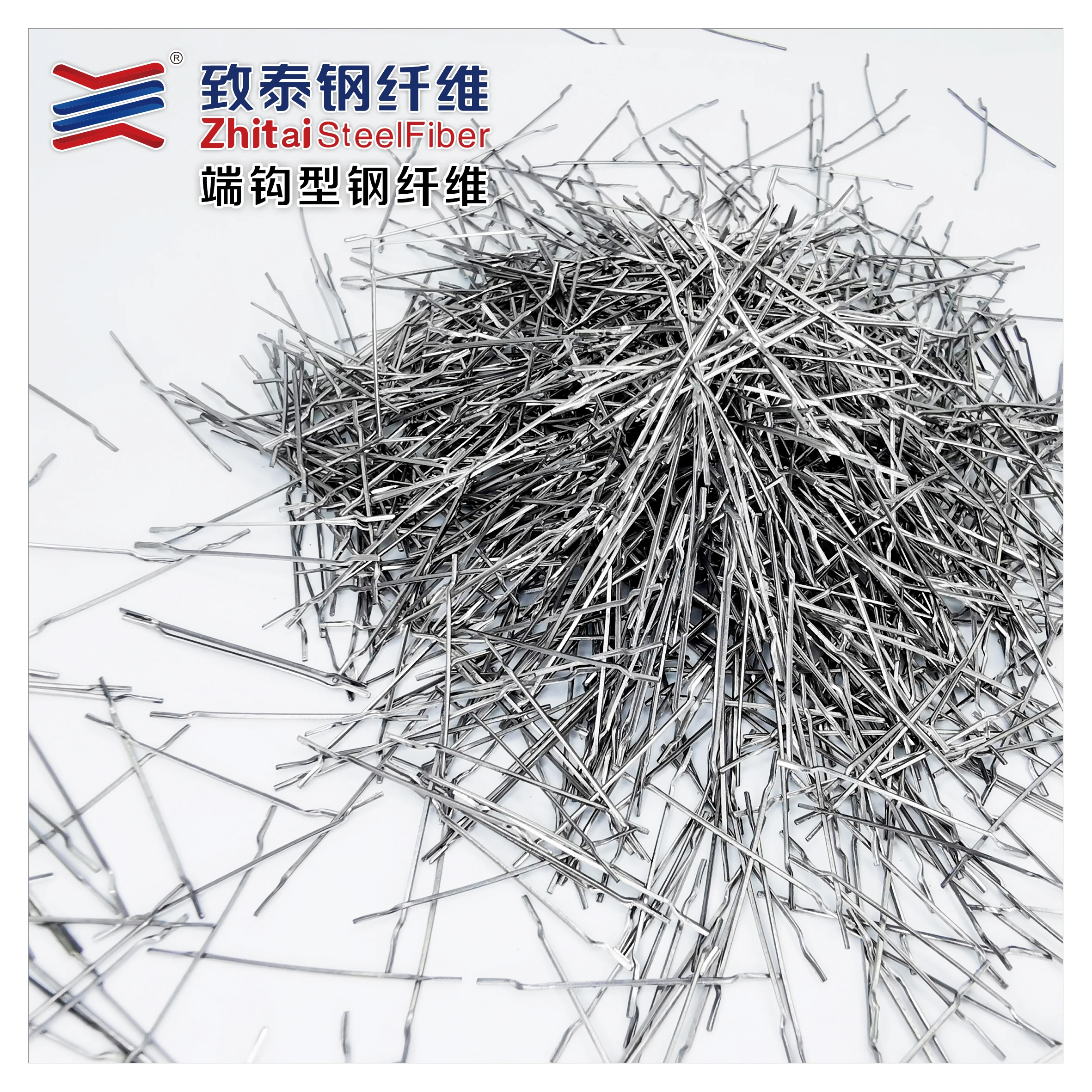

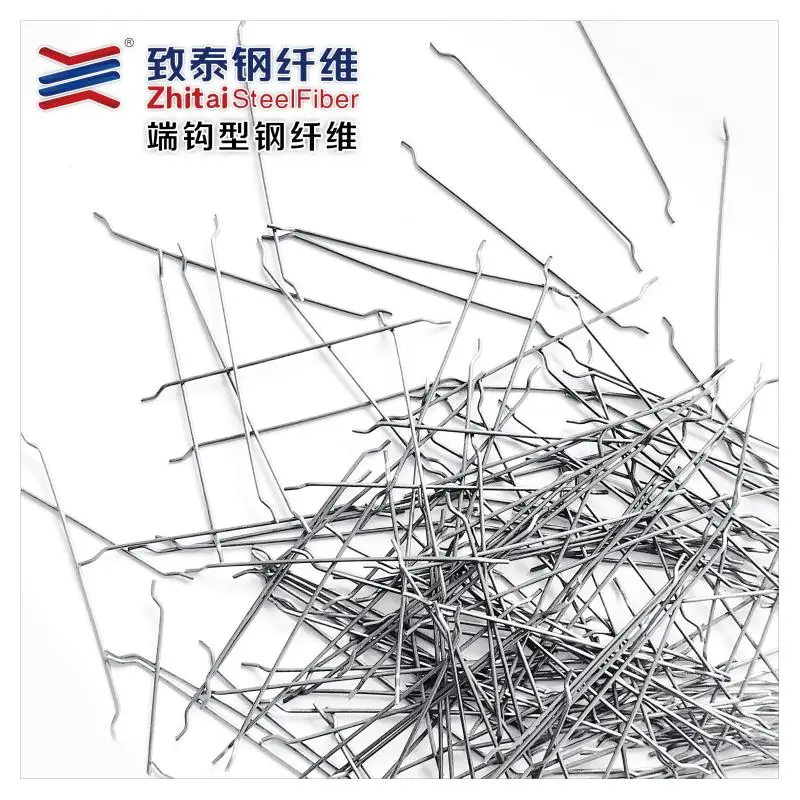

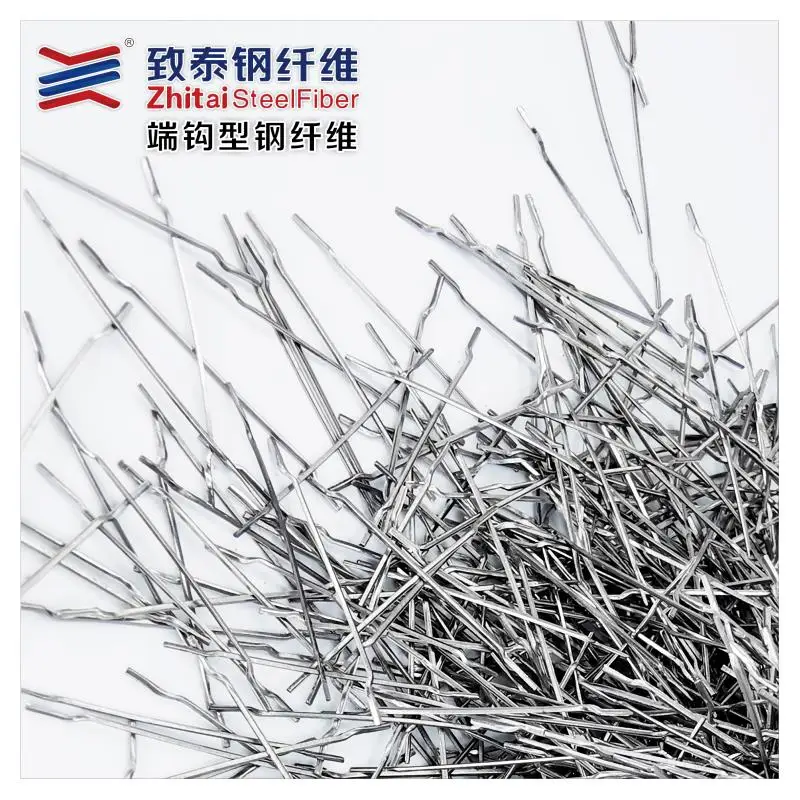

Length 6-60mm steel fiber hooks for Precast concrete products

Specification





Type	Diameter(mm)	Length(mm)	Aspect ratio	Tensile strength(Mpa)
ZT-0.2/10	0.2	10	50	2850
ZT-0.5/30	0.5	30	60	1100
ZT-0.5/35	0.5	35	70	1100
ZT-0.6/30	0.6	30	50	1000 or 800
ZT-0.6/35	0.6	35	59	1000 or 800
ZT-0.75/35	0.75	35	47	1100 or 800
ZT-0.75/60	0.75	60	80	1100 or 800
ZT-0.8/50	0.8	50	63	1000
ZT-0.8/60	0.8	60	75	1000
ZT-0.9/50	0.9	50	56	1000
ZT-0.9/60	0.9	60	67	1000
ZT-1.0/50	1.0	50	50	1000
ZT-1.0/60	1.0	60	60	1000



Types

A) Copper coated steel fiber

B) Hook end steel fiber (Loose and glued shape)

C) Flat crimped steel fiber

D) Crimped steel fiber

E) Crimped sheet fiber





Applications

A) Industrial and commercial floor

B) Sprayed concrete ( Shotcreting ) in tunnels and mine

C) Precast concrete products

D) Bridges, Culverts and Hydrodynamic structures

E) Seismic resistance structures

F) Highways & Airport pavements



G) Heavy equipment foundation



Advantages

A)Tensile strength is enhanced

B)Adds ductility to concrete

C)Controls cracks

D)Fatigue and impact resistance

E)Reduce material consumption and save cost

F)Less construction time required



G)Longer service time
