2.Simple adjustment, easy operation, high success of arc starting rate.
3.Reduce tungsten electrode loss, stable output, high temporary load rate.
1.Small size, light weight, easy carry and place.
Specification
Model

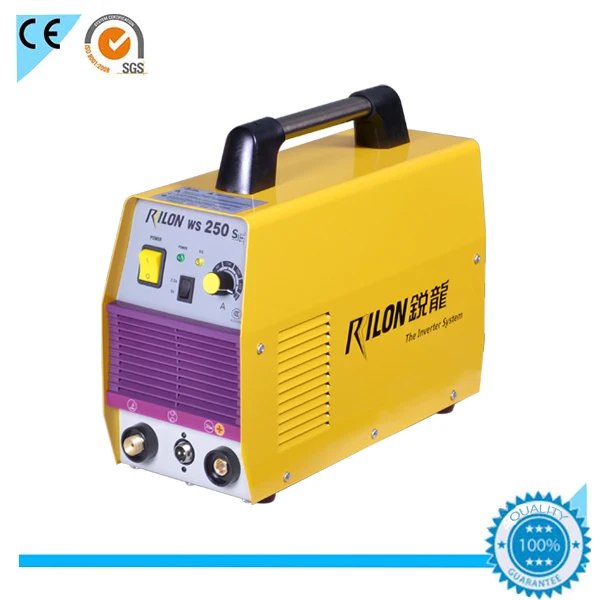

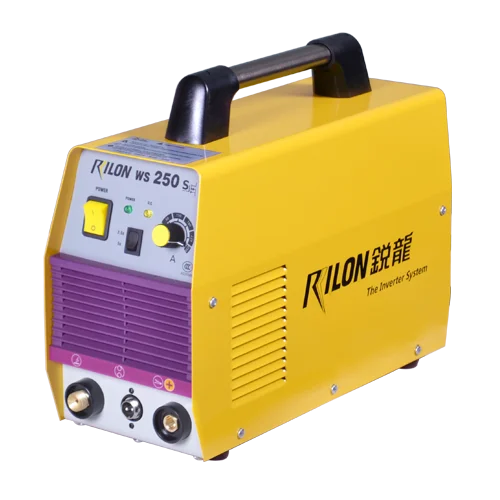

WS 250S
Rated Input Voltage(V)
Single phase 220V±15%
Input Frequency(Hz)
50/60
Rated Input Current(KVA)
8.6
Current And Voltage Adjustment Scope(TIG/MMA, A/V)
10/10.4~250/20
40℃60%Rated output Of Loading(TIG/MMA, A/V)
250/20
40℃100%Rated output Of Loading(TIG/MMA, A/V)
194/17.8
No-Load Voltage(V)
46
No-load Loss(W)
40
Arc Strick
High frequency Arc Striking
Efficiency(%)
80
Power Factor
0.73
Insulation Grade
F
Housing Protection Grade
IP21
Weight(kg)
8
Diamension(mm)
395*153*301
Packaging & Shipping
1. About Packaging (1) Outer package: sturdy plywood cases accessible to pallet. (2) Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed by corrugated cartons. (3) Container loading: 50 sets for 20GP, and 100 sets for 40GP. (4) The package can be designed according to clients' requirements.
2. About Shipping
(1) Loading Port: Shanghai, China (2) Delivery terms: CIF, FOB C&F etc. based on Incoterms 2010. (3) Delivery time: 2 working days for the stock, 10 working days for the new, from the receipt of down payment and the actual delivery time depend on your order. (4) Other shipping terms can be negotiated.
Company information
BRIEF INTRODUTION:
Nanning ChuanJun Welding Hardware Co., Ltd. , founded in 2004, focus on welding equipment and accessory for more than 10 years. Our products are MMA, TIG welder, MAG/MIG welding machine, SAW welding machines, cutting machine, welding accessories, and welding materials.
BUSINESS SCOPE:
On Welding: TIG, MIG, MAG, MMA arc welding machine and the welding accessories, automatic welding carriage, welding consumables,etc;
On Cutting: gas cutting machines, oxy-fuel cutting machine for plate and pipe, air inverter plasma cutting machine cnc plasma and flame cutting machine, gas cutting accessories, pipe cutting and beveling machine;
Others: welding mask, welding helmets, welding gloves, etc.
We are devoted to offering high efficient machines for your metal work and trading business.
Certifications
FAQ
Q1. What is your terms of packing? A: Generally, we pack WSE series igbt tig argon welding machine in plywood cases. Q2. What is your terms of payment?
A: 1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment; 2) If all the cost is less than USD $ 10000, T/T 100% required in advance. Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF. Q4. How can I do if the machine goes wrong? A:If confronted with such problems, online service is offered, you could contract our sales,also,we offer engineer
delivery service. please contact us asap and do not try fix the machine by yourself or someone else,we will
response within 12 hours as quick as we can to solve it for you. Q5. Will the package damaged during transportation? A:Our package is considerate all the damage factors and make it to be safe,and our shipping agent have full
experienced in safe transportation.We have exported to 180 countries worldwide.So please don't worry,you
will receive the parcel in good condition. Q6. Do you test all your goods before delivery? A: Yes, we have 10% test before delivery
