GU-POWER CCEC SERIES 640KW GENERATOR SET
GENERATOR SET
Model Number:
GUP-38K640G
Type:
Open Frame Type
Prime/Rated Power:
580/640KW
Rated Voltage:
400V
Rated Current:
1215A
Rated Frequency:
50HZ
Speed:
1500RPM
Power Factor:
0.8(lagging)
Output Type:
3 Phase 4 Wire
Protecting System:
Four Protecting Function (Water Temperature, Oil Pressure, Revolutions, Battery Power Protection)
Dimensions(L×W×H):
4200×1825×2275mm
Weight:
6500KG
Working Type:
Mechanical
Application:
Industry, Architecture, Agriculture, Marine and Power Generation
DIESEL ENGINE
Engine Model:
CCEC KTA38-GA
Rated/Prime Power:
647/711KW
Cylinder Number:
12
Bore×Stroke(mm):
159×159
Displacement:
38L
Fuel Consumption:
213/KW·h
ALTERNATOR
Alternator Model:
Stamford
Exciter Type:
Brushless
Voltage Adjusting Type:
AVR
Insulation Class:
H
Protecting Class:
IP23


Details Images

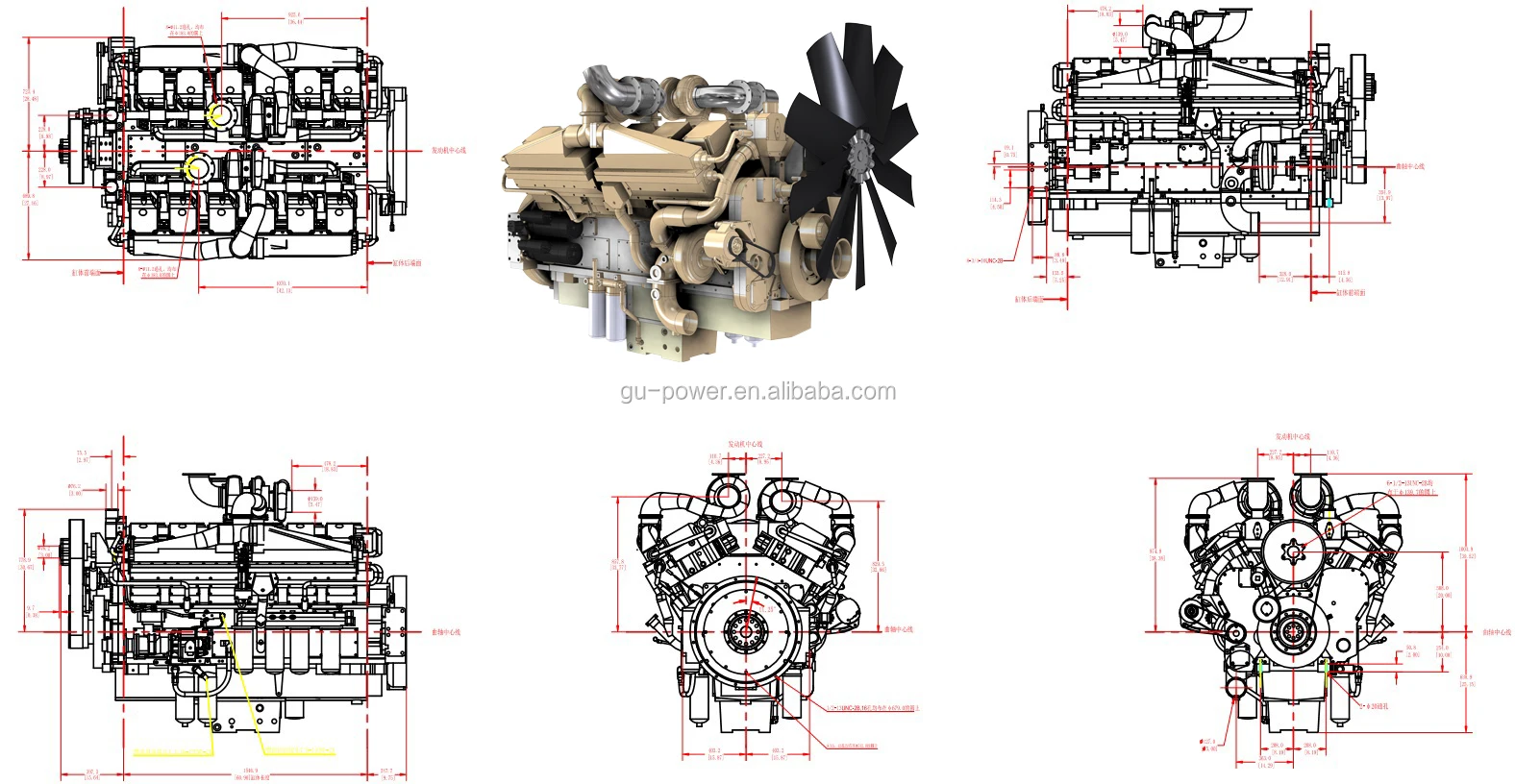

Engine Images

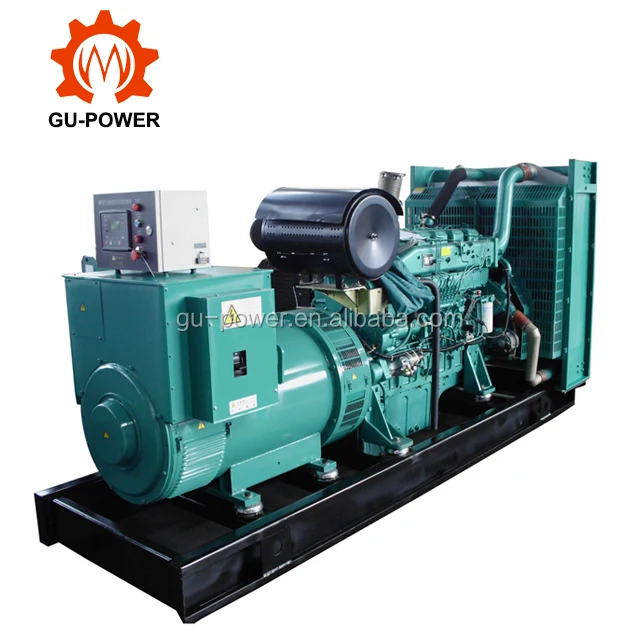

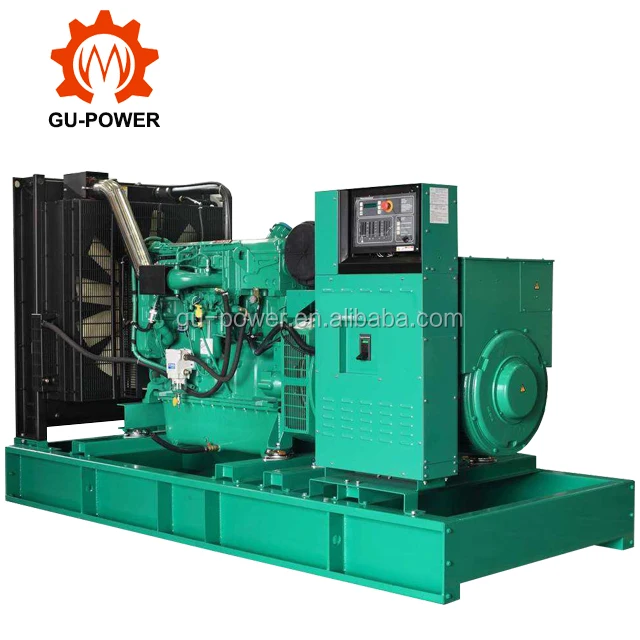

Generator Images




Other Products

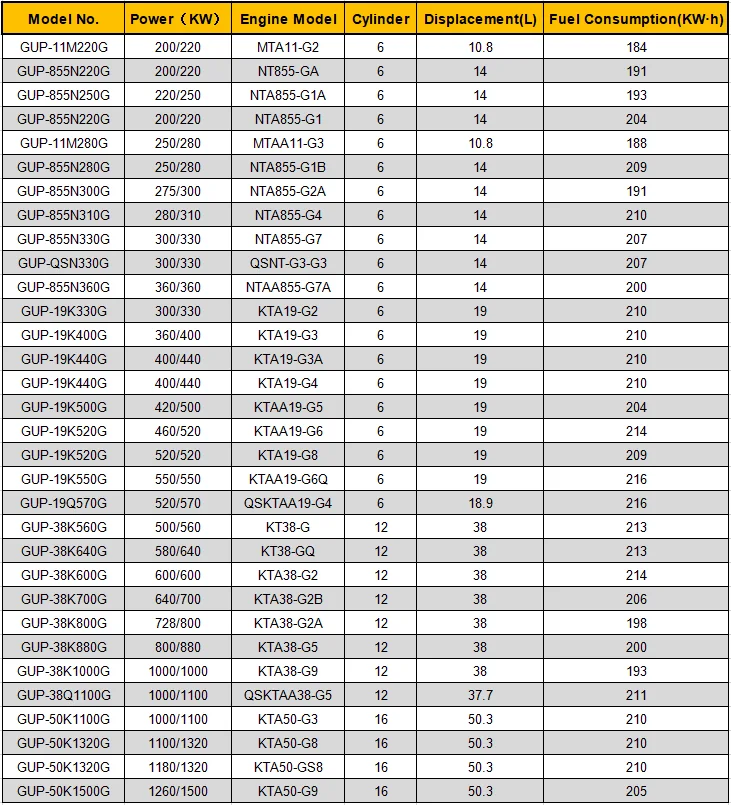

GU-POWER CCEC SERIES GENERATOR SET PRODUCTS LIST

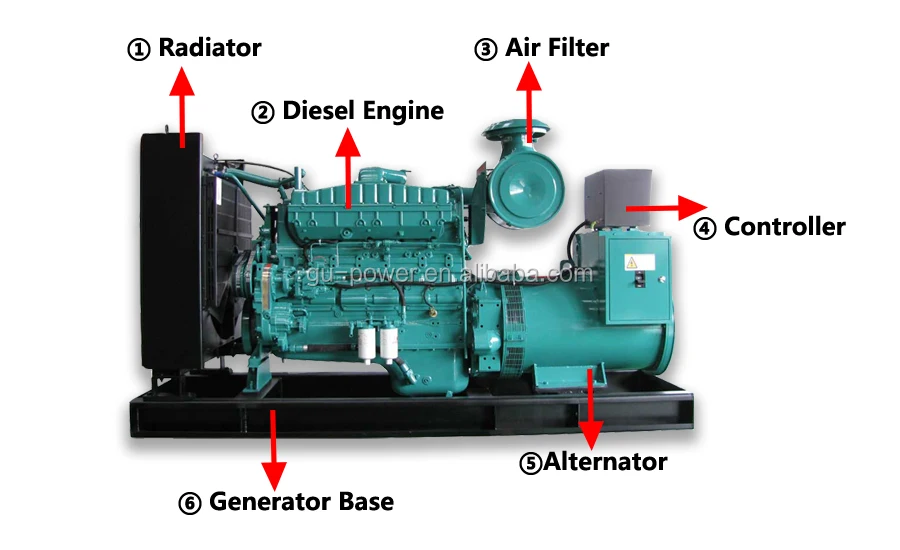

Products Features




① Radiator
★ Diesel engine equips 50℃ radiator with water cooling method, it can work efficiently in full load and high temperature


② Diesel Engine
★ Higher efficient and more reliable

★ Lower fuel consumption

★ Low-carbon and environmental protection


③ Air Filter
★ Good filtration

★ High density

★ Long usage time


④ Controller
★ Self starting and shutting off, more convenient and reliable

★ It shows important parameter of diesel engine , alternator and generator set, protects generator set any time

★ Operating time and maintenance cycle can be preset




⑤ Alternator
★ Reliable automatic voltage control exciting system, providing invariable excitation on all occasions

★ Easy to be connected with power network or other generators

★ More convenient operation

★ Meet all the main landing standards

★ Small size, light weight


⑥ Generator Base
★ Be made of sheet metal and redressed by balancer

★ Guarantee generator stably work and easily maintained

★ High-strength material

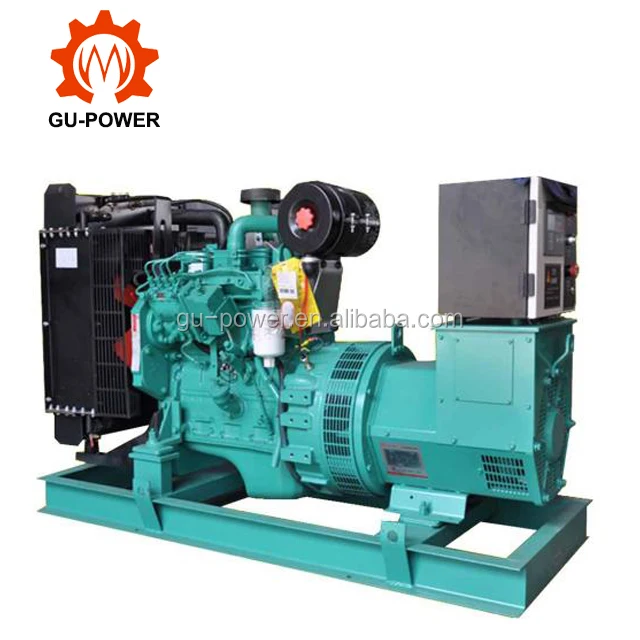

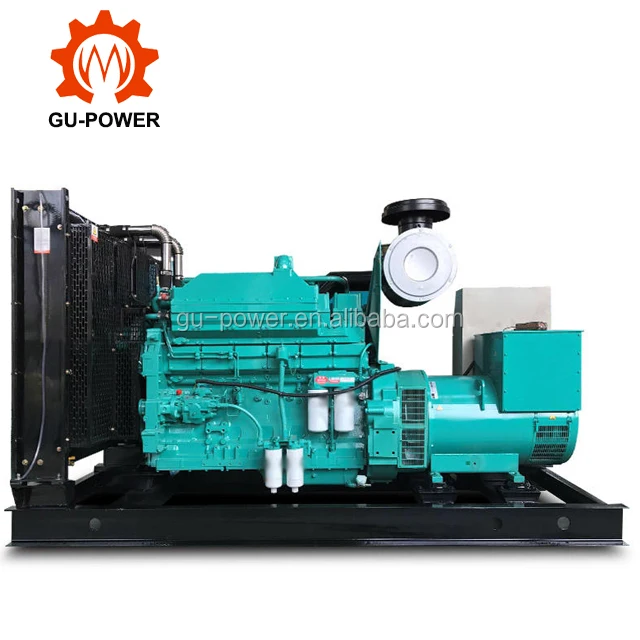

Recommend Products


Engine Spare Parts
Engine Power Assembly
Diesel Generator Set

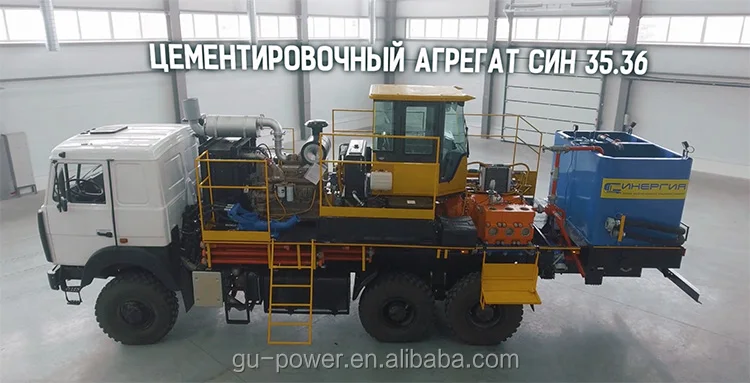

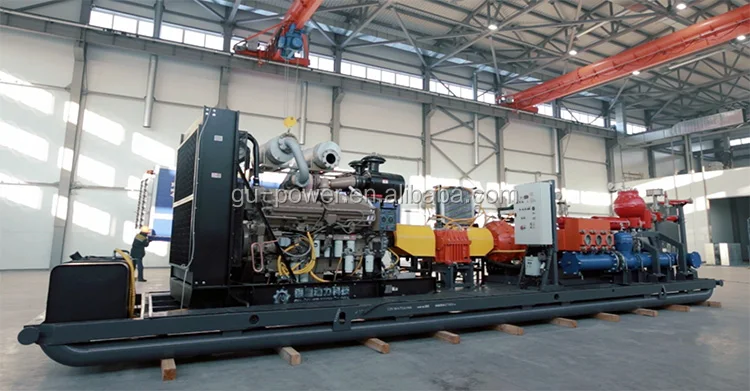

Products Applications

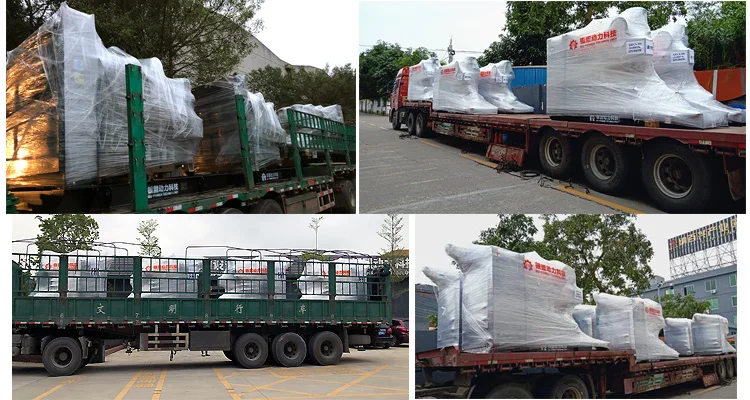

Package&Deliery




Our Service






FAQ
Q1. What is your MOQ?
A: One set.

Q2. What is your company's available production capacity?
A: 80 sets per month.

Q3. What is your terms of payment?
A: T/T 30%-50% as deposit, and balance before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4. What is your terms of delivery?
A: EXW, FOB, FCA, CFR, CIF, DDP.

Q5. How about your delivery time?
A: Generally, it will take 25 to 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6. How do you make our business long-term and good relationship?
A1: Good quality and competitive price ;
A2: Best after-sales service according to warranty rules;
A3: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
