Product Overview

Description



Product Description


This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.


Model

GS40
GS60
GS90
GS120
GS150
GS180
GS220
GS280
Max intermittent pull
KN
40
60
90
120
150
180
220
280
Max continuous pull
KN
30
50
80
100
120
150
180
250
Speed at max pull
km/h
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
Max speed
km/h
5
5
5
5
5
5
5
5
Pull at max speed
KN
20
25
40
50
60
75
90
120
Diesel
kw(hp)
77
(103)
77
(103)
118
(158)
129
(173)
129
(173)
239
(320)
239
(320)
298
(400)
Cooling system

Water
Water
Water
Water
Water
Water
Water
Water
Electrical system
V
24
24
24
24
24
24
24
24
Bull-wheel diamete
mm
400
450
540
600
600
700
760
960
Groove number

7
7
8
10
10
10
10
11
Max rope diameter
mm
16
18
21
24
24
27
30
38
Max diameter of rope reel
mm
1200
1400
1400
1400
1600
1400
1600
1600
Total weight
kg
3000
3500
4680
4800
5500
6800
6800
12800




Characteristics


Characteristics

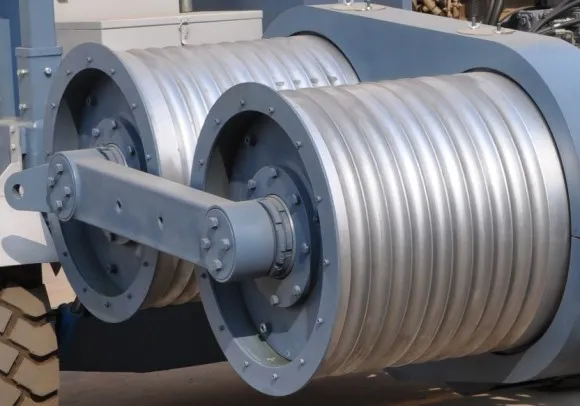

Bull-wheel diameter: 540mm
Groove number: 8
Max rope diameter : 21mm
Max diameter of rope reel: 1400mm
Total weight: 4000kg

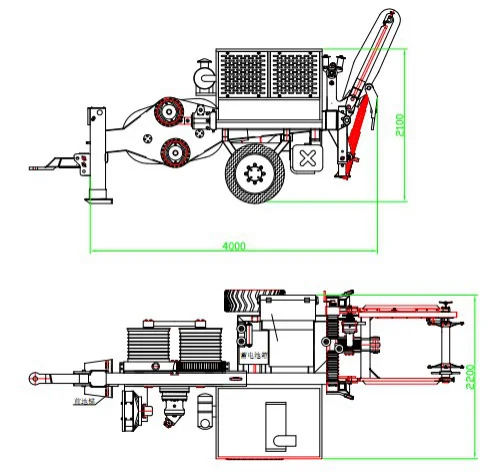

Overall dimension (length*width*height): 4000×2200×2100mm

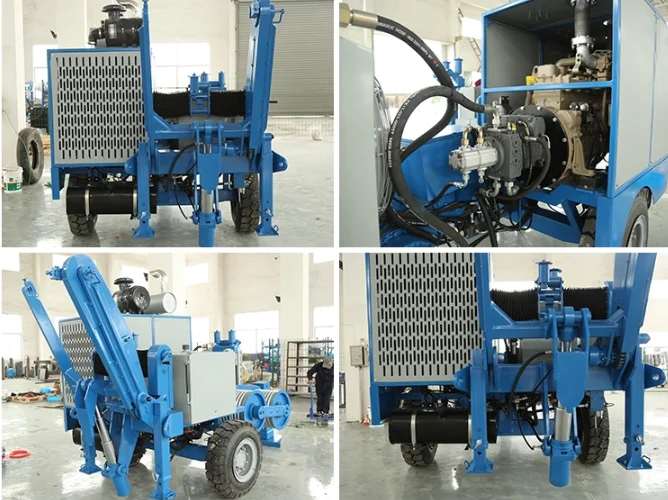

Configuration


* Hydraulic dynamometer with set-point and automatic control of maximum pull
* Hydraulic oil cooling system
* Control instruments for hydraulic system and diesel engine
* On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
* Hydraulic front stabilizer
* Grounding connection point

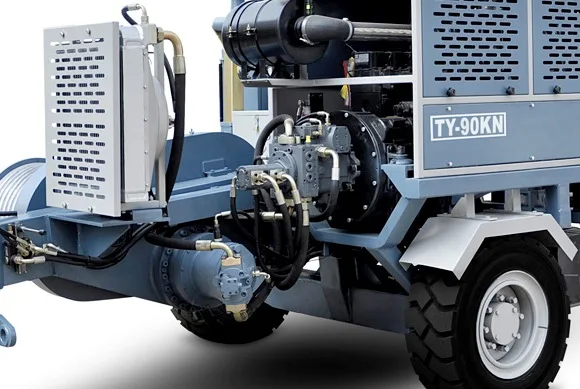

Hydraulic Transmission


Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.


Additional Devices


Lighting system for the trailer
Hydraulic rope clamp for reel change
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter (extra charge)


After Sales Service


Pre-Sales Service
* Inquiry and consulting support.
* Reply your inquiry in 24 working hours.
* View our Factory.
After-Sales Service
* Training how to instal
* Provide the inspection report


Company Profile


Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China,Shanghai,Port . Our Products have been widely used in the power transmsion
