1ge 1fe pots wifi xpon onu router compatible with vsol/zte PTF2562W
- Category: >>>
- Supplier: Shenzhen Photon Broadband Tech Co. Ltd.
Share on (1600057424335):
Product Overview
Description

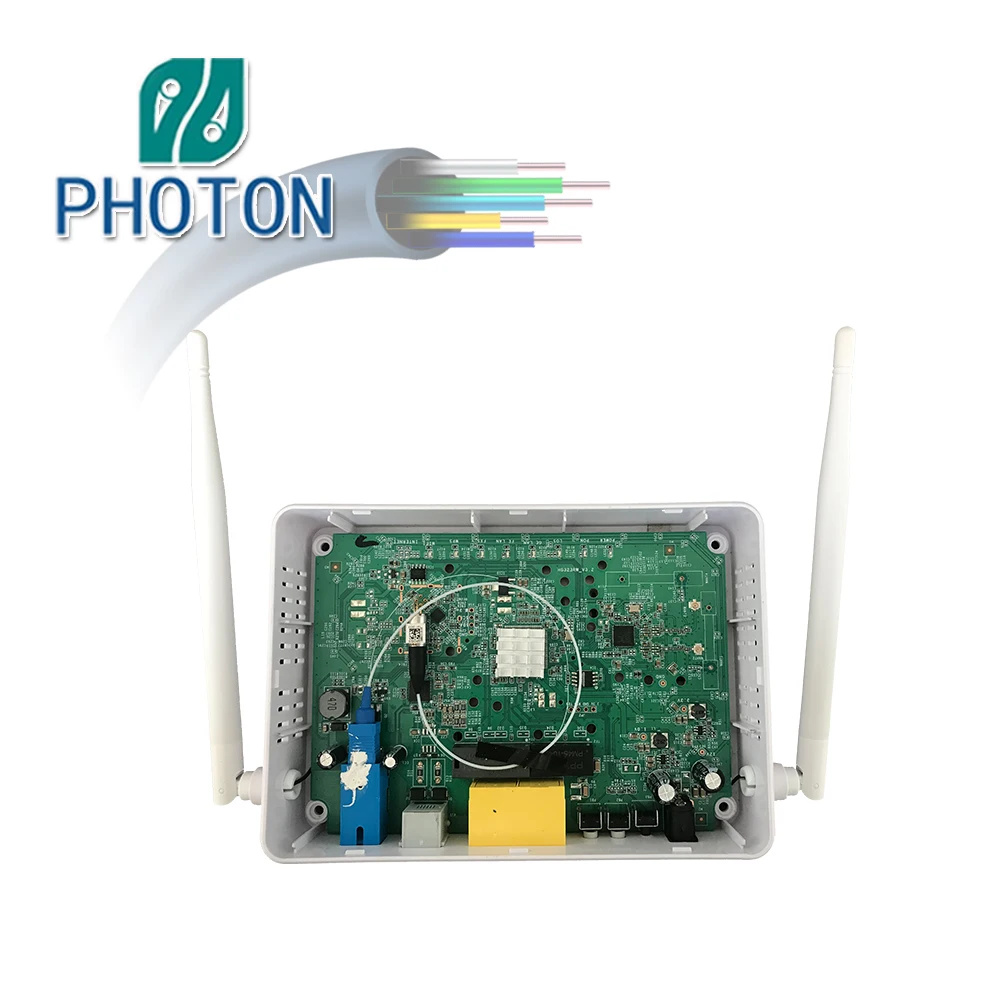

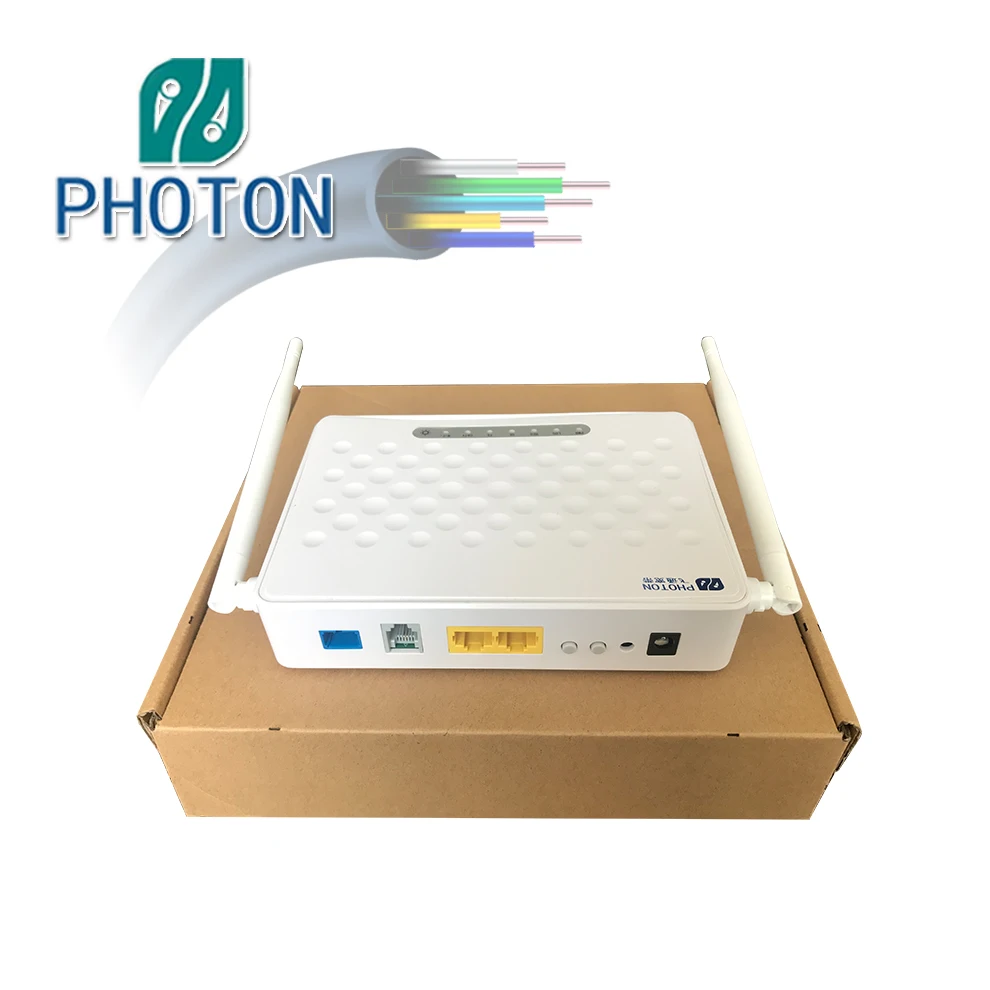

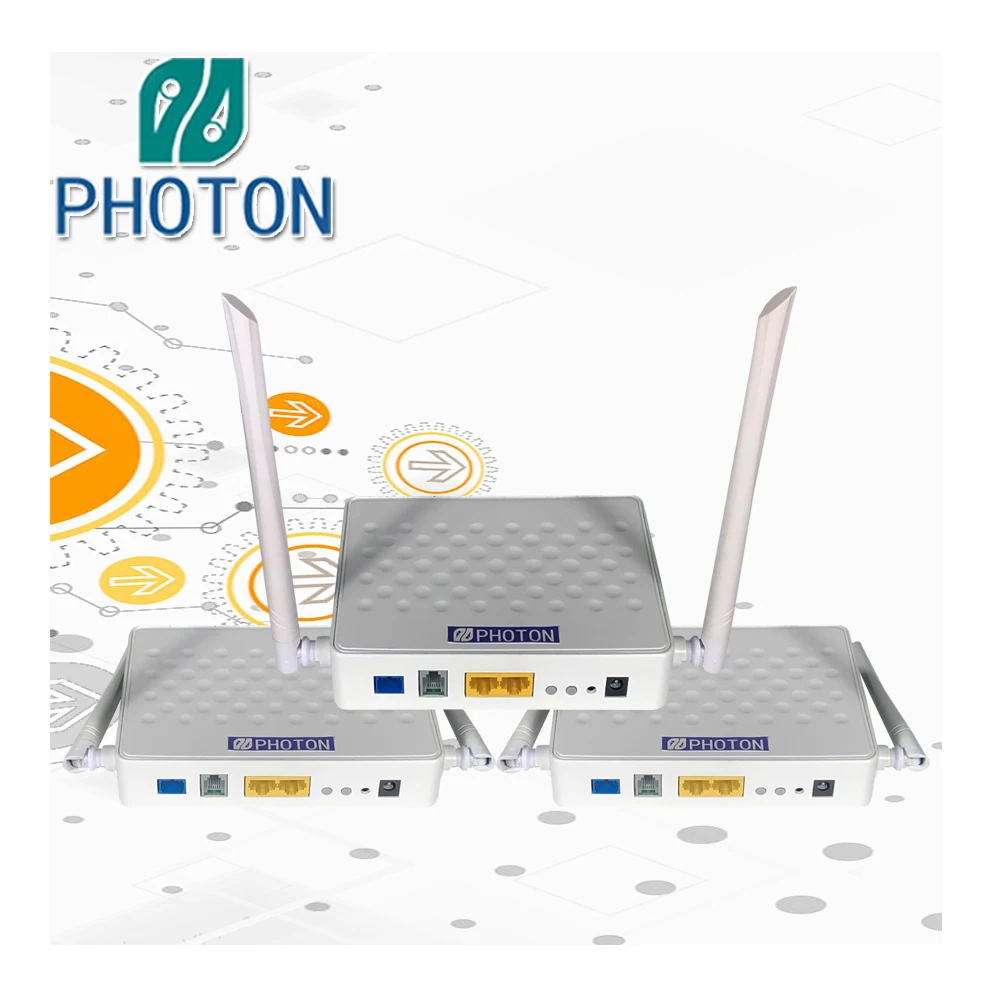

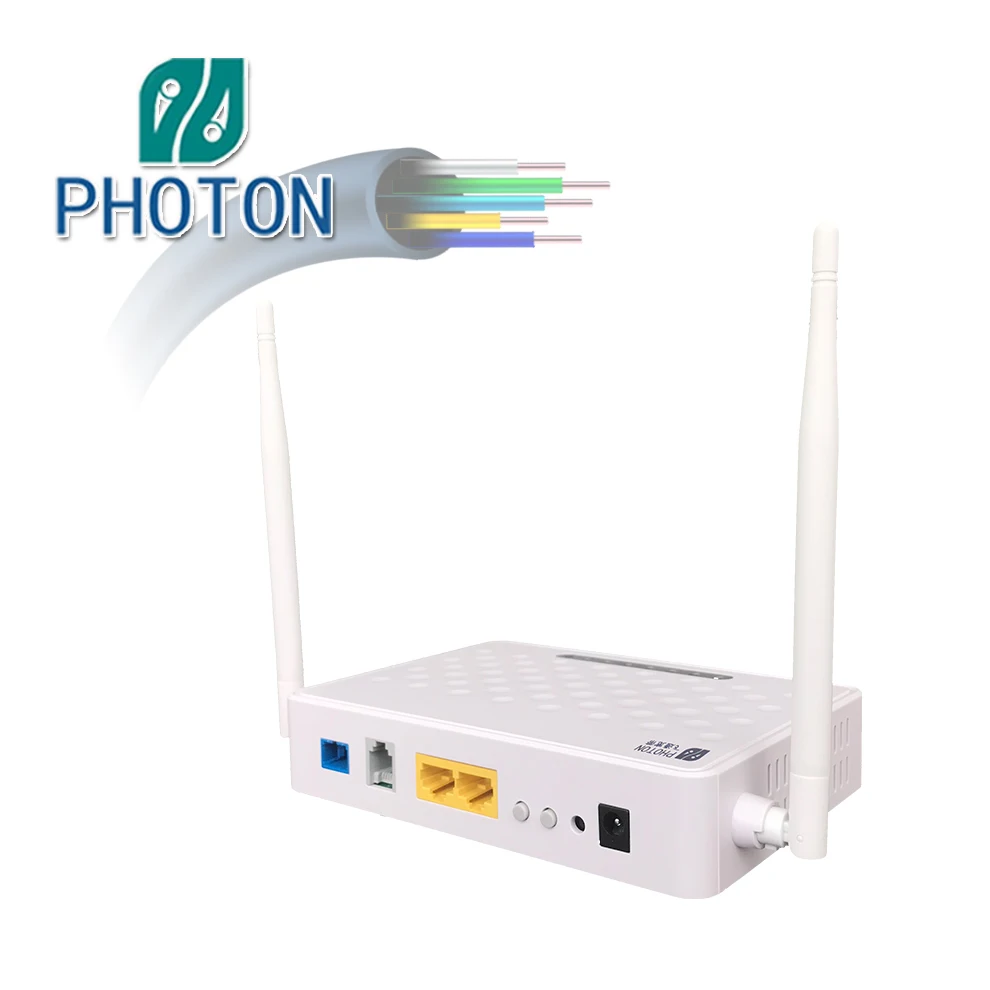

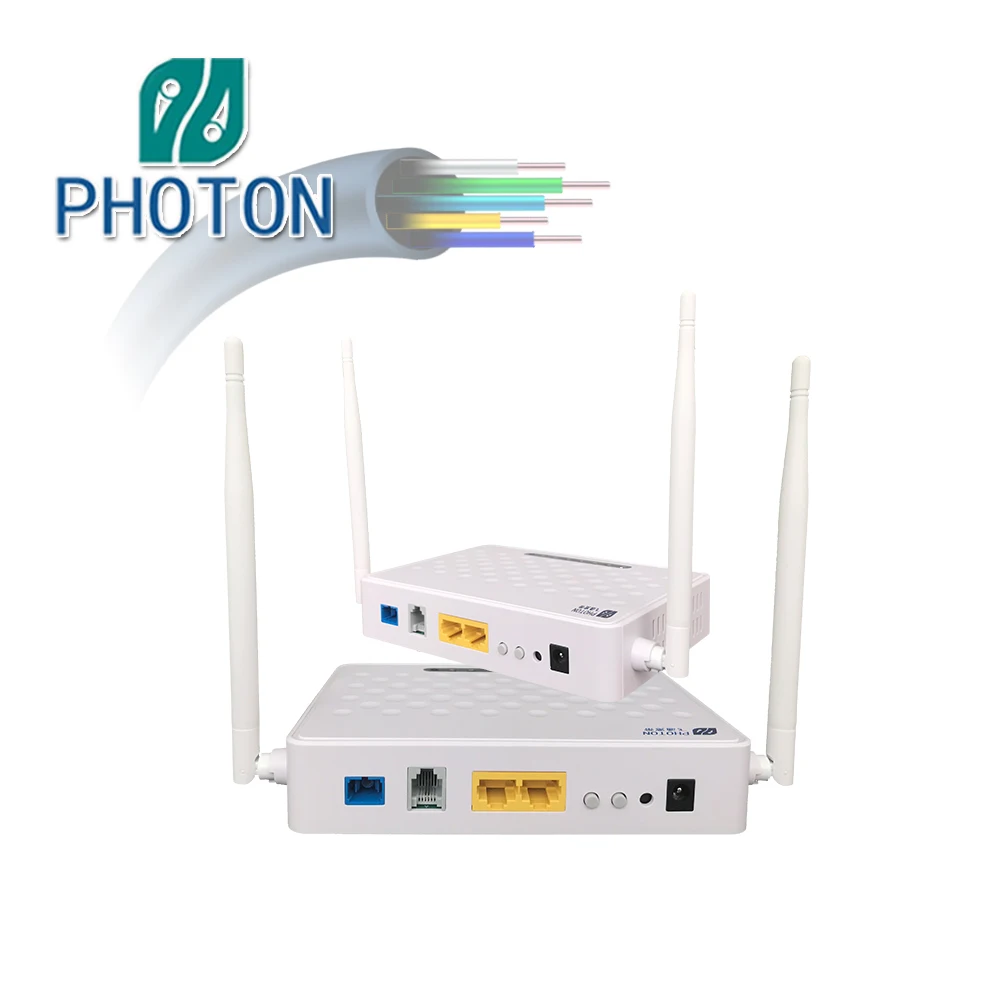

1ge+1fe+pots+wifi xpon onu router compatible with vsol/zte PTF2562W
relate product
| 1ge+wifi | 1ge+1fe+wifi+catv | 1ge | 4ge+wifi+pots AC onu | WDM MINI NODE |
 |  |  |  |  |
 |  |  |  |  |
| 4 Port Epon OLT | 8 Ports Epon OLT | Gpon OLT 4 ports | Gpon oLT 8 Ports | WDM EDFA 8 Ports |
Product Description
1ge+1fe+pots+wifi xpon onu router compatible with vsol/zte PTF2562W, It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, which have high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility, good quality of service (QoS) guarantees, and the technology of 802.11n WiFi (2T2R),Layer 2/3, and high quality VoIP as well. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. It can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø 1ge+1fe+pots+wifi xpon onu router compatible with vsol/zte PTF2562W
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11n 2T2R speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
Technical parameters (1ge+1fe+pots+wifi xpon onu router compatible with vsol/zte PTF2562W)
Items | Unit | Specifications |
PON standard. |
| EPON IEEE802.3ah, GPON ITU-T G.984.x |
Optical interface |
| SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM |
Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
Wavelength | nm | Tx1310, Rx 1490 |

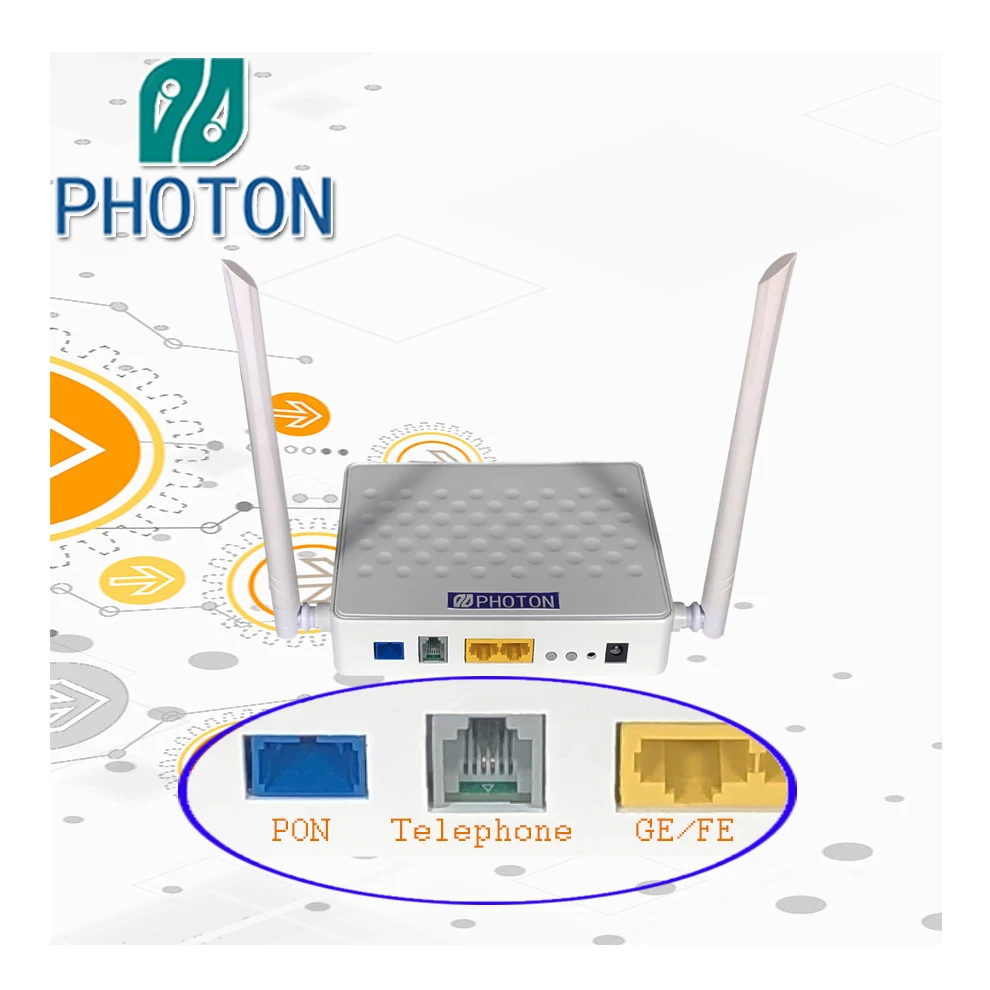

Interface | data | 1FE 10/100Mbps 1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
telephone | 1x FXS,RJ11 connectors Supporting G.711/G.723/G.726/G.729 Supporting T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909 | |
Wireless | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna | |
Indicator | LED | PWR, PON, LOS, LAN(GE, FE), FXS(PHONE), WiFi |
Humidity | % | 10~90(non-condensing) |
Power supply | V | DC 12V, 1A adapter |
Power consumption | W | ≤6 |
Dimension | mm | 210mm×110mm×33mm(L×W×H) |
Net weight | Kg | 0.29 |
Packaging & Shipping
Description | Quantity | Weight | Carton Size |
Shipping packaging | 1pcs/ctn | 0.45kg/ctn | 290*155*50mm |
20pcs/ctn | 9.1kg/ctn | 535*330*310mm |
1.Shippmet: by sea, by plane;
2.We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS
Our Services
1. Technical support: Professional technical team, all of our engineers can speak English, they will help you solve problems directly and Efficient.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Delivery time: We always ready to ship.
4. Warranty:1-years warranty.
5.After-sale:online service support for 365 days a year and 7x24 hours a week.
