Wireless DR X ray Flat Panel Detector Portable x ray Detector
- Category: >>>
- Supplier: Shenzhen Xinray Medical Technology Co. Ltd.
Share on (1600057486789):
Product Overview
Description

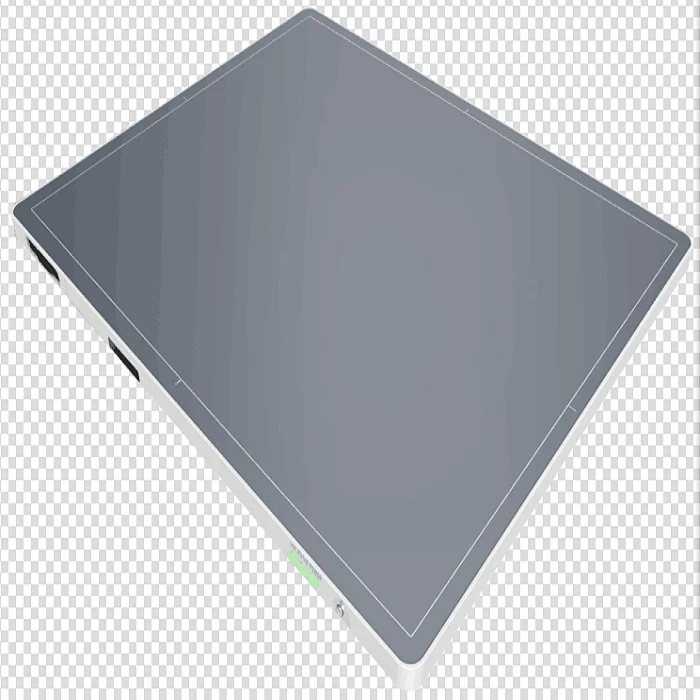

Wireless DR X-ray Flat Panel Detector Portable x ray Detector
The 3543A is a high-performance, flat-box wireless flat panel detector. It can last for at least 10 hours. The unique wireless transmission technology can complete a full resolution image transmission in 3 seconds, even in the worst case, it will not exceed 5 seconds. At the same time, the detector has excellent qualities such as high DQE and high resolution. The detector is highly sensitive and supports automatic exposure detection, which can be easily connected and synchronized with all high-voltage generators.
Features
| Description | GOS | CsI |
Detector Technology | Amorphous silicon | Amorphous silicon |
Scintillator | GOS |
|
Image Size | 35×43 cm | 35×43 cm |
Pixels Matrix | 2560×3072 | 2560×3072 |
Pixel Pitch | 140 um | 140 um |
A/D Conversion | 16bit | 16bit |
Minimum Detectable Dose | 20 nGy |
|
Maximum Linear Dose (uGy ,RQA5) | 150 |
|
Ghost (%, 300uGy, 60s) | <0.25 | <0.25 |
Spatial Resolution | 3.6 LP/mm | 3.6 LP/mm |
Image Acquisition Time (Wired/Wireless) | 1/3 S | 1/3 S |
X-ray Voltage Range | 40-150 KV | 40-150 KV |
Battery standby time | 10H | 10H |
Data Interface | GigE/802.11n,ac | GigE/802.11n,ac |
Power Dissipation | 20 W | 20 W |
Adapter Input | AC 100-240V,50-60Hz | AC 100-240V,50-60Hz |
Adapter Output | DC 24V,60W | DC 24V,60W |

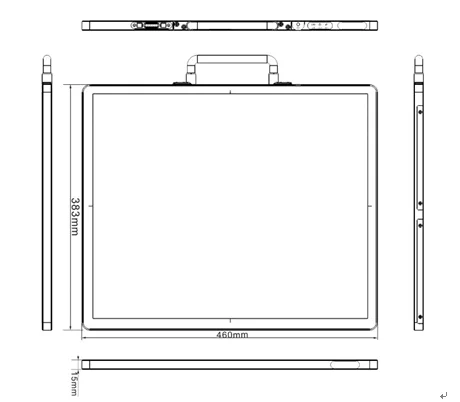

Dimensions | 38×46×1.5 cm | 38×46×1.5 cm |
Detector Weight | 3.3 kg | 3.3kg |
Detector Housing Material | Carbon,Alloy | Carbon,Alloy |
Water tightness | IPX3 | IPX3 |
Operating Environment | 5-35ºC,10-75% RH | 5-35ºC,10-75% RH |
