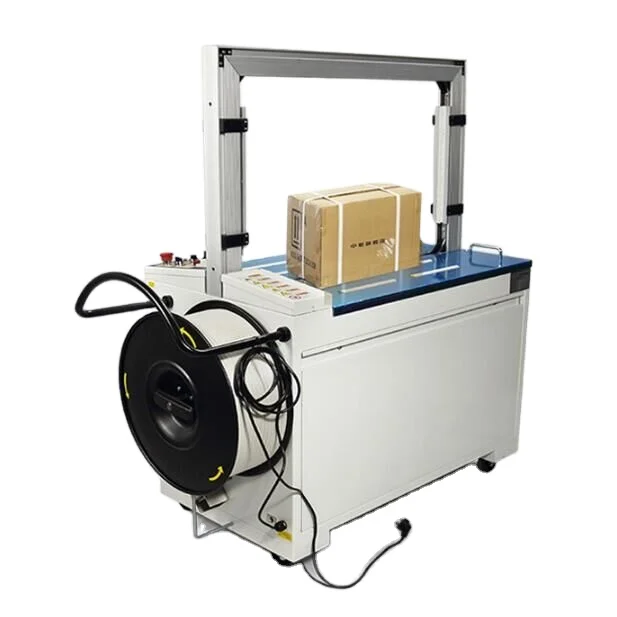

MH-X301A Full Automatic Packing Machine for Carton Sealer
Product Name
mh-x301A Automatic Packer
Power Supply
220V 50/60Hz 0.4kw

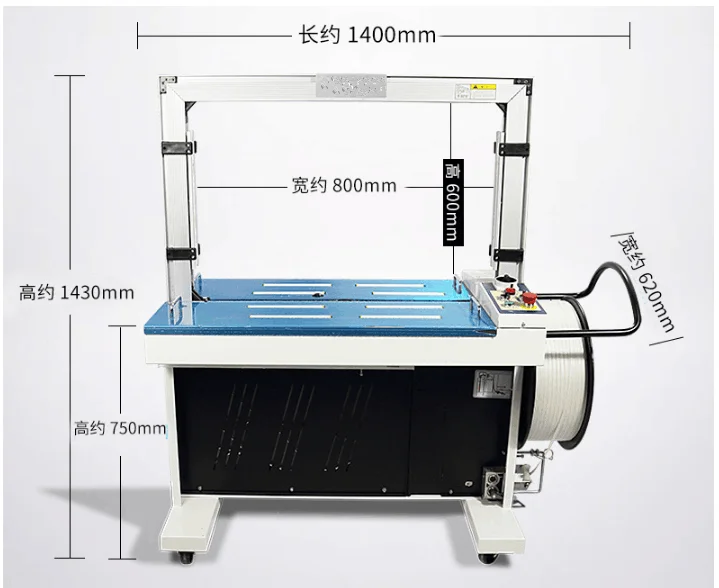

Machine Size
L140mm*W628mm*H1435mm
Binding Specification
Minimum Package Size:Width 80mm*Height60mm
Standard Frame Size:Width 800mm*Height 600mm
Working Height
750mm( customized according to customers' requirement
Weight capacity
80kg
Tying Speed
Less than 2.5 seconds/channel
Tighten Force
0~50kg(adjustable)
Speicification of strap
Width:9~15 mm and Thickness 0.55~1.0mm
Tape Size
Width:160~180mm ,Inner diameter:200~210mm
Outer diameter:400~500mm
Bonding Method
Hot melt method,bottom bonding,bonding surface more than 90%
the bonding position deviation less than 2mm
Machine weight
150kg
Noise
The Working enviroment ,the noise less than 80dB(A)
Enviroment condition
Humidity less than 90%,the temperature 0~40 degress
Package
Carton outer

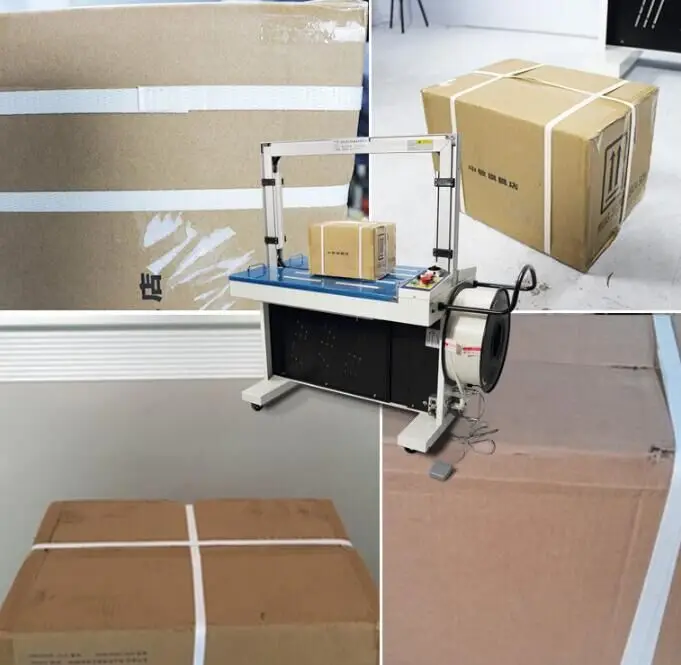

Detailed Images
Features:
1.Lightweight body and easy to use.
2.Without fasteners,using friction hot melt,the joint is beautiful and strong.
3.High degree of automation,simple operation and easy to understand.
4.Easy to move,for a variety of venues,the various size of the package can be applied.
5.The body and components are made of high-strength alloy materials and engineering plastics,which is durable in use.
6.High safety performance.
After Sales Service
Warranty
1. One Year Warranty Time;
2.Long time spare parts;
3.Video or manual for using;
4.Machines tested one by one before out of factory .

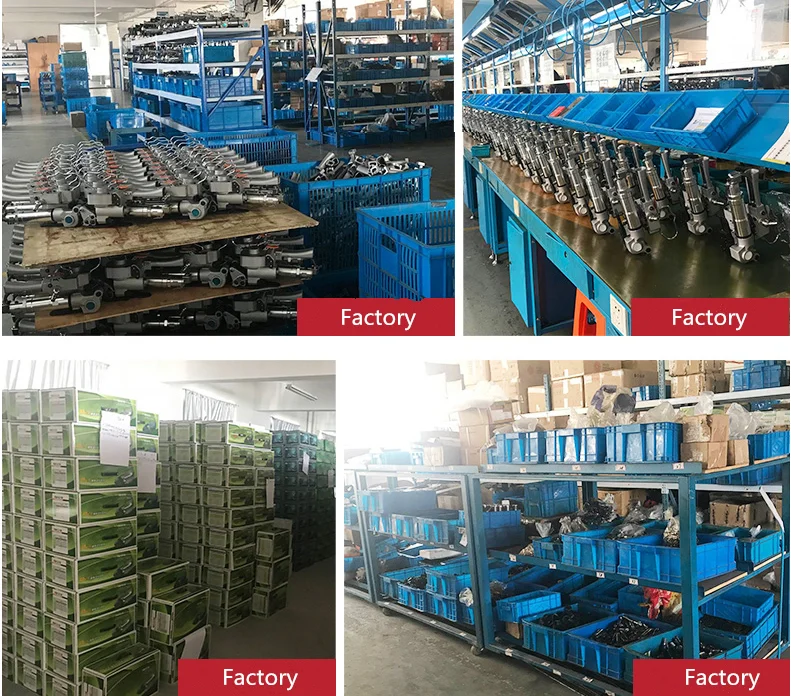

Company Introduction
Hefei Edison M&E Co., Ltd is located in Hefei City,Anhui Province which owns factory producing color sorters, packaging machines and all kinds of spare parts for these machines. Under the long time care and support from our customers in China and abroad,Nowwe became an increasingly mature, growing scale and potential export machinery and machinery parts company.
With sincere service,Edison has built a bridge of friendship to the whole country and all over the world; with excellent quality,it has stabilized and expanded the market of users in China and abroad ; with advanced management, it has won the full cooperationwith friends in the industry at in China and abroad.
In the future, we will always repay customers and society with excellent product quality and sincere service. We sincerely promise: no matter where you are, we can provide you with mechanical parts and services that meet your requirements. Edison warmly welcomes customers to visit us. We are willing to establish friendly relations with friends in China and abroad to cooperate sincerely, achieve win-win benefits and create a grand business together.
FAQ
1. Are you a factory? Yes,we are factory and produce these machines and machine's spare parts.
2.What is the payment terms? Normally,for small amount we accept 100% T.T in advance.
3.When will you deliver our order? We can deliver your oder out In 7~10 working days after paying or in the contract.
