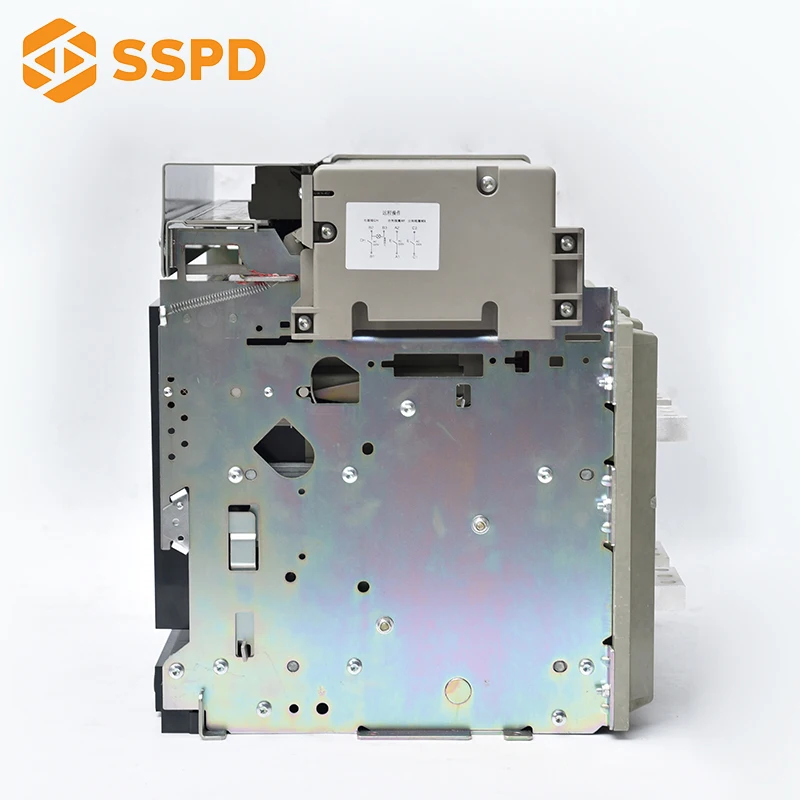

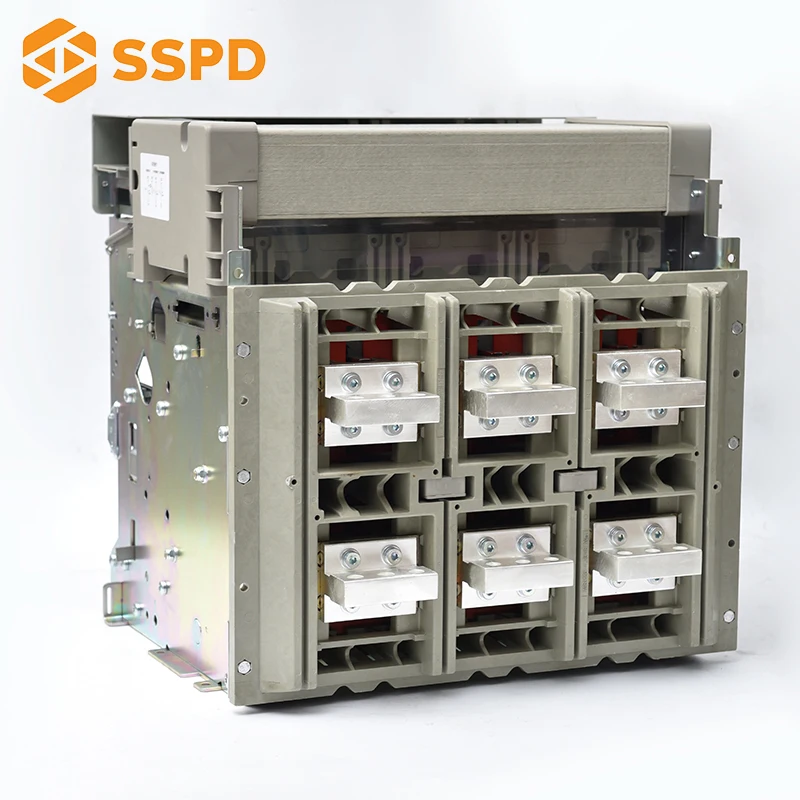

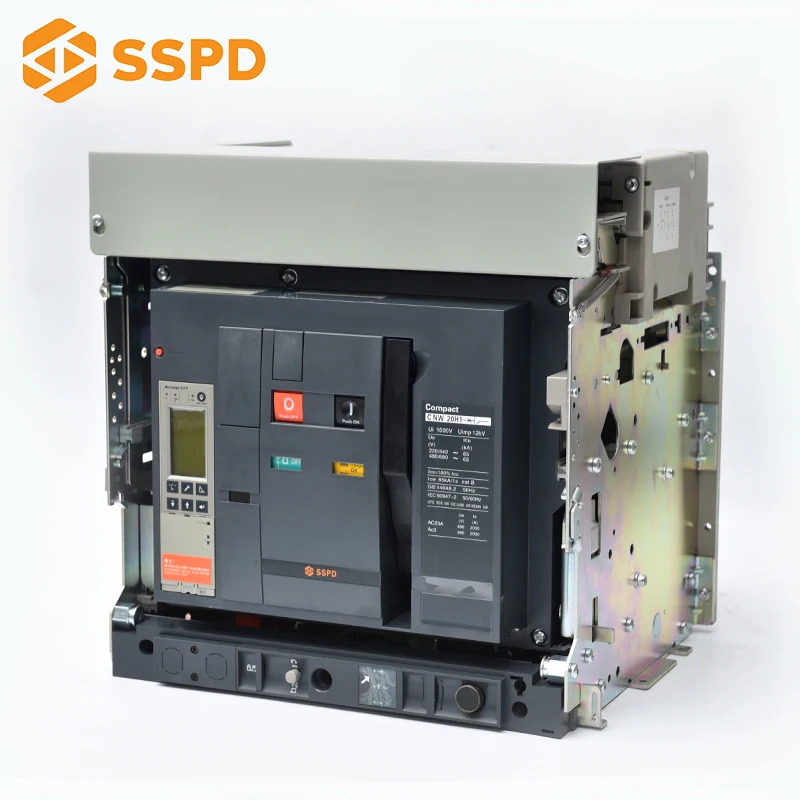

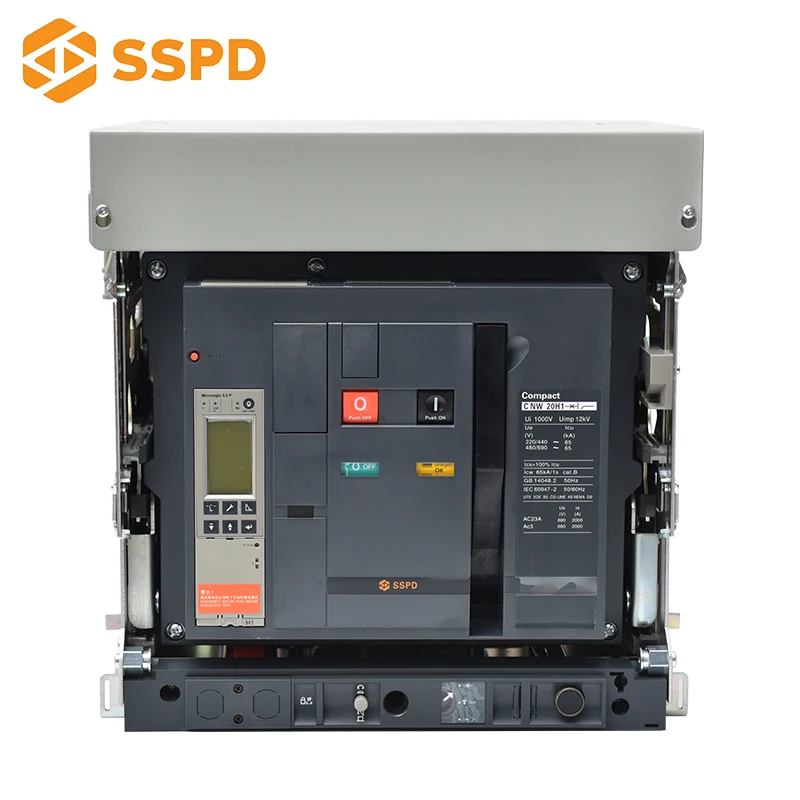

SSPD Masterpact NW32 ACB 3200A 3P Mic2.0A drawout type low voltage high quality
- Category: >>>
- Supplier: Yueqing Shendian Electrical Co. Ltd.
Share on (1600057658667):
Product Overview
Description
Product Description
Item No. | CNW08 to CNW63 | |||||||||
Common characteristics | ||||||||||
Number of poles | 3/4 | |||||||||
Rated insulation voltage(V) | Ui | 1000 | 1250 for H10,HA10 | |||||||
Impulse withstand voltage(kV) | Uimp | 12 | 12 | |||||||
Rated operational voltage(V AC 50/60Hz) | Ue | 690 | 1150 for H10,HA10 | |||||||
Suitability for isolation | IEC60947-2 | |||||||||
Degree of pollution | IEC60664-1 4 (1000V) / 3 (1250V) | |||||||||
CNW selection criteria | ||||||||||
CNW08-CNW16 | CNW08,CNW10,CNW12,CNW16,CNW20,CNW25,CNW32,CNW40,CNW40b,CNW50,CNW63 | |||||||||
Rated current(A) | 800-1600 | 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 4000, 5000, 6300 | ||||||||
N1 | H1 | H2 | H3 | L1 | ||||||
Type of application | Standard applicatons with low short-circuit currents | Circuit breaker for industrial sites with high short-circuit currents | High-performance circuit breaker for heavy industry with high short-circuit currents | Incoming device with very high performance for critical applications | Limiting circuit breaker for protection of cable-type feeders or upgraded transformer rating | |||||
Icu/Ics at 440 V | 42 kA | 65 kA | 100 kA | 120 kA | 120 kA | |||||
Icu/Ics at 1000 V | - | - | - | - | - | |||||
Icu/Ics at 500 V DC L/R＜15 ms | - | - | - | - | - | |||||
Positon of neutral | Left | Left or right | Left or right | Left | Left | |||||
Fixed | F | F | F | - | - | |||||
Drawout | D | D | D | D | D | |||||
Switch-disconnector version | Yes | Yes | Yes | Yes | Yes | |||||
Front connection | Yes | Yes up to 3200A | Yes up to 3200A | Yes up to 3200A | Yes up to 3200A | |||||
Rear connection | Yes | Yes | Yes | Yes | Yes | |||||
Type of MicroLogic control unit | A,E,P,H | A,E,P,H | A,E,P,H | A,E,P,H | A,E,P,H | |||||
Related Products

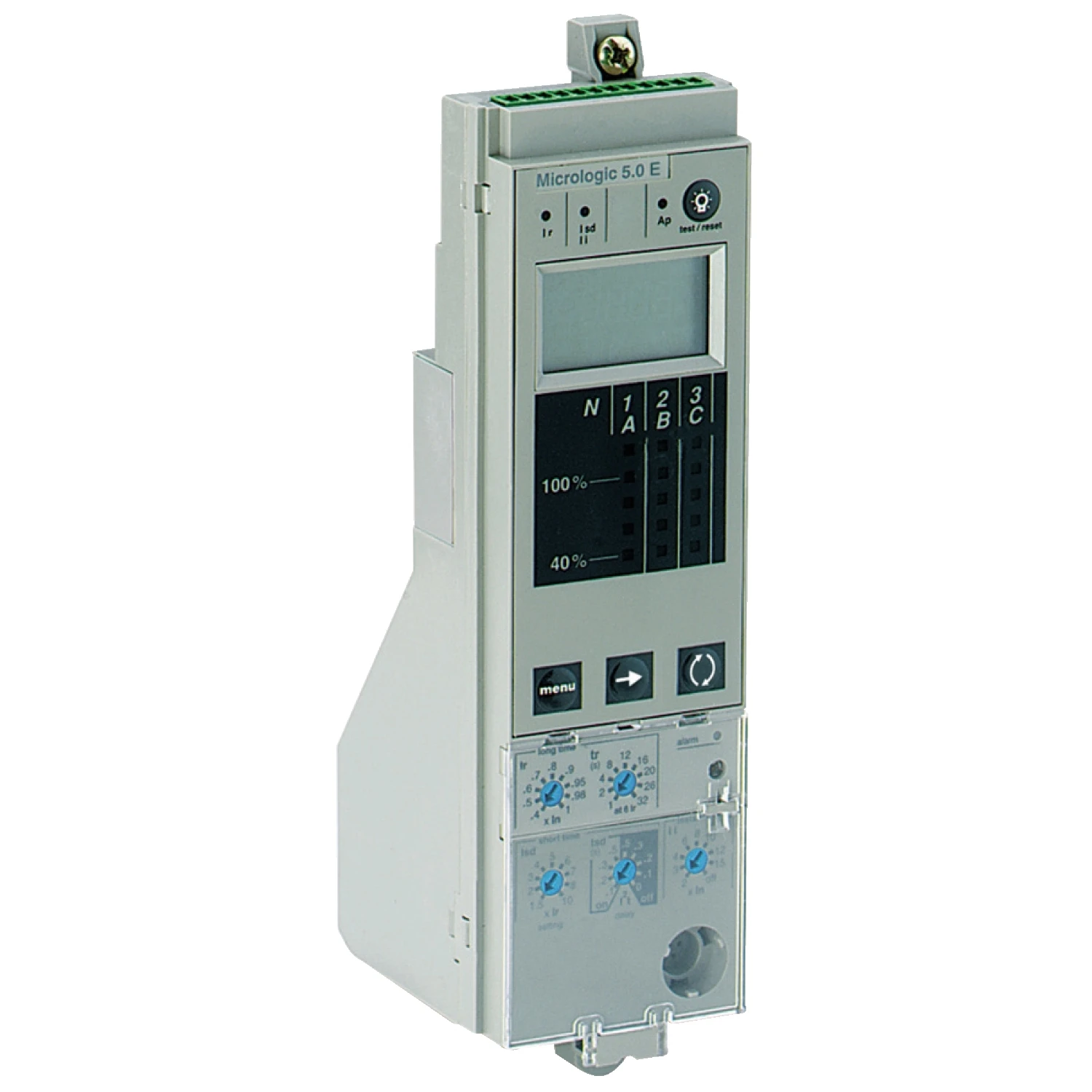

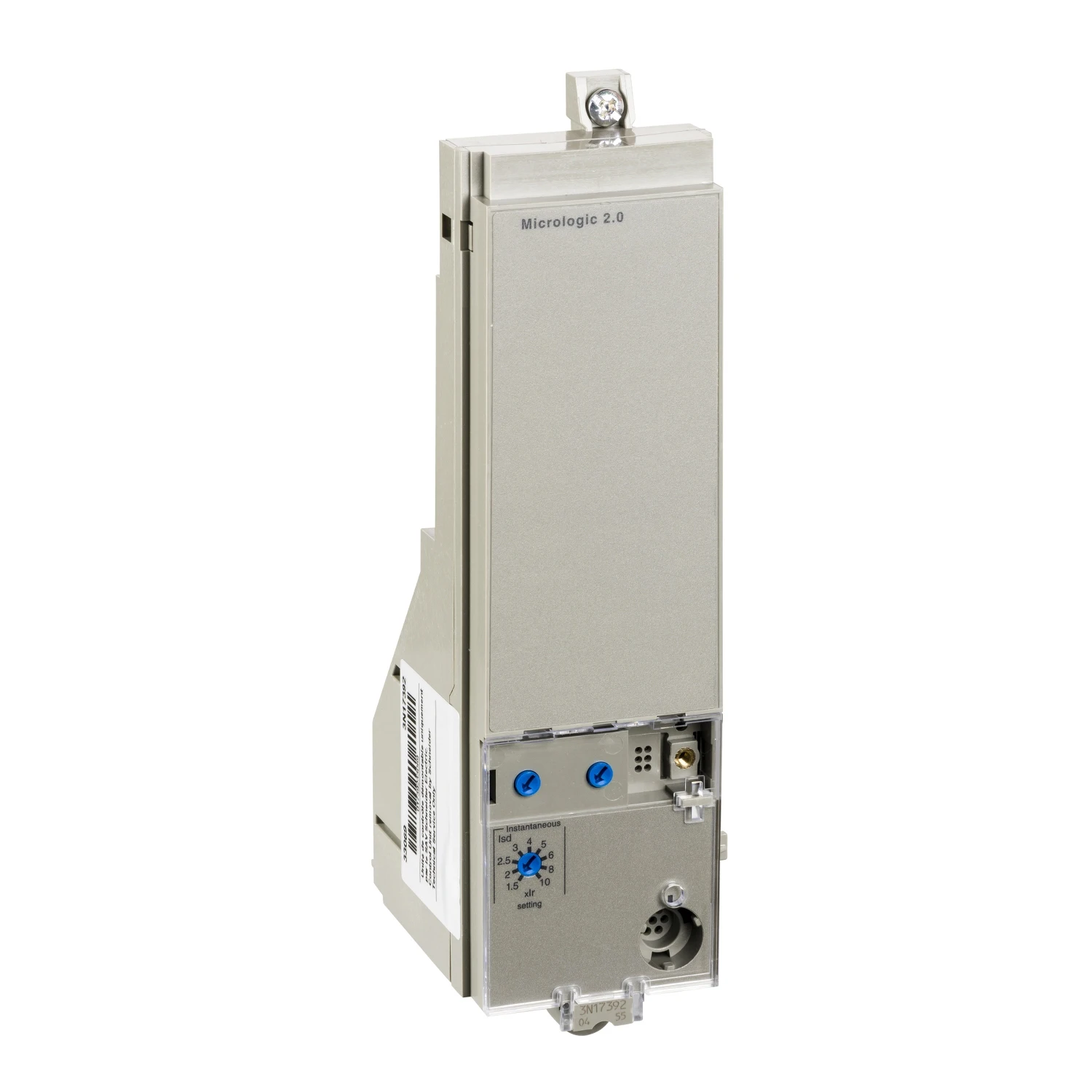

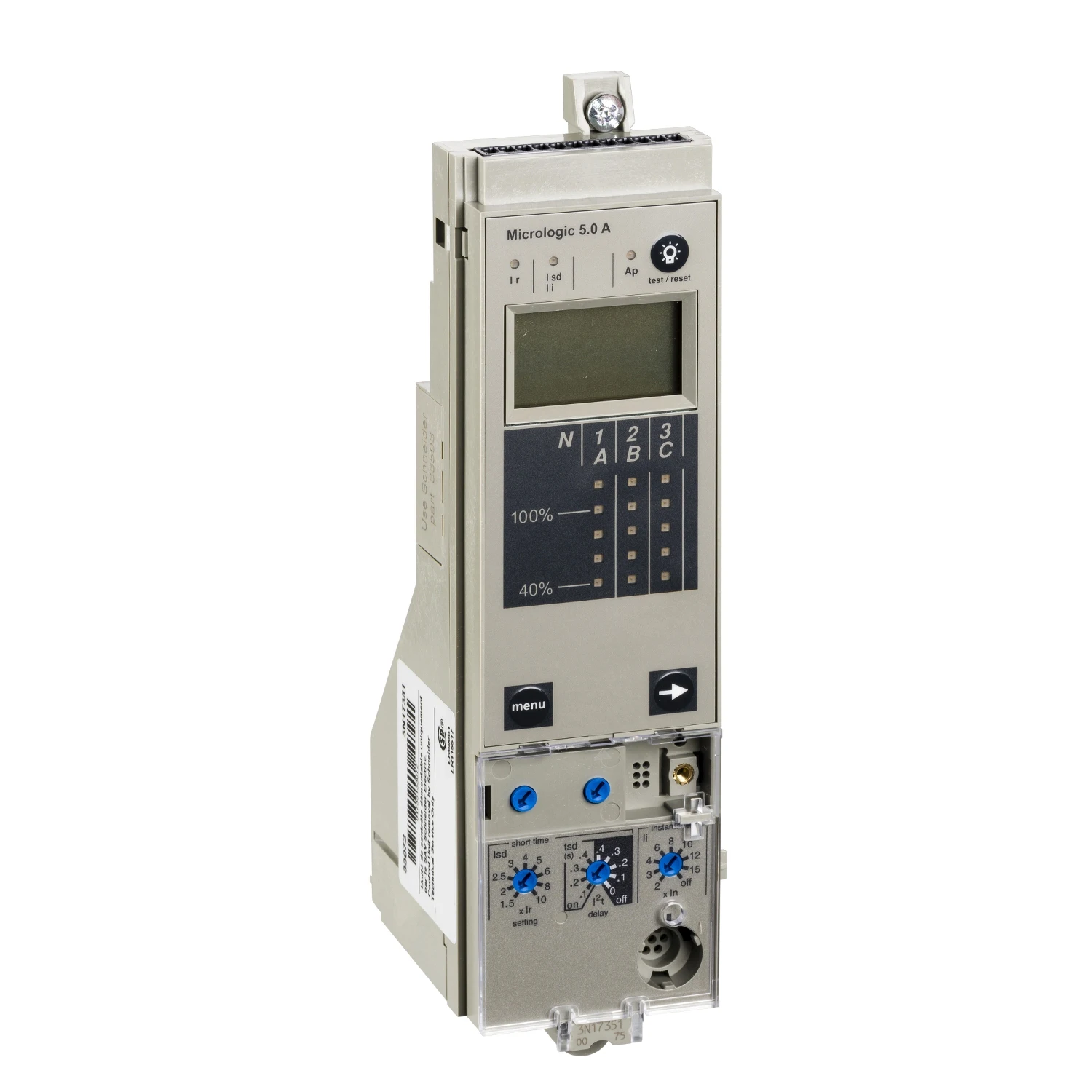

Mic 2.0/5.0 Mic 2.0A/5.0A Mic 2.0E/5.0E

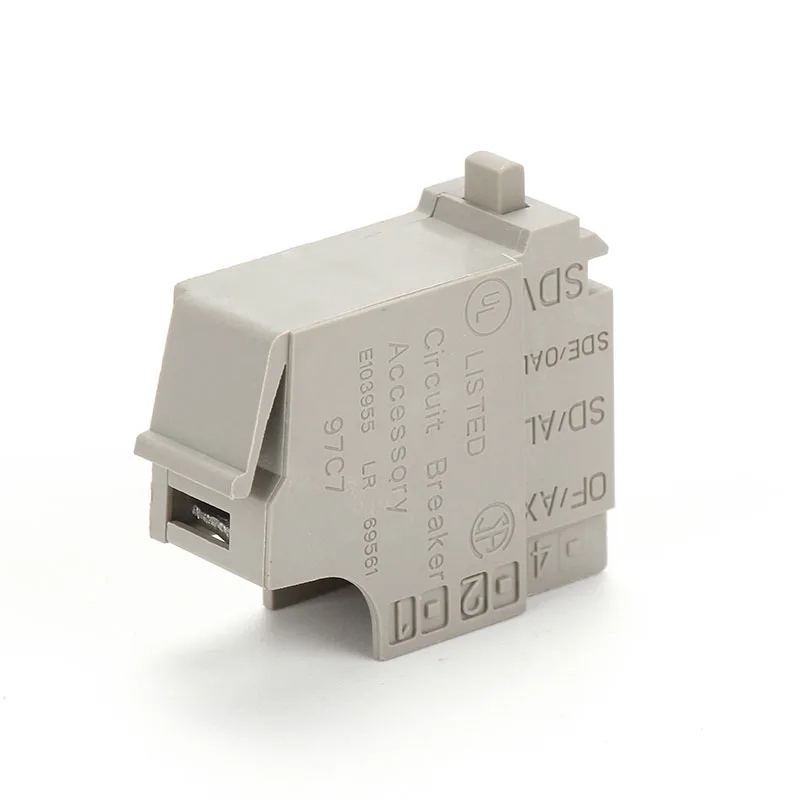

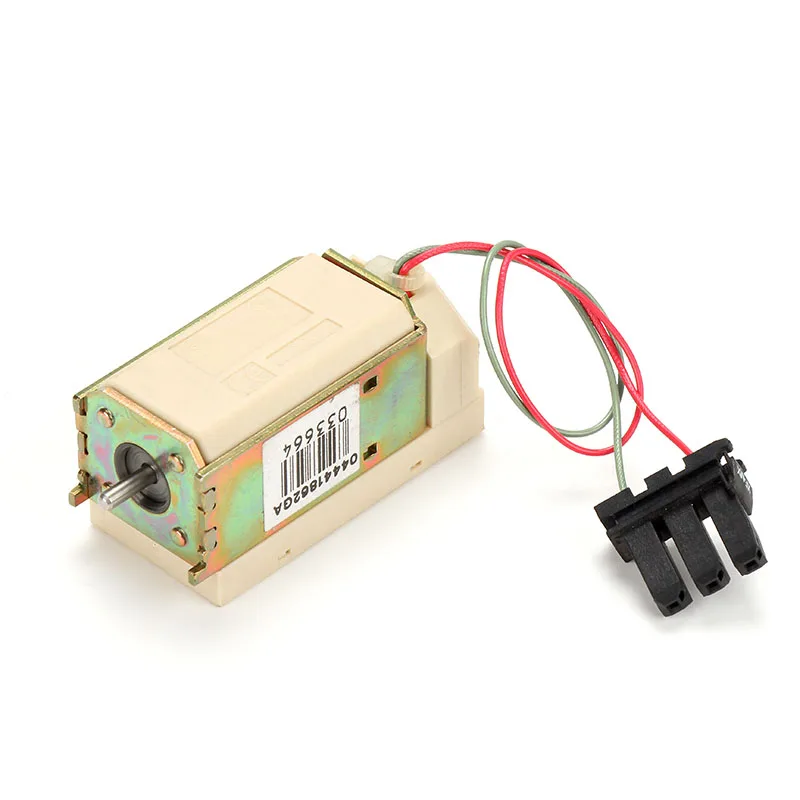

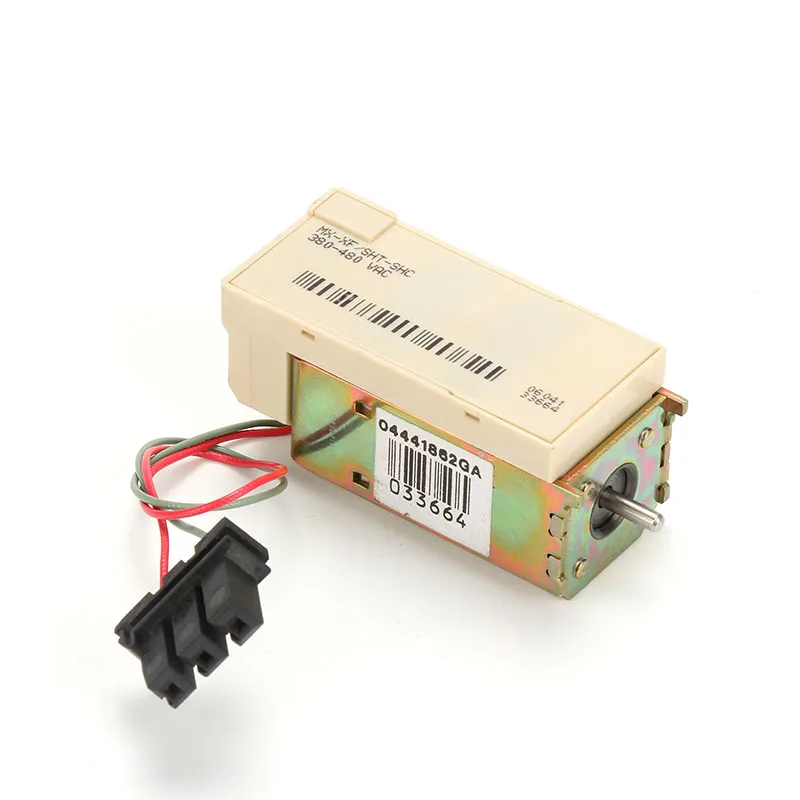

MX MN Auxiliary
Company Introduction
Why Choose Us
Experience
28 years of professional production experience in industrial electrical appliance
Quality
Low temperature rise,Long life time,Good corrosion resostance
ODM/OEM/OBM
Customized product.We have a strong group of technical team to develop and design accordingly.
Efficiency
On-time delivery.Sufficient stock for materials.
Certifications
Complete certification-ISO9001,CCC,CE,CB
Service
All-around pre&after-sales service.Creating value for our customers.
Certificate

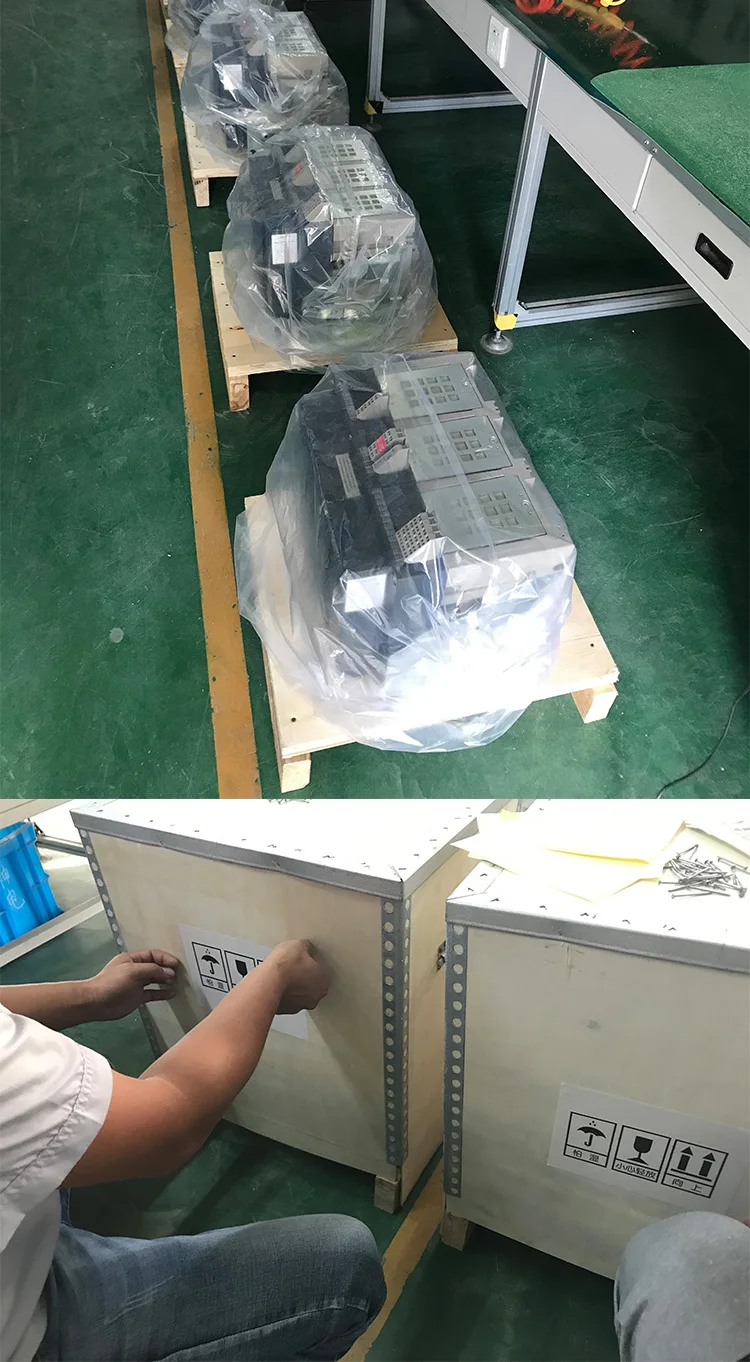

Packing&Shipping
FAQ
Q::Your MCCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: We strick in high quality. Products with low temperature rise,long life time and good corrosion resistance.Products pass the test of CQC and TUV.
Q: Is your company a manufacturer for a trading company?
A: We are professional manufacturer in industrial electrical appliances since 1992s.
Q:Can I get a sample for test before place order?
A:Of course.
Q:Can you print our own logo?
A:Yes, we provide OEM&ODM service.And we made a lot of customized products.
Q:How's the delivery?Because I really need them is urgently?
A:We will deliver sample 2-5days.Mass production around 30 days.If you have urgent requirement, pls send us list to check with stock. We have sufficient stock for best-sellers.
Q: What's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,Trade Assurance.
A: We strick in high quality. Products with low temperature rise,long life time and good corrosion resistance.Products pass the test of CQC and TUV.
Q: Is your company a manufacturer for a trading company?
A: We are professional manufacturer in industrial electrical appliances since 1992s.
Q:Can I get a sample for test before place order?
A:Of course.
Q:Can you print our own logo?
A:Yes, we provide OEM&ODM service.And we made a lot of customized products.
Q:How's the delivery?Because I really need them is urgently?
A:We will deliver sample 2-5days.Mass production around 30 days.If you have urgent requirement, pls send us list to check with stock. We have sufficient stock for best-sellers.
Q: What's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,Trade Assurance.
If you have any question，please don't hesitate to contact me.
Add:Changhong Delixi industrical city,Liushi,Wenzhou,Zhejiang,China
Mob:0086-18966253219(Whatsapp/Wechat)
TEL:0086-577-2782 7233/2785 2828
E-mail:sales_08@shendianele.com
WEB:www.cnsspd.com/www.shendianele.com
