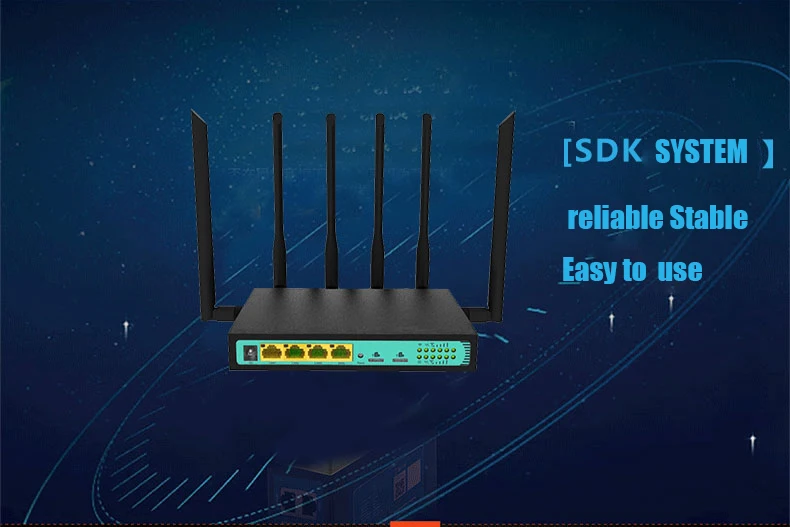

Dual sim card 4G LTE wifi Modem Router for Home
Warm Tips:
For different carriers in different countries have different bands and frequencies. If you don’t know which band was used in your country ,you can reference below information of band.After place order ,please kindly remind us the band you need to compatible.if you have question about the Band of the 4G please feel free contact with us,we will give advice.
Price is for Default is only one 4G module ,if you need dual module ,please contact us .if one module ,there is 2 antenna for 4G module. 2 antenna for 2.4G Wifi ,if there is 2 pcs 4G module ,every 4G module work with 2 pcs 4G antenna, if you need 2 pcs 4G module ,please contact us.
India/Asia
LTE FDD: B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
TD-SCDMA: B34/B39
WCDMA: B1/B8
CDMA: BC0
GSM: 900/1800MHz
EMEA/South Africa/Thailand/India :
FDD LTE :B1/B3/B5/B7/B8/B20
TDD LTE:B38/B40/B41
WCDMA :B1 B5 B8
GSM/EDGE:B3/B8
Japan
FDD LTE :B1/B3/B8/B18/B19/B26
TDD LTE:B41
WCDMA :B1/B6/ B8/B19
For North America AT&T T-mobile
FDD LTE :B2/B4/B12
WCDMA :B2/ B4/B5
For Verison
FDD LTE :B4/B13
For North America FisrtNet
FDD LTE :B2/B4//B5/B12/B13/B14/B66/B71
WCDMA :B2/B4/ B5
Mexico
FDD LTE :B2/B4//B5/B7/B28/B66
WCDMA :B2/B4/ B5
Latin America/Australia/New Zealand
FDD LTE :B1/B2/B3/B4/B5/B7/B8/B28
TDD LTE:B40
WCDMA :B1/B2/B4/B5/ B8
GSM/EDGE:B2/B3/B5/B8
Specification:
Main Chipset | MT7628NN 580MHz |
RAM | 64MB (MAX support DDR2 256MB) |
SPI FLASH | 8MB (MAX support 32MB) |
Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u |
Work Channel | 2.4GHz choose :1-13 |
Work Frequency | 2.4GHz |
Antenna | 2 x2.4G wifi antenna ,4 x 4G antenna ,1 GPS antenna interface |
Interface | 2 PCI-E slot 2 SIM card slot 1 DC power 1 10/100M WAN port(Auto MDI/MDIX) |
LED | Power ,2.4G,WAN,LAN1,LAN2,LAN3 |
Button | Reset button |
Max Power consumption | < 10W |
software | |
WAN Type | PPPoE,Dynamic IP, Static IP,3G/4G (Dial up) |
Work Mode | AP; Router; Repeater |
DHCP | Server, Client, DHCP Client List, |
Port Forwarding | Virtual Server |
System | original SDK or OpenWRT |
Firewall Security | IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
DDNS | Support |
VPN | PPTP, L2TP, IPSec (ESP Head) |
Other Function | System Log Static Router Band Control Mac clone |
Adapter | 12V 1A |
Work Environments | Operating Temperature:0°C ~ 40°C; Operating Humidity:10%~90% non-condensing |
