Полный ЖК дисплей EV 12,3 дюйма 12,3 дюйма приборная панель RDB230A, приборная панель для традиционного и электрического автомобиля

Product Description

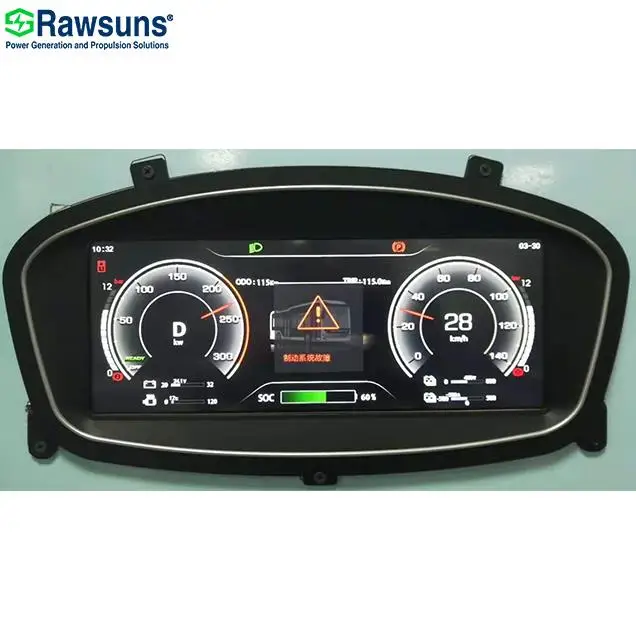

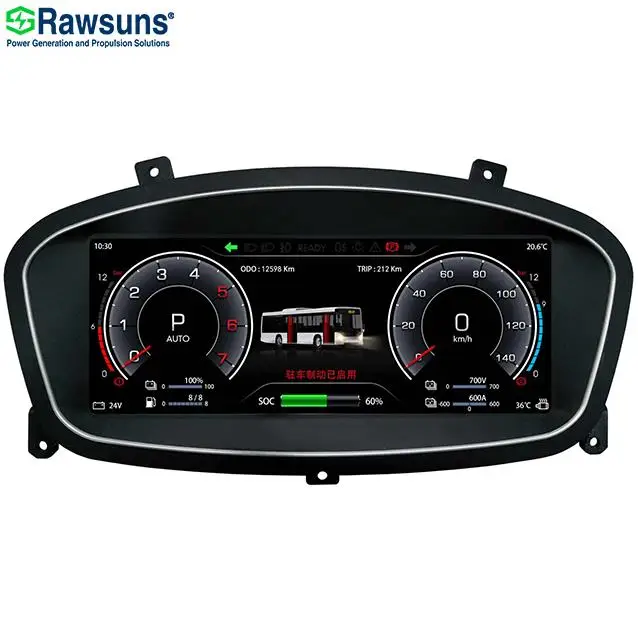

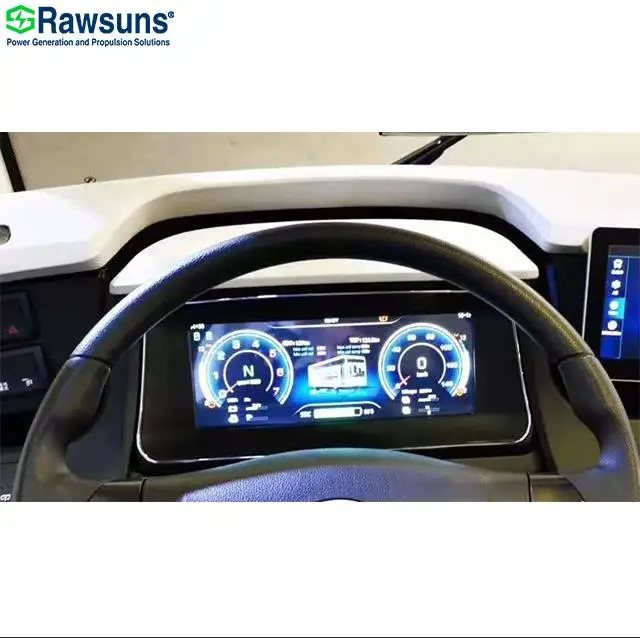

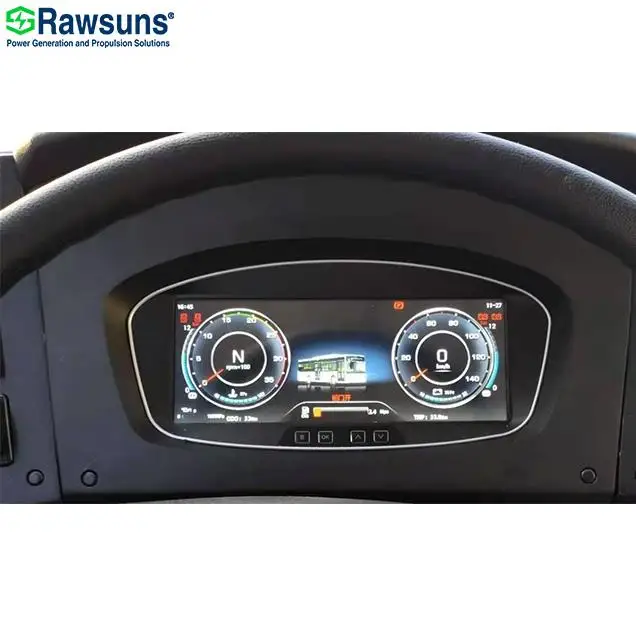

Full LCD Dashboard RDB230A

The full liquid crystal dashboard RDB230A adopts the whole liquid crystal screen as the dashboard panel, which is suitable for traditional and new energy models. It displays vehicle information through virtual pointer and digital data, and has 3D dynamic display effect. The display content is rich, the effect is gorgeous, and the value is clear.

Functional features

Intelligent sound and light voice alarm, panoramic reversing image;

It has 5 CAN communication interfaces conforming to ISO11898 standard.

There are 39 way switch input, 5 way sensor input, 14 way status display light;

12.3-inch TFT full LCD screen, resolution support 1920X720.

Full LCD dashboard RDB232

The whole LCD dashboard RDB232 uses the whole LCD screen as the dashboard panel, which is suitable for driverless cars. It is equipped with high-performance dual-core processor, which can display vehicle information through virtual pointer and digital. The display content and interface style of the dashboard can be configured by software.

Functional features

It has 5 CAN communication interfaces conforming to ISO11898 standard.

4 channels CVBS video signal input, can be connected to the middle door monitoring, reversing monitoring and luggage compartment monitoring;

High-performance dual-core processor, powerful function, good real-time performance, strong anti-interference capability;

Intelligent light control, to realize the vehicle into the tunnel automatically open headlights;

3D dynamic display effect, rich new energy model charging interface.

Color screen Dashboard RDB219B

Color screen RDB219B dashboard is based on the J1939 communication protocol of a new generation of intelligent bus dashboard, sheath and the structure is fully compatible with the traditional ZB219 dashboard series, CAN be directly replace, applicable to a variety of models, equipped with driver module CAN constitute the whole vehicle CAN bus system, adopting RTOS operating system, multitasking processing at the same time, guarantee the real-time and reliability.

Functional features

It has a 5-channel CAN communication interface conforming to ISO11898 standard.

7 "TFT screen, resolution support 800×480, with indicator and alarm function;

26 LED status indicator light, front and rear air pressure, speed of vehicle speed indicator by stepper motor;

40 way switch input, high and low configuration rich, 6 way power output, can do short circuit detection and protection;

With sound and light alarm function, timely and accurate indication of the fault.

Coaster dashboard RDB206

RDB206 is based on J1939 communication protocol of a new generation of intelligent bus dashboard, applicable to the stern test models, LCD or LED display the status of all kinds of information, can control the power master switch, has the function of delay power, start the protection, safety door control function, meet the IV Ⅲ and Europe standard.

Functional features

It has 2 CAN communication interfaces in accordance with ISO11898 standard.

24 way switch input, 4 way sensor input, 15 status display lights;

2 way high-end power output, can do open circuit, short circuit, overcurrent detection;

2 channels CVBS video signal input, can be connected with reversing monitoring and luggage compartment monitoring;

7 inch TFT screen, 800×480 pixel resolution support, with indicator and alarm function.

Color screen Dashboard RDB223C

RDB223C CAN be applied to a variety of models, integrated with a 3-way CAN communication interface, CAN directly communicate with the engine, through CAN bus to read engine information (such as fuel consumption, water temperature, speed, oil pressure, etc.), screen backlight adaptive, rich display content.

Functional features

It has 3 communication interfaces in accordance with ISO11898 standard CAN.

Internal temperature sensor, internal temperature directly display;

20 LED status indicator light, the speed of vehicle speed is indicated by stepper motor;

2 way 3A high-end power output, can do open short circuit detection and protection;

39 way switch input, can do high and low effective configuration, with wake-up function.

Color Screen Dashboard RDB122

RDB122 is in view of the small and medium-sized passenger cars, logistics vehicles, sanitation car development of small dashboard, which can realize the status of every parts and components in the vehicle display fault query, alarm and display function, support for multiple languages, interface can be customized according to customer design, according to the customer demand information, high safety, strong expansibility.

Functional features

It has two standard CAN communication interfaces.

5 inch TFT color screen, 800*480 resolution, can display all kinds of state information of the whole car;

24 - way switch input, 4 - way sensor input;

1 USB interface, support remote upgrade and diagnosis;

Support voice broadcast (chord, human voice), broadcast content can be customized.

Rawsun EV motor Wide range, high quality, no worry and best choice!

We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to complete the ev conversion kit.

Contact me for more options!

When you do not have specific motor parameters, please contact me to get and fill in a

Vehicle technical information demand list, wewill calculate the motor requirements for you

and recommend or develop again according to your needs.
