Professional Manufacturer Automatic American European Wooden Pallet Nailing Assembly Machine Production Line
- Category: Other Woodworking Machinery >>>
- Supplier: Zhengzhou,Leabon,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

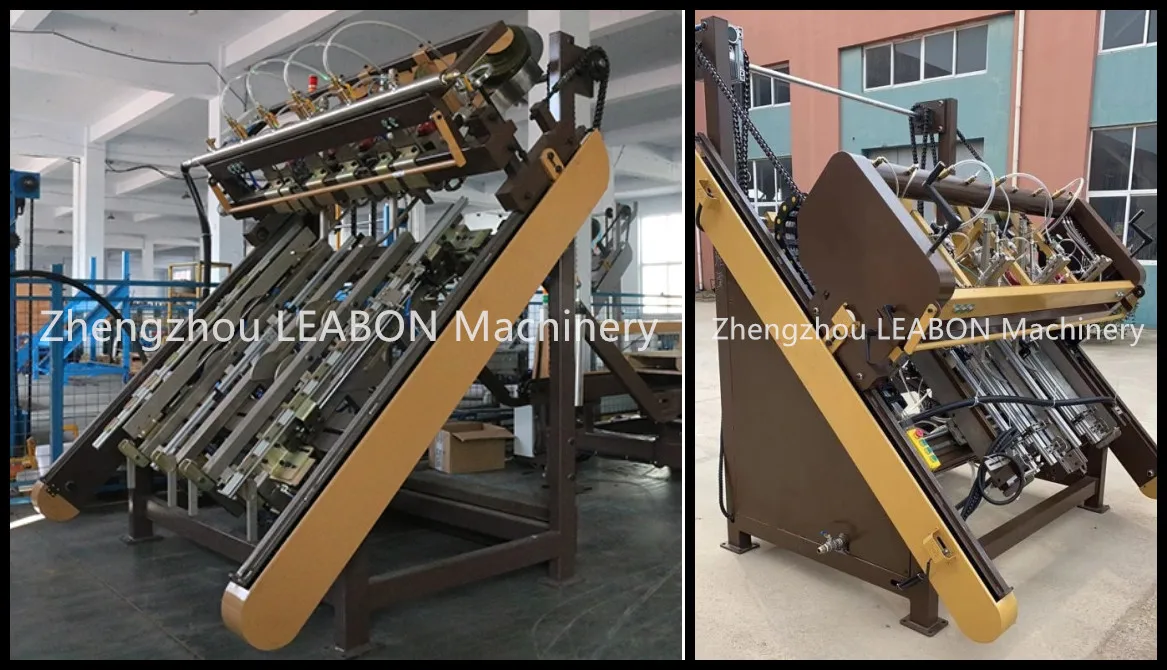

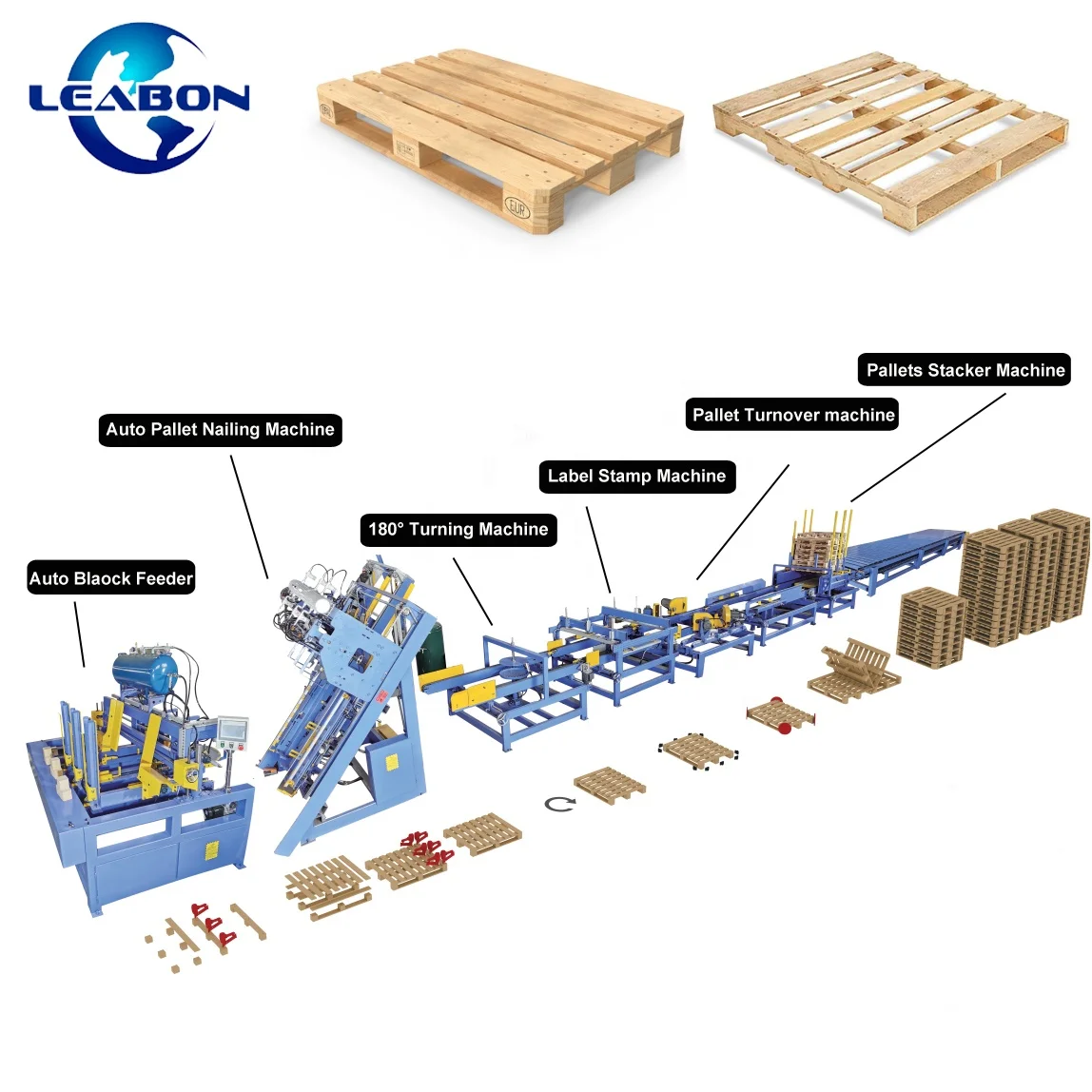

This is an full automatic assembly/nailing line for European/American pallets, manually feed the wood into machine, and machine will auto nailing the bottom, auto turn the pallets, auto nailing the face, auto stack, and auto convey.
Standard machine contains automatic nailing, and automatic stacking, and automatic conveyor.
Standard machine contains automatic nailing, and automatic stacking, and automatic conveyor.
Specification
Operation worker | 1person | Pallet size | Max 1300x1300mm |
Capacity | 60pcs/Hour | feeding materials mode | Manual |
Nailing mode | automatic | Stacking mode | Fully automatic (Cross stackable） |
Nail gun | CN80(max nail of 2.8x80mm） | Output mode | Fully automatic |
Power | 380v，50hz, 3Phase | Power | 7.5kw |
Nails | Large coil nail（3000pcs/coil） | Cover area | 2.5x14m (Width x Length) |

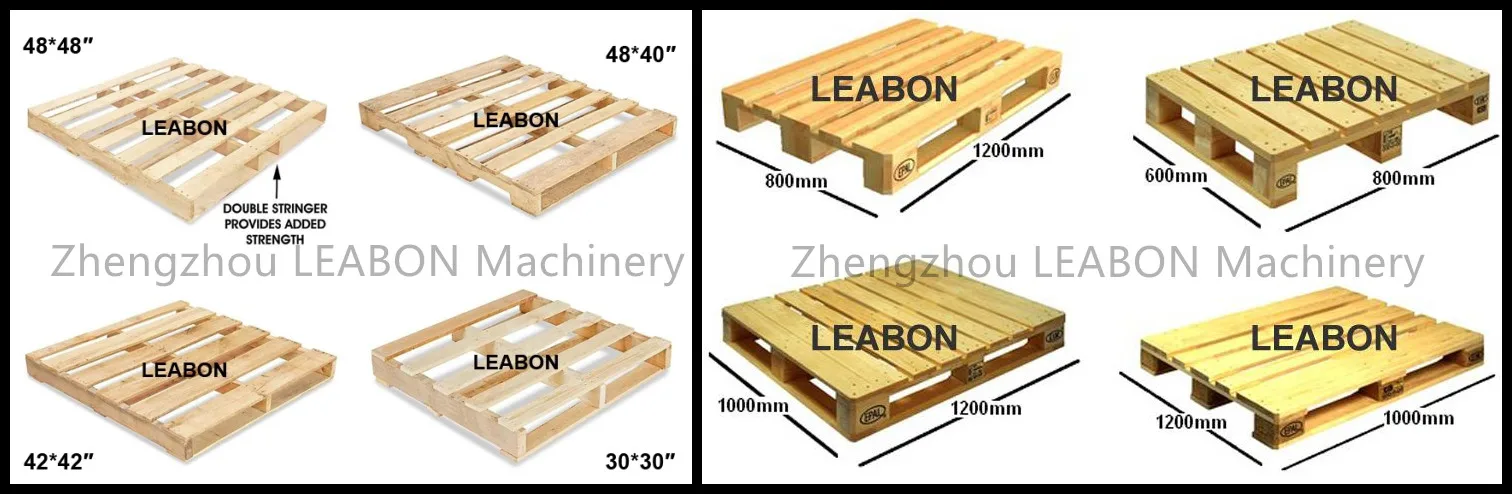

Final Products:European/American pallets
Details Images

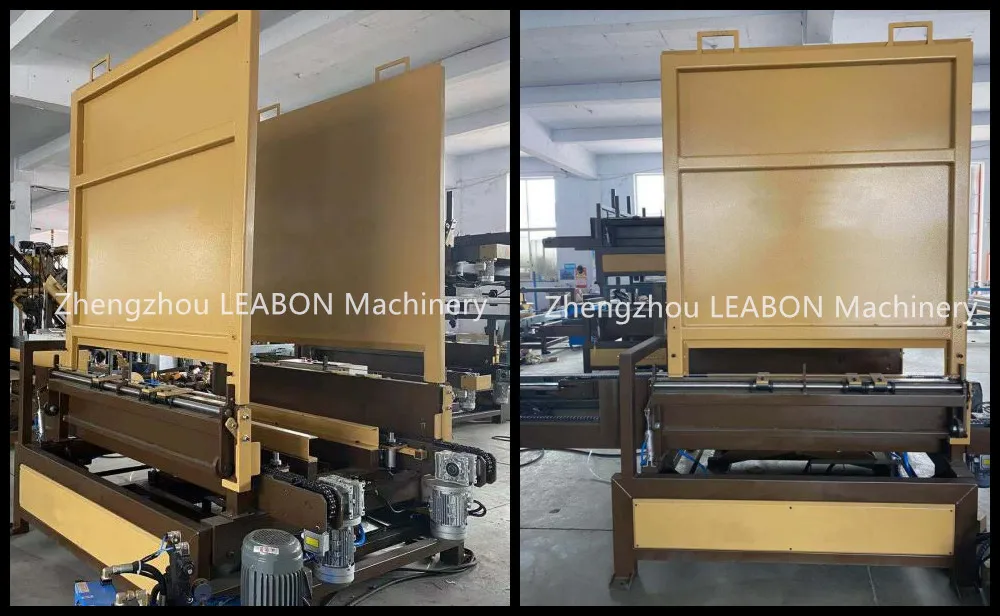

Automatic Wood Pallet Palletizer
The equipment itself has a single pallet stacking height> 10 meters, the number of stacked pallets> 15 pieces, and the power system of the stacker is hydraulic.
The equipment itself has a single pallet stacking height> 10 meters, the number of stacked pallets> 15 pieces, and the power system of the stacker is hydraulic.

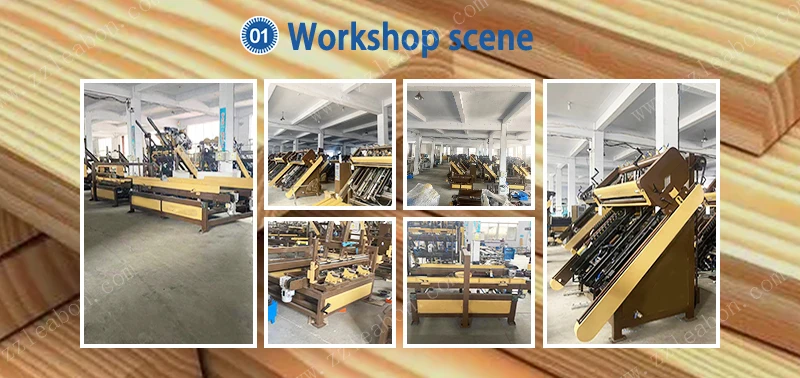

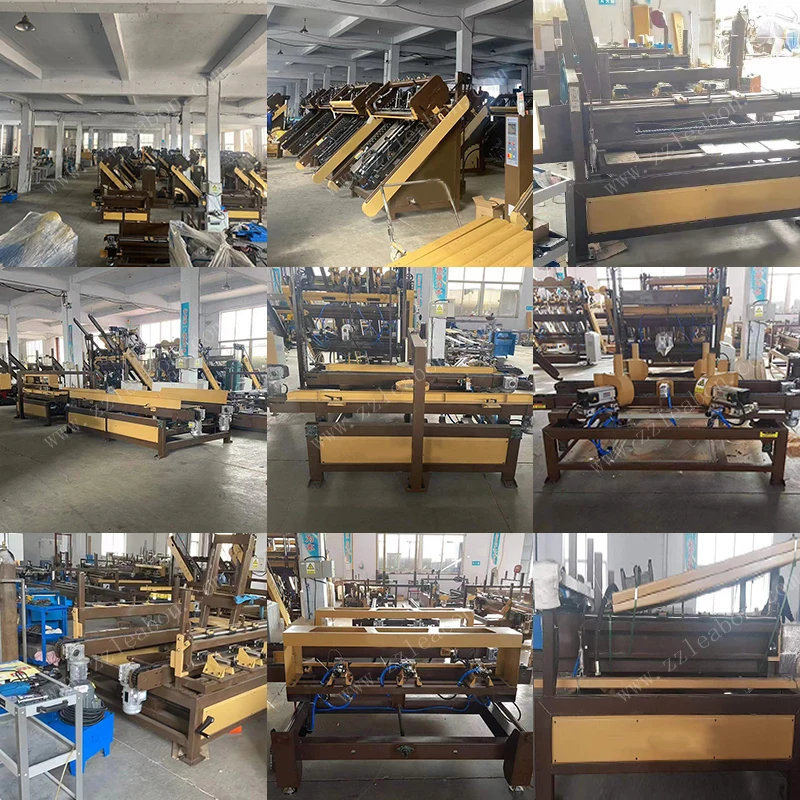

Our Workshop
Package & Delivery
Packing & Delivery
