automatic layer chicken cage with automatic manure removal system
- Category: >>>
- Supplier: Gaotang Haintang International Trading Co. Ltd.
Share on (1600057705488):
Product Overview
Description
Product Description

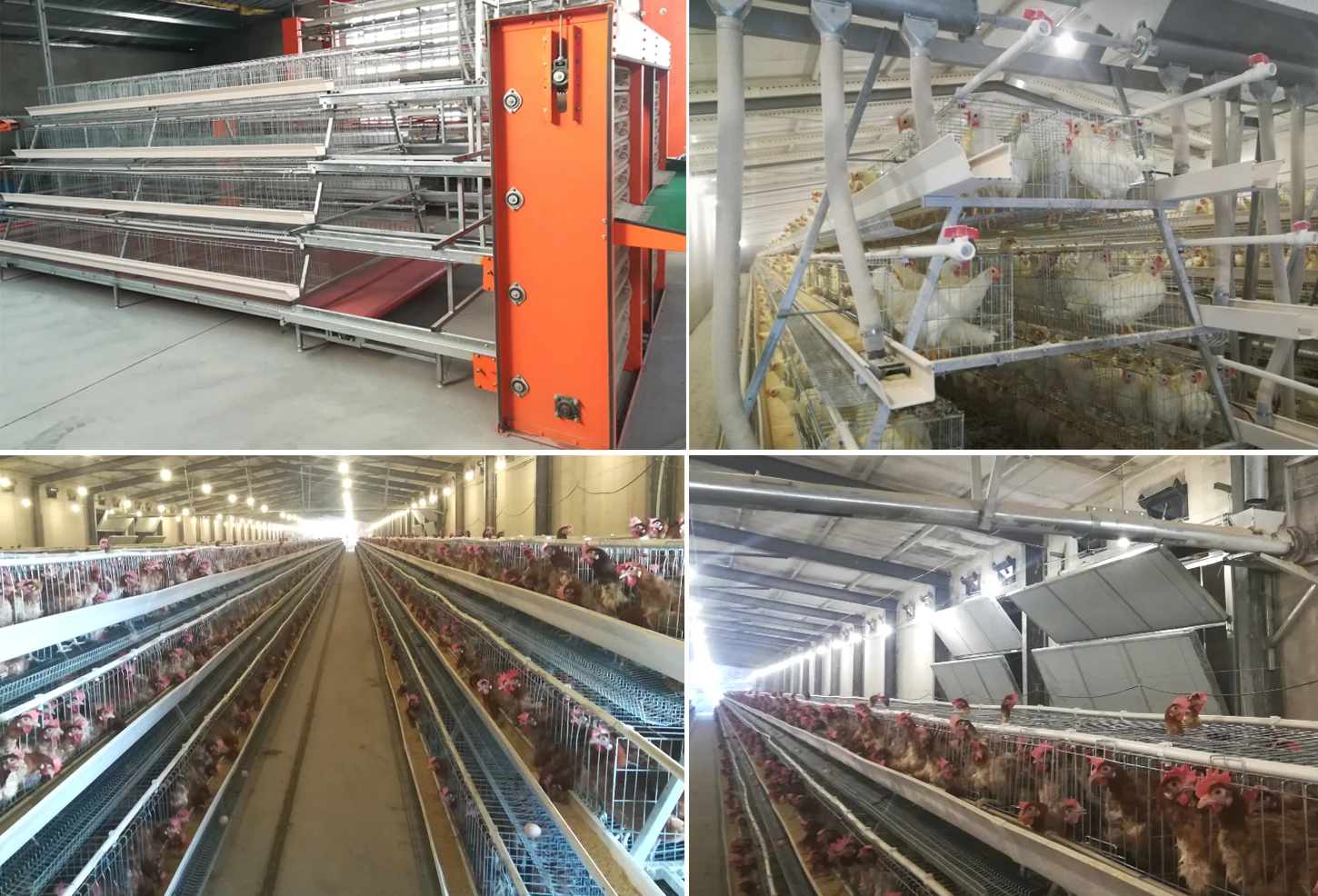

Automatic Layer Chicken Poultry Farm Equipment
A Type Layer Chicken Poultry Cage Feature
A type chicken layer battery cage is one kind of most popular poultry equipment used for chicken farming. This type of chicken cage is suitable for both small family chicken house but also large chicken house. Poultry equipment is flexible to choose, manual or automatic, according to different requirement.
Ventilation performance is better than H type.
Economical and practical.

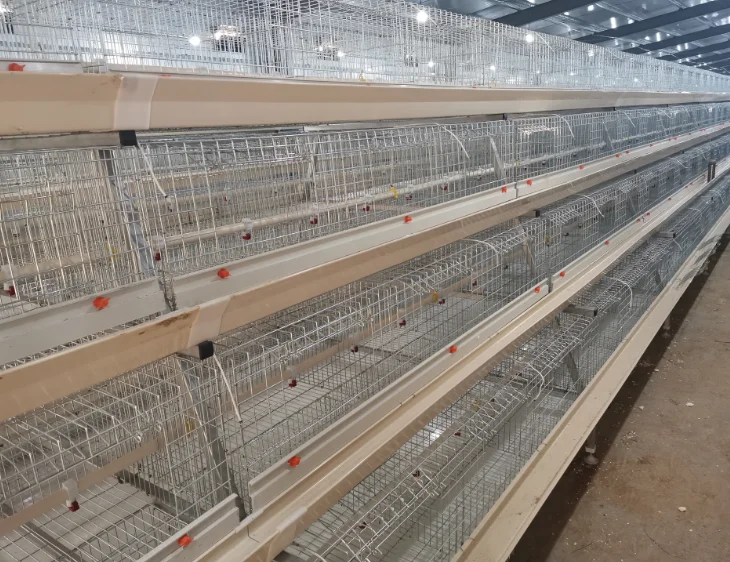

1.Cage and Frame
Cage dimension: 1950x450x(390-340)mm per unit
Entirely hot galvanized mesh, horizontal sliding gate, bottom mesh/rear mesh/partition mesh: 2.5mm thick, upper mesh: 2.5mm thick, front mesh/gate: 3.8mm thick.

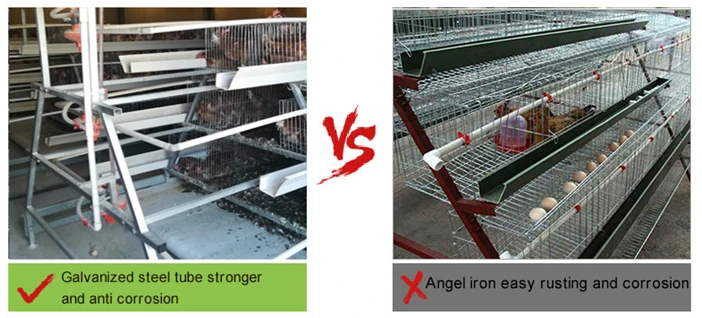

Cage Frame:
Hot-dipped steel plate punched & formed one-time; not easy to rust.
Install by strong stainless nuts & bolts
2.Feeding system
Feed is transferred from silo to the hopper in chicken house by auger, then automatically transfer feed to the feed pan on cage.

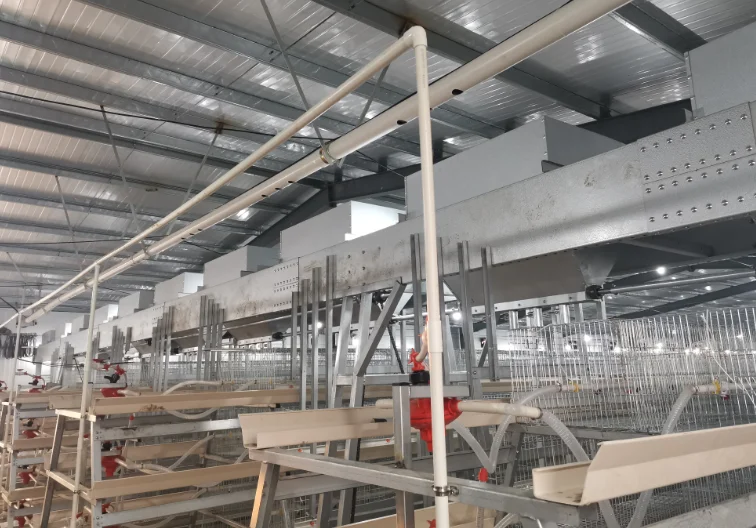

Travelling feeding hopper (ceiling type)
For chicken layer battery cage, this travelling hopper is used more often because of its lower cost. The quantity of hoppers depend on how many lines of cages in chicken house.
Trolley feeder (ladder type)
Trolley feeder with distributor runs very stably and smoothly, saving feed, labors and time. Each trolley works separately , even when one trolley is broken, others still can work.
Manual feeder
This device is suitable for small farms or family chicken house, the model has the advantages of small volume, good flexibility, low cost, high efficiency, and no electricity consumption.

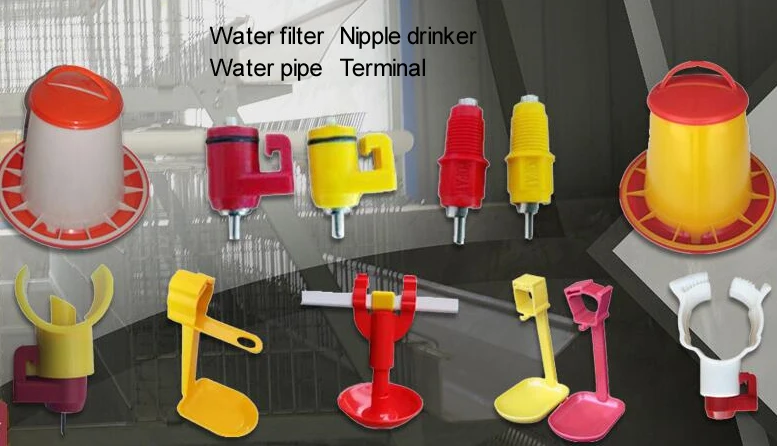

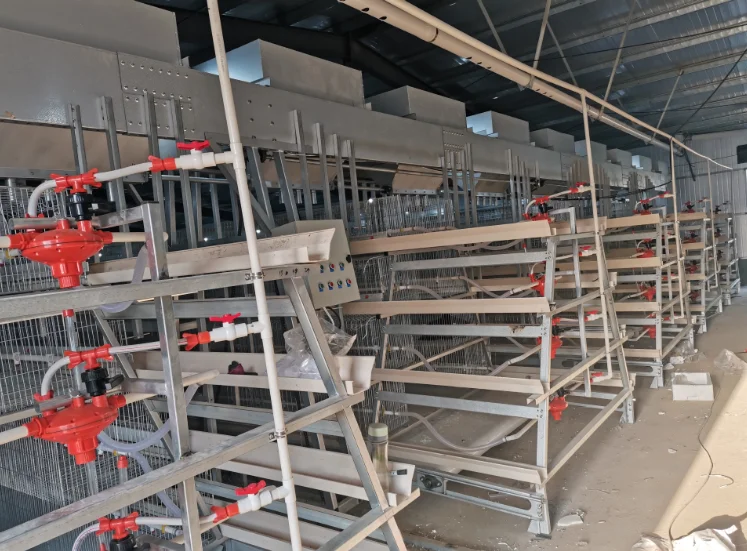

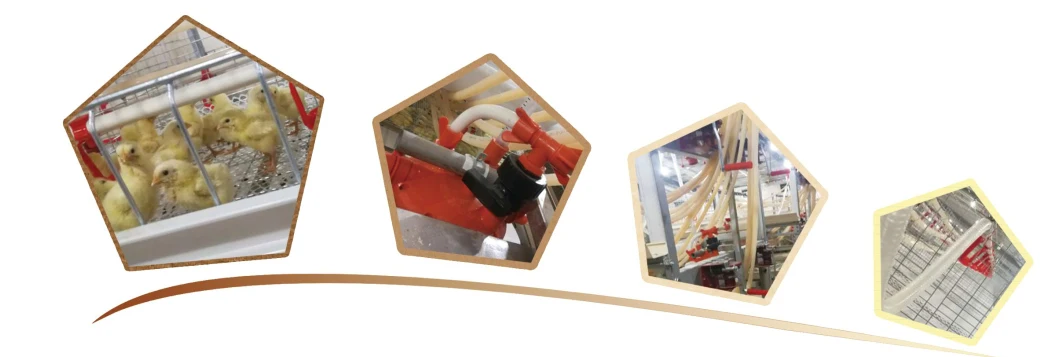

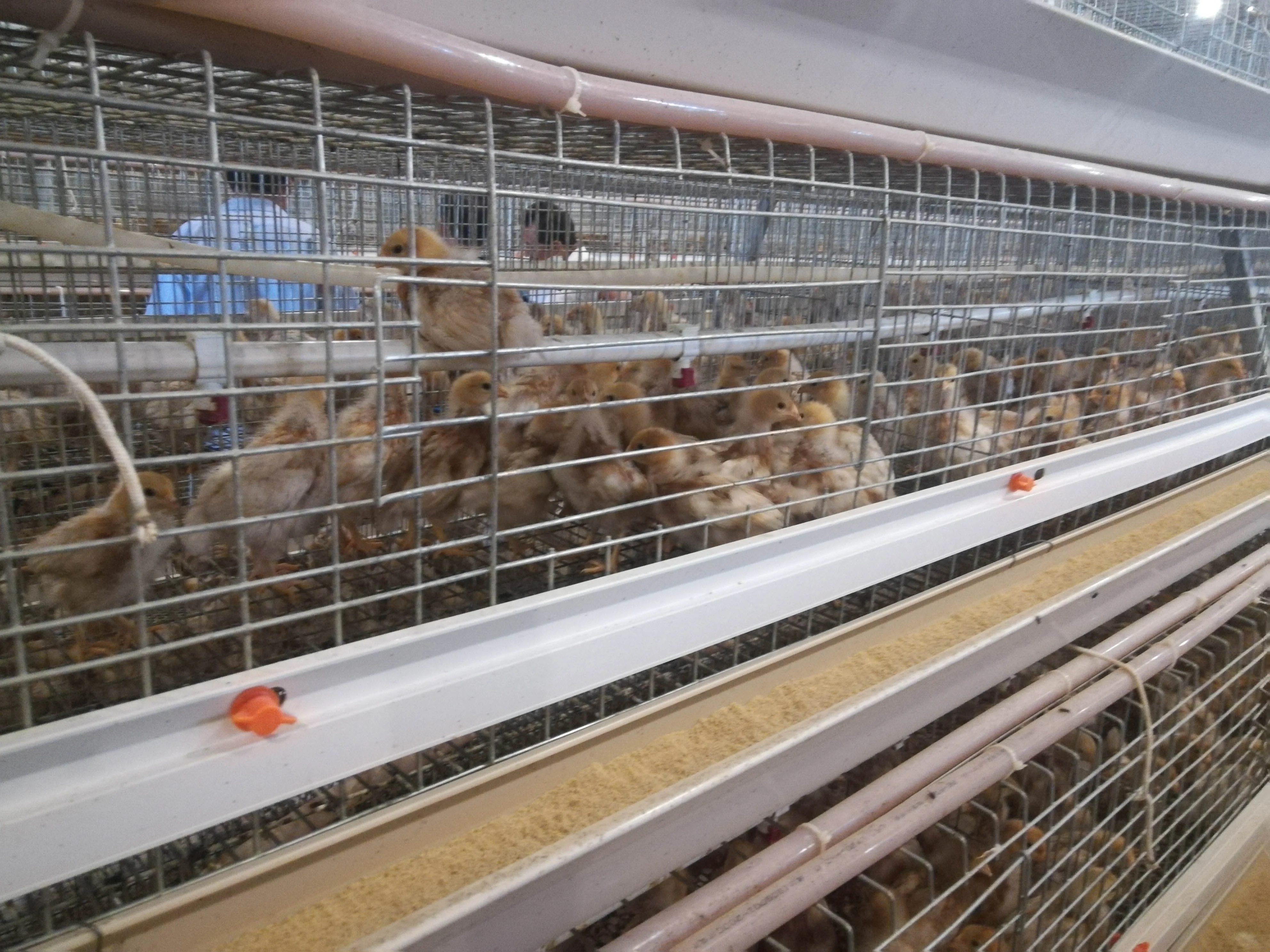

3.Drinking system
* High quality suck nipple, stainless steel, no water leaking
* High quality water pipe, never bursting in winter
* The height of young chicken cage's water pipe can be adjusted according to the growth of chicken by a single hand crane which placed at the beginning of row.
4.Chicken Manure Removal System

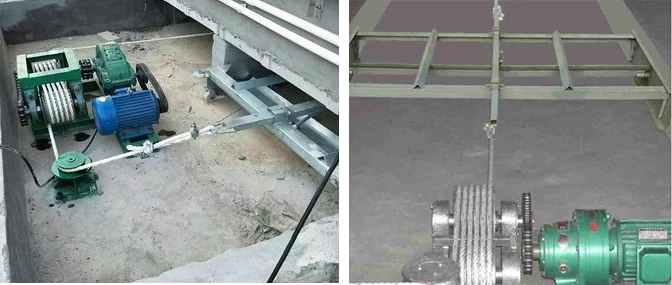

Scraper type manure removing system
It mainly applies for A type cage and net rearing farm. It can save labor cost and help improve poultry house environment.
*Compact structure, small size, low weight and simple operation.
*Manure scraping panel is fully hot galvanized.
*Traction rope adopts water proof and humidity resistant PP material.

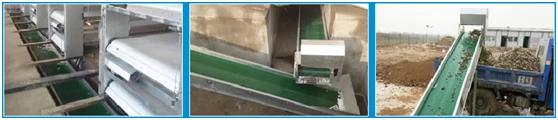

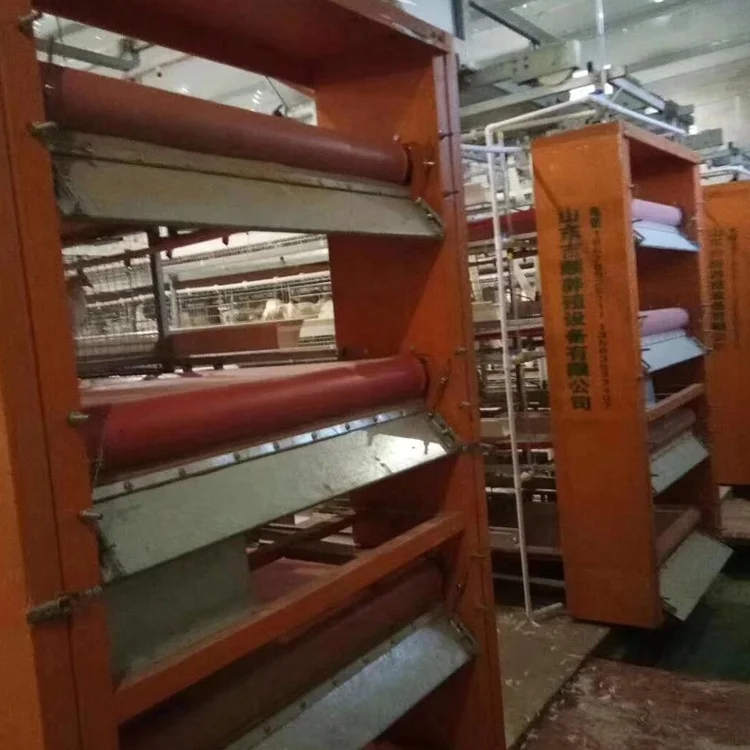

Belt Type Chicken Manure Removal Machine
*Manure belt will give you a clearer chicken house.
*Its construction is strong and robust that is operated without problem even in very long hen houses.

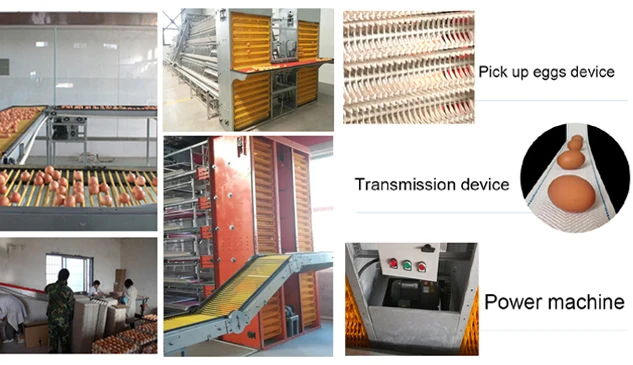

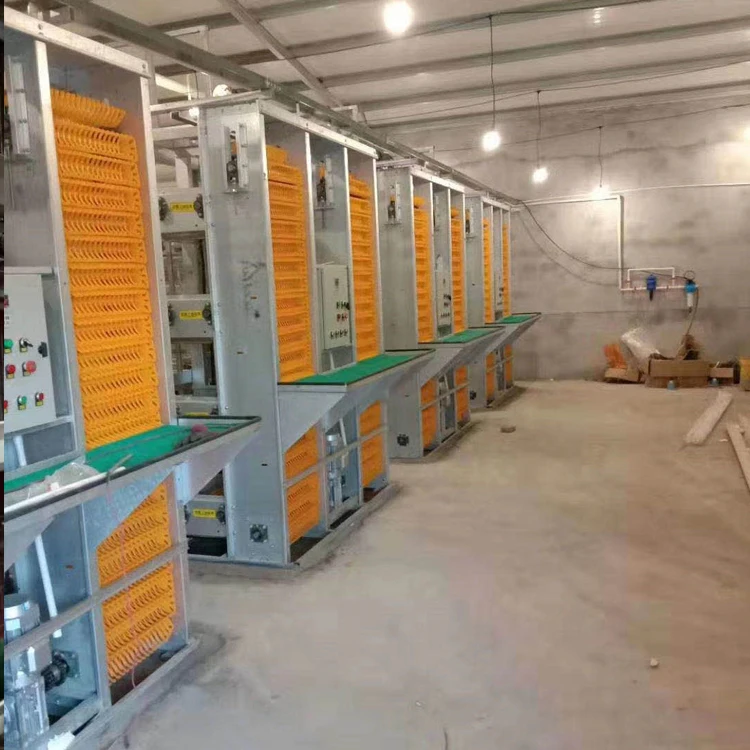

5.Egg collecting system
Egg damage rate: less than 0.1%
System Composition:
egg collection machine frame
egg collection uploading device
egg collection belt and gear motors
egg receiving device
electrical control device

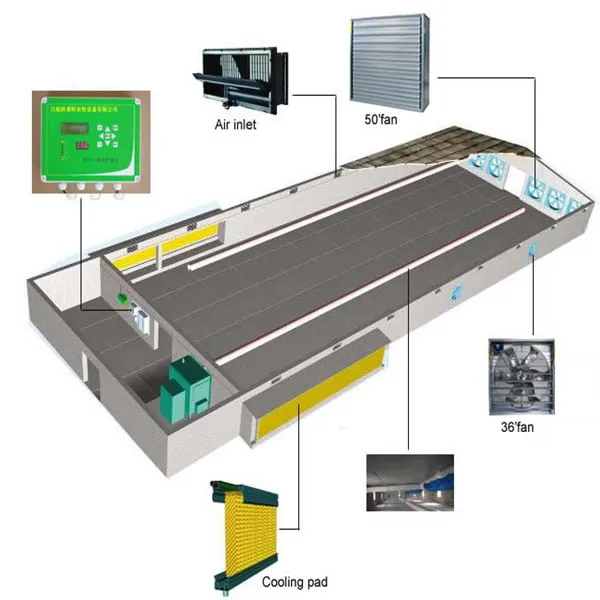

6.Environment control system
By setting temperature, it can automatically controls fans, air inlets, cooling baffle, cooling pumps, and automatically detects humidity and harmful gases ,such as ammonia etc.

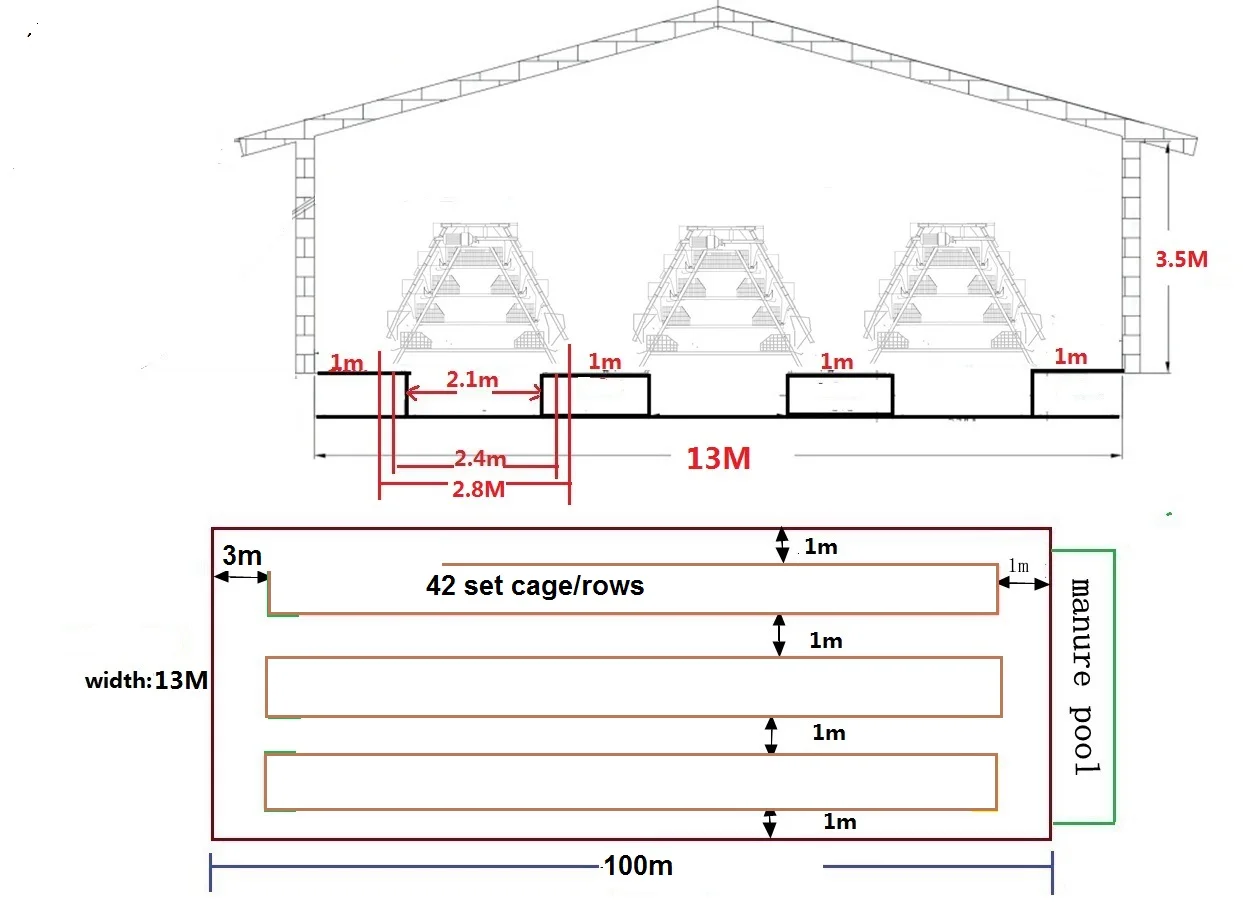

Farm Layout Design
A Type Layer Poultry Farming Equipment
Explanation:
Three rows and Four tiers A type chicken house, length 100 m, width 13 m ,height 3.5 m , 4m behind the chicken coop and the rear aisle, net breeding length of 96 m, each row 42 groups, total 126 groups, each group breeding number of 160 ,total 20160 birds.
FAQ
Q: I need a complete equipment system, and also need a best price, what should I do? A: 1. Chicken house size (length x width x height). 2. If for broiler chicken, quantity and final weight to sell in market. 3. If for breeder or layer, rearing density or target breeder/layer quantity. 4. Maximum and minimum teperature of farm location. 5.House type: close type of two side bricks building wall with 36'' fans and air inlets, or open type of using curtain in two sides. Q:How many chickens can I breed? Once you want to start your chicken farm, you can tell us your chicken coop size, we will provide free chicken farm layout design. Q: What is the MOQ of chicken cage? How many sets can fit in one Container? A: MOQ is 10 sets, one 20 ft container can hold about 80-100 sets chicken cage, one 4HQ ft container can hold about 170-220 sets chicken cage. Q: How many years it can use? A: More than 15-20 years. Q: How is your payment term? A: Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss. Q: How is your delivery time? A: We always prepare enough stock material for your urgent requirement, the delivery time is 10 days for all the stock material. We'll check with our production department or the non-stock items to offer you the exact delivery time and producing schedule. |
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
