Features: 1.Built-in automatic protection for over-charge,over-discharge and over-temperature conditions 2.Maintenance free 3.Internal cell balancing 4.Communication of monitored data via Battery Management System (BMS) 5.Thousands of cycles,100% DOD,under normal conditions 6.Can be charged using most standard lead-acid chargers (set for AGM/GEL cells) 7.Flame retardant plastics
Application : 1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car 2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair 3. E-tool: electric drill, electric saw, lawn mower and so on 4. Remote control cars, boat, aircraft, toys 5. Solar and wind power generation energy storage devices, Telecom base Station 6. Small medical equipment and portable equipment

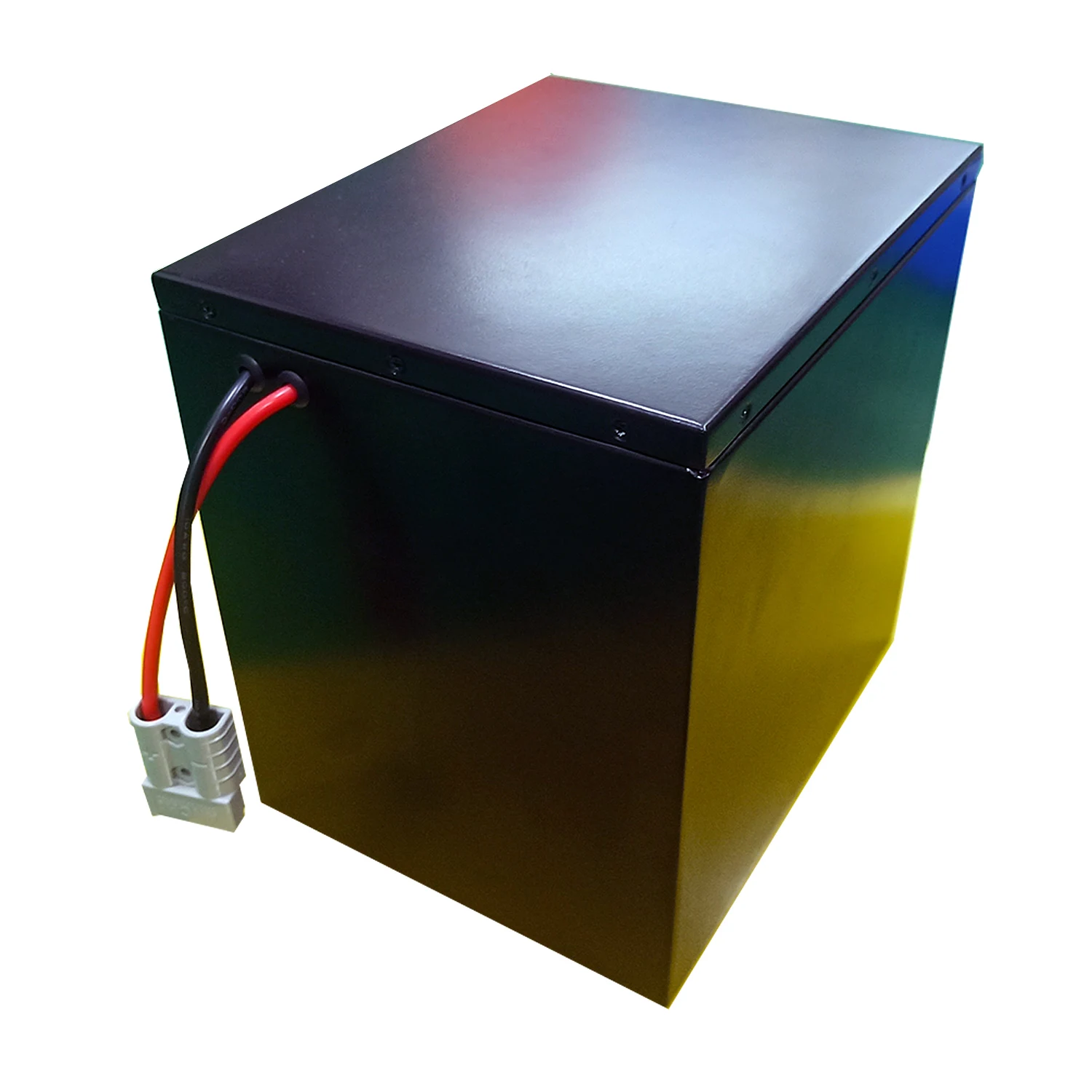

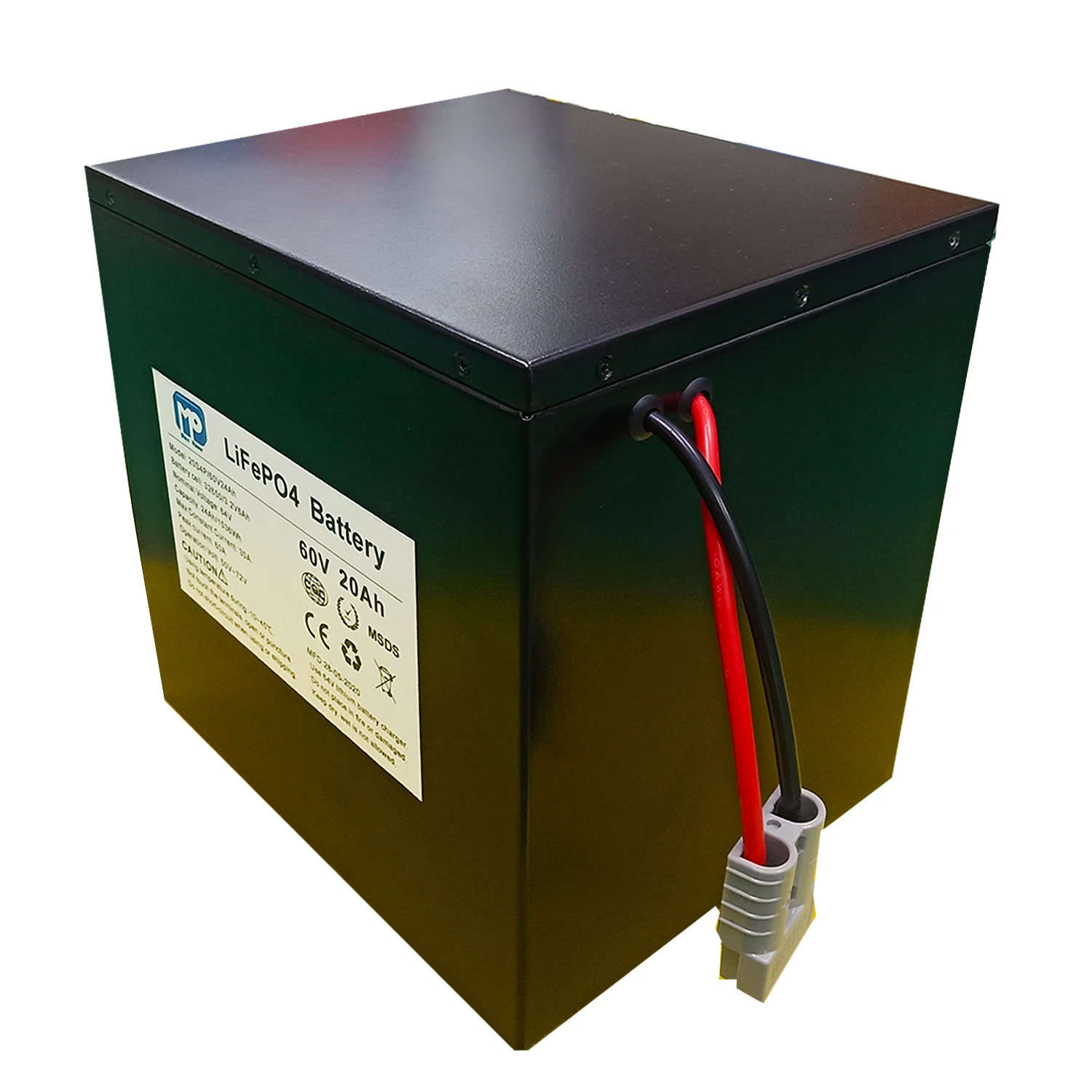

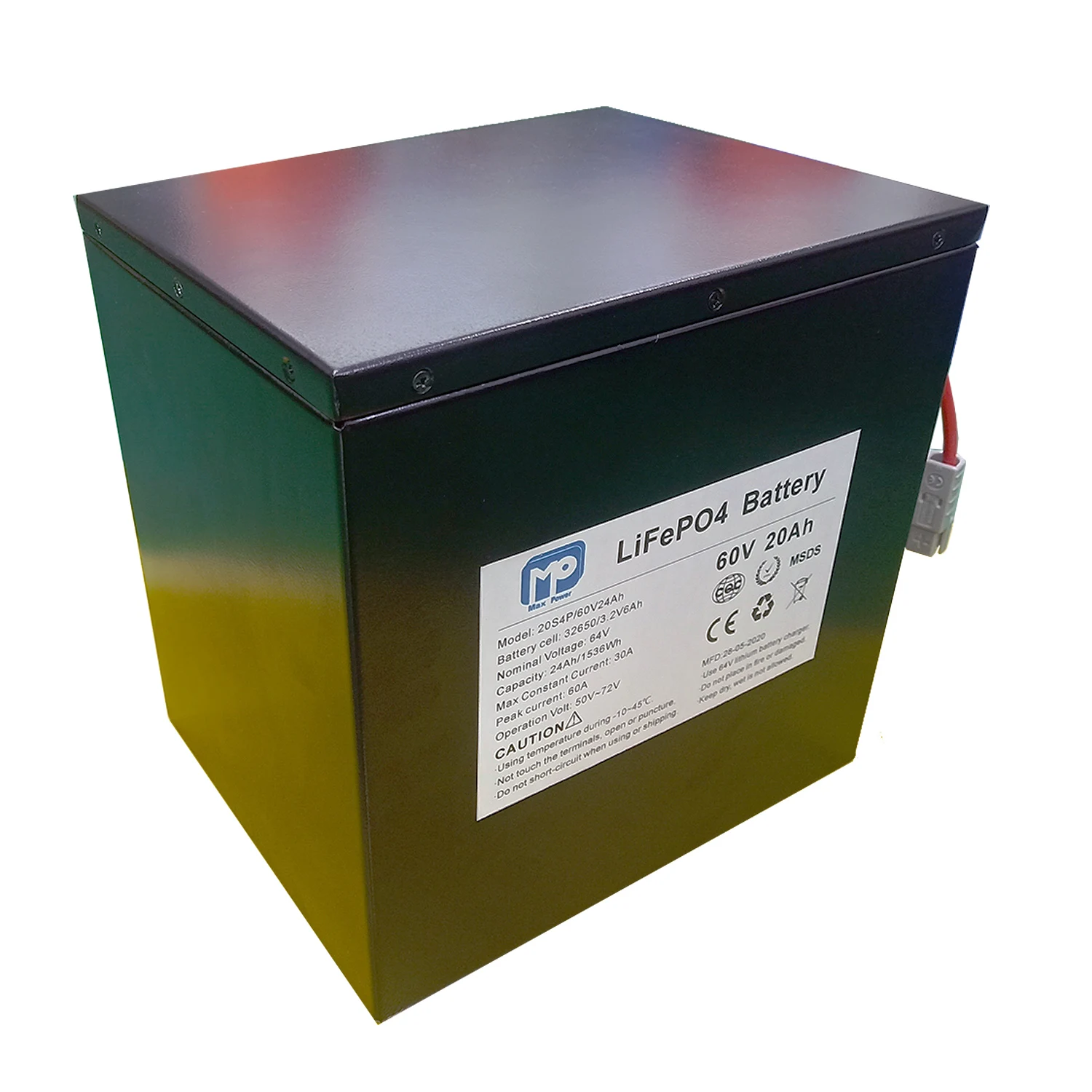

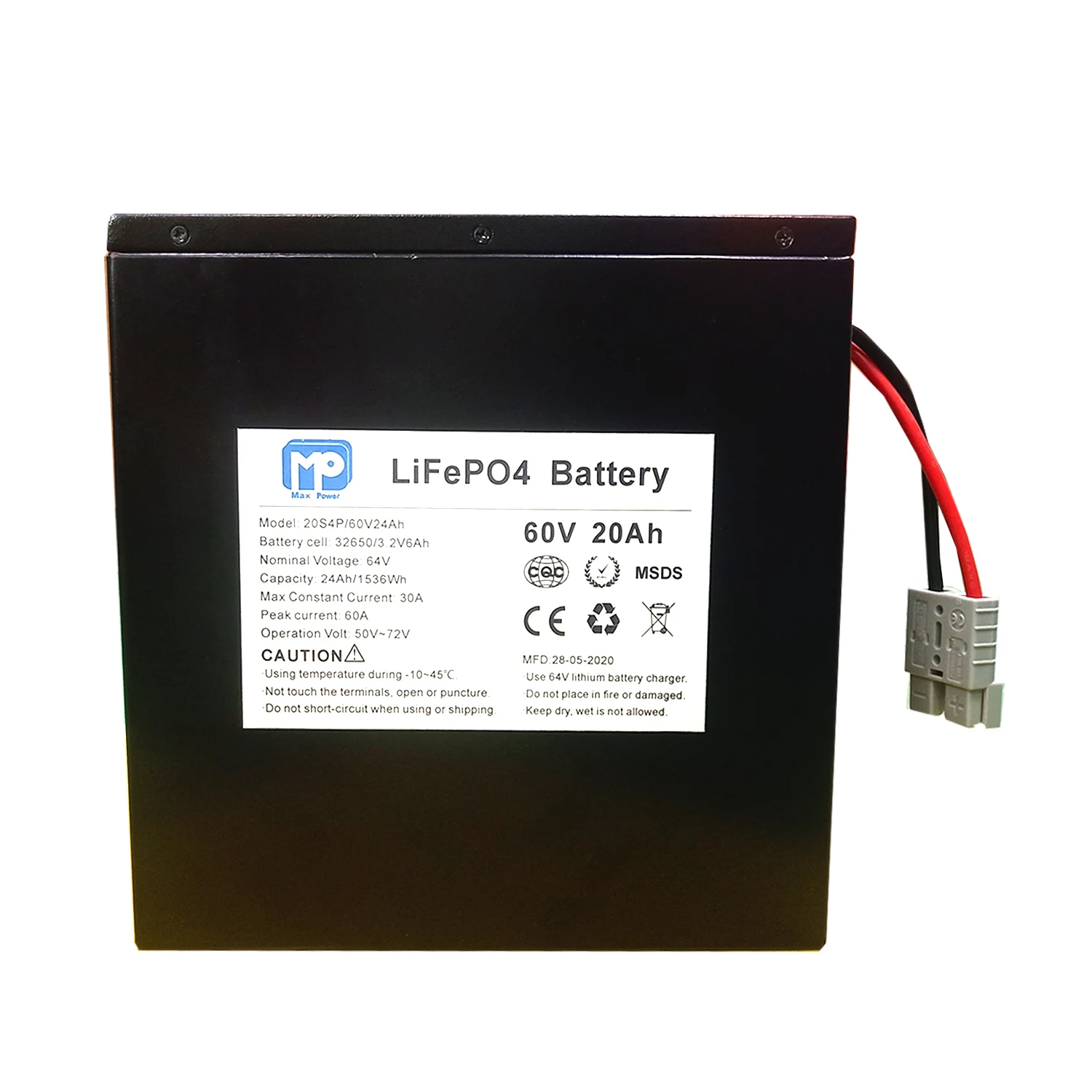

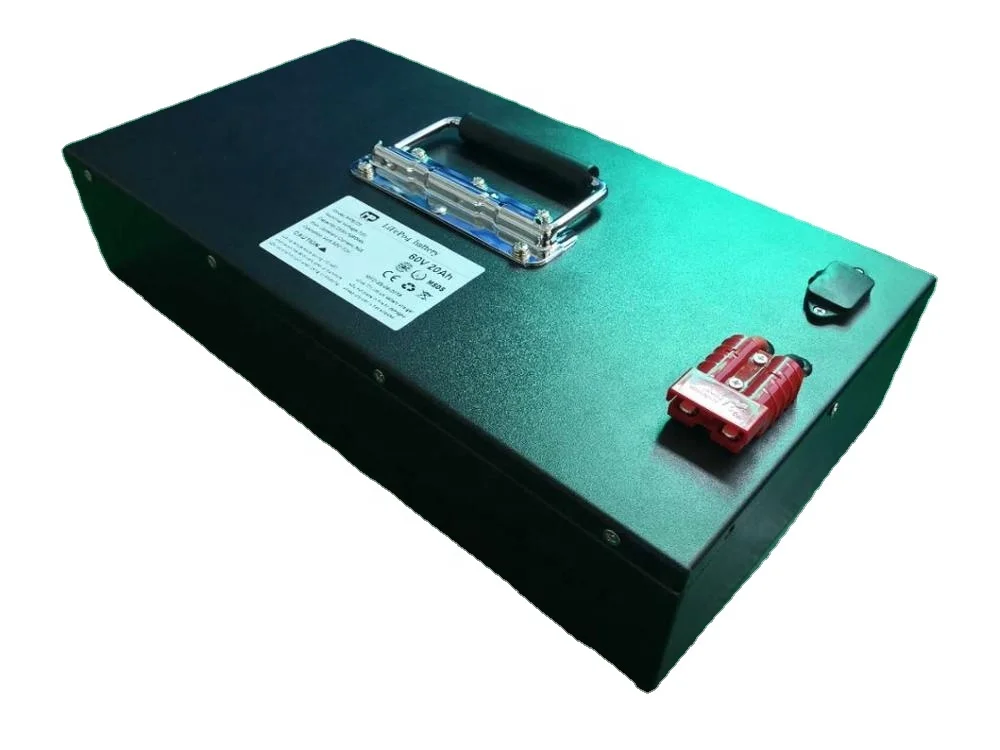

Specification
Nominal Voltage
60V
Nominal Capacity
20ah-24Ah （0.2C to45V at 25℃)
Power
1440Wh
Internal Resistance (AC)
≤150mΩ
Cycle Life
>2000 cycles @0.2C 80%DOD
Month self-discharge
<3%
Charge voltage
73±0.2V
Charge Mode
0.2C to 73V, then73V,charge current to 0.02C (CC/CV)
Charge current
5-8A
Max Charge current
15A
Charge cut-off voltage
73V±0.2V
Constant current
20-40A
Max constant current
40A
Discharge cut-off voltage
50V

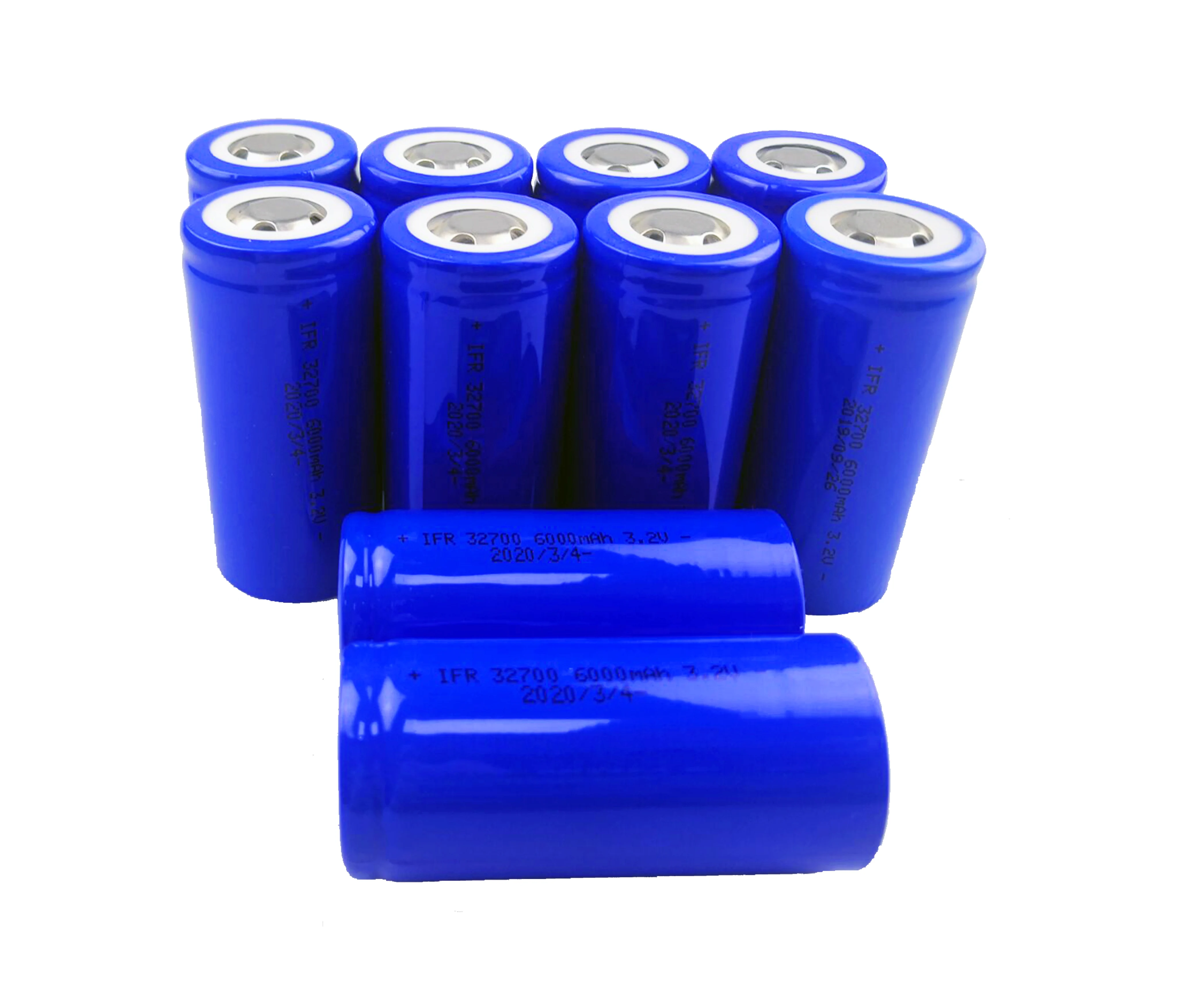

Cell / Connection Mode
LFP32650 20S4P ／20S3P-20Ah

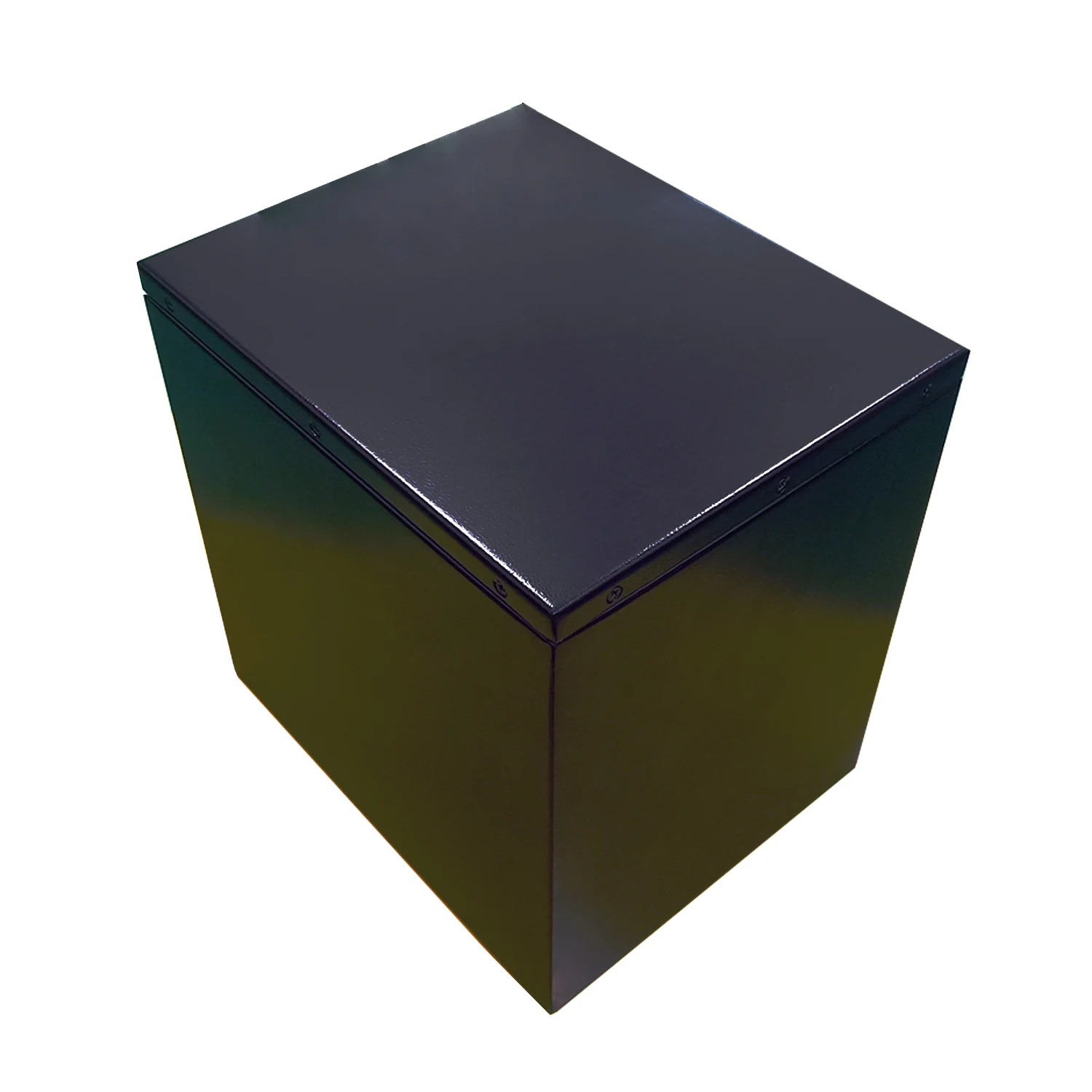

Battery Case
Metal and custom
Dimension (mm)
250-200*170
Weight(lbs./kg.)
16.8kg
Communication protocol (Optional)
M4 copper and custom
Extend (Optional)
RS485*2/CAN 2.0
LED Power display
Application
Recommend Products
Company Profile

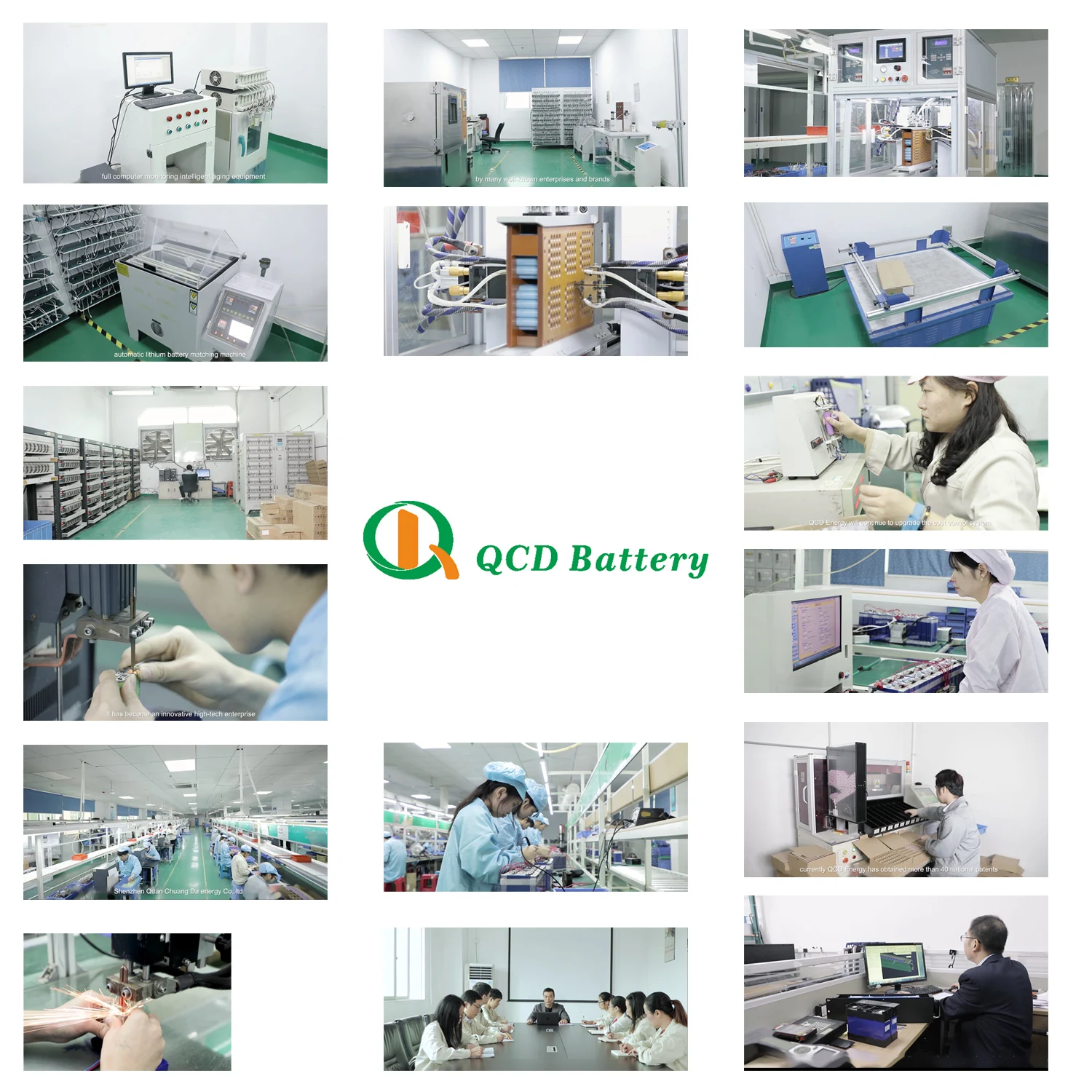

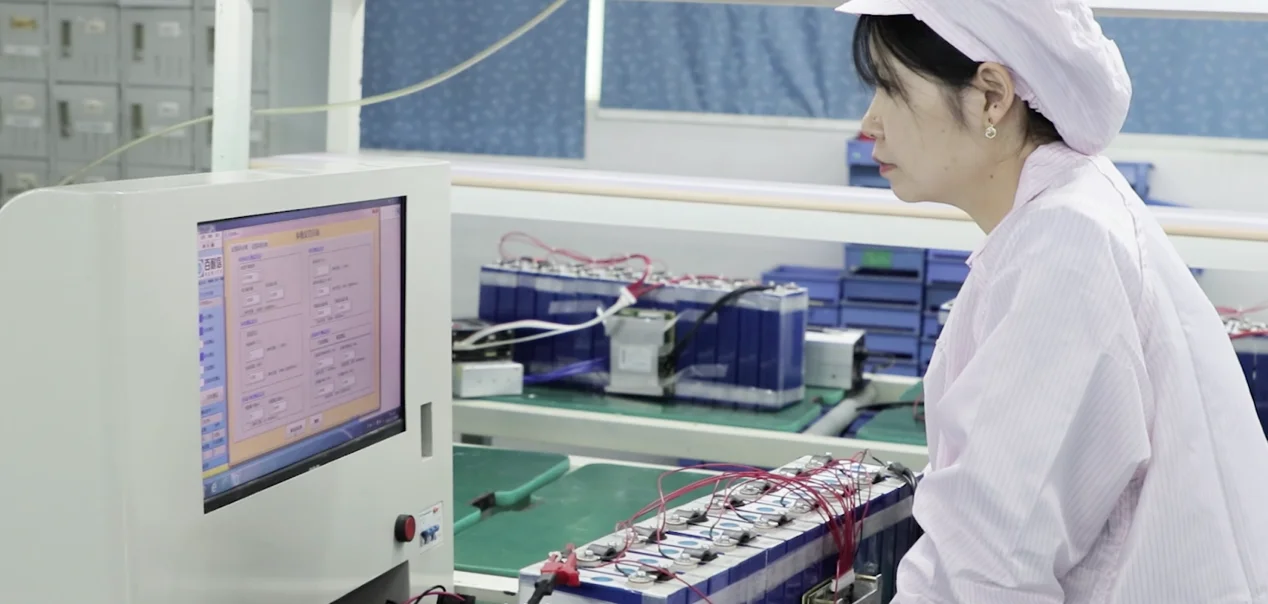

Manufacturing Technique
Packing & Delivery
FAQ
Q: Areyou manufacturer? A: Yes, we are. You are warmly welcome to visit our factory if you have interest!
Q: Could you provide a solution for our grid battery storge developments in our country? A: Yes, we can. What's more, our R&D team aims to provide full solution of battery system for ups power supply, solar storage,grid developments, medical equipments, LED lighting, e-bikes, consumer electronics, portable power banks, hand-held Terminaldevices, etc.
Q: Is OEM/ODM available? A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will provide a full solution to your with these factors taken into consideration: working temperature, dimension,compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
Q: Can you provide samples for testing use? A: Yes, we can. After discousion and designing with our sales and engineer, we encourage client to order samples first to test ourbattery quality and stability first.
Q: What’s the differences between li-ion cylindrical battery and Lithium polymer pouch cell? Which one is better? A: Li-ion cylindrical battery18650 battery cells can be easily assemblied to large capacity batttery pack or individually used forconsumer electronics etc.Lithium polymer pouch cell Lithium polymer battery has higher safety factor. It can be designed into ultra thin battery(paperbattery) or anti-low/high-temperature battery. Each type has different merits.
Q: What safety protection function does the PCM have? A: Short circuit protection, over-current protection,over-load protection, over-discharge protection, inversely-connection protection, temperature control, balance, fuse, thermistor, etc. Our engineer will choose particular function to use for your battery pack in accordance with your specific situation.
Q: Are there related certificates about battery? A: If required, we could apply CE, ROHS, CB(IEC62133), UL, KC, PSE, BIS, UN38.3 etc.
Q: How long for the warranty? A: Usually 1 - 3 year.
Q: Which payment methods do you accept? A: Usually, we will do Western Union, TT, LC .etc.
