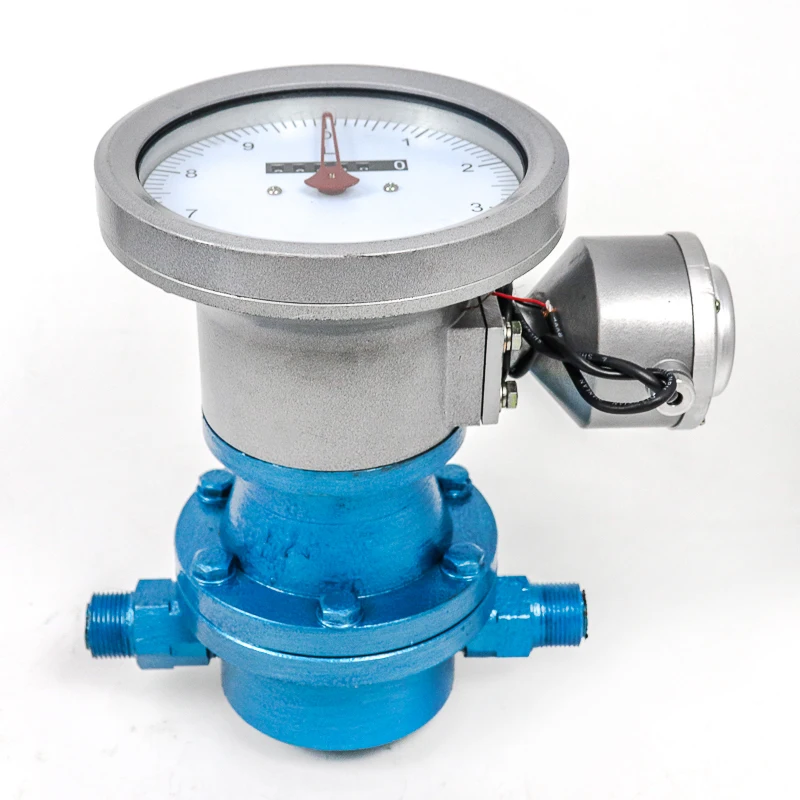

High temperature bunker oil oval gear flow meter dn 80
- Category: >>>
- Supplier: Huaibei Huadian Automation Technology Co. Ltd.
Share on (1600057727389):
Product Overview
Description

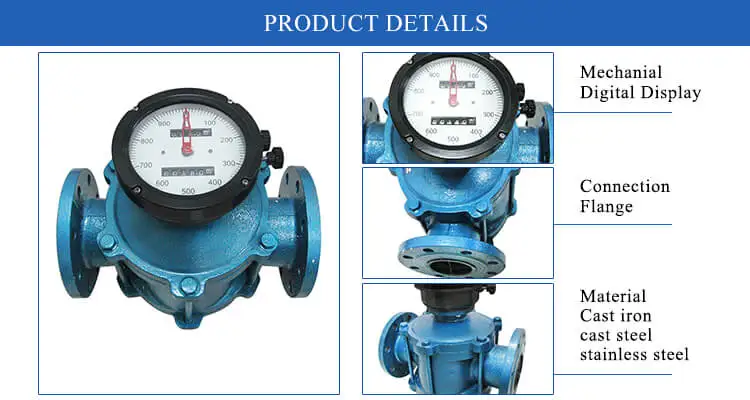

Product Details

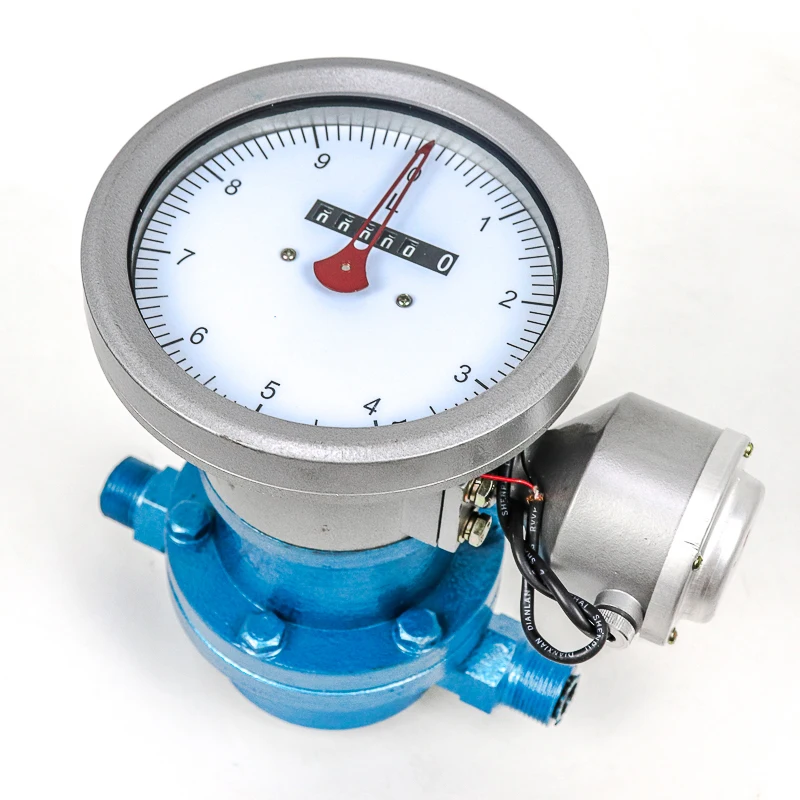

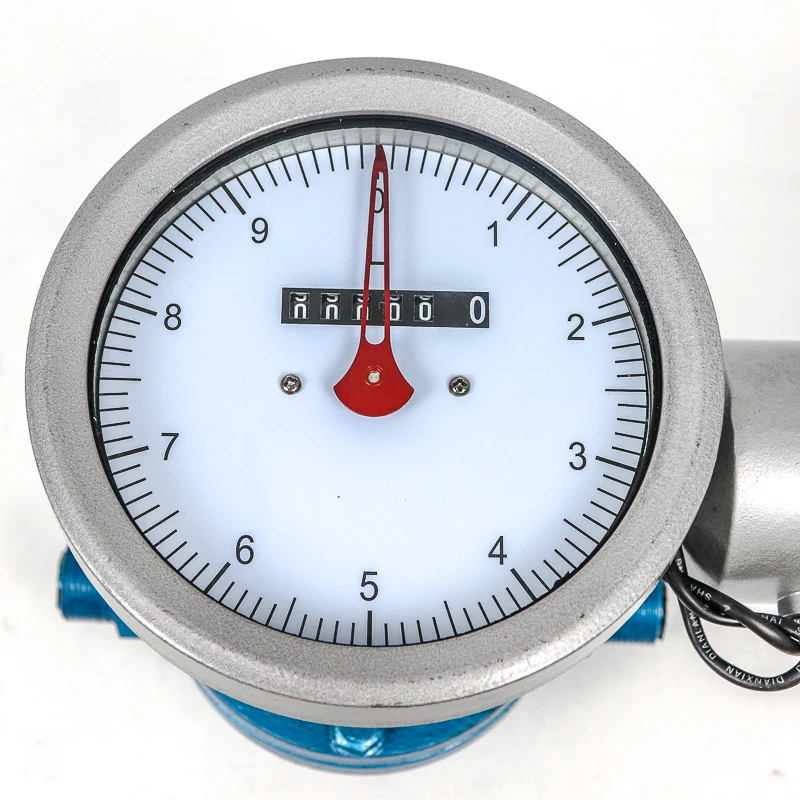

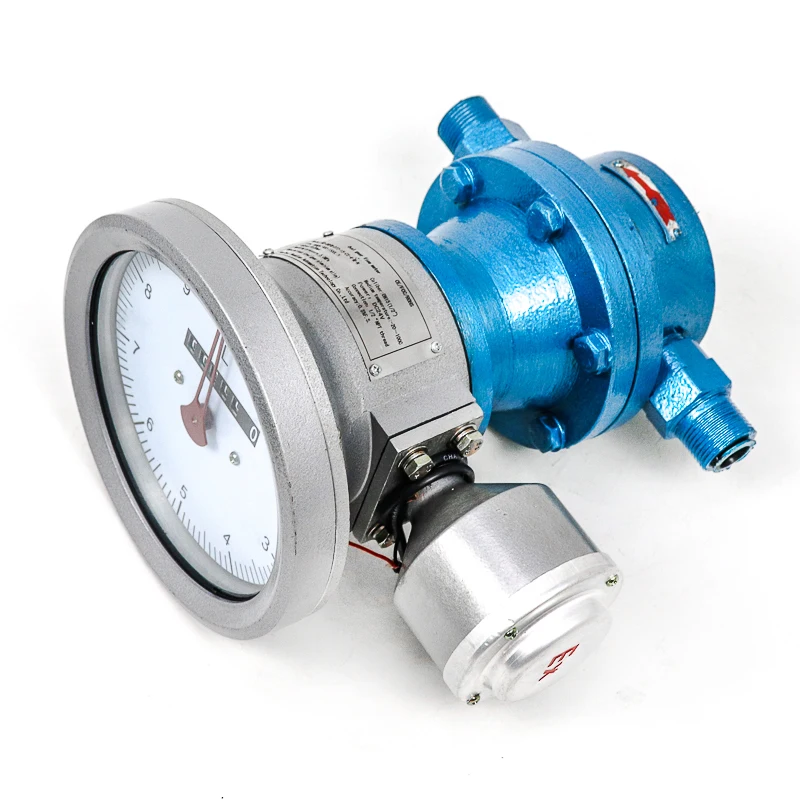

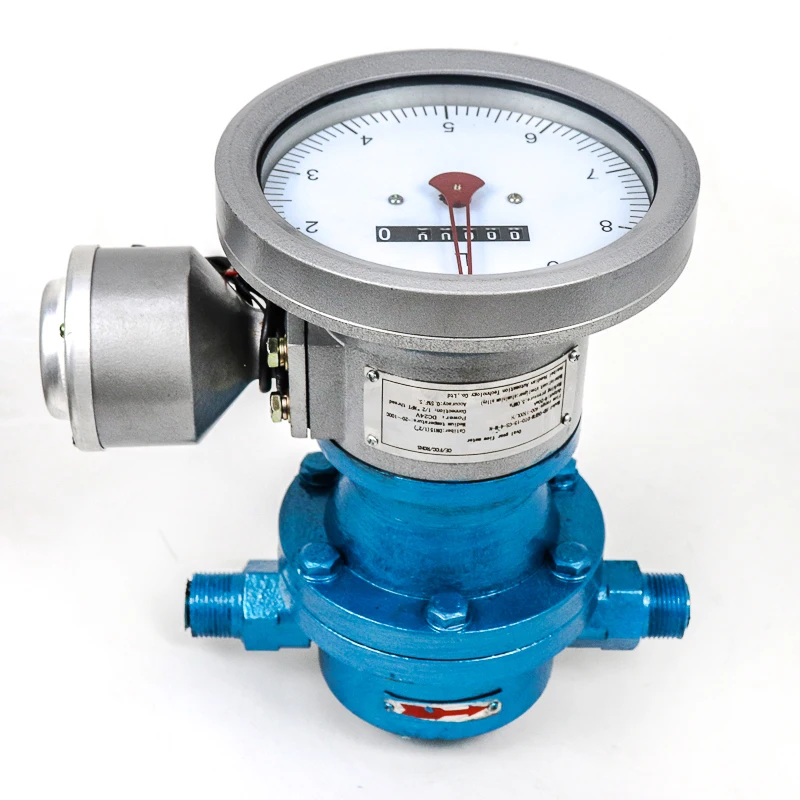

High temperature bunker oil oval gear flow meter dn 80
Oval gear flow meter is a kind of direct-reading accumulating liquid flow meter. DTO oval gear flow meter adds transmitter mechanism on the basic of DTO flow meter. It can be equipped flux and instant flux. It possesses many virtues such as large testing range, high precision etc..
It is widely used in flux measurement in industrial field such as oil development, oil refining, chemical, commerce, oil storage.
Product Description
Technical Parameters Of High Viscosity Flow Meter
Model | DTO-CI | DTO-CS | DTO-SS |
Body Material | Cast iron | Cast Steel | Stainless Steel |
Signal Output | Optional: Pulse or 4-20mA | ||
Power supply | None or None or 24V DC | ||
Accuracy | Standard: 0.5%; Optional: 0.2% | ||
Explosion proof | ExiaIICT6 | ExiaIICT6 | |
Protection Rating | IP65 | IP65 | |
Diameter | DN15~DN200 | DN10~DN200 | |
Installation Method | Flange | ||
Fluid Temperature | -20ºC~200ºC | -20ºC~100ºC | |
Ambient Temperature | -20ºC~60ºC | -20ºC~60ºC | |
Dimension

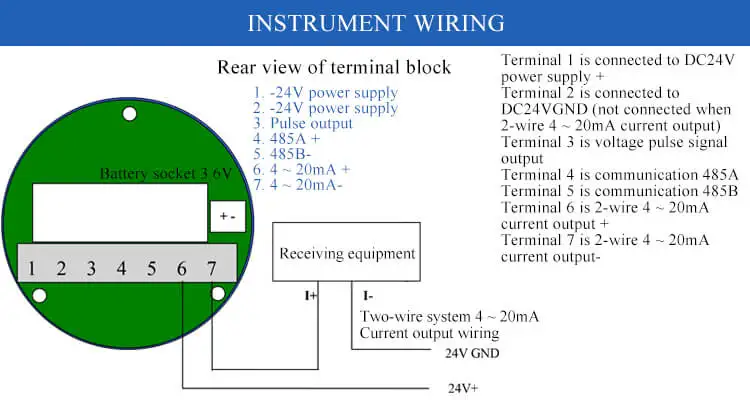

Wiring Diagram
Advantages
Features of high viscosity flow meter
1)Widely range of liquid viscosity: viscosity of medium is 0.6Mpa.s~250Mpa.s.
2)Various of Display and Output: display and mechanical display. Pulse or 4~20mA Output;
3)Various applications: various applications such as chemical industry oil medicine and electricity,etc.
4)High accuracy: the accuracy is 0.5% or 0.2%.
Why choose Huadian
1. Instruments has been exported to over 50 countries.
2.100% QC inspection Before Shippment.
3.ISO, CE, SGS standard and factory price.
4. All instruments has been 100% recognized by the Bureau of National Metrology.
5.Excellent product quality and strong technical support capability.
How to select right high viscosity flow meter?
The key questions which need to be answered before selecting Oval Gear Flow Meter are:
1.what's the fluid ?
2.what's the flow range? and pipe size?
3.what's the working pressure?
4.what's the working temperature?
