16CH 4Mp 1080P real time super mini NVR 4ch xmeye
- Category: >>>
- Supplier: Shenzhen Aiseeing Technology Co. Ltd.
Share on (1600058024935):
Product Overview
Description
4MP 16ch super mini nvr
| Model No. | AI-N2016H | ||
| OS | Embedded Linux | ||
| Video&Audio input | Bidirectional Talk | 1 CH,BNC(Line in,2Vpp,1Kohms) | |
| IPC Input | 48Mbps | ||
| 16CH | |||
| Video&Audio output | CVBS | No | |
| VGA | 1CH,Resolution 4MP | ||
| HDMI | Standard 1.3a | ||
| 1CH,Resolution 4.0MP | |||
| Video&Audio decoding | IP Resolution | Main stream:up to 4.0MP | |
| Video bitrate | Up to 2Mbps/D1,4Mbps/720P,8Mbps/1080P/4MP | ||
| Video decoding | H.265/H.264(Up to High Profile/Level4.2) | ||
| Synchronous Playback | Up to 4CH | ||
| Decoding Ability | 4MP:30fps | ||
| Other Function | Bidirectional Talk | No | |
| Motion Detection | Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest) | ||
| Picture Capture | Local Capture&Web Capture | ||
| HDD Interface | SATA | 1 | |
| Max Capacity | no limited | ||
| External Interface | Network Interface | 1 RJ45 10M/100M adaptive Ethernet interface | |
| USB | 2 USB 2.0 Interfaces | ||
| Size&Weight | Dimensions | 215x235x45mm | |
| Front Panel | LED | ||
| Package Size | 410x293*60mm | ||
| Weight | 1Kg(without HDD) | ||
| General | Power Supply | 12V | |
| Working Temperature | -10--+55 degree | ||
| Working Humidity | 10--90 % | ||
| Consumption | 5W(without HDD) | ||
Features
H.265 Main profile decoding
- 4CH mini NVR
Humanized design, easy to operate
P2P function, one key to get auto ID (no need port forwarding)
HDMI and VGA output

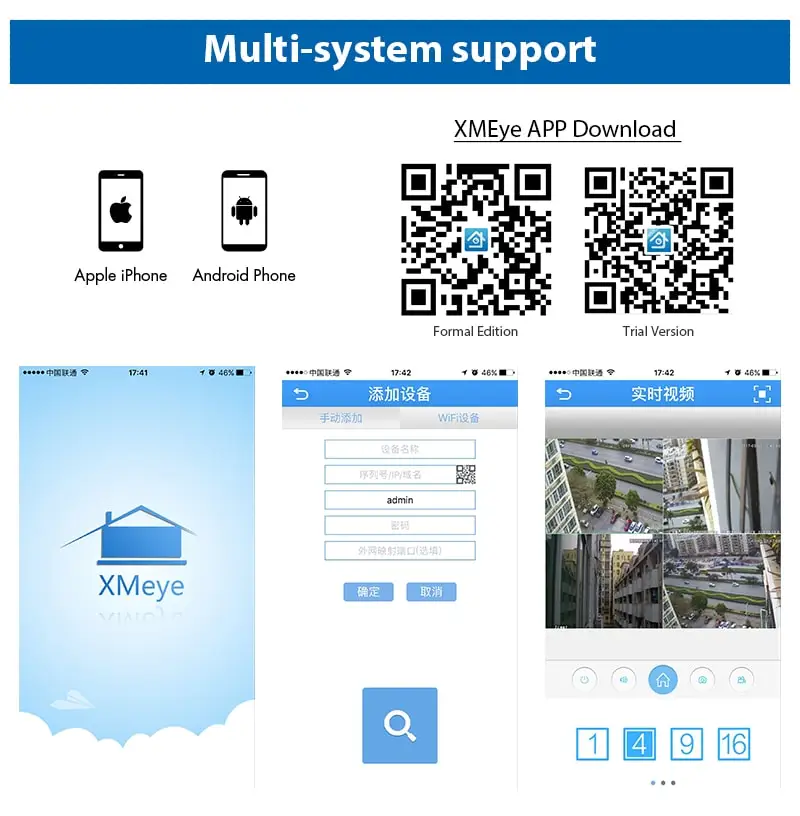

Support IPhone/Android remote view
Supports ONVIF version 2.6
Support 1 SATA HDD, max 4TB
10M/100M self-adaptive network interface
Multi-Language supported
CMS centralized network management software, 256 free access
Advantage
Compatible IPC Brands

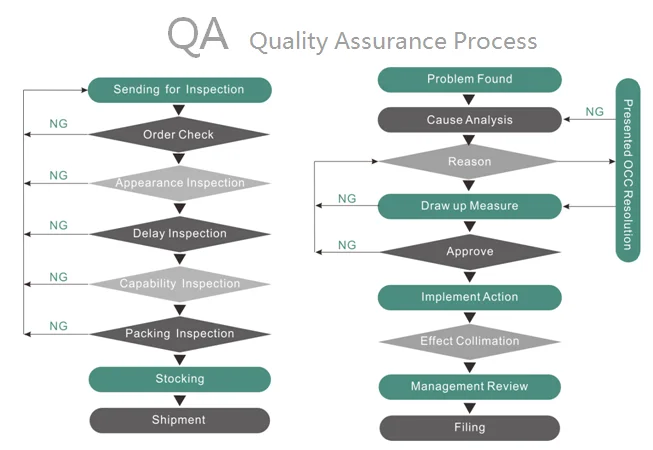

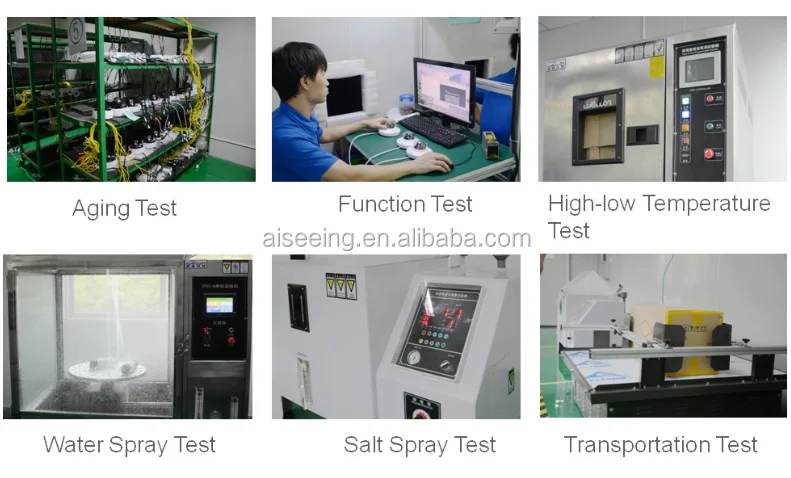

Production Process
Company Profile
Aiseeing Technology Co.,Ltd was established in 2003 as a premier provider for Security IP Cameras, NVR Recording systems,
analog camerasand standalone DVRs. We also have some featured product lines such as LPR/ANPR cameras, f
-isheye cameras for your choice.
High quality is our first principal way to show respect to our customers. We have passed ISO9001 quality management system
and got CE, FCC,RoHs and other certificates.
All our security products have been widely used in USA, European countries, South American, Russia, South African, the Middle
East, Asia and so on.
You can find more information of us at our website
Certificates
Trading Process
Our Service
l After-sale service
A.All goods will be strictly checked by our QC department before shipping
B.All goods will be well packaged
C.12-24 Months hardware warranty
D.Life –time software/firmware update and technical support
E.All questions will be replied at the first time
l Payment terms
We accept T/T by bank transfer, PayPal, Escrow, Western Union, Money Gram and L/C for bulk order
A.All goods will be strictly checked by our QC department before shipping
B.All goods will be well packaged
C.12-24 Months hardware warranty
D.Life –time software/firmware update and technical support
E.All questions will be replied at the first time
l Payment terms
We accept T/T by bank transfer, PayPal, Escrow, Western Union, Money Gram and L/C for bulk order
l Shipping
We have strong cooperation with DHL, FedEx, UPS, TNT, EMS, China post office. You can also choose your own forwarder
We have strong cooperation with DHL, FedEx, UPS, TNT, EMS, China post office. You can also choose your own forwarder
