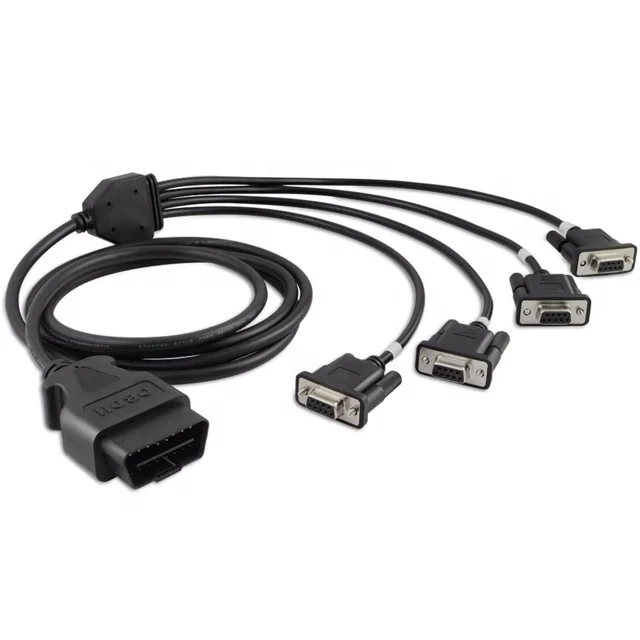

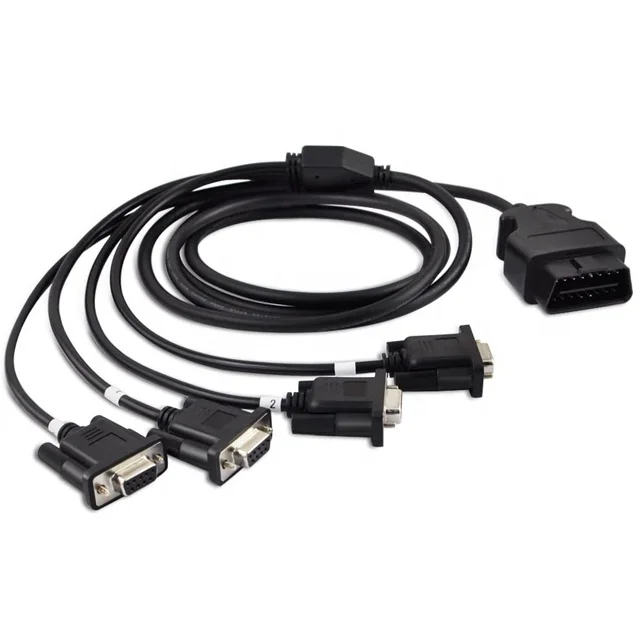

2.1M 6.9ft 1 OBD Male Interface to DB9 Serial RS232 4 Female Port OBD2 OBDII 16 Pin OBD Cable Adapter Diagnostic Extension Cord

Our factory commitment, all the products are made by ourselves, providing high quality and good service for each customer.

We are able to make DB9, DB15, DB25, DB37, DB44 and DB50 Cable

1.Basic Information:

• This adapter cable is compatible with all OBD II compliant vehicles

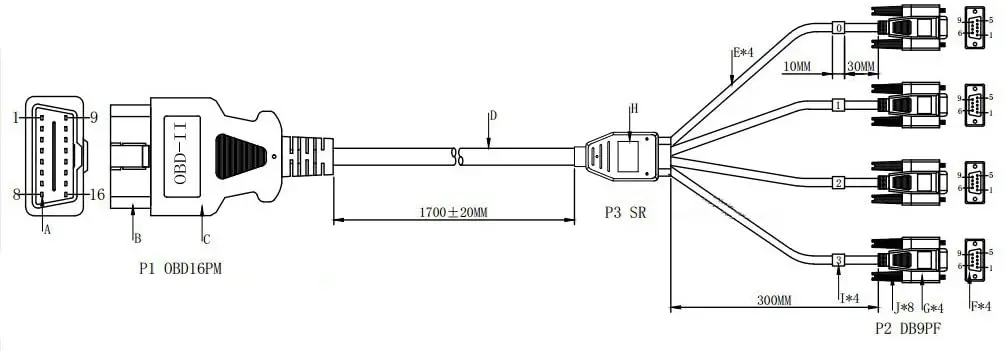

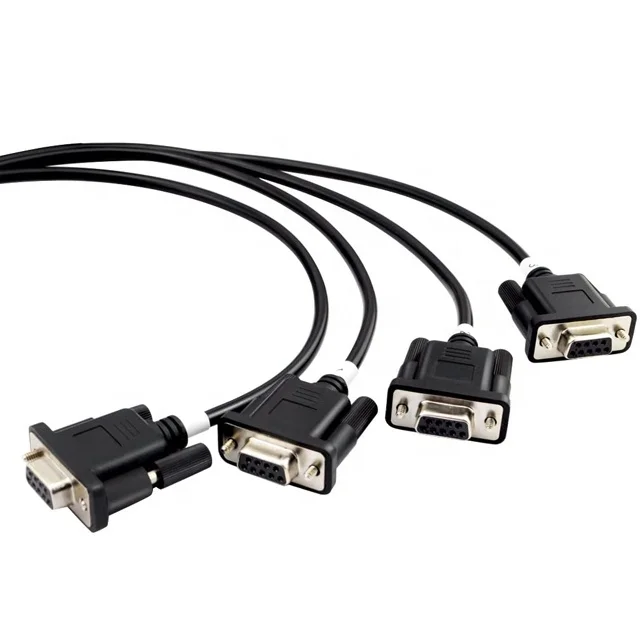

• It has an OBDII Male connector on one end and 4 DB9 RS232 Female connector on the other 4 ends


• The overall length of the cable is 2.1M /6.9 ft /83"


• Perfect for use at Home, Work, Business, Vacation, Outdoors and Travel.


• NOTE: This cable is not meant to be plugged directly into a computer’s serial port. It is meant to plug into some sort of hardware interface.

2.Electrical Test:
2.1. Hi-Pot Test: DC300V.
2.2. Insulation Resistance: 5M Ohms (Min).
2.3. Contactor Resistance: 1 Ohms (Max).
2.4. 100% Open Short and Miss Wire Test.

3.Certifications:

3.1 RoHS  Compliant

3.2 CE

  1.  About sample

• 1.1  If we have stocked cables, we would love to offer you 1-3PCS free samples, but you should pay for shipping cost.


• 1.2  If it’s custom sample. We will need some sample cost depend on the samples, also we will return the sample cost to you after you order from us.


• 1.3   How to pay sample cost?

                               We accept PayPal, alipay, western union or TT.

• 1.4   Sampling time.


• 1.4.1  If we have stocked product, the sample can be shipped out immediately.


• 1.4.2  If we have stocked materials, it will take s 1-2 days to finish them.


• 1.4.3  If it’s custom cable with new mould, it will take us 2 weeks to make new mould, and 1-2 days to make samples.


•

  2.  About mass order

• 2.1   Delivery date: order quantity less than 1000PCS, 3-5 working days.


• 2.2   1000PCS-5000PCS, 2 weeks working days.


• 2.3   More than 5000PCS, 3weeks or more.


•

  3. About quality

• 3.1   All orders will be made depending one customers’ requirements, or we will make samples for confirmation, if customer not allow us to change something, we never do it.


• 3.2   If quality problem is from our factory, we will re-make it and afford all shipping cost.

Packaging:

• One Piece in a CPE bag, 6PCS in a small box, 50boxes in a master carton.


• Master Dimensions: 46CMx30CMx20CM


• One master is between 12KG-15KG


• All the materials are environmental.

Shipping:

• 1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)


• 2. Orders processed timely after the payment verification.


• 3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

• 4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

• 5. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you within 24hours. Our goal is customer satisfaction!


• 6.We often choose following Express Company to ship small package(less than 200KG).

• 7.If more than 300KG, we suggest to choose sea shipping.
