1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4. 2 independent hydraulic cylinders
5. 2 shielded foot controls
6. 2 Separate Die Openings for over sized punching

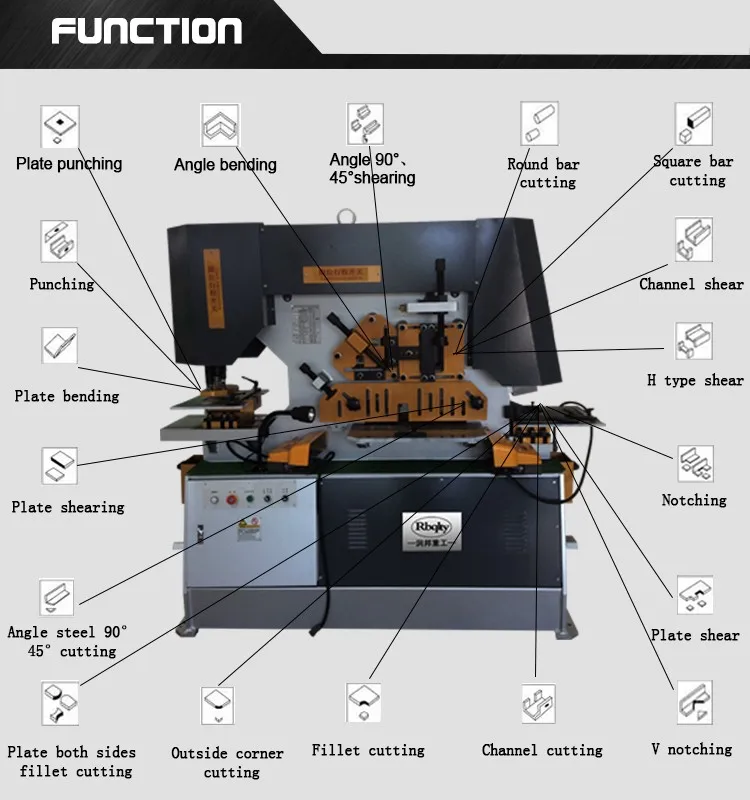

7. 5 working stations for wide applications
8. power inching on all 5 work stations
9. plate shear support table and notching table
10. adjustable stroke controls with indicators on both cylinders
11. punching machine: Movable work light
12. overload protection on hydraulic system
13. electric back gauge
14. optional bending attachment
Model | Punching Pressure | Max cutting thickness(mm) | Max.punching diameter(mm) | Angle of shear(°) | Slider trip (mm) | Trips frequency (times/min) | Throat depth (mm) | Punch depth (mm) |
Q35Y-12 | 35 | 12 | 25 | 7 | 35 | 10-18 | 115 | 12 |
Q35Y-16 | 60 | 16 | 25 | 7 | 80 | 9-25 | 300 | 16 |
Q35Y-20 | 90 | 20 | 30 | 8 | 80 | 10-28 | 355 | 20 |
Q35Y-25 | 120 | 25 | 35 | 8 | 80 | 9-18 | 400 | 25 |
Q35Y-30 | 160 | 30 | 38 | 8 | 80 | 7-16 | 600 | 26 |
Q35Y-40 | 200 | 40 | 40 | 8 | 100 | 6-16 | 530 | 35 |
Packaging | ||
Size | 2900(L) * 1150(W) * 2500 (D) | |
Weight | 97T | |
Packaging Details | The normal package is by plaistic film, or we can pack it according to customers special request. |
Payment terms | T/T | FOB | 30% T/T in advance, paid the balance before shipment | ||
C&F(CRF) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C at sight or L/C 30 days is also accepted | ||||
D/P | D/P is available for long-term cooperated customer | ||||
Lead time | Normally 7-15 days after deposit or L/C received |
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
We make sheet metal processing machine like bending machine, shearing machine, iron worker, hydraulic press, punching machine, duct manufacturing auto line, cutting machine and so on

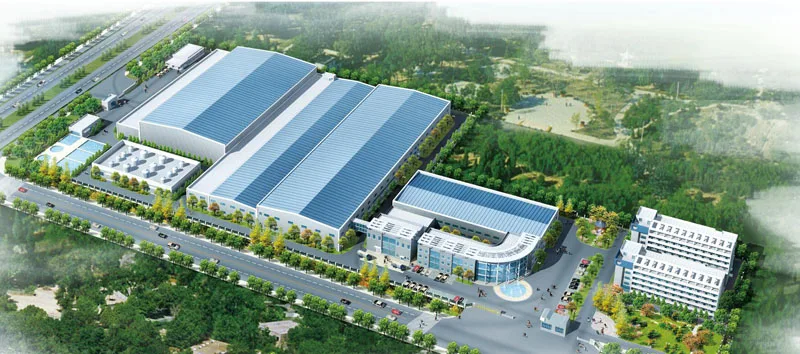

With an expert team in R&D for more than 20 years, occupied the work shop of over 30,000 square meters, Runbang is able to support you with best quality machines.
1. Lifetime service, test before shipment
2. Online video and voice instruction
3. Online or Oversea Installation service
4. Online or Oversea Training service
5. 1 year warranty, free machine parts replacement
6. 100% response rate within 12 hours.
1, Your inquiry on TM will be replied within 1 hour!
2, Your request inquiry will be replied within 12 hours!
3, Tell us the info. of your product, we will suggest you the suitable machine within one day!
4, Photo and video show you directly our machines.
We sell not only products, but also our best service!!
1,Training how to install the machine, Oversea installation service is available(fee need).
2,Training how to use the machine.
3, Machines with 1 year warranty and some components with lifelong support!
4,the complain will be replied within one day!
*We have our own factory and brand; Our machines can match all the CE standard or more strict ones.
*Quality assurance: 2 years warranty and 100% quality inspection before packing.
*Service:Impeccable after-sale service, and all your problem will be solved within 24 hours.
*Price: Can be negotiable according to the qty.
*MOQ:1 set.
*Howtovisit:You can fly to NanJing LuKou airport directly,you can also take high- speed train to Nanjing South Station from other city in China.We will pick you up in the airport or Train station.
