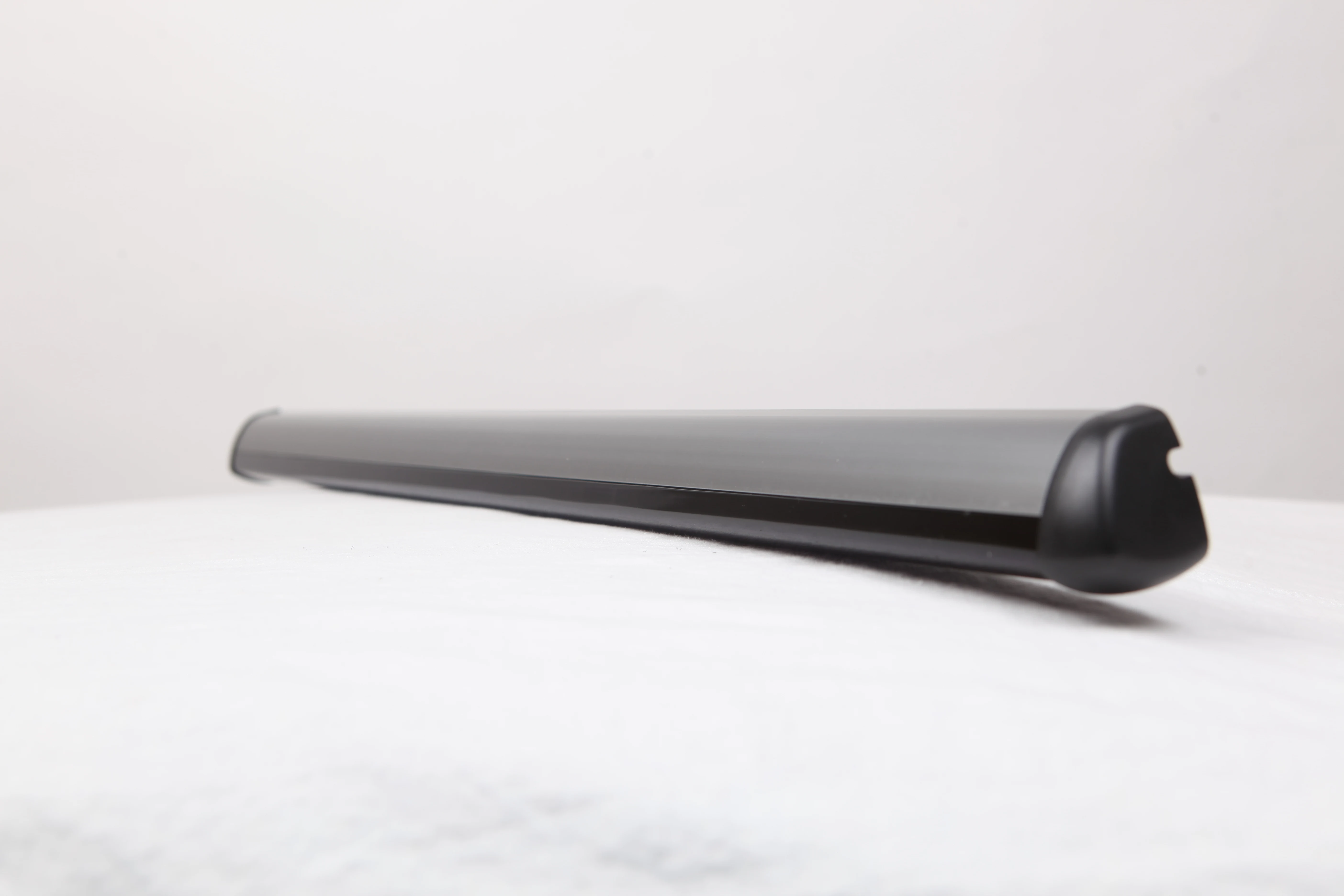

Original factory automatic door infrared anti pinch light curtain beam sensor
- Category: >>>
- Supplier: Shenzhen Winfor Canbo Technology Co. Ltd.
Share on (1600058403296):
Product Overview
Description
Product Description
CNB-227
For the safe use of automatic doors, to avoid claping people or things, we have a series of products for all kinds of automatic doors.
M-227 INFRARED TOP SCAN, can accurately detect the moving or fixed human body and objects, avoid all kinds of rotating automatic sensing door or swing door from colliding with body or objects, to ensure the safety of people and equipment, widely used in automatic revolving door safety presence occasions.
M-229E SAFETY CURTAIN SENSOR, it is specially used for automatic sliding door as safety presence detect. Can accurately detect human body and objects in the moving area of automatic sliding door avoid being clipped.
M-261 INFRARED SAFETY GRATING SET, it is widely used in elevator and automatic door as safety presence(person or objects) funtion. Can accurately and reliably detect the people or objects, provide the door opening signal to elevator or automatic door, so as to avoid the hidden danger incidents of being clipped.

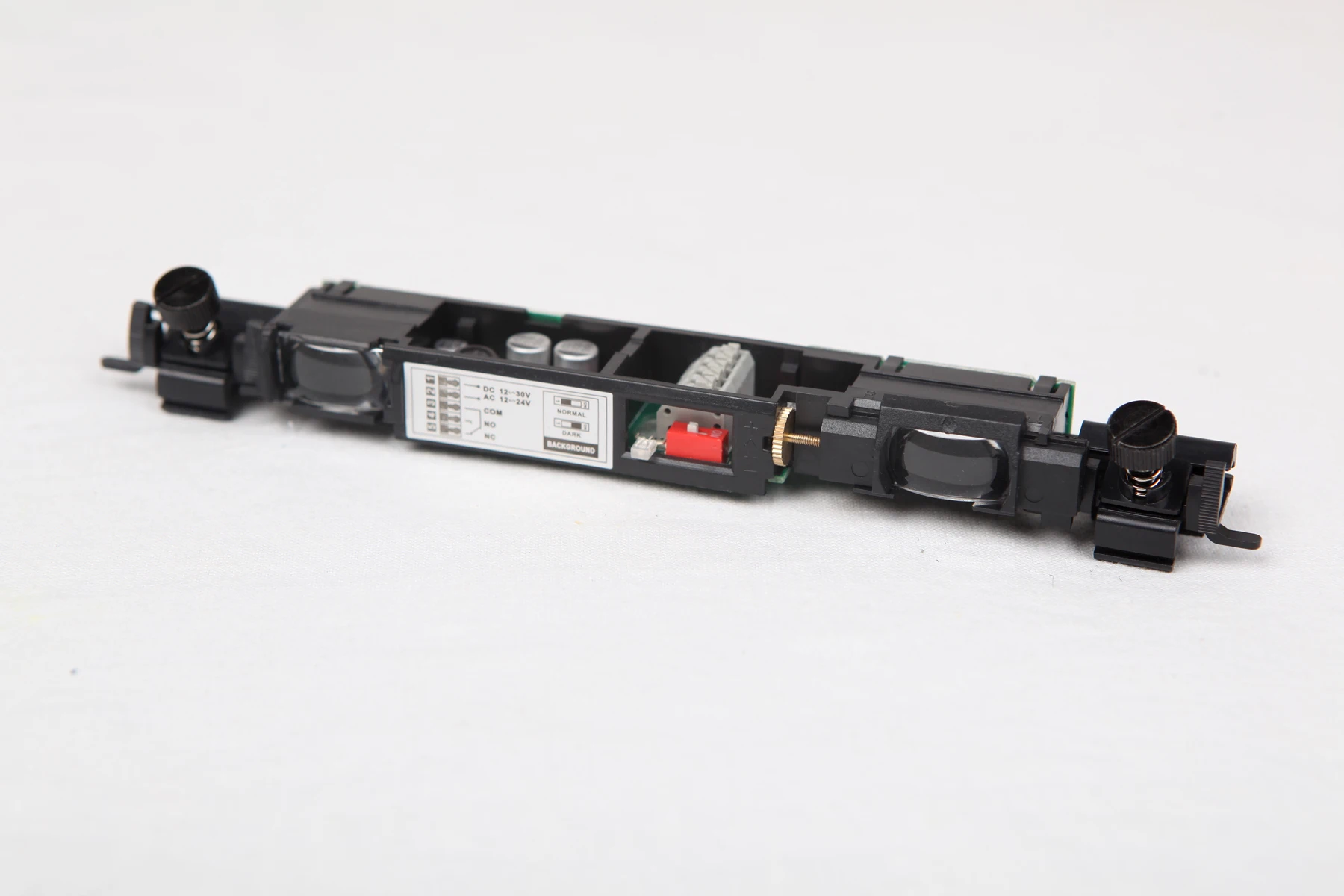

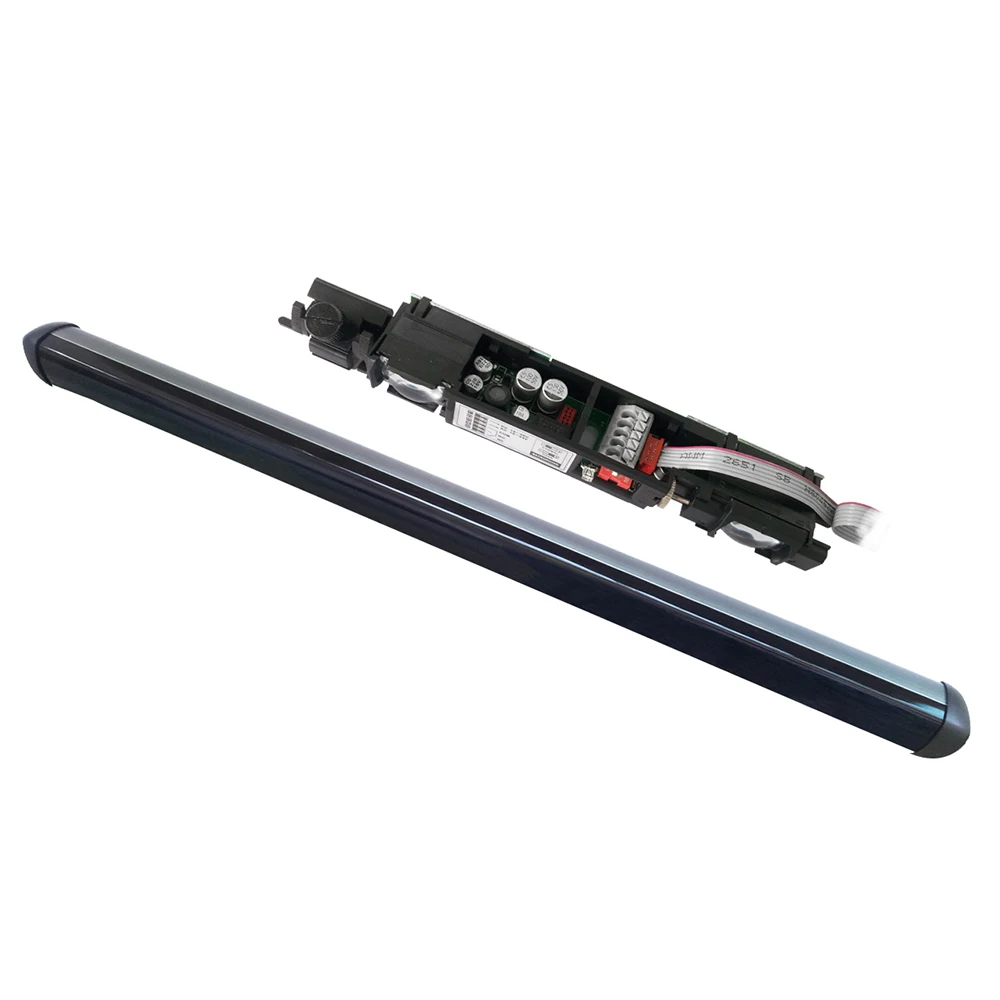

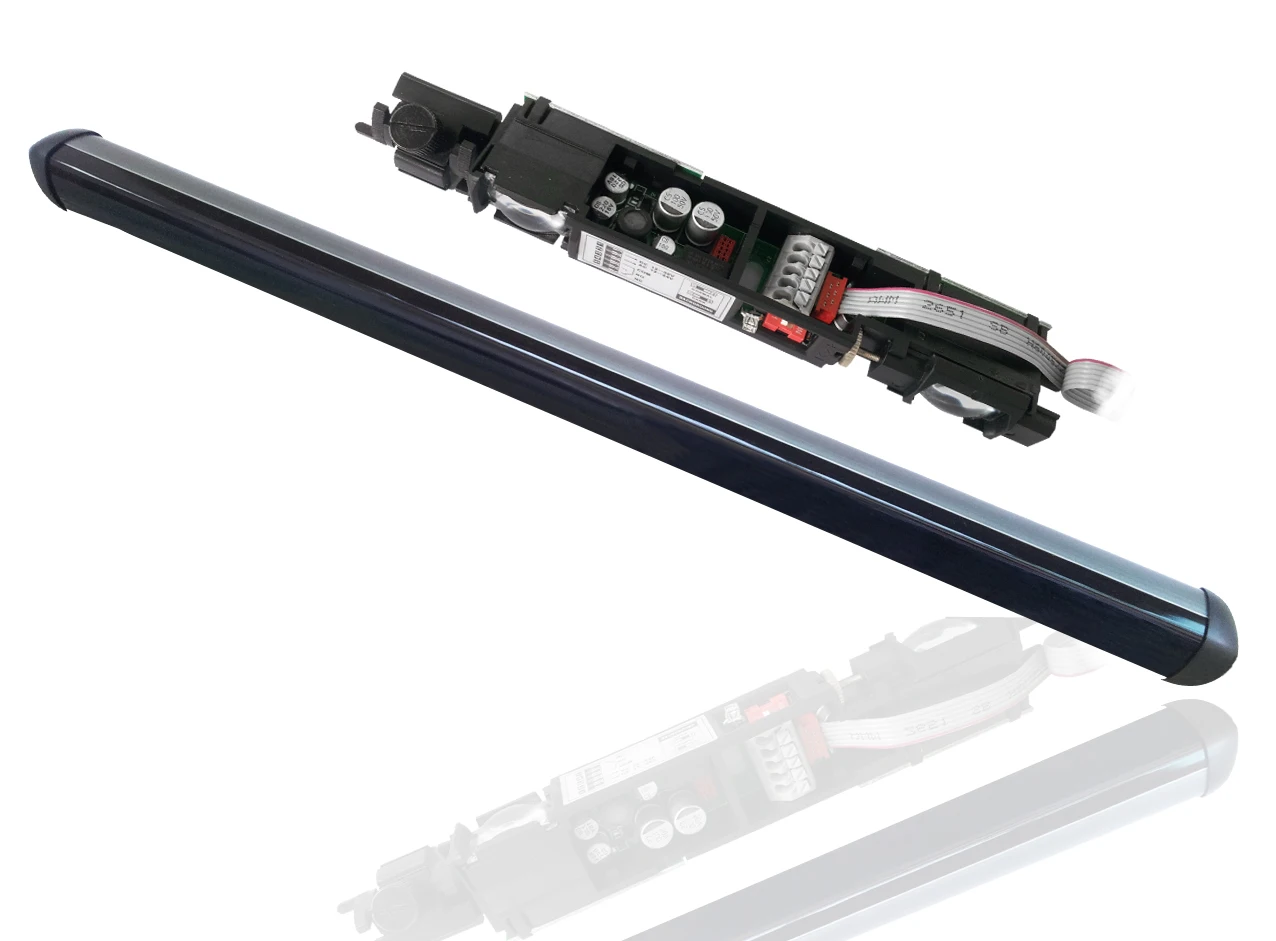

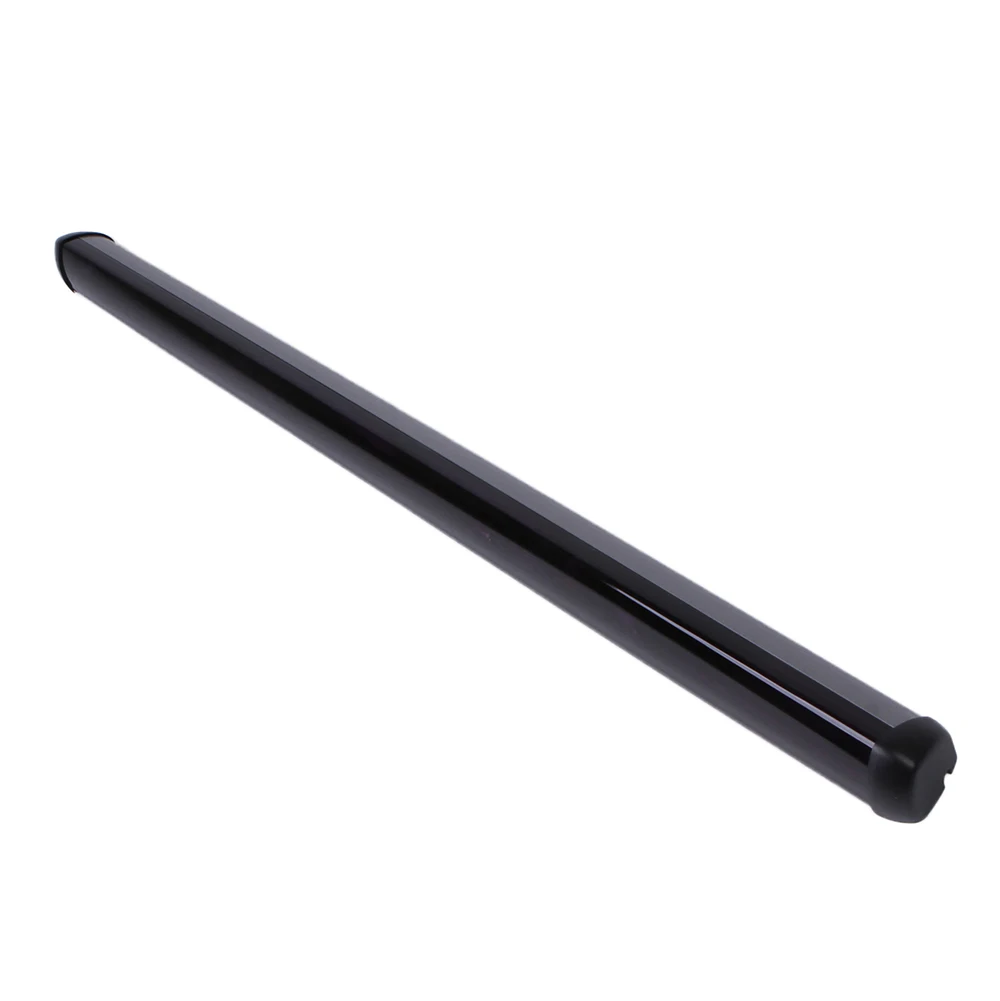

CNB-227 INFRARED TOP SCAN

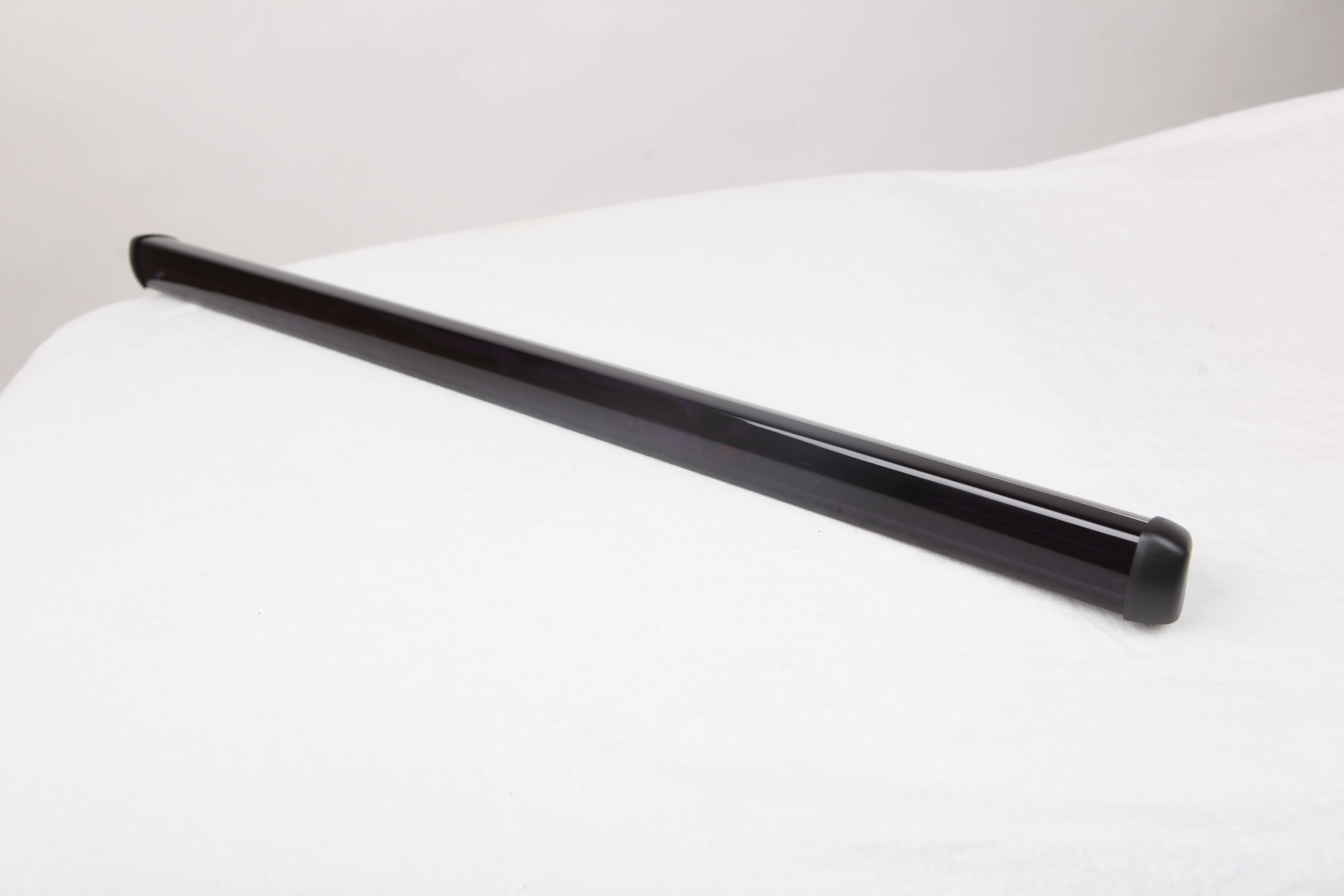

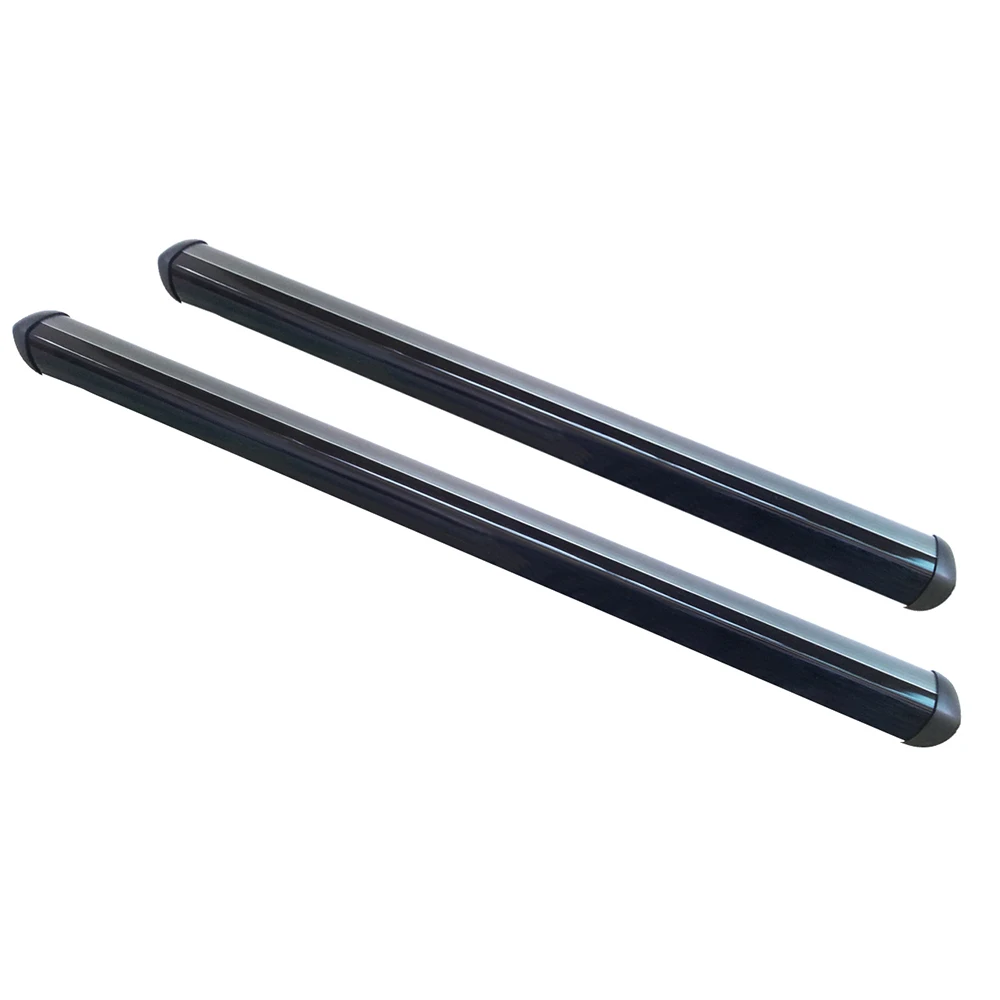

CNB-227A/B SAFETY CURTAIN
1, Exquisite structure, fashionable and simple appearance, easy to install.
2, Flexible adjustment of the detection height and sensing range by adjusting wheel and locking screw, fast and accurate.
3, The system with strong operating voltage stability, and has background noise filtering system, which is not affected by the environment (like sunshine, snow, rain etc.)
4, The detection angle of scanning can be adjusted accurately by mounting a bracket.

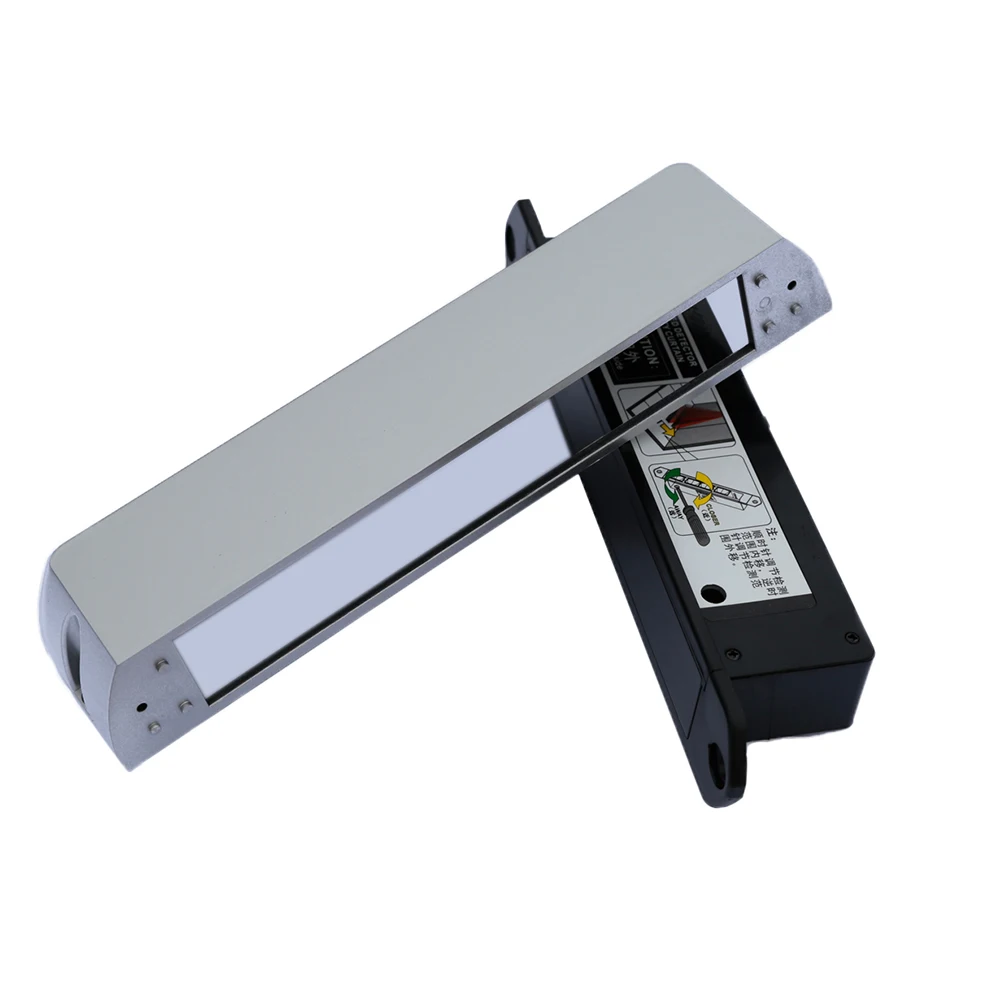

CNB-229 SAFETY CURTAIN SENSOR

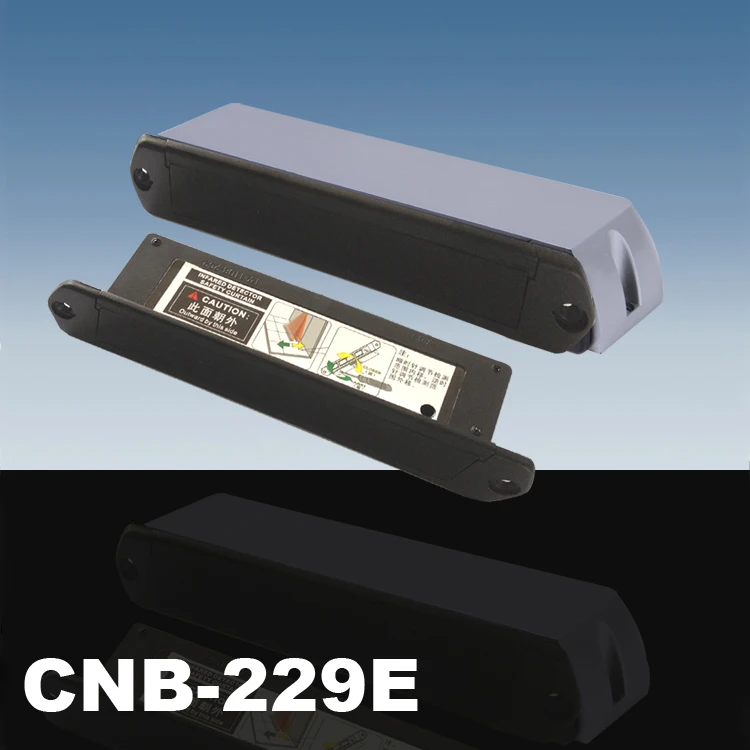

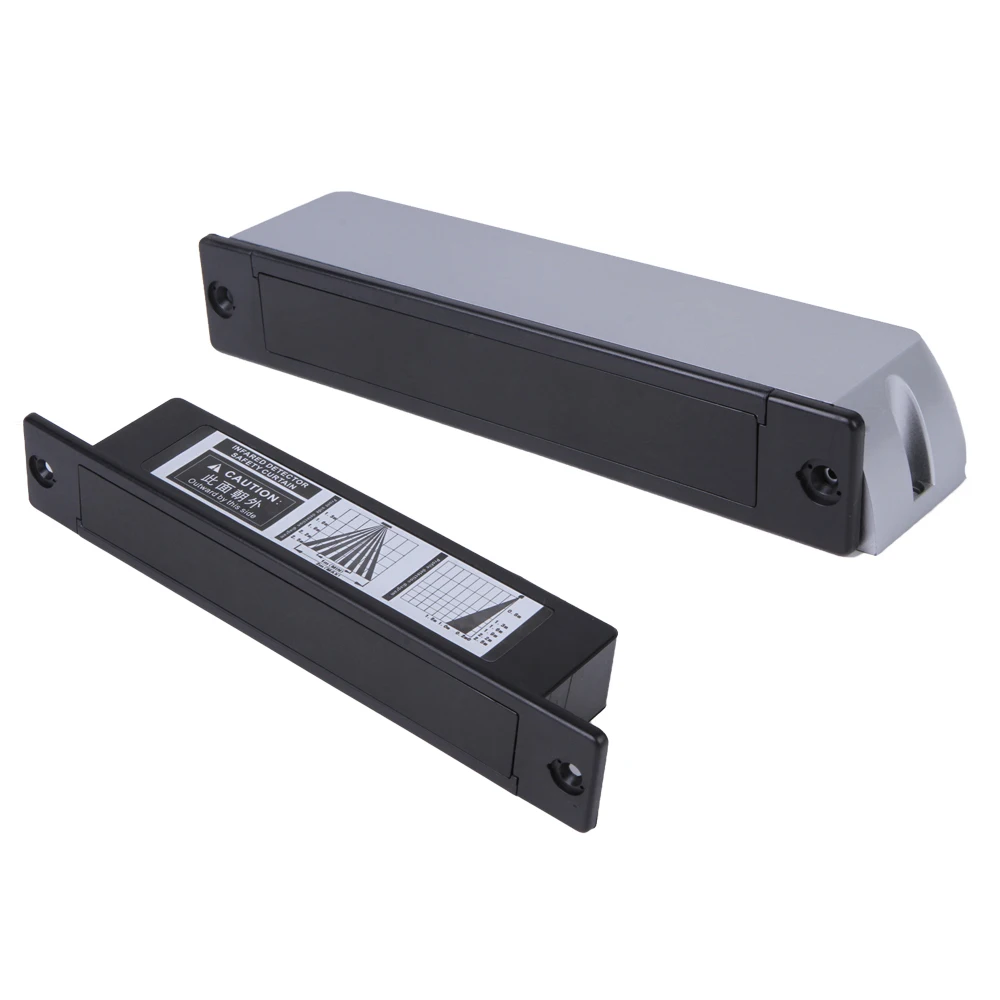

CNB-229E SAFETY CURTAIN SENSOR
CNB-229E SAFETY CURTAIN SENSOR
1, Equipped with the anti-mutual induction function of adjacent sensor, it will not cause false induction.
2, Adopt background self-learning function, automatically learn background state when booting, inteligently adapt to various scenes.
3, Automatic and real-time accurate compensation for time drift of the background, self-correction due to changes in various external factors to ensure the long-term and reliable operation of the detector.
4, Suitable for the detection of human body presence in the area of automatic sliding door or other occasions. It can accurately detect the human body and objects in the moving area of automatic sliding door to avoid being clipped and collision. Can also provide presence signal for other equipment.

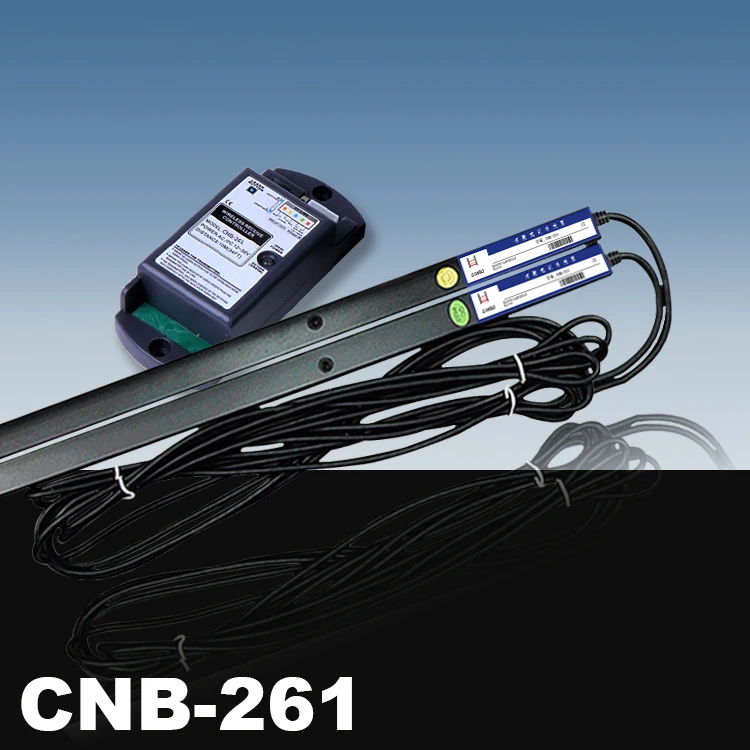

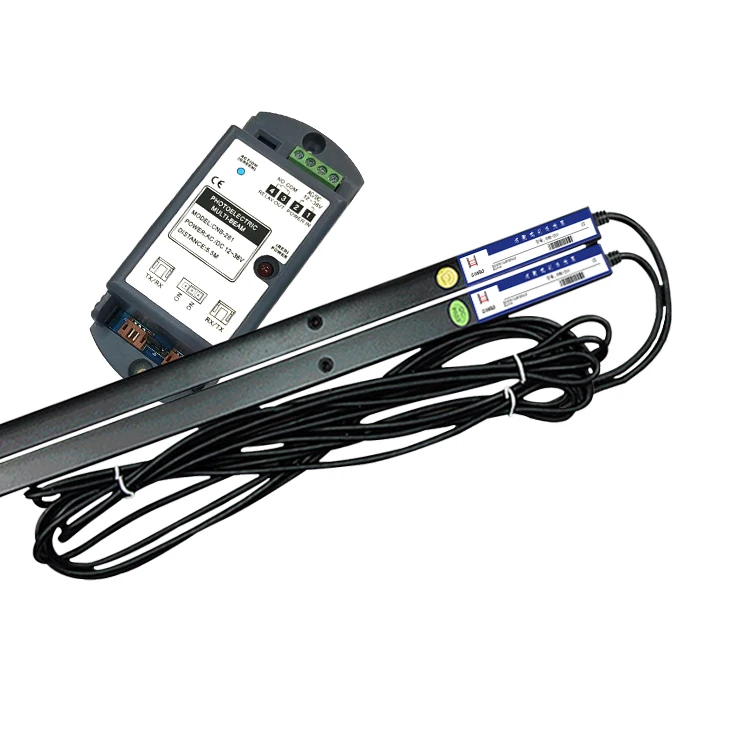

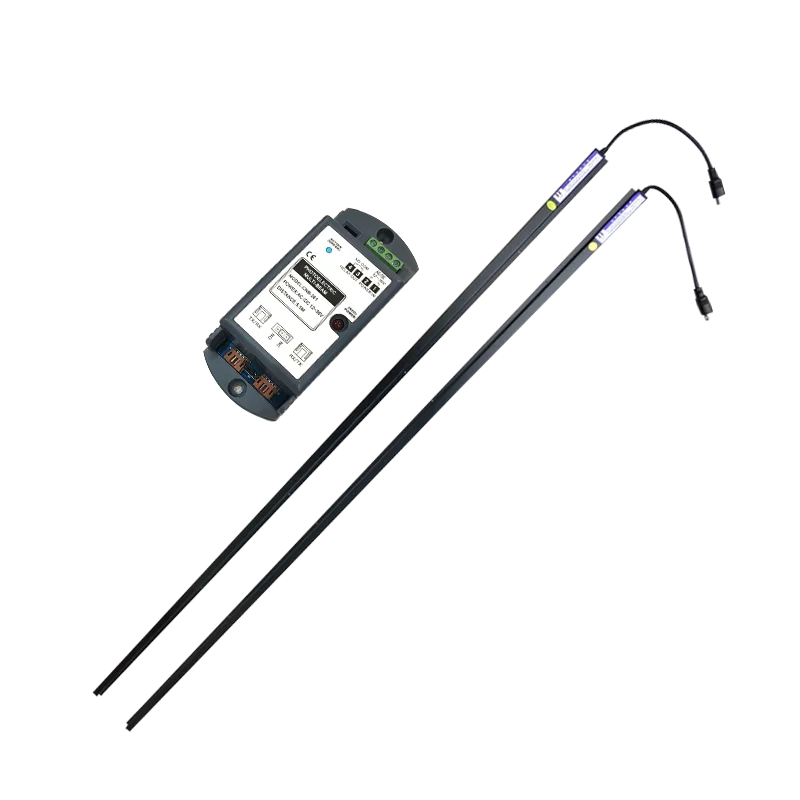

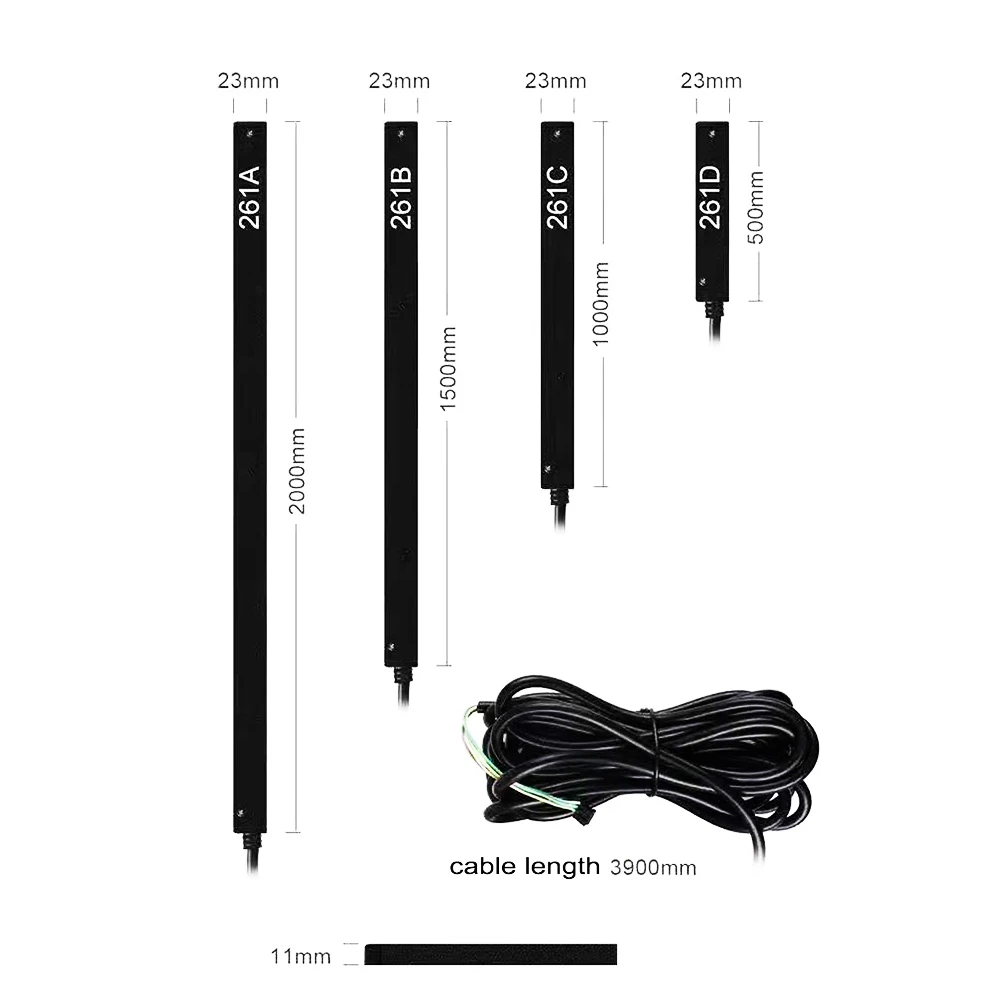

CNB-261 SAFETY INFRARED GRATING
CNB-261 SAFETY INFRARED GRATING
CNB-261 SAFETY INFRARED GRATING
1, Adopt microcomputer control technology, high system integration, strong stability.
2, Socket-to-plug connection, more convenient installation.
3, Timeout reminder function, on and off options can be selected.
4, Anti-redundancy function, on and off options can be selected.
5, The time of anti-redundancy, four gears can be adjusted.
Specification
Item | Safety light curtain | Infrared safety grating sets |
Brand | Canbo | Canbo |

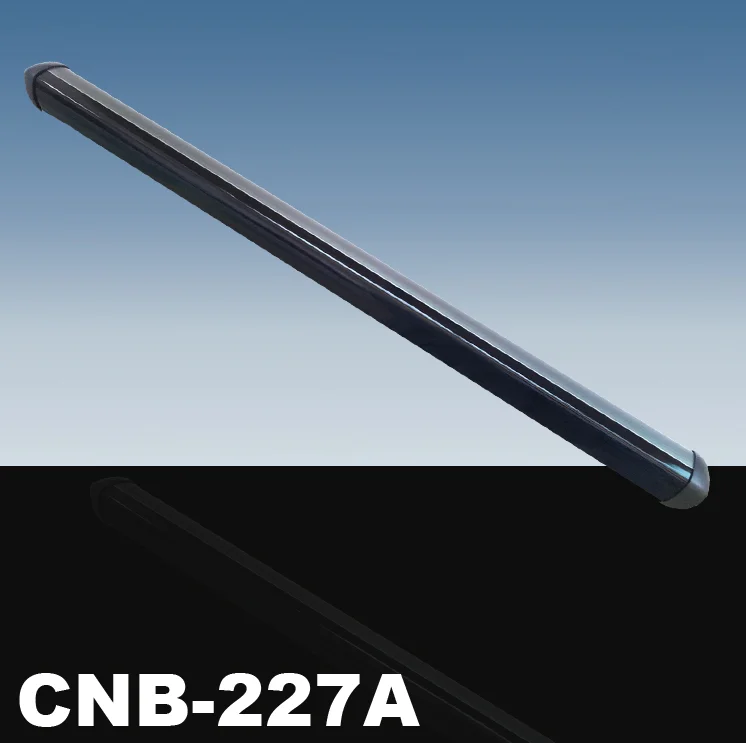

Model | CNB-227A | CNB-227B |
Application | Rotating auto-door/swing door | Rotating auto-door/swing door |
Power input | DC12-30V AC12-24V | DC12-30V AC12-24V |
Detect range | ø75mm spot, 1.5-2.5m adjustment | ø75mm spot, 1.5-2.5m adjustment |
Max.install height | install it on top of the door leaf | install it on top of the door leaf |
Diamension | 750/900/1200(L)x31(W)x20(H)mm | 620(L)x31(W)x20(H)mm |
Warranty | 1 Year | 1 Year |
Item | Safety curtain sensor |
Brand | Canbo |
Model | CNB-229/229E |
Application | Sliding auto-door |
Power input | AC/DC 12-30V (-/+10%) |

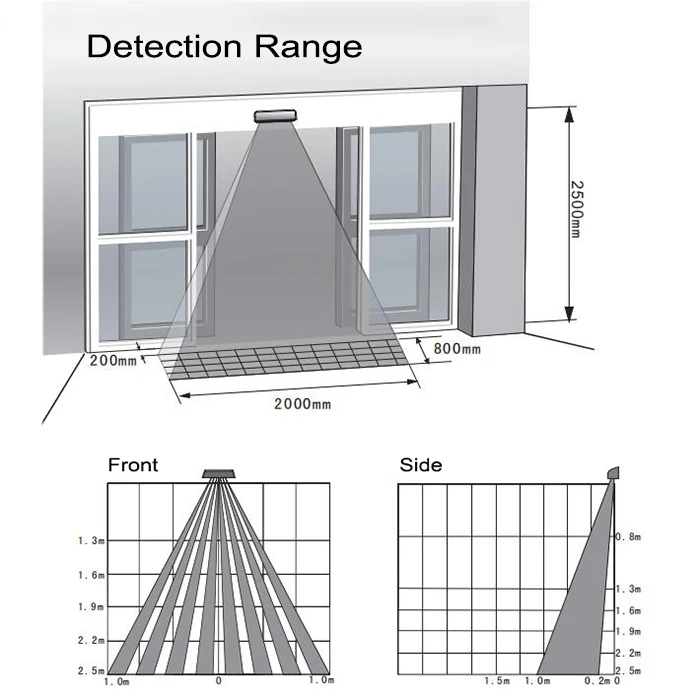

Detect range | 2000(W)x500(D)mm |
Max.install | 2500mm |
Beams | Infrared 940mm, Light beam: Eight transmiting, eight receiving |
Diamension | 200(L)x49(W)x32(H)mm (surface mounting) |
Diamension | 152(L)x25(W)x36(H)mm (Concealing mounting) |
Warranty | 1 Year |
Item | Infrared safety grating sets | |||
Brand | Canbo | |||
Model | CNB-261 | |||
Application | Elevator / sliding auto-door | |||
Power input | AC/DC 12V~36V | |||
Wiring length: | 4 meters / each | |||
Scanning distance: | 10cm～500cm | |||
Beam pitch: | 60mm | |||
Product size: | 2000x24x11mm | 1500x24x11mm | 1000x24x11mm | 500x24x11mm |
Scanning beam: | 32 | 24 | 16 | 8 |
Static current(12V): | 150mA | 130mA | 110mA | 90mA |
Response time: | 104ms | 78ms | 52ms | 26ms |
Warranty | 1 Year |
Details Images
Packing & Delivery

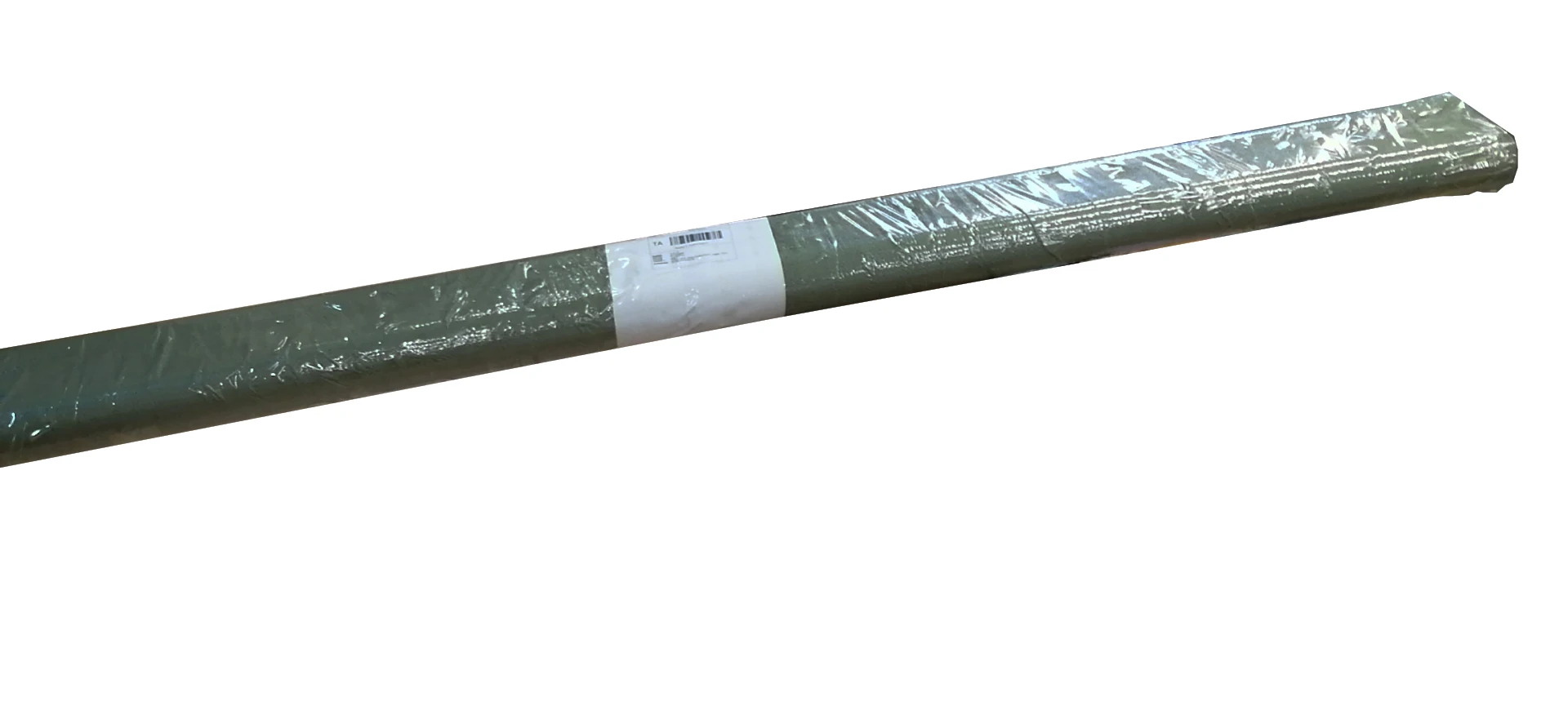

Packing: poly bag + PE foam + inner box + outer box, screws will be packed into a zipcode bag.
(Maybe there will be some differences in the way of packing for different models of products )
