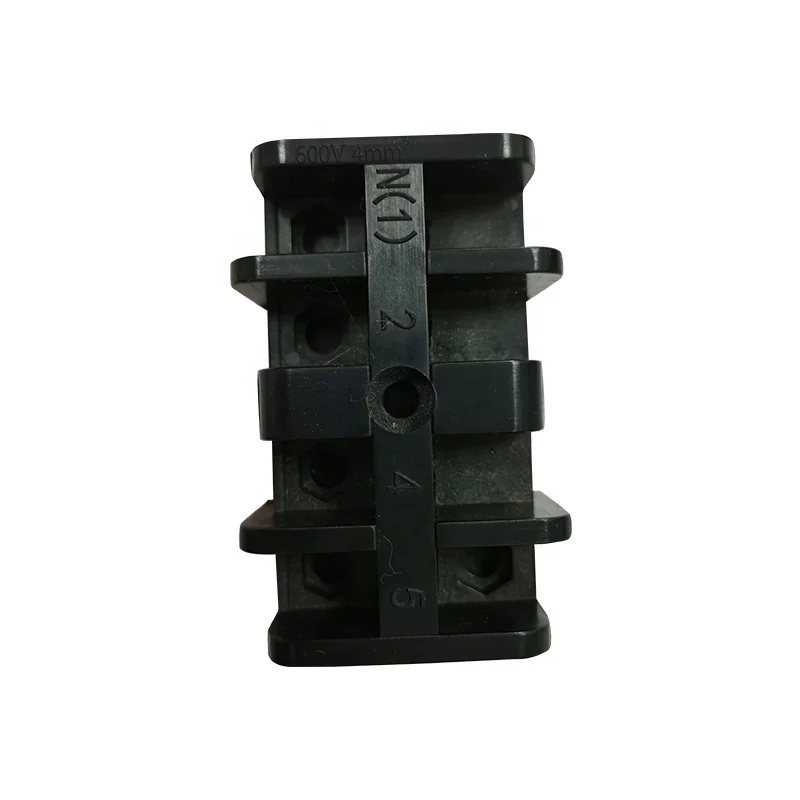

For general purpose, based on Novolac with wood flour and other mineral additives, UL certified, suitable for injection and transfer process. Mainly used to make insulation structural parts of low voltage electrical equipment as well as daily utensil parts, etc. The product is in granular form.
Technical data
Properties
Indexes
Specific gravity -
1.40-1.50
Flexural strength MPa
70-90
Stress at break MPa
40-60
Charpy impact strength(notchecd) kJ/m2
1.4-2.1
Charpy impact strength(unnotchecd) kJ/m2
5.0-7.0
Tf1.8Mpa）Temperature of deflection under load ∞C
160-175
Flammability(glow bar)，BH
≤BH2-10
Flame test UL-Subject 94 0.8mm
V-0
Volume resistivity Ω.cm
1011-1013
Surface resistivity Ω
1011-1013
Electric strength kV/mm
10-20
Proof tracking index，PTI
125-175
Dissipation factor（tanδ1M）
0.04-0.10
Moulding shrinkage %
0.70-0.90
Water absorption mg
30-70
Flow rate(Raschig) mm
60-180
Arc resistance PLC
5
Moulding condition for compression(for reference)
Barrel temperature ∞C
Moulding temperature ∞C
Injection pressure
MPa
Keeping pressure
MPa
Keep time
s/mm
Nozzle
Inlet
Fixed mould
Moving mould
MPa
MPa
s/mm
80-95
65-80
165-175
170-180
80-160
100-200
20-30
Package and storage
Packed in moisture-proof liner bags to keep dry; the net weight is 25kg. The type, batch number, weight and manufacture date of product marked on the bag. Prevented from moisture and heat. Stored in the storehouse of dry ventilation. The product storage life is one year.
Company Information

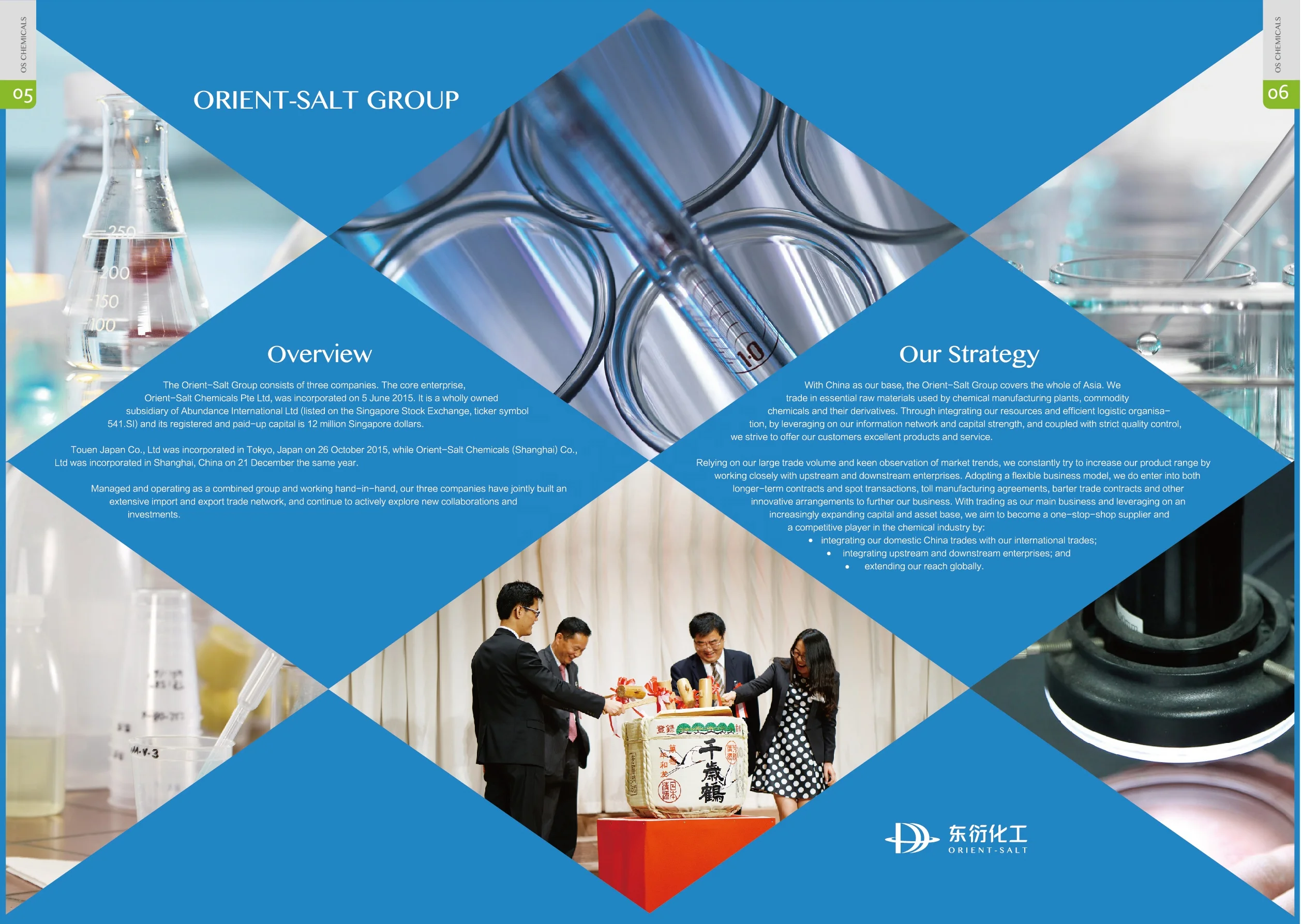

Overview
The Orient-Salt Group consists of three companies. The core enterprise, Orient-Salt Chemicals Pte, was incorporated on 5 June 2015. It is a wholly owned subsidiary of Abundance International Ltd.
Touen Japan Co., Ltd was incorporated in Tokyo, Japan on 26 October 2015, while Orient-Salt Chemicals (Shanghai) Co., Ltd was incorporated in Shanghai, China on 21 December the same year.
Managed and operating as a combined group and working hand-in-hand, our three companies have jointly built an extensive import and export trade network, and continue to actively explore new collaborations and investments.
Our Strategy
Relying on our large trade volume and keen observation of market trends, we constantly try to increase our product range by working closely with upstream and downstream enterprises. Adopting a flexible business model, we do enter into both longer-term contracts and spot transactions, toll manufacturing agreements, processing trade, barter trade contracts and other innovative arrangements to further our business. With trading as our main business and leveraging on an increasingly expanding capital and asset base, we aim to become a one-stop-shop supplier and a competitive player in the chemical industry by:
• integrating our domestic China trades with our international trades; • integrating upstream and downstream enterprises; and • extending our reach globally.
Business Partner

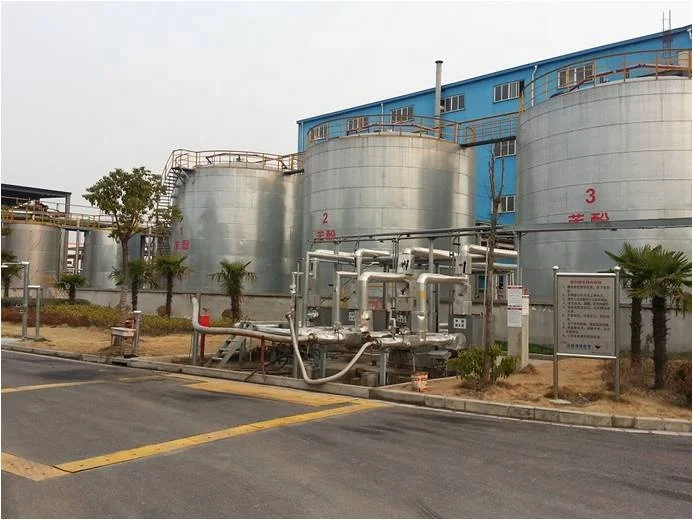

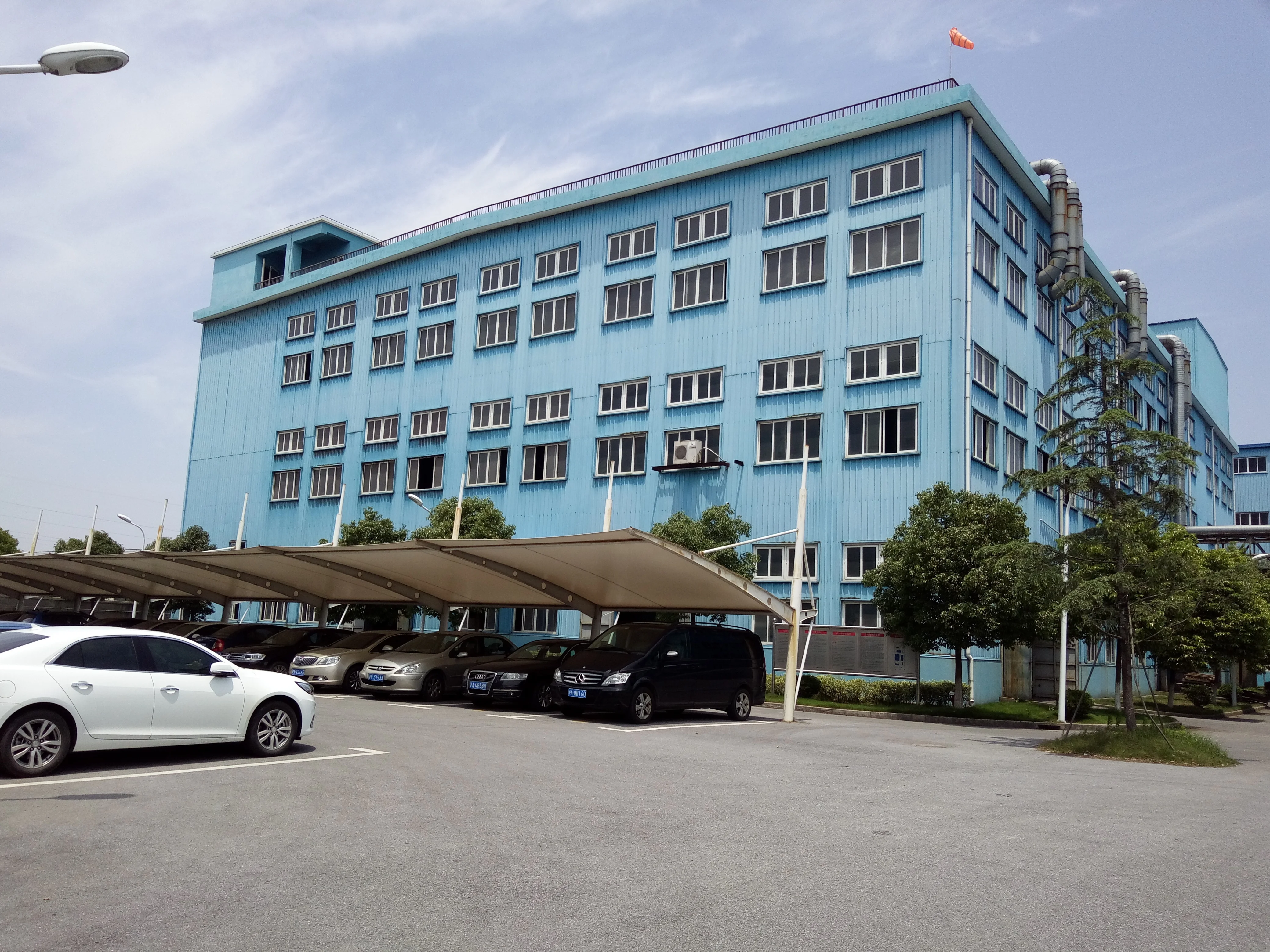

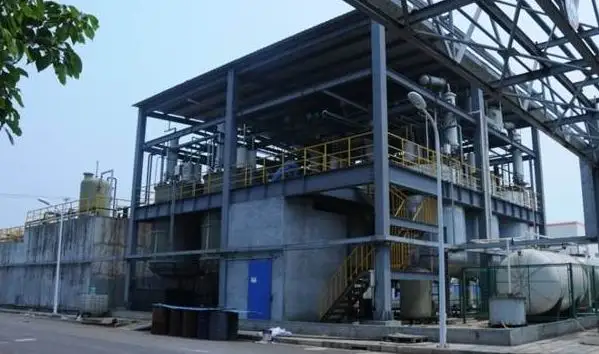

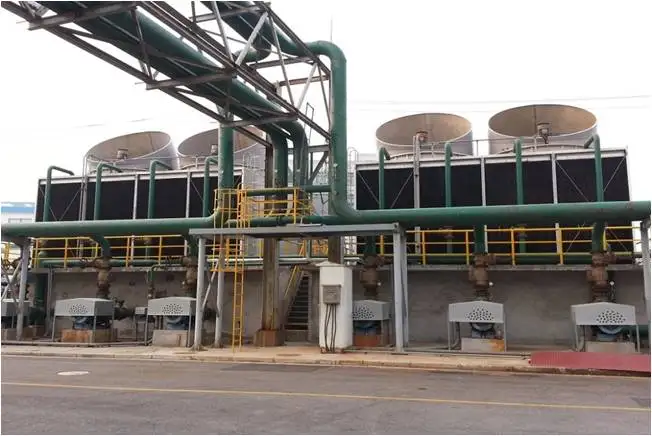

Our Factory
Our factory devoted itself in technical progress, development and research. Through efforts of all engineers and technicians, our factory has developed a series of new varieties of functional injection molding compounds with excellent performance (heat resistance, impact resistance, anti-bacterial, low-chlorine , etc.) and obtained 9 authorized patents, among which, 8 patents of invention and 1 patent of utility model. Meanwhile, as an influential enterprise in the industry, our factory has been in charge of the drafting of three National Standards and we are drafting another 5 National Standards. And also participated in drafting more than 10 relevant standards.

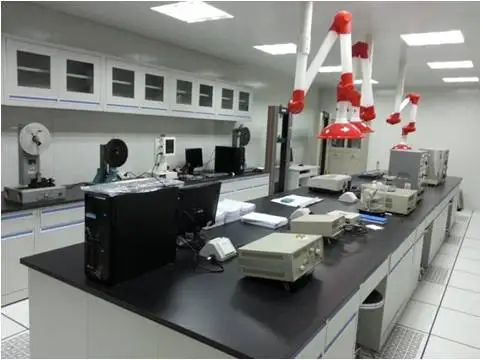

Our factory has advanced inspection equipments and complete test measures to ensure the stable and reliable quality of the products . Our factory has been identified as Shanghai HIGH-tech Enterprise, while its main products have passed the certifications of UL and its quality control system has passed the certification of ISO9001:2008.
FAQ
Q1: Are you a manufacturer or trading company? Re: Orient-Salt Chemicals (Shanghai) Co., Ltd is a trading company, while we also have our own manufacture for processing Isopropanol with imported materials .
Q2: What's your MOQ for acetic acid? Re: We provide acetic acid in 30kg drums, 215kg drums, IBC drums, but our MOQ is 1*20FCL.
Q3: What's your best price? Re: Please contact us by trademanager or email directly. The best price will be offer to you in time. And the latest price will be update to you in future if any change.
