High efficiency Newland FM430 USB RS232 Fixed Mount Scanner

Share on:


Price:$60.00 - $65.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

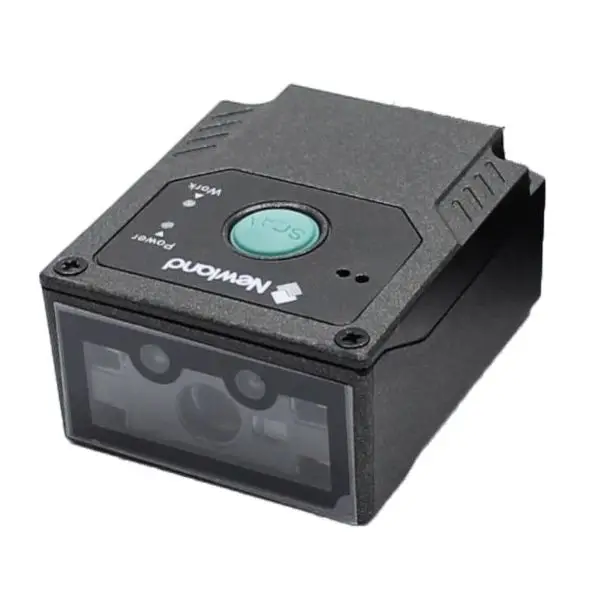

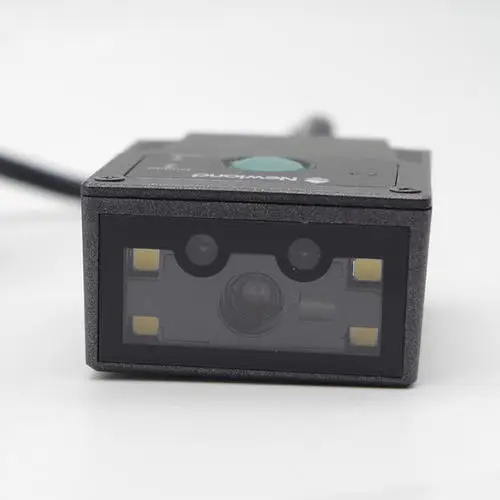

Newland FM430 USB RS232 Fixed Mount Scanner


Features


 IR/Light Triggers


The combination of IR sensor and light sensorexhibits an improved sensitivity in activating the scanner to scan barcodes asthey are presented, to achieve higher throughput and productivity.








¦  Automatic Exposure Control (AEC)


The sensor in the NLS-FM430 automatically adjusts the supplementary lighting duration based on the light reflected off barcode.








¦  IP54-sealed Housing


The NLS-FM430 is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.





¦  Unmatched Reading Performance


Armed with Newland’s fifth-generation of    technology, the NLS-FM430is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.








¦  Highly Visible Laser Aimer


The NLS-FM430 provides a laser-generatedcrosshair aiming pattern that is clear and bright even in bright sunlight, ensuringfirst time accurate aim.








¦ 1.5m Drop Resistance


The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).



















































































































































Performance


Image Sensor


1280 * 800 CMOS


Illumination

Aiming


White LED

Laser diode or green LED


Symbologies


2D











PDF417, QR Code, Data Matrix,

AZTEC, CSC, Maxicode,

Micro QR, Micro PDF417, GM ,

Code One, etc.


1D

















EAN-13, EAN-8, UPC-A, UPC-E, Code

128, Code 39, Codabar, UCC/EAN

128, RSS, ITF, ITF-14, ITF6, Standard

25, Matrix 25, COOP 25, Industrial

25, Plessey, MSI Plessey, Code 11,

Code 93, Code 49, Code 16K, etc.


Resolution*


≥3mil


Typical Depth of Field*


EAN-13


55-360mm (13mil)


Code 39


70-180mm (5mil)


PDF417


55-160mm (6.7mil)


Data Matrix


50-170mm (10mil)


QR Code


40-210mm (15mil)


Scan Mode


Sense mode, Continuous mode, Level mode, Pulse mode


Scan Angle**


Roll: 360°,  Pitch: ±55°,  Skew:±55°


Field of View


Horizontal 51°,  Vertical 32°


Min. Symbol Contrast*


25%


Mechanical/

Electric


Interface


RS-232, USB


Dimensions


41.5(W)×49.5(D)×24.3(H)mm


Weight


75g


Notification


Beep, LED indicator


Rated Power Consumption


1622 mW (typical)


Operating Voltage


5VDC±5%


Current @ 5VDC


Operating


276.8mA (typical), 322.7mA (max.)


Standby


83.3mA


Environmental


Operating Temperature


-20 to 60 (-4°F to 140°F)


Storage Temperature


-40 to 70 (-40°F to 158°F)


Humidity


5% to 95% (non-condensing)


ESD


±14 kV (air discharge),  ±8 kV (direct discharge)


Drop


1.5m


Sealing


IP54


Certifications


FCC Part15 Class B, CE EMC Class B, RoHS, IEC60825, IEC62471, KC


Environmental


Cable


USB





Used to connect the NLS-FM430 to a host device.


RS-232





Used to connect the NLS-FM430 to a host device.


Power Adapter


DC5V adapter to power the NLS-FM430 with RS-232 cable.















We have been awarded 'SME High-Tech Enterprises in Jiangsu Province'; obtained 20 application patents and 10 Software copyright. For the high quality of our production, we were given the honor of ISO9000 certification and ULcertification.
Various testing instruments along with abrasive cutting off machine. Teat paper slitting machine and Adhesive label machine are applied in the company. With the present manufacturing facilities, we are able to produce an annual capacity of 300 metric ton of products approximately. These products have gained a good reputation and customer base in South East Asia and other regions.
Our company business philosophy is to provide our excellent services, excellent quality as well as competitive pricing to our clients; we welcome your enquiry and to make successful stories together with your esteem companies.
