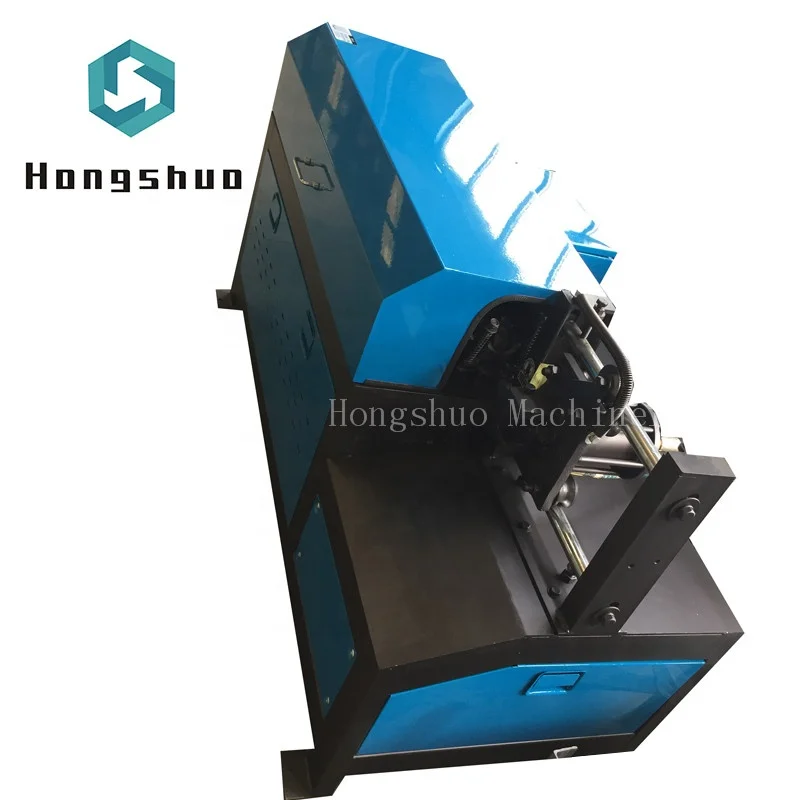

Automatic Wire Bar Straightening And Cutting Machine Automatic Steel Coil
- Category: >>>
- Supplier: Xuchang Hongshuo Machinery Co. Ltd.
Share on (1600058770194):
Product Overview
Description
Automatic Wire Bar Straightening And Cutting Machine Automatic Steel Coil
Product Description
The YGTQ series NC straightening and cutting machines has the features as following:
1) Speed can be adjusted
2) Straightening fast without distortion
3) High yield and low consumption
4) No hurt to the ribs, stably running, small cutting errors
5) Low failure rate: work with high performance for a lone time under normal condition debugging.
This automatic bar straightening and cutting machine is efficient for cutting steel bars on project. It can cut different kinds of
round steel bar and deformed steel bar. It’s made of high steel knife seat and connecting shaft, international standard high speed
motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and
easy moving with four wheels and the knife can be manually controlled.
1) Speed can be adjusted
2) Straightening fast without distortion
3) High yield and low consumption
4) No hurt to the ribs, stably running, small cutting errors
5) Low failure rate: work with high performance for a lone time under normal condition debugging.
This automatic bar straightening and cutting machine is efficient for cutting steel bars on project. It can cut different kinds of
round steel bar and deformed steel bar. It’s made of high steel knife seat and connecting shaft, international standard high speed
motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and
easy moving with four wheels and the knife can be manually controlled.

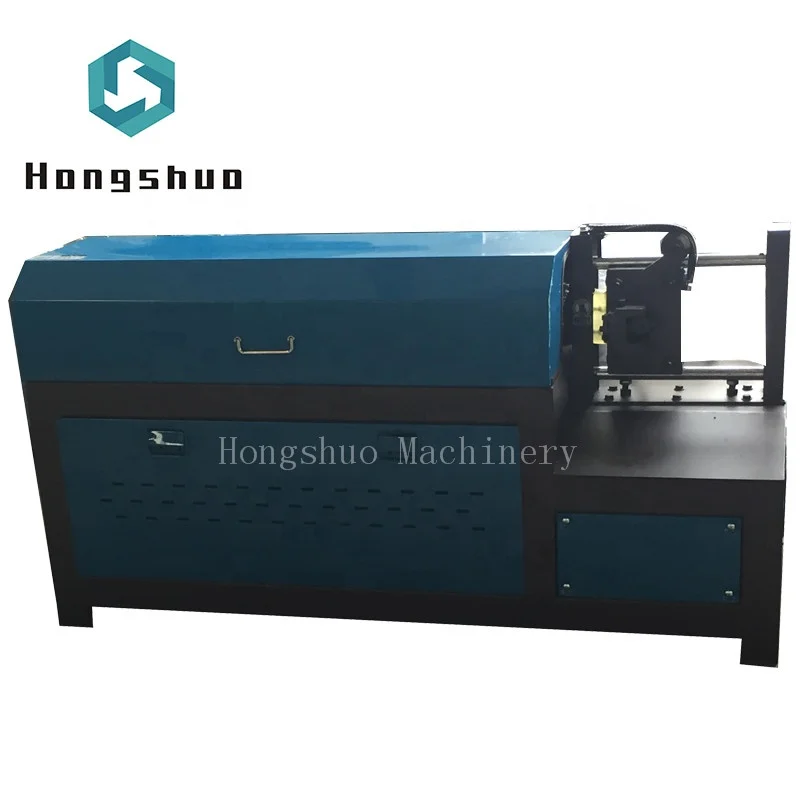

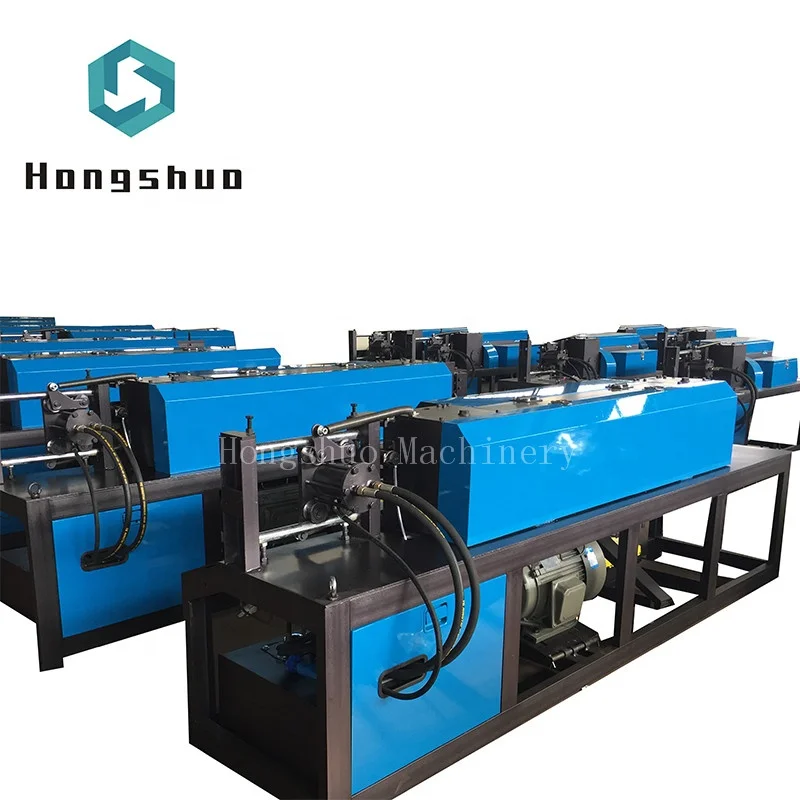

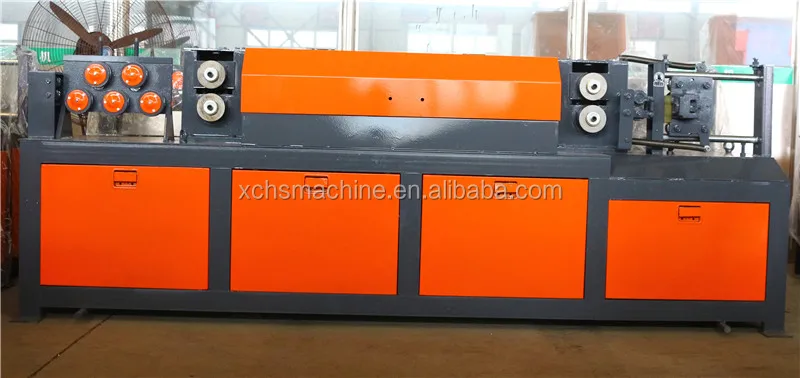

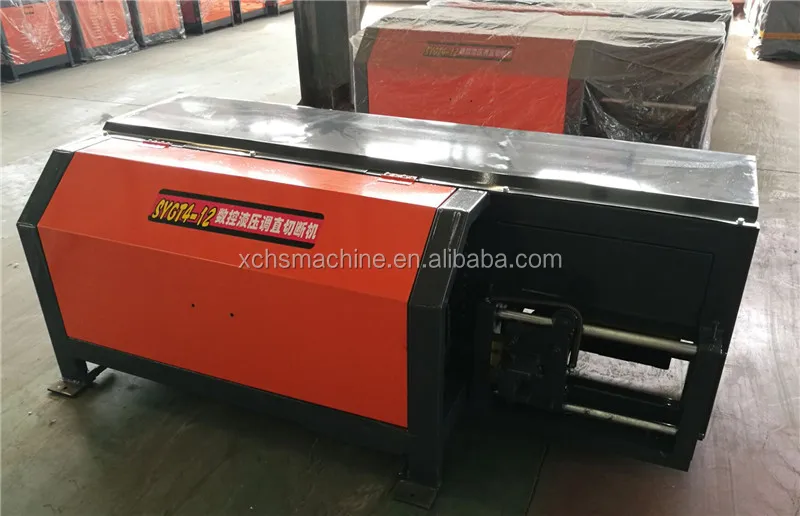

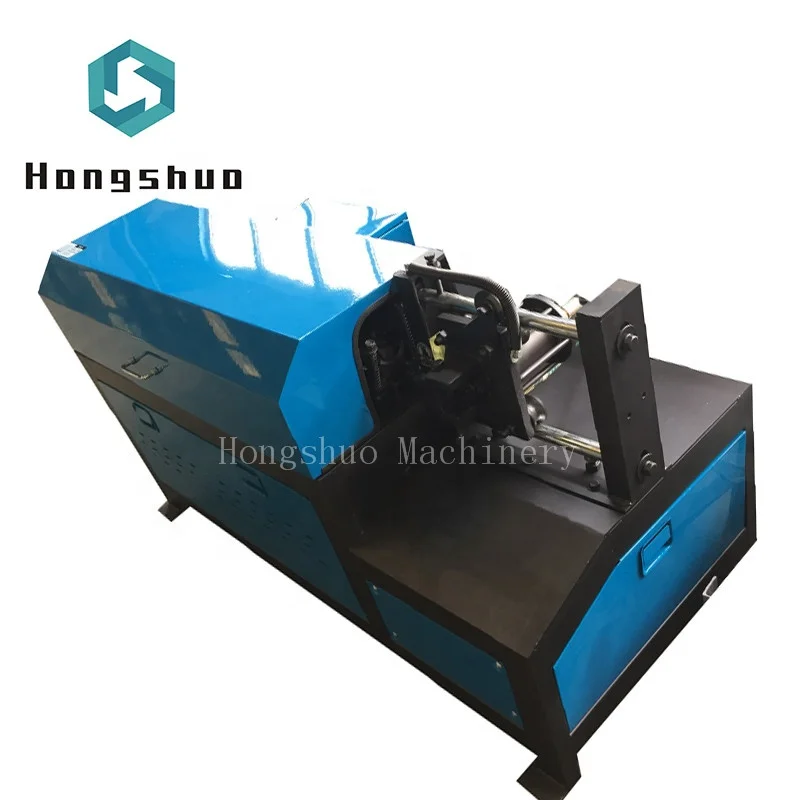

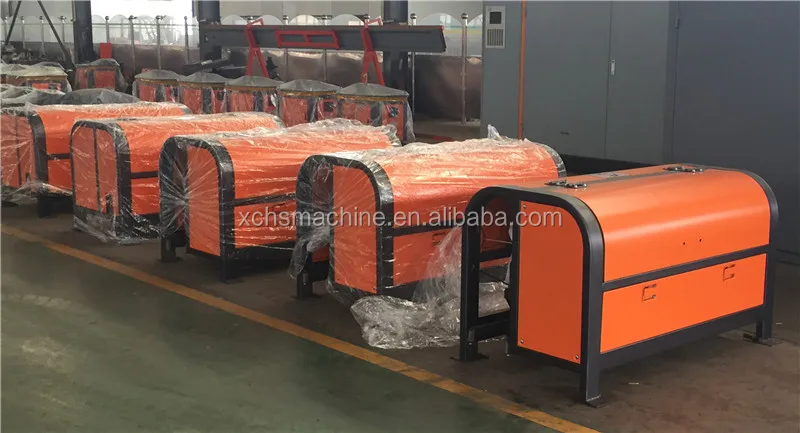

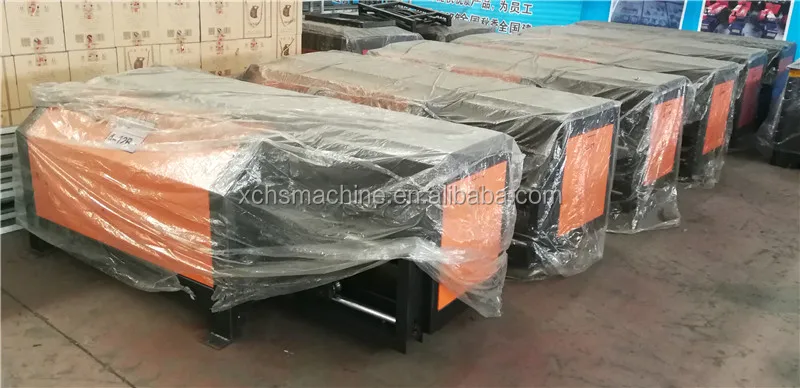

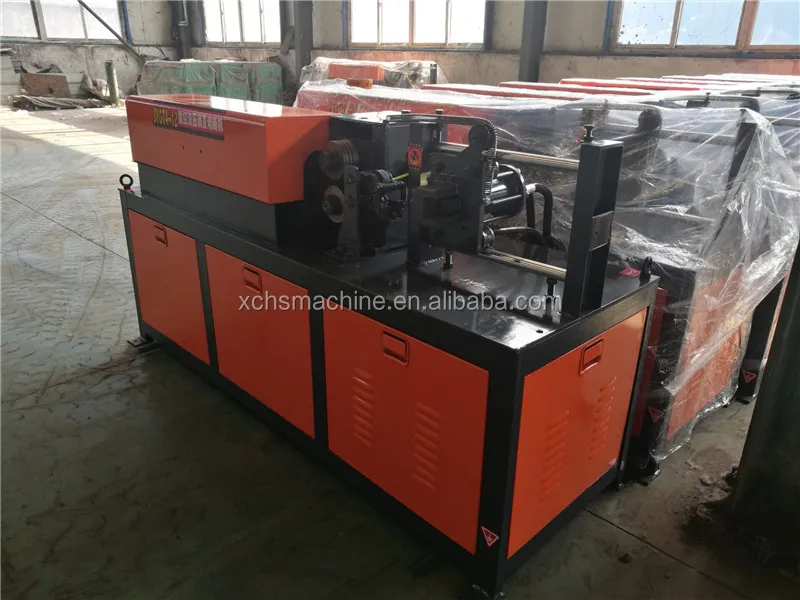

Machine Photos
Specification
Model Number | YGTQ4-10 | YGTQ4-12(1) | YGTQ4-12(2) | YGTQ5-14 | YGTQ6-16 |
Round steel bar(mm) | φ 4-φ 10 | φ 4-φ 12 | φ 4-φ 12 | φ 5-φ 14 | φ 6-φ 18 |
Deformed steel bar(mm) | φ 4-φ 8 | φ 4-φ 10 | φ 4-φ 10 | φ 5-φ 12 | φ 6-φ 16 |
Cutting length(mm) | 200-8000 | 300-8400 | 300-8400 | 300-8400 | 300-9500 |
Cutting error(mm) | ±10 | ±10 | ±10 | ±10 | ±10 |
Straighten speed(m/min) | 35-45 | 40-45 | 40-45 | 50-55 | 60-80 |
Pulling motor(kw) | 7.5 | 7.5 | 7.5 | 11 | 15 |
Cutting motor(kw) | / | 5.5 | / | 5.5 | 5.5 |
L*W*H(m) | 1.4*0.65*0.75 | 2.0×0.64×1.3 | 1.9×0.84×0.9 | 2.9×0.64×1.3 | 4.0×6.5×1.2 |
Machine weight(kg) | 360 | 900 | 650 | 1200 | 1500 |

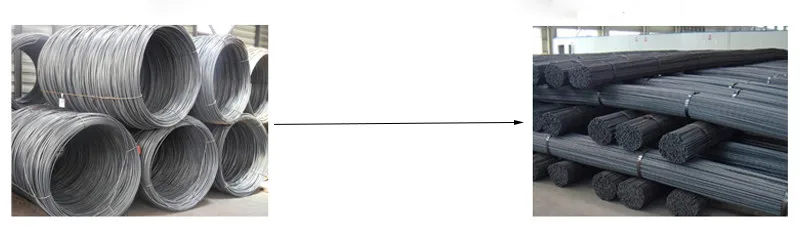

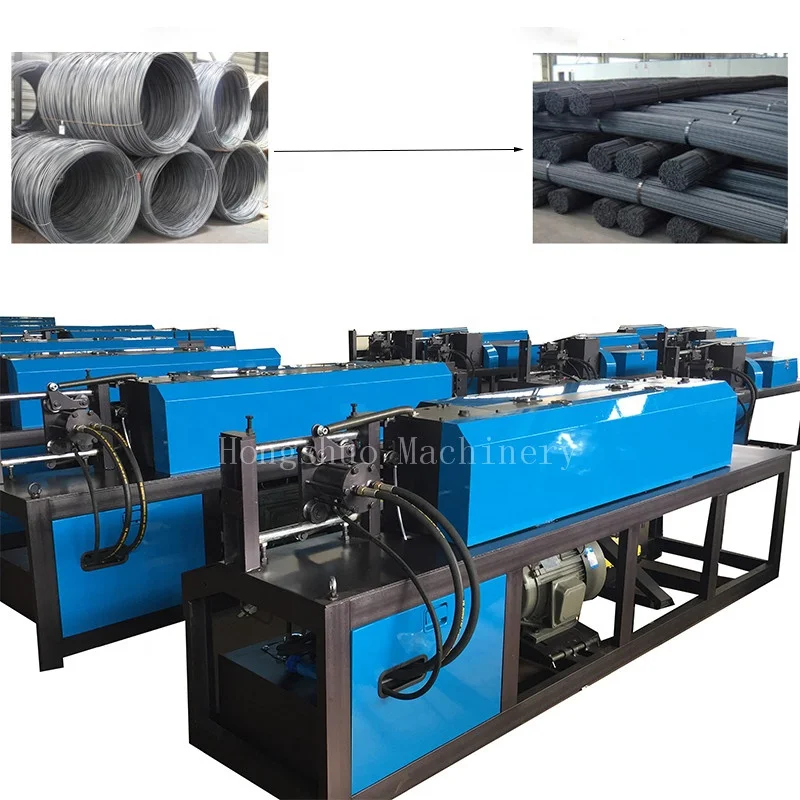

Finished Products
FAQ
--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990.
--2--Q: Can i use this machine to straight and cut different size wire coil?
A: Yes, both smooth wire and ribbed wire can be processed. The cutting length can be adjusted.
--3--Q: Is it difficult to operate?
A: Easy operation, it’s NC automatic type.
--4--Q: Can i visit your factory?
A: Yes, welcome to visit to inspect the production details.
--5--Q: How long is your delivery time?
A: Generally 7 days if in stock. Or 10days if out of stock.
--6--Q: How to pack the machines?
A: We are manufacturer since 1990.
--2--Q: Can i use this machine to straight and cut different size wire coil?
A: Yes, both smooth wire and ribbed wire can be processed. The cutting length can be adjusted.
--3--Q: Is it difficult to operate?
A: Easy operation, it’s NC automatic type.
--4--Q: Can i visit your factory?
A: Yes, welcome to visit to inspect the production details.
--5--Q: How long is your delivery time?
A: Generally 7 days if in stock. Or 10days if out of stock.
--6--Q: How to pack the machines?
